Products Description
Howo Self Loading Truck is a special type of vehicle designed for efficiently loading and unloading goods. With advanced technology and automation, these self loader trucks offer convenience and effectiveness in various industries.
The self loading truck is equipped with a user-friendly interface and programmable controls, making it easy to operate and navigate. Its built-in sensors and cameras help ensure safety during the loading and unloading process. The sinotruck self loader truck's automated system allows for precise positioning and adjustment of the loading arm or conveyor, eliminating the need for manual labor.
Howo self loadingFlatbed trucks are designed to carry specially shaped, oversized or unusually heavy loads. Since there are no restrictions from fences or side panels, cargo can be assembled and secured as needed, ensuring safe transportation. Flatbed trucks also feature convenient loading and unloading, as cargo can easily enter or exit the bed from either side or rear.
Key Features
----► HOWO new NX380 cabin, Volvo technology
----► ZF8098 steering system, LHD drive for africa
----►Front winch system,can pull other trucks in emergency.
----►400L fuel tanker , suitable for long distance transport.
----►Full hydraulic ladder cylinder,for heavy duty machinery.
Howo flat bed truck specification
Sinotruk flatbed truck hydraulic ramp 25ton howo flat bed truck for sale
Flatbed truck is designed for transporting the construction machinery, such as excavator, ballgrader, bulldozer, loader, harvester, etc.Rear ladder is equipped with for easy loading, which operation could be manual or hydraulic.The flatbed body could be extending to 3M with hydraulic system for different requirement.
| Vehicle Description | |
| Overall dimensions | 11500*2500*3400mm |
| GVW | 28000kg |
| Curb weight | 15500kg |
| Chassis brand | SINOTRUK HOWO |
| Traction type | 6*4 |
| Flatbed Description | |
| Loading capacity | 30T |
| Length | 8700mm |
| Material | Checkered plate |
| Thickness | 5mm |
| Standard configuration | Equipped with double spring ladder; Equipped with rear landing leg. |
| Optional configuration | Single cylinder hydraulic ladder; Double cylinder folding ladder; Intermediate extension. |
| Chassis Description | ||
| Chassis model | ZZ1257N4667W | |
| Cab | HW76-extended cab, single berth, adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sunroof, air-conditioner. | |
| Wheelbase | 5800+1350mm | |
| Tire specification | 12.00R20 | |
| Tire quantity | 12+1 units | |
| Engine | Engine model | WD615.47 |
| Emission level | Euro 3 | |
| Displacement/output | 9726ml/273kw | |
| Horse power | 380 hp | |
| Gear box | Model | HW19710 |
| Number of gears | 10 forward gears& 2 reverse, planetary reducer | |
| Brake system | Service brake: dual-circuit pneumatic brake; Parking brake: energy storage spring air cutoff brake; Auxiliary brake: engine exhaust brake. |
|
| Axle | Front | HF-9T*2 |
| Rear | HC-16T*2, double reduction, ratio 4.8/5.73 | |
| Suspension | Front | Leaf springs with shock abosorber |
| Rear | Leaf springs with transverse stabilizer | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 400L | |

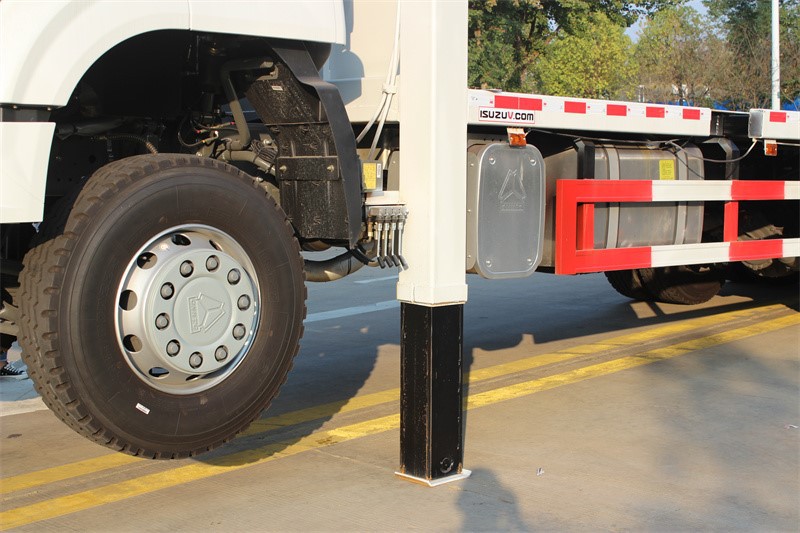

Howo 30 T flat bed truck detail
Factory inspection
Howo 30T flatbed truck is a vehicle specifically designed for transporting goods and is characterized by a flat cargo platform without fences or fixed cargo boxes. The following is a description of the uses of flatbed trucks: Flatbed trucks are widely used for transportation of various goods as they can transport various types and sizes of items.
1, howo flatbed trucks are used to transport large or heavy items such as machinery and equipment, construction materials, and agricultural machinery. Their flat cargo platform makes loading and unloading of these large items easy. In addition, flatbed trucks usually have a larger load capacity and can carry heavier items, providing an efficient logistics transportation solution.
2, howo flatbed trucks are also used to transport long and fragile cargo such as large glass panels, metal steel, and lumber. Compared to other trucks, flatbed trucks have no fences or sidings to limit the length and width of items. This makes it easier to transport goods that require space, while also ensuring safe and secure loading.
3, howo flatbed trucks are widely used in the construction and mining industries. Construction sites often require large quantities of construction materials such as bricks, cement, lumber and pipes to be shipped from suppliers. The open cargo bay of the flatbed truck allows these construction materials to be loaded and unloaded quickly, improving efficiency on the construction site. In the mining industry, flatbed trucks are mainly used to transport ore and mining equipment, providing a flexible and efficient transportation solution.
Finally, flatbed trucks also play an important role in the military sector. Military units often need to transport military equipment, equipment and supplies, such as tanks, military vehicles and ammunition. The flat platform and high carrying capacity of flatbed trucks allow these military supplies to be transported safely and quickly to designated locations to meet the needs of military missions.
