Products Description
Africa customer purchased FAW 6x4 model 18cbm Garbage Compactor Truck is based on original FAW truck chassis, FAW brand CA5250P1K2T1EA80 chassis, left hand drive model with 6x4 driving. XICHAI diesel engine CA6DL1-31 with 310HP, dry single clutch with φ430， FAST 9-shift manual gearbox, standard 295/80R22.5 tires with 10+1 units, customized brand new 18cbm compactor body kit, CAN-BUS electric control system with emergency stop button for safety. English version owner's manual for operation guidance.
The FAW trash compactor has a compression chamber that runs along the length of the truck and has a discharge opening at one end and a feed opening at the other. In the compression chamber, there is a ram that is driven by hydraulics. Its job is to pack the trash to a certain density and pressure by moving back and forth. At the chamber’s discharge opening, there is a door that can be moved manually between an open and a closed position. When the door is closed, the trash is pressed against it. A hydraulic compactor is a machine that uses hydraulic pressure to compress materials. The force of a standard garbage truck compactor is approximately 2,750 psi (pounds per square inch).
Technical Specification for faw garbage truck
|
Dimensions |
Technical Information |
Body Width (Outer) : 2310 x 2010 mm |
18+1.5 m³ FAW compactor body Spec T420 material, with thickness for side and floor 5mm |
|
Dimension |
Technical |
Saiz Badan (Chamber) 2310 x 2010mm |
|
|
|
Body Inside Dimensions |
Body Length can change depending on the vehicle. |
|
|
|
Width 2140mm |
||
|
|
Height 1850mm |
||
|
Saiz Badan |
Body Size |
||
|
Jenis Bahan Ketebalan |
Body Iron-Plate Thickness |
||
|
Hidraulik Silinder |
Hydraulic Cylinder |
||
|
Kapasiti Hopper |
Hopper Capacity |
||
|
BERAT |
WEIGHT |
||
|
Badan dan Chassis |
Body and Chassis |
||
|
Berat Badan |
Body Weight |
||
|
Berat Chassis |
Chassis Weight |
|
NO |
PARAMETER |
SPECIFICATION |
|
|
1 |
General |
||
|
|
Design |
The design construction and mounting of the body is to meet the Health and Safety. |
|
|
|
Quality Certificate & Capability |
Manufacturer Ayalka is currently registered with relevant registration standards for construction & welding, and is to be able to proof production and sales in case it’s necessary according International DIN EN 1501 standards. |
|
|
|
Install |
The superstructure’s assembly shall be realized According to the trucks superstructure installation directives. The superstructure shall be mounted with rigid connection at rear, and flexible connection in front to provide the required elasticity. |
|
|
2 |
Compactor |
CS TRUCKS 18CBM CHUSHENG brand rear loading garbage compactor |
|
|
3 |
Body |
||
|
|
Dimensions (mm) - interior |
Dimensions can only be given according to truck chassis dimensions. |
|
|
Capacity (m³) |
18 m³ excluding hopper |
||
|
Total Weight(kg) |
= 5800 kg |
||
|
Roof (ceiling) |
High Tensile T420 / 5.0 mm |
||
|
Body Floor |
High Tensile T420 / 5.0 mm |
||
|
Body Sides |
High Tensile T420 5.0 mm The sidewalls shall be formed to trapezoid shape to increase the strength. |
||
|
Side Traverses (Braces) |
All reinforcements of body, shall be in the form “U” shaped braces and full-seam welded on the body sheets, of thickness ST-52/4.0 mm. |
||
|
|
Sub Frame |
“U” shape full length 3 or 4 mm T420 |
|
|
4 |
Tailgate |
||
|
|
Collecting & Compacting |
The loose garbage inside the hopper is taken into to the body via a sweeper shovel being actuated by two double-acting hydraulic cylinders, and than after being pushed into the body by two double-acting sledge cylinders. The sledge cylinders have min. 24 tones pushing force. |
|
|
Compaction Ratio |
The compaction ratio (volumetric) varies between 3:1 to 6:1 according to the characteristic of the garbage. |
||
|
Lifting |
The tailgate raise is achieved by two double acting hydraulic cylinders, which must be equipped with safety devices to prevent the tailgate from falling abruptly in the event of hydraulic failure or hose burst. |
|
|
|
Hopper Capacity (m³) |
The loose garbage capacity of loading hopper is around 1.5 m³ with the self cleaning ability during discharge. |
|
|
|
|
Steel Thickness (mm) |
High Abrasive Resistant 6 mm steel material, which of hardness 450 HB for enduring sweeper and shovel considered necessary other parts of hopper. |
|
|
|
Sliding Rails |
There used 50x50mm and 50x30mm steel profiles to guide compacting system. The compacting panel slides up and down over these rails thanks to a set of Kestamide wear blocks in four points. |
|
|
Locking |
Hydraulic locking by means of reverse action of two hydraulic tailgate lifting cylinders, which also prevents the leakage of the wastewater when the truck bounces due to road conditions. |
||
|
Container Lifting Devices |
500 kg lifting capacity to lift 1100 L. (1.1 m³) metal containers and 2 bins 240 lt. |
|
|
|
Loading Height (mm) |
The loading height is 1100-1200 mm around, and the design lets the manual loading from hand-held containers. |
||
|
Safety Props |
The tailgate is provided with safety props between the body and tailgate for safety purposes during maintenance or cleaning. |
||
|
5 |
Ejector Panel |
||
|
|
Ejector Panel |
There shall be a totally automatic hydraulic system to allow the panel to advance forward as garbage is packed against it.
Material T420 / 5mm thickness. |
|
|
Rail |
The ejector panel shall glide on a Standard NPU 120mm profile, centered by means of friction resist polyamide bases. The ejector panel shall slide forward and rear over these rails thanks to a set of Polyamide wear plates in four points. |
|
|
|
6 |
Sewage Tank |
In case of there is enough and suitable space on truck chassis, Sewage tank 120 lt. under the body is made by means of body floor plate. |
|
|
7 |
Operation & Control |
||
|
|
Operation |
The operation is fully automatic –PLC system. The operation is capable of continuous cycle, semi-automatic single cycle and manually operated. The system is controlled from the PLC control box, which enables, start, stop, 1- cycle, continuous cycles, and rescue activities. |
|
|
|
CAN-BUS Control Panel |
Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push buttons, and manually in case. There is an emergency stop button each of side the truck on the control panel. |
|
|
Comm. Buzzer |
To warn or contact to the driver. |
||
|
8 |
Hydraulic System |
||
|
|
P.T.O. Gear Pump |
Controlled inside the cab, original P.T.O of the truck, or the P.T.O can be arranged by our company. The Gear Pump installed to connect with the PTO, and get power from it, then transfer power to realise all function |
|
|
Working Pressure (bar) |
18 Mpa |
||
|
Oil Tank |
Matchable oil tank equipped with breather and gauge, suitable range from minimum 3cbm compactor truck to maximum 25cbm refuse compactor truck |
||
|
Hydraulic Valves |
Front Distributor |
Operates the ejector panel and tailgate, mounted on front wall and on left side. |
|
|
Container Valve |
Operates the container lifting device manually |
||
|
Sequence Valve |
This is arranging the order of the sweeping and sledge cylinders. When the sweeping cylinder reaches to maximum pressure, then the sledge cylinders shall start to compact the garbage inside the chamber. |
||
|
Hydraulic Cylinders |
9 units of hydraulic cylinders; and telescopic cylinder with 2 extensions. All the hydraulic cylinders are double-acting cylinders. The pipes on hydraulic cylinders are Italy origin. Pipes to be made of honed drawn steel pipe, and cylinder miles are grinded and chrome coated against corrosion.The dimensions of cylinders are designed to accomplish the stipulated cycle times and compaction ratio. To comply International DIN 2391 C |
|
|
|
|
Hydraulic Pump |
PTO driven hydraulic gear pump 30 – 80 cm³ / rev – max.1500 rpm. |
|
Hydraulic Hoses |
All high pressure hydraulic oil hoses have a burst rating 4 times more than the specific system working pressure (SAE 100R2) The hoses in motion and has risk of friction or contact, are covered and protected by steel wire. |
|
|
9 |
Painting |
All steel parts surfaces free of rust and oil residue will be applied with two primers, and one final paint coating in color of demand. Minimum dry film thickness of the paint is 60 microns. |
|
10 |
General |
Two steel mudguards with rubber flaps at rear ends. 1 rotating beacons light at the tailgate. Two foldable type rear foot boards for crew to stand One elliptical handle at each side ¾” pipe handle for the crews to grasp The necessary traffic lights, reflectors, and warning devices shall be mounted at rear which complies to PUSPAKOM/JPJ regulations. Electrical system is separated from the circuit of the truck Specifications and dimensions are not binding. Manufacturer’s tolerance may apply. Ayalka International has the spare parts and after sale service Supplying of spare parts for super structure is guaranteed for ten years by Ayalka International
|

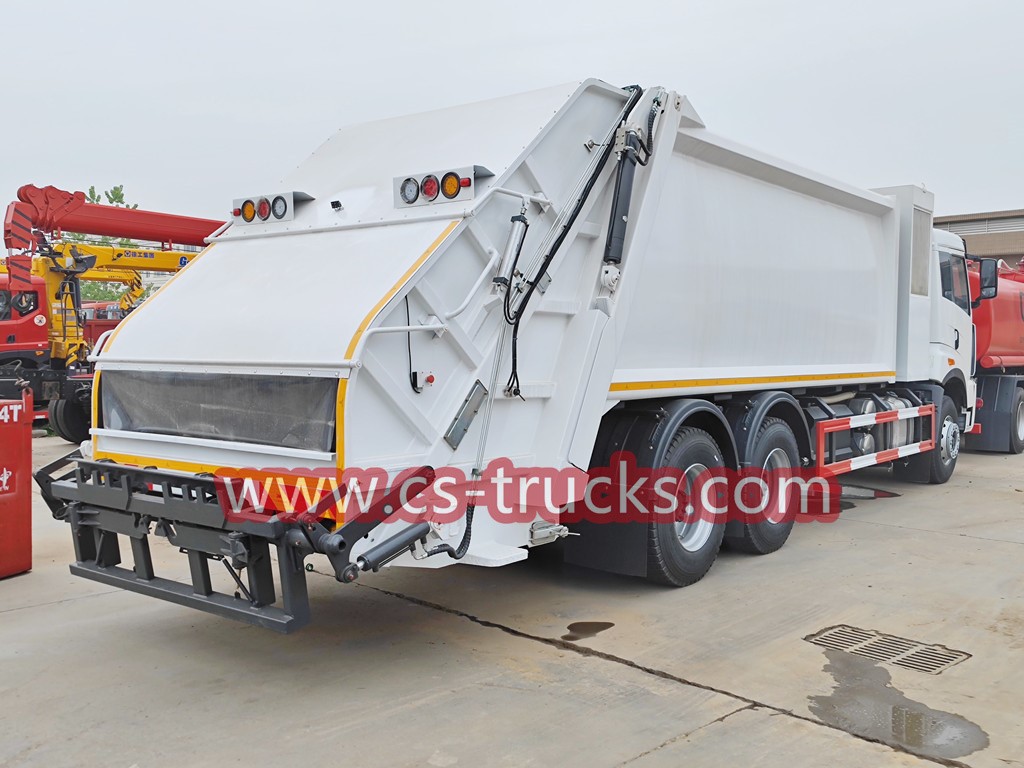

Faw back loading garbage truck

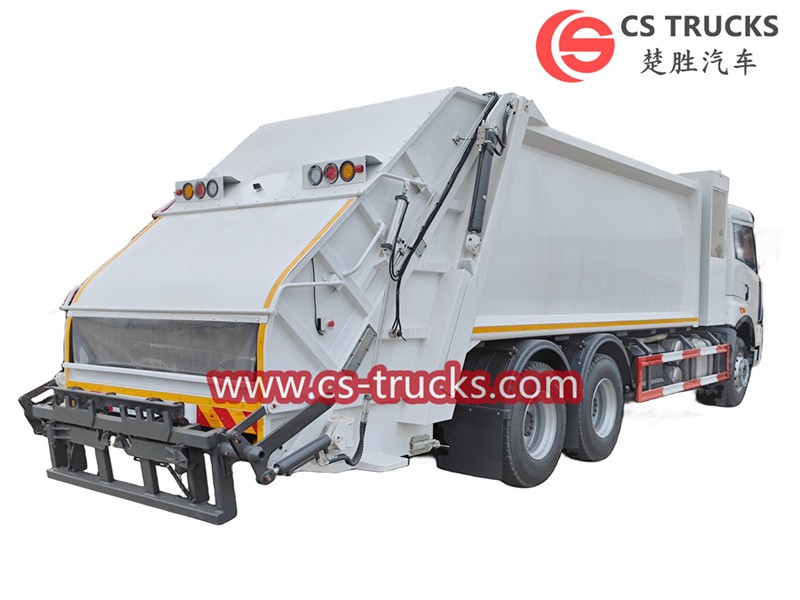

18cbm back loading garbage truck
Customize your own FAW 10 wheel rear loader compactor truck
Choosing a suitable FAW compression garbage truck is of great significance and value to Senegal’s national health. The following is a detailed summary of several suggestions for choosing the right garbage truck:
- Load Capacity: Choose the appropriate garbage truck load capacity based on Senegal’s waste disposal needs. Consider urban population density, garbage production and garbage types to ensure that garbage trucks can carry enough garbage in one collection task, reducing the number of transportation times and time costs.
- Compression technology: The compression technology of garbage trucks is very critical. It can effectively compress garbage, reduce the volume and density of garbage, and reduce space occupation and fuel consumption during transportation. Make sure the FAW compression garbage truck you choose has advanced compression technology that can efficiently compress various types of garbage.
- Efficiency and Sustainability: Consider the operational efficiency and sustainability characteristics of your garbage truck. Choosing energy-saving, environmentally friendly and low-emission garbage trucks can reduce operating costs and reduce negative impacts on the environment. At the same time, the convenience of repair and maintenance of the garbage truck is also an important factor in the selection to ensure the long-term stable operation of the vehicle.
- Adaptability and reliability: Choose a garbage truck that is adapted to Senegal’s geography and road conditions. Consider road quality and urban planning, and choose a garbage truck with good suspension, tires and drive systems that can operate normally in various complex environments. In addition, ensure that the garbage truck is highly reliable and can operate for a long time, reducing breakdowns and downtime.
Significance and value of national health in Senegal:
- Improve urban sanitation levels: Suitable FAW compression garbage trucks can efficiently collect, compress and transport garbage and improve urban sanitation levels. They can reduce garbage accumulation and pollution, keep cities clean and maintain the health and safety of residents.
- Prevent the spread of disease: The right garbage truck can effectively reduce the risk of garbage breeding germs and spreading diseases. Timely collection and disposal by garbage trucks can reduce the breeding environment for vector organisms, thereby preventing the spread of diseases and enhancing public health safety.
- Improve garbage disposal efficiency: The right garbage truck can improve the efficiency of garbage disposal and speed up garbage removal. They can reduce the residence time of garbage on the streets, clean up garbage in time, and improve the urban environment and residents' quality of life.
- Promote environmental sustainability: The right compactor garbage truck can promote environmental sustainability in Senegal. They can reduce energy consumption and carbon emissions during waste transportation and processing, promote waste resource recycling, and reduce dependence on natural resources.
- Job Creation: The use of the right garbage trucks can create jobs and boost economic development. The process of garbage collection, compression and transportation requires human participation and provides many employment opportunities, especially for the lower-level labor force. This will lead to economic growth and reduce poverty and unemployment.
In summary, choosing a suitable FAW compression garbage truck is of great significance and value to Senegal’s national health. They can improve urban hygiene, prevent the spread of disease, improve waste disposal efficiency, promote environmental sustainability and create jobs. These features make the FAW compression garbage truck an important tool for improving sanitation and promoting sustainable development in Senegal.
