This HOWO 8000L fire command vehicle features a 4×2 drivetrain and is powered by a WD615.92 engine, delivering 300 horsepower for robust performance and stable handling. With a rated capacity of 8000 liters, the vehicle offers a large liquid carrying capacity, meeting the foam firefighting requirements for medium and short range, routine fire scenes. It is suitable for firefighting duties and emergency rescue operations in various settings, including urban areas, industrial parks, and factory premises.
Model: CSC5200XF
Capacity: 8000 L
Drive: 4×2
Engine Power: 300 HP
Engine Type: WD615.92
Send Inquiry
Description
This HOWO 300HP foam tender fire truck is built on a mature chassis, boasting powerful performance and a top speed of 95km/h, enabling rapid deployment to fire scenes. Its compact and agile design makes it suitable for narrow urban roads and complex terrain, ensuring high operational efficiency. The 8000L liquid carrying system combines water and foam tanks, accommodating both solid and oil fires and providing outstanding sustained firefighting capabilities.
HOWO 8000L Urban Fire Rescue Vehicle
The vehicle's firefighting unit is professionally configured, featuring a high flow fire pump for stable water supply and a high range 360° rotating fire monitor for efficient long distance fire suppression with a high safety factor. It balances response speed, maneuverability, and firefighting effectiveness, making it suitable for a wide range of scenarios and an ideal piece of equipment for urban and industrial park emergency response.
Technical parameters of HOWO fire command vehicle
HOWO 8000L Urban Fire Rescue Vehicle
Vehicle Model
CSC5200XF
Overall Dimensions
7770x2500x3550 mm
Gross Vehicle Weight
19870 kg
Tank Capacity
6000L Water + 2000L Foam
Maximum Vehicle Speed
95 km/h
Approach/Departure Angle
14°/ 11°
Chassis Parameters
Drive Type
4×2
Wheelbase
3815 mm
Tire NO.
6+1
Tire Specifications
315/80R22.5
Gear Box
HW15710 10-speed
Steering Wheel
LHD
Engine Parameters
Model
WD615.92
Fuel Type
Diesel
Power
300HP/221kW
Emission Standard
Euro III
Displacement
9726 ml
Engine Type
Inline six, water cooled, four stroke, turbocharged with intercooler
Fire Pump Parameters
Model
CB10/60-RS
Flow Rate
60 L/s
Pressure
1.0 Mpa
Maximum Suction Depth
7 m
Priming Time
≤50 s
Vacuum Pump Type
Sliding Type
Fire Monitor Parameters
Model
PL8/48
Flow Rate
48 L/s
Range
Water
≥65 m
Foam
≥60 m
Pressure
1.0 Mpa
Rotation Angle
Horizontal 360°
Performance and Advantages
Vehicle Configuration
➤ Dual Tank Liquid Storage: Equipped with separate tanks totaling 8000 liters in capacity, one for clean water and the other for foam concentrate, this system is capable of handling both ordinary solid fires and oil fires, making it suitable for a wide range of applications.
➤ Professional Firefighting Kit: Features a high flow fire pump for a continuous and stable water supply; paired with a 360° rotating fire monitor, it offers a long spray range and wide coverage, significantly enhancing the efficiency and safety of firefighting operations.
Intelligent Operation
➤ Data Visualization Monitoring: Equipped with an integrated smart control panel that displays real time information on liquid levels, water pressure, and equipment status, allowing staff to monitor the vehicle's operational status at all times.
➤ Easy Operation: The equipment supports one touch start or stop and remote adjustment of the fire monitor, among other features. The operating procedures are simple and intuitive, making it easy to learn and effectively improving on site operational efficiency.
Chassis and Powertrain
➤ Powerful Performance: Equipped with a 300HP engine, the vehicle delivers stable and ample power, with a top speed of 95 km/h, enabling it to quickly reach fire scenes and reduce emergency response times.
➤ Sturdy Chassis: Built on the proven Sinotruk HOWO 4×2 specialized chassis, the vehicle features a robust structure and light steering, allowing it to navigate smoothly through city streets and various complex road conditions.
Working Principle of HOWO urban fire rescue vehicle
The core of a foam fire truck lies in its water and foam mixing and delivery system, which uses a power take off unit to drive the fire pump via the chassis engine, thereby generating water pressure and performing the following three key operations:
➊ Water Intake and Pressurization: The engine drives the fire pump to draw water from the onboard tank or an external water source and pressurize it.
➋ Foam Mixing: High pressure water flows through a foam proportioning mixer, which draws in the foam concentrate in the correct proportion to form a foam mixture.
➌ Fire Suppression: The mixture is discharged through a fire monitor or fire hose, forming foam to extinguish the fire.
Fire Pump
The CB10/60-RS is a low pressure fire pump designed for fire trucks, with a rated flow rate of 60 L/s and a pressure of 1.0 MPa. Featuring an aluminum alloy pump housing, it offers rapid vacuum priming and stable operation, and can deliver high pressure water or foam solution to meet the requirements for extinguishing both conventional and oil based fires.
CB10/60-RS
Flow(L/s)
Pressure(Mpa)
Pump Shaft Speed(r/min)
Power(kW)
Suction Depth(m)
Optional I
60
1.0
3200±50
99.71
3
Optional II
42
1.3
3528±50
109.18
OptionalIII
30
1.0
3326±50
7
Fire monitor
The PL8/48 is a manually operated, fixed mount foam/water dual purpose fire monitor and serves as the primary firefighting equipment on the HOWO 8000L urban fire rescue vehicle. Featuring a long range, flexible operation, and high reliability, this monitor is suitable for extinguishing Class A (solid) and Class B (liquid) fires.
Model
PL8/48
Rotation Angle
360° horizontal rotation
Maximum Elevation/Depression Angle
Depression angle ≤ -15°, elevation angle ≥ +45°
Flow Rate
48 L/s
Range
Water≥65 m/Foam≥60 m
Application Scenarios
HOWO 8000L Urban Fire Rescue Vehicle for Forest Firefighting
HOWO 300HP Foam Tender Fire Truck for Firefighting in Residential Areas
HOWO 4×2 Forest Fire Fighting Vehicles for Roadside Assistance
HOWO 300HP Ladder Fire Truck for Sale for Landscape Irrigation
exterior views of HOWO forest fire fighting vehicles

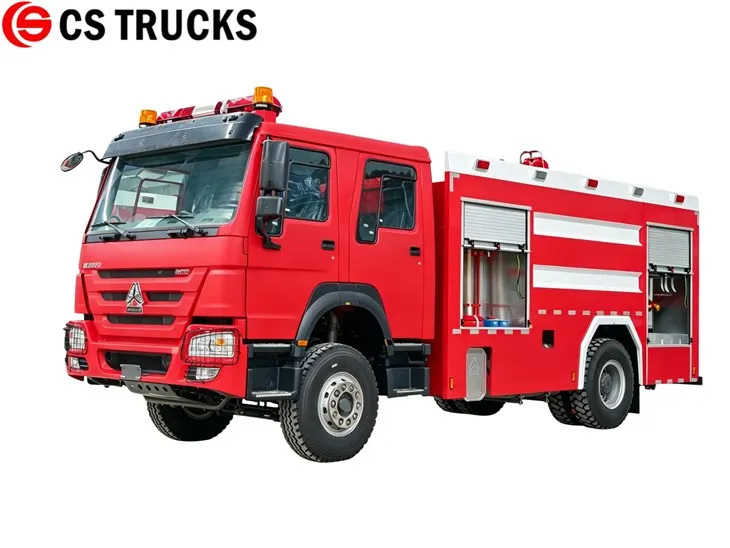

Front Right View of HOWO 8000L Urban Fire Rescue Vehicle

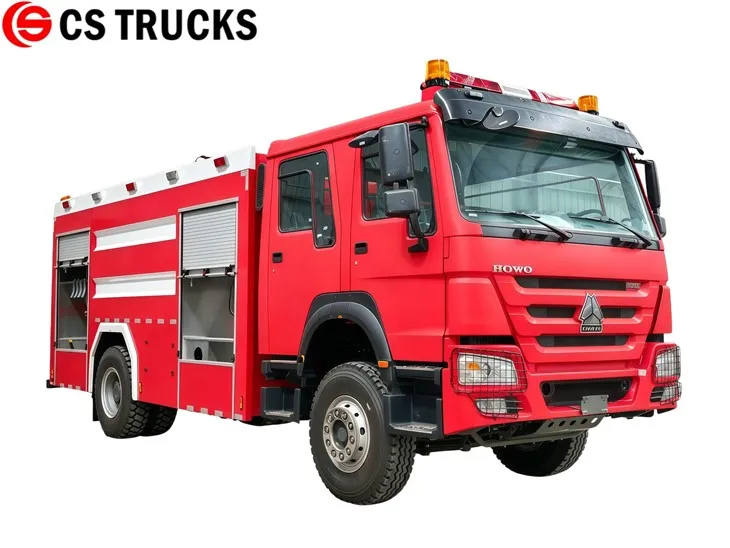

Front Left View of HOWO 8000L Fire Command Vehicle

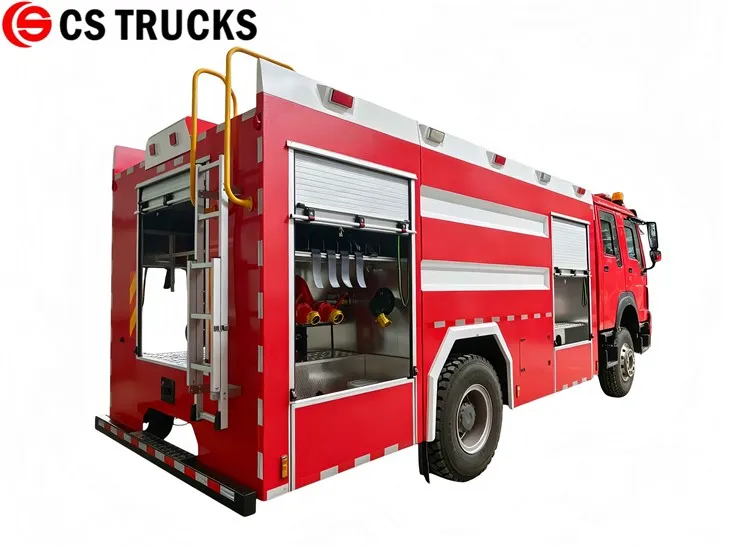

Rear Right View of HOWO 300HP Foam Tender Fire Truck

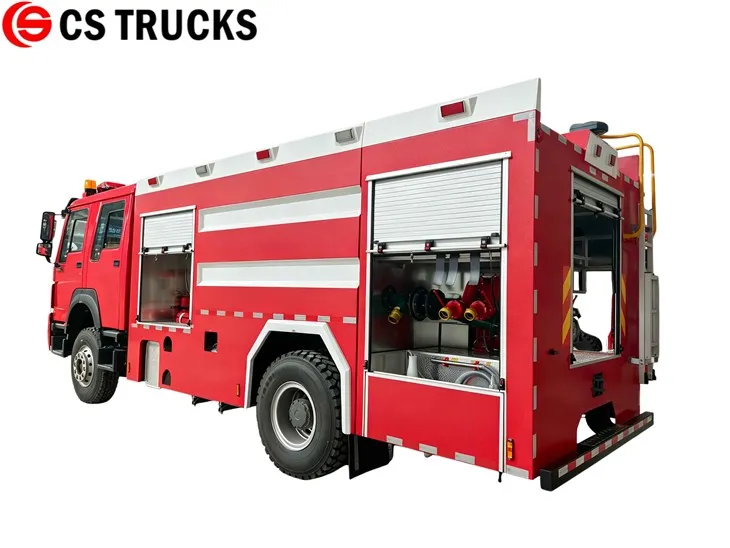

Rear Left View of HOWO 300HP lAdder Fire Truck for Sale

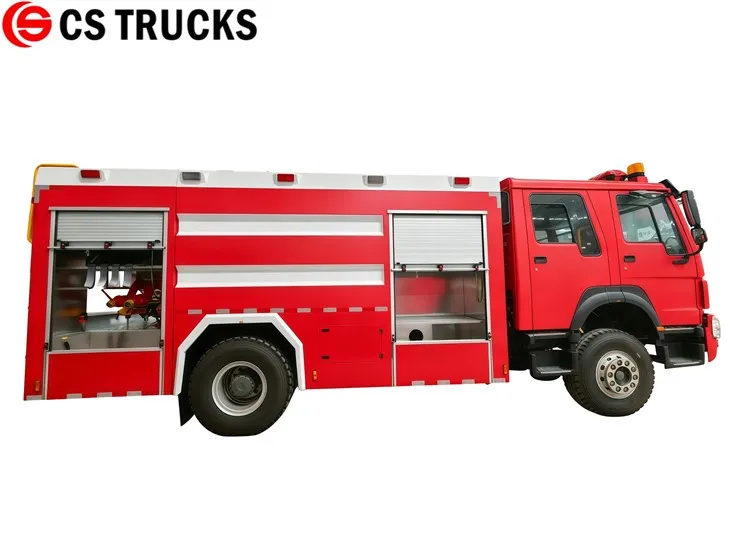

Right View of HOWO 4×2 Forest Fire Fighting Vehicles

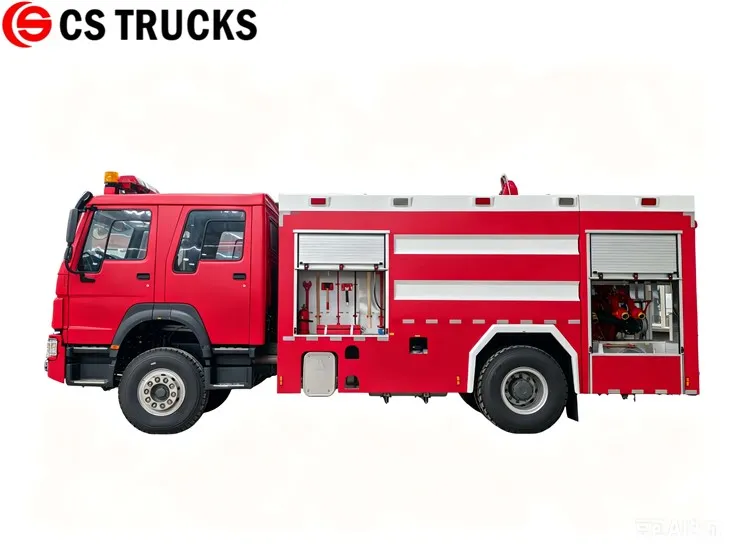

Left View of HOWO 4×2 Off Road Fire Fighting Vehicles

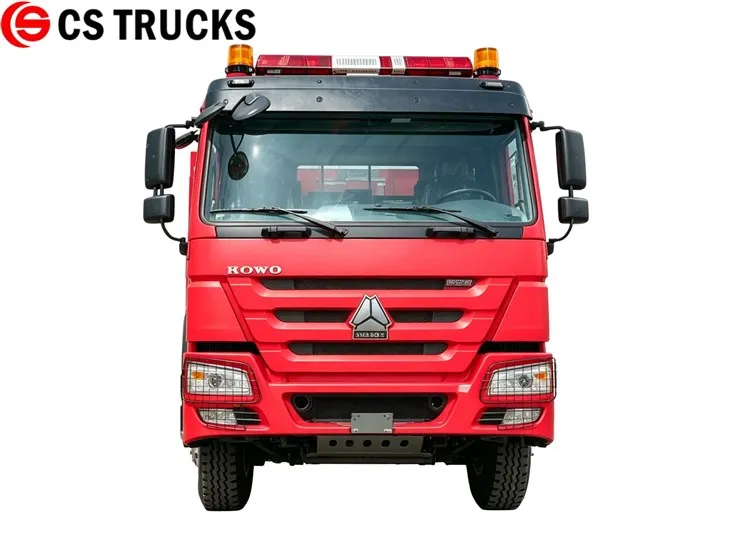

Front View of HOWO 8000L Heavy Rescue Fire Truck

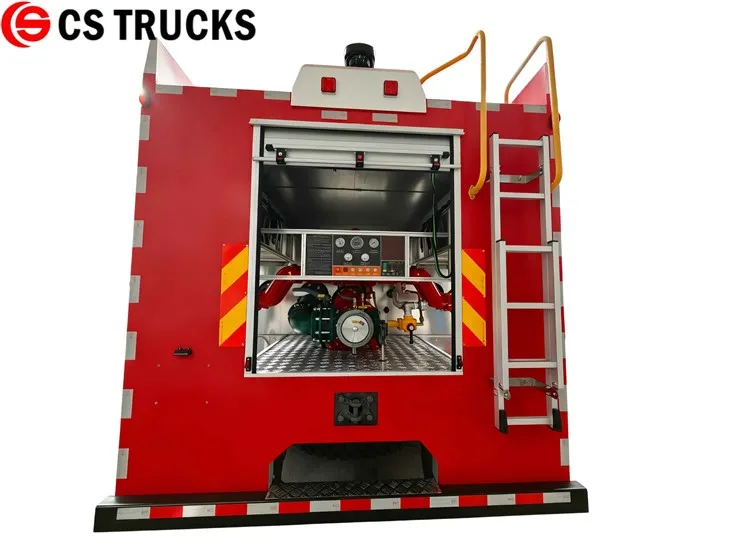

Rear View of HOWO 300HP Fire Rescue Truck for Sale
Equipment List
FAQ
What types of scenarios is this vehicle suitable for?
It is suitable for urban fire stations, chemical industrial parks, oil depots, and similar locations. It can extinguish both solid and liquid fires, offering strong overall practicality.
Is the vehicle difficult to operate?
Equipped with an intelligent integrated control panel that provides visual parameter displays and one touch operation, along with standardized firefighting components, the vehicle is simple and easy to operate.
Is routine maintenance convenient?
Built on Sinotruk's proven chassis, the vehicle features highly interchangeable parts. The firefighting piping and pump assembly are thoughtfully laid out, making inspections and maintenance quick and effortless.
What after sales support services are available?
We offer comprehensive warranty services, including prompt response to repair requests, spare parts supply, and technical support.
