This ISUZU GIGA 3500 Liters fire engine lorry leverages the reliability and powerful 300 horsepower engine of the 6HK1-TCG60, combined with a flexible 4×2 drive configuration, giving it excellent maneuverability in narrow streets. Its 3500 Liters medium sized tank design balances liquid carrying capacity and vehicle speed, making it suitable as a first response force for initial firefighting and high rise water supply deployment. It is a modern firefighting equipment that balances cost effectiveness and operational efficiency.
Model: CSC5150XF
Capacity: 3500 Liters
Drive: 4×2
Engine Power: 300HP
Engine Type: 6HK1-TCG60
Send Inquiry
Description
Product Introduction
This ISUZU GIGA 300HP fire command vehicle is equipped with a 300HP 6HK1-TCG60 engine and a 4x2 drive configuration; its short 4500mm wheelbase allows for flexible movement between urban areas and ports. The 3000L water + 500L foam tank combination handles both initial fire control and oil fire suppression. Combined with a 40L/s fire pump and a fire monitor with a range exceeding 60m, it can efficiently cover mid to high rise buildings and suppress large area fires. With a curb weight of 9.2 tons and a top speed of 90km/h, it strikes a balance between liquid capacity, mobility, and firefighting effectiveness, making it a reliable and practical main combat vehicle for rapid deployment in ports, urban expressways,and other similar scenarios.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Core Features of ISUZU rescue truck
Manufacture: CS TRUCKS
Features:
🚒Powerful Performance: Equipped with an Isuzu 6HK1-TCG60 engine, delivering 300 horsepower, providing rapid on road mobility.
🚒Precise Positioning: 3500 liters tank, designed for rapid attack, excelling in initial fire suppression.
🚒Flexible Mobility: 4x2 drive, short wheelbase, adaptable to narrow urban streets.
🚒Suitable Scenarios: Specifically designed for firefighting in municipal roads, communities, and small factories; not designed for off road or long distance continuous operations.
✔️Capacity Configuration: 3000L water tank, 500L foam tank, total liquid capacity 3.5 tons, catering to both initial fire control and oil fire suppression needs.
✔️Lightweight Design: Curb weight of 9.2 tons, with a well matched tank body and chassis, reducing weight to improve vehicle speed and fuel economy.
✔️Layout Advantages: The tank body features a compartmentalized design, facilitating rapid filling and emptying of residual liquid, suitable for high frequency deployment scenarios.
Chassis and Powertrain
✔️Engine Performance: Equipped with a 6HK1-TCG60 300hp inline six-cylinder diesel engine, meeting Euro 5 emission standards, offering strong power and reliable durability.
✔️Transmission and Drive: Equipped with a Fast 9-speed manual transmission, 4×2 rear wheel drive, with a top speed of 90km/h, quick start and excellent maneuverability on paved roads.
✔️Chassis Configuration: Utilizes a 4500mm short wheelbase design, coupled with 10.00R20 steel radial tires and a full vehicle air braking system, effectively ensuring steering agility and braking safety under full load.
Intelligent Control Panel
✔️Water Pump Control: Unified management of fire pumps and piping systems, real time display of current outlet pressure and flow rate, and support for one button pressure stabilization.
✔️Fire Monitor Control: Remotely controllable roof mounted fire monitor, supporting 360° continuous horizontal rotation and -45° to +70° pitch adjustment, allowing operators to precisely adjust the water/foam jet direction from a safe distance.
ISUZU fire truck control system
1.Fire Pump
The CB10/40-XZ is a vehicle mounted centrifugal fire pump with a rated operating pressure of 1.0MPa, a large flow rate of 40L/s, stable water suction performance, and abundant water supply, meeting the needs of long distance water delivery for firefighting in conventional fire scenes.
Model
Operating Conditions
Flow(L/s)
Pressure(Mpa)
Rated Speed(rpm/min)
Shaft Power(KW)
Suction Depth(m)
CB10/40-XZ
1
40
1.0
3135±50
60
3
2
28
1.3
3390±50
61
3
20
1.0
3010±50
39
7
2.Fire Monitor
The PL8/32 is a vehicle mounted dual purpose fire monitor with a rated working pressure of 0.8MPa and a flow rate of 32L/s. It can handle both water and foam extinguishing media, has a wide coverage area, and is suitable for long distance fire extinguishing operations by foam fire trucks.
Model
Flow(L/s)
Range(m)
Pressure(Mpa)
Pitch Angle (°)
Rotation Angle (°)
PS8/20W
20
Water ≥50
0.8
-45°～+70°
0~360°
PL8/24
24
Water ≥ 55; Foam > 42
0.8
PS8/30W
30
Water ≥60
0.8
PL8/32
32
Water ≥ 60; Foam ≥ 48
0.8
PS8/40W
40
Water ≥65
0.8
PL8/48
48
Water ≥ 70; Foam ≥60
1.0
3.Foam Proportioning Mixer
Model
Mixing Ratio
Pressure Range(MPa)
Flow Rate Range(L/S)
Applicable Foaming Liquid Type
PH64-RS
6%
0.6~1.4
16~64
B
ISUZU fire engine Equipment Room
The equipment room is an important component of the vehicle's functional structure, responsible for storing, securing, and quickly retrieving various onboard firefighting equipment:
Materials and Structure:
The frame is welded from high strength aluminum alloy profiles, and the skin is made of rust proof aluminum plate, making it lightweight and corrosion resistant.
Multiple independent equipment compartments are symmetrically arranged on both sides and the rear, equipped with lightweight aluminum alloy roller shutters that open easily and quietly.
Onboard Equipment:
Fire Hoses and Fittings: Various sizes of fire hoses, hose reels, distributors, reducers, etc.
Breaching Tools: Fire axes, crowbars, iron bars, fire hydrant wrenches, etc.
Firefighting and Protection: Portable fire extinguishers, foam guns, water guns, suction hoses, and water filters, etc.
Application scenarios
Foam fire trucks are specifically designed for liquid fires and complex fire scenes. Typical operational scenarios include:
Petrochemical and Oil Depot Fires: The primary agent for extinguishing Class B fires involving gasoline, diesel, and crude oil. Foam is used to cover and isolate oxygen, preventing reignition and explosions.
Airport and Aircraft Accidents: Used to cover leaked aviation fuel, quickly suppress runway fires, and cool aircraft fuselages, buying time for rescue operations.
Port and Ship Fires: Used to extinguish oil fires in ship cabins, engine rooms, or dockside oil pipelines; the foam can float on water to extinguish the fire.
Hazardous Chemical Spills: Spraying low or medium expansion foam to cover toxic liquids or gases, inhibiting volatilization and diffusion, and assisting in rescue operations.

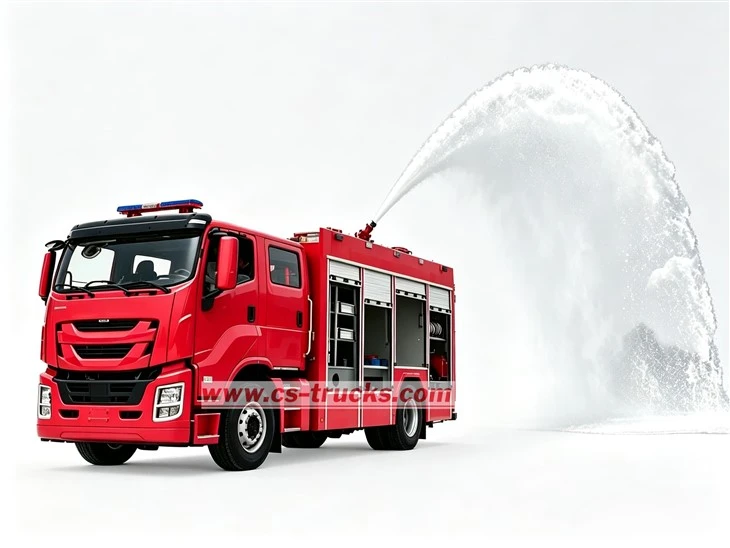

ISUZU GIGA 300HP Fire Command Vehicle for Forest Fire Fighting
ISUZU GIGA 3500 Liters Fire Engine Lorry for Oil Depot Fire Fighting
ISUZU GIGA 4×2 Rosenbauer Fire Truck Price for Gas Station Fire Fighting
exterior Views

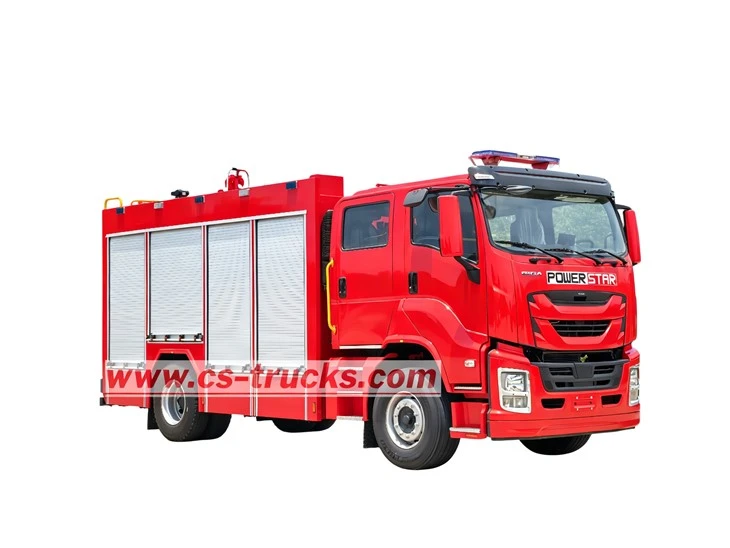

Front Right View of ISUZU GIGA 300HP Heavy Rescue Fire Truck
Front Left View of ISUZU GIGA 4×2 Fire Tankers for Sale

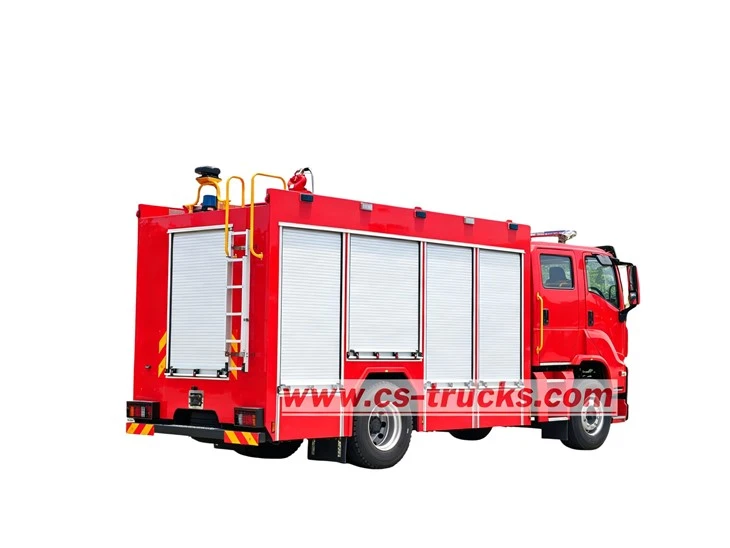

Rear Right View of ISUZU GIGA 3500 Liters Fire Engine Lorry

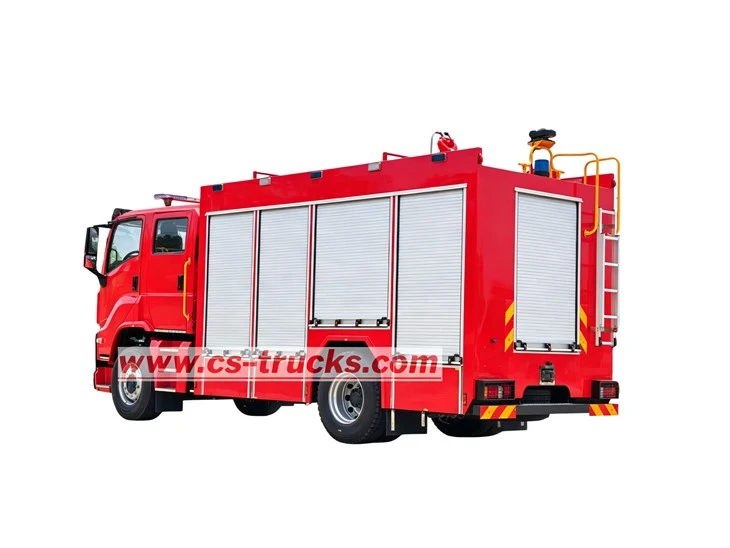

Rear Left View of ISUZU GIGA 300HP Fire Command Vehicle

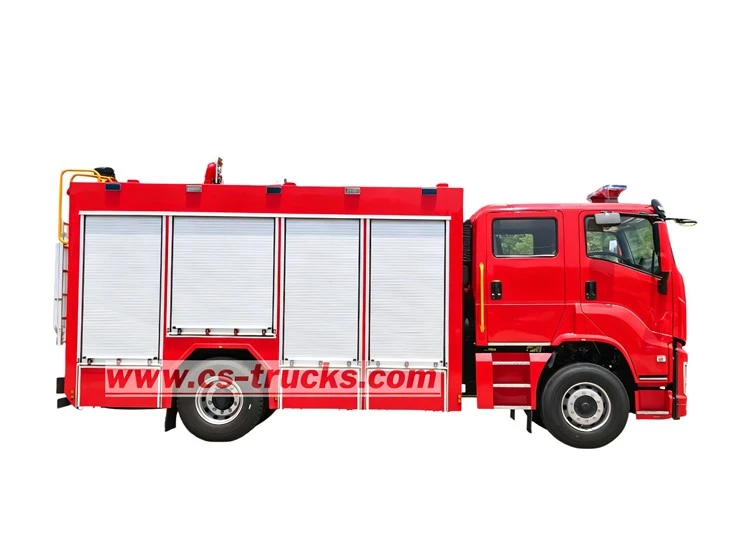

Right View of ISUZU GIGA 4×2 Rosenbauer Fire Truck Price
Left View of ISUZU GIGA 3500 Liters Fire Truck Ladder Truck
Front View of ISUZU 4×2 Drive Pumper Fire Truck

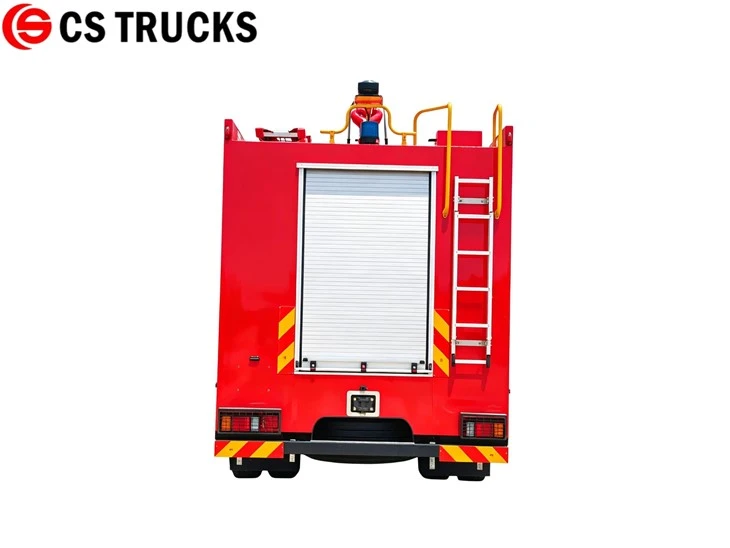

Rear View of ISUZU GIGA 300HP Fire Tankers for Sale
