Liberia HOWO Water Foam Fire Tender

This Liberia HOWO 350HP fire department brush truck features ample carrying capacity with both a water tank and a foam liquid reservoir, making it suitable for suppressing conventional fires as well as oil related blazes. Powered by a high performance Euro VI diesel engine, the vehicle delivers robust power output while fully complying with stringent environmental standards.



Equipped with a professional fire pump and a high flow rate onboard fire monitor, the truck offers excellent water intake and diversion efficiency, long range water and foam spray, and a fully adjustable monitor for broad fire coverage. Enclosed equipment compartments on both sides of the vehicle can store various rescue accessories, and the tank's protective structure is robust. Its comprehensive performance makes it suitable for various fire and rescue scenarios, including urban areas, factories, and oil depots.

★Liberia HOWO Water Foam Fire Tender★







🌿Chassis: The vehicle uses a 4×2 drive chassis, featuring a compact body and excellent maneuverability.

🌿Storage Capacity: The total tank capacity is 8000 liters, capable of holding sufficient fire extinguishing foam mixture, providing strong sustained fire extinguishing capability.

🌿Power Configuration: Equipped with an MC07.35-60 engine, rated power 350HP, providing ample power and stable operation under full load.

🌿Applicable Scenarios: The lightweight two axle layout ensures maneuverability and suitability for various fire situations in factories, docks, and urban roads.









Liberia HOWO Water Foam Fire Tender
Overall	Vehicle Model	CSC5190XF
	Drive Type	4×2
	Capacity	6000L Water+2000L Foam
	Gross Vehicle Weight	19000 kg
	Curb Weight	13000 kg
	Overall Dimensions L*W*H	8680×2505×3700 mm
	Maximum Speed	95 km/h
Engine	Engine Model	MC07.35-60
	Fuel Type	Diesel
	Power	350HP/257kW
	Emission Standard	Euro VI
	Displacement	7.36 L
	Engine Type	6 cylinders in line, water cooling, turbo charged diesel engine, inter cooling
Chassis	Wheelbase	4600 mm
	Tire Specification	11.00R20
	Tire No.	6+1
	Cab	Double row cab, seating capacity 2+4 people (6 people in total)
	Steering Wheel	LHD
	Brake	ABS
Fire Pump	Model	CB10/60-RS
	Max Working Pressure	1.0 MPa
	Max Suction Height	7 m
	Rated Speed	3916±50 r/min
	Speed Ratio	1:1.4
	Water Diversion Time	≤50 s
Fire Monitor	Model	PS60
	Flow	60L/s
	Rated Working Pressure	0.8MPa
	Max Working Pressure	1.2MPa
	Range	Water	≥70 m
		Foam	≥65 m
	Pitch rotation	- 35～+70°
	Horizontal rotation	0～360°
Standard Equipment	Original factory air conditioning, power windows and doors, central locking, ABS, power steering

















Fire Pump

The CB10/60 fire pump has a rated flow of 60L/s, a pressure of 1.0MPa, and a priming time of ≤50s. It features a compact structure, lightweight reliability, and easy installation and maintenance, making it a core guarantee for the efficient firefighting of heavy duty fire trucks.

Model	Pressure(MPa)	Rated Flow Rate(L/s)	Rated Speed(r/min)	Shaft Power(KW)	Priming Time(s)	Inlet Diameter(mm)	Outlet Diameter(mm)	Maximum Suction Depth(m)
BS20	≥1.0	20	3000	35	-	100	2×Φ54	7
CB10/20	≥1.0	20	3000	35	≤35	100	2×Φ54	7
CB10/30	≥1.0	30	3240	52	≤35	100	2×Φ75	7
CB10/40	≥1.0	40	3000	63	≤35	125	2×Φ75	7
CB10/50	≥1.0	50	3180	77	≤35	125	2×Φ75	7
CB10/60	≥1.0	60	3000	98	≤45	150	2×Φ100	7
CB10/80	≥1.0	80	3000	136	≤80	150	2×Φ100	7
80WX-60	≥0.55	10	1650	20.5	≤120	80	Φ65	5



Fire Monitor

The PS60 fire monitor has a rated flow rate of 60L/s and a range of ≥70m, which can rotate 360° horizontally and -35° to +70° vertically, and features both direct current and spray modes. It is characterized by high flow rate, long range, flexible operation, and versatility.

Model	Flow Rate (L/s)	Range (m)	Working Pressure (MPa)	Weight (Kg)	Connecting Flange
PS20	20	≥48	0.8-1.0	≤35	DN80
PS25	25	≥50
PS30	30	≥55	0.5-1.2	≤38	DN80
PS40	40	≥60
PS50	50	≥65
PS60	60	≥70	0.9-1.2	≤45	DN100
PS70	70	≥75
PS80	80	≥80



Mixing Ratio System

The PH64 ring pump proportioner is a core component of fire trucks used for foam fire suppression. It is responsible for mixing foam concentrate and water in a specific ratio to form a foam mixture for fire extinguishing.

Model	Mixing Ratio	Operating Pressure Range	Flow Rate Range	Applicable Foaming Liquid Types
PH 64	6%	0.6~1.4MPa	16~64L/S	B











Equipment compartments are located on both sides of the vehicle body, featuring an internal frame made of high quality steel plates with an overlapping structure and interior panels of patterned aluminum plates to ensure secure equipment fixation. The aluminum alloy roller shutter doors open and close smoothly with low noise and excellent sealing, while the compartments are also equipped with lighting for convenient equipment access at night.











The core function of foam fire trucks is to extinguish fires involving liquids or fusible solids (Class B), and they are suitable for a variety of high risk scenarios:

• Extinguishing fires involving flammable liquids in oil depots, chemical plants, etc., rapidly covering and isolating oxygen to suppress reignition.
• Protecting transportation hubs such as airports and ports, responding to intense fires in aircraft fuel tanks and ship cargo holds.
• Preventing and controlling fires in large warehouses and logistics centers, using water cannons to contain the spread of fire.
• Responding to sudden liquid fires and vehicle fires caused by traffic accidents in urban areas, possessing both fire extinguishing and cooling functions.









Front Right View of Liberia HOWO 4×2 Water Tender for Sale

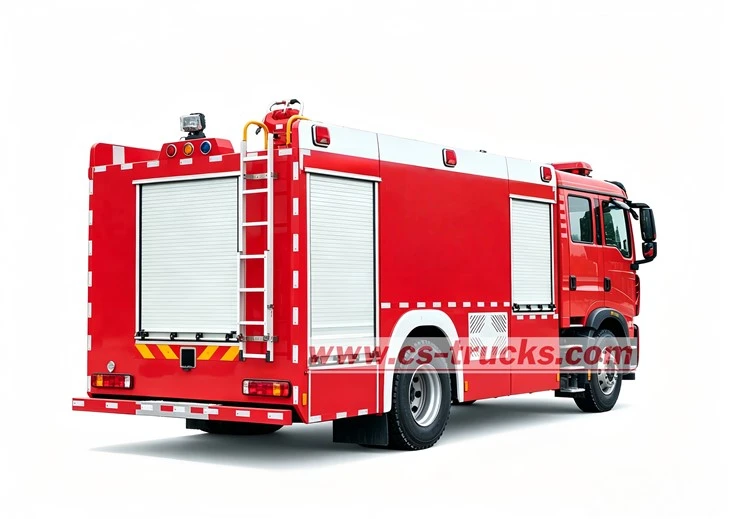

Rear Right View of Liberia HOWO 8000 Liters Fire Truck Water Tank

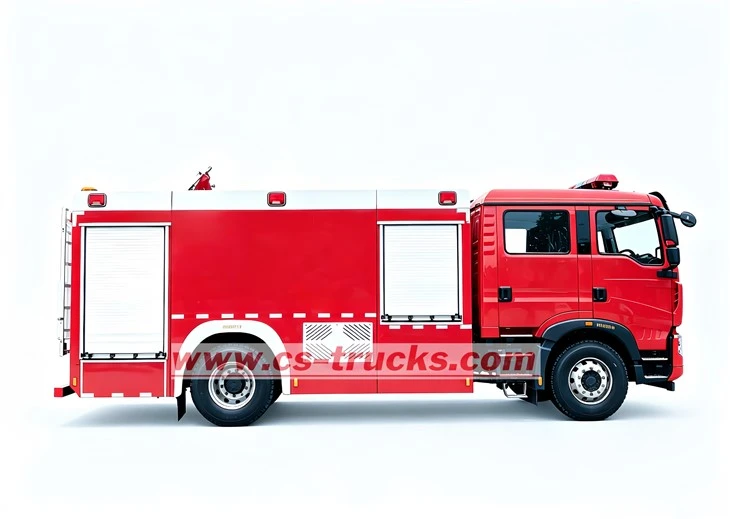

Right View of Liberia HOWO 350HP Fire Department Brush Truck

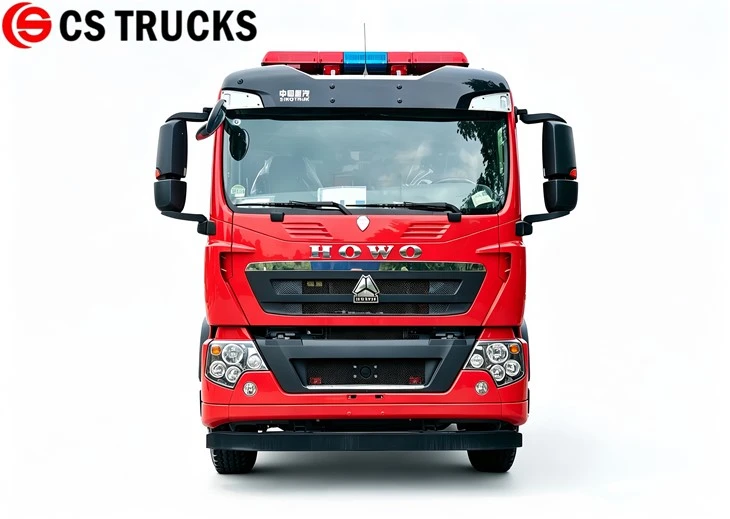

Front View of Liberia HOWO 4×2 Freightliner Fire Truck

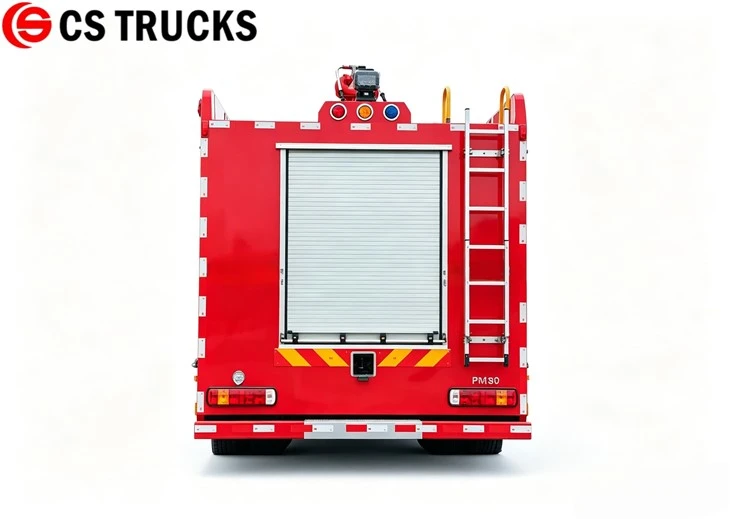

Rear View of Liberia HOWO 350HP Fire Truck Ladder Truck
