This SITRAK HOWO 4X2 firefighter gear is powered by a 350HP MC07H engine and featuring a 4×2 drive configuration, boasts excellent urban mobility; its 3600 liters liquid capacity, combined with a compressed air foam system (CAFS), enables efficient extinguishing of Class A initial fires and significantly reduces water damage. The vehicle integrates rapid response, efficient firefighting, and low-loss capabilities, making it a powerful choice for the first vehicle of fire brigades and for fire protection in communities, industrial parks, and other locations.
Model: CSC5180XF
Capacity: 3600 Liters
Drive: 4×2
Engine power: 350 HP
Engine type: MC07H.35-60
Send Inquiry
Description
This SITRAK HOWO 4X2 foam fire extinguisher consists of a compressed air foam system, hydraulic system, lifting system, and electrical system, it is equipped with a 350hp MC07H.35-60 engine and 4×2 drive, offering high maneuverability. The tank has a total volume of 3600 liters (3020 liters of water and 580 liters of Class A foam), and is matched with an imported PTO compressed air foam system (CAFS) and a Hill 60L/s fire pump, ensuring high fire extinguishing efficiency and low water damage.
It features a 15m elevated fire hose, a 13m ladder, and an Amero 48L/s fire monitor with a water jet range exceeding 75m. Integrating high altitude firefighting and high altitude rescue capabilities, it represents an elite force in urban firefighting.
★SITRAK HOWO Foam Fire Rescue Pumper Truck★
I.Product Specifications
SITRAK HOWO Foam Fire Rescue Pumper Truck
Vehicle Model
CSC5180XF
Drive Type
4×2
Gross Vehicle Weight
18800 kg
Curb Weight
14750 kg
Maximum Speed
110 km/h
Overall Dimensions L*W*H(mm)
9190×2540×3770 mm
Engine Parameters
Engine Model
MC07H.35-60
Fuel Type
Diesel
Power
350 HP(257kW)
Emission Standard
Euro Ⅵ
Displacement
7360 ml
Engine Type
Inline six cylinder, water cooled, four stroke, turbocharged, intercooled, high pressure common rail
Chassis Parameters
Chassis Brand
SINOTRUK
Tire No.
6+1
Tire Specification
315/80R22.5
Wheelbase
4700 mm
Gear Box
Sinotruk 8-speed manual transmission
Steering Wheel
Left hand drive
Brake
Front disc and rear drum brakes+ABS
Upper Body Specifications
Water Tank Capacity
3020 L
Class A Foam Tank Volume
580 L
Fire Pump
Model
Hill CB10/60-MBP-A fire pump
Flow Rate
60L/s
Pressure
1.0MPa
Fire Monitor
Model
Amilon PLKD8/48B-5177 Fire Monitor
Water Cannon Flow Rate
48 L/s
Water Range
≥75 m
Foam Range
≥63 m
Lifting System
Climbing Ladder
13 m
Maximum Working Height
15 m
Maximum Working Radius
10 m
CAFS
PTO CAFS120/MBP System
Traction Winch
Drive Type
Electric
Wire Rope Length
30 m
Installation Location
Front of the cab
II.Product Details
Chassis and Powertrain
▲Reliable Chassis: Utilizes a Sinotruk 4×2 special chassis with a wheelbase of 4700mm, equipped with an 8 speed manual transmission, and a maximum speed of 110km/h. Tires are 315/80R22.5, with front disc and rear drum brakes + ABS, ensuring stable driving and reliable braking.
▲Powerful Powertrain: Equipped with an MC07H.35-60 350HP diesel engine with a displacement of 7360ml, delivering strong power. Utilizing water cooling and turbocharging intercooling technology, it boasts high combustion efficiency and stable output under high loads.
Operating System
▲ Fire Pump: Hill CB10/60-MBP-A type, flow rate 60L/s, pressure 1.0MPa, strong water supply capacity.
▲ Fire Monitor: Amilon PLKD8/48B-5177 type, water range ≥75 meters, foam range ≥63 meters, flow rate 48L/s.
▲ Towing Winch: Installed in front of the cab, steel cable length 30 meters, traction force 3 tons, providing on site towing and selfrescue capabilities.
Tank
▲ Volume and Configuration: The water tank has a capacity of 3020 liters, the Class A foam liquid tank has a capacity of 580 liters, reasonable distribution of the liquids ensures the stability of the vehicle's center of gravity, making it sturdy and durable.
▲ Medium and Proportioning Advantages: The CAFS system mixes water, foam, and compressed air to produce fine, uniform foam, specifically designed for extinguishing Class A fires. Compared to traditional firefighting methods, it saves over 50% of water, minimizes water damage, and significantly improves firefighting efficiency.
III.Lifting system
➥This vehicle employs a hydraulically driven lifting system, with a maximum working height of 15 meters and a maximum working radius of 10 meters.
➥The boom is constructed of high strength steel, featuring a compact structure and rapid deployment.
➥The top mounted fire monitor can spray water or foam with a long range and high flow rate, and can be used with a 13 meter ladder for firefighters to access the site for rescue.
➥The system utilizes electro hydraulic combined control, equipped with safety limit switches and anti tipping protection, it is easy to operate, responds quickly, and is suitable for high altitude firefighting in large span factories, mid to high rise buildings, and oil tank areas.
Ⅳ.Products Details
Traction System
Charging Device
Equipment Room
Cloud Ladder
Control Panel
Water Intake
External Foam Inlet
Water Injection Port
Ⅴ.Application scenarios
Power Emergency Repair of SITRAK HOWO 350HP Fire Fighting Foam
High Rise Fire Extinguishing of SITRAK HOWO 4X2 Firefighter Gear
Night Lighting of SITRAK HOWO 4X2 Foam Fire Extinguisher
Ⅵ.Product display image

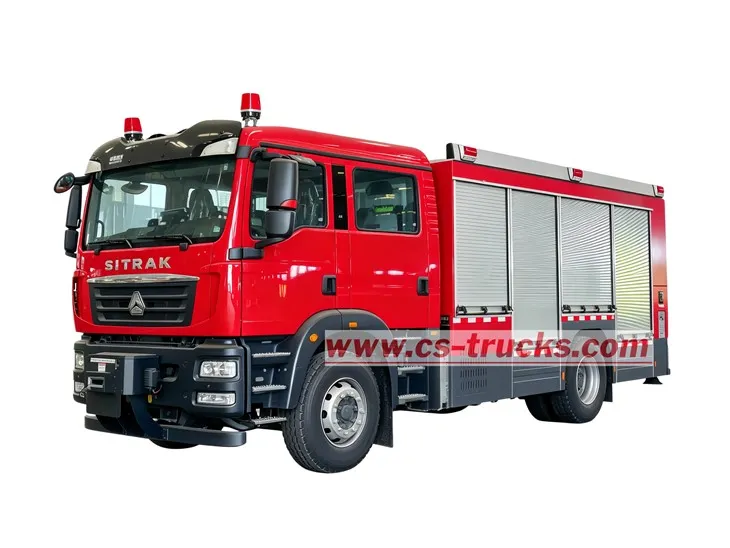

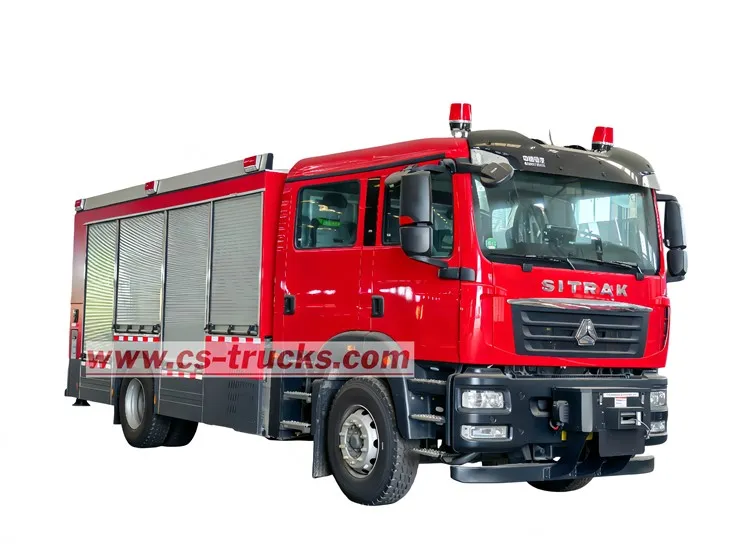

Front Right View of SITRAK HOWO Foam Fire Rescue Pumper Truck

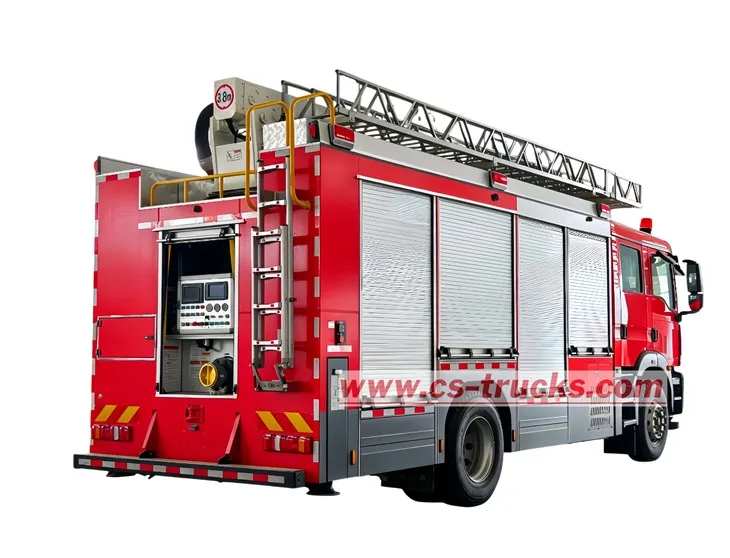

Front Left View of SITRAK HOWO 350HP Fire Fighting Foam

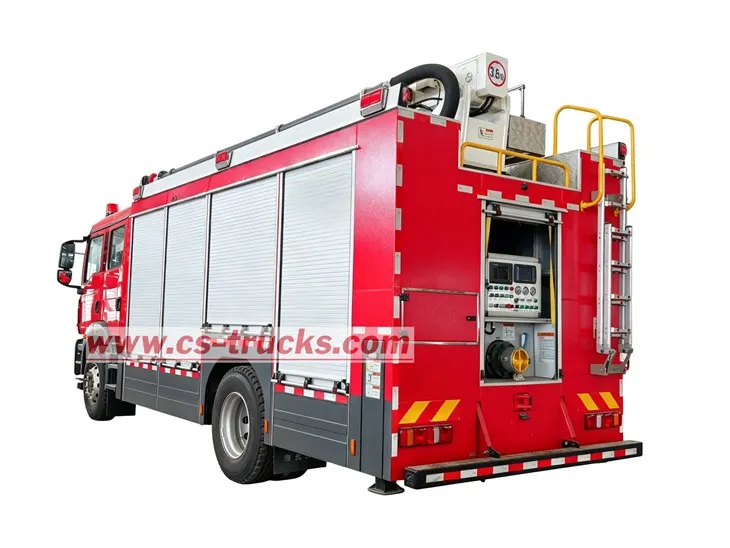

Rear Right View of SITRAK HOWO 350HP Rescue Pumper for Sale
Rear Left View of SITRAK HOWO 4X2 Firefighter Gear

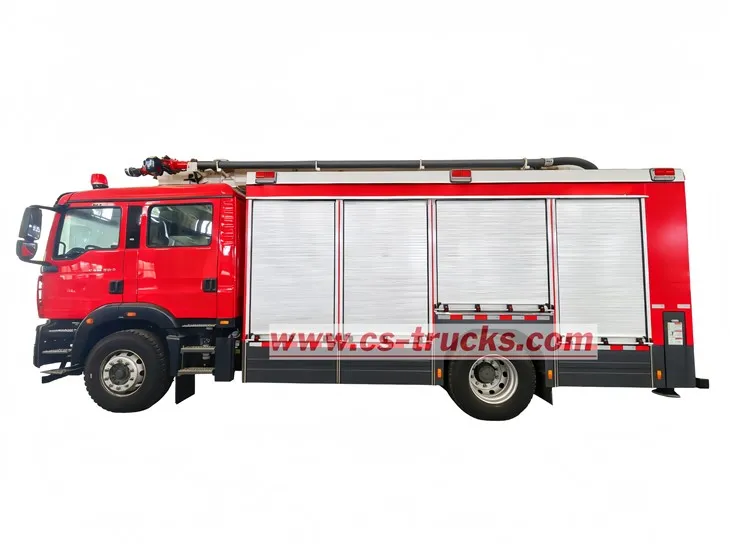

Right View of SITRAK HOWO 4X2 Foam Fire Extinguisher

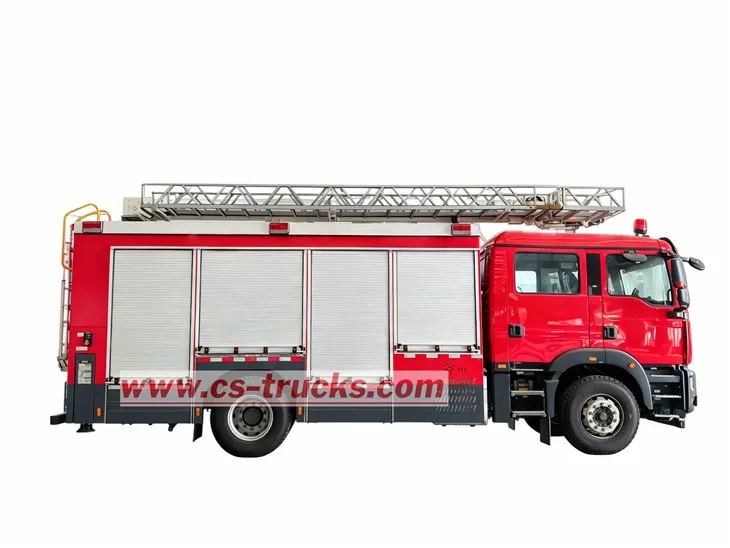

Left View of SITRAK HOWO 3600 Liters Heavy Rescue Truck

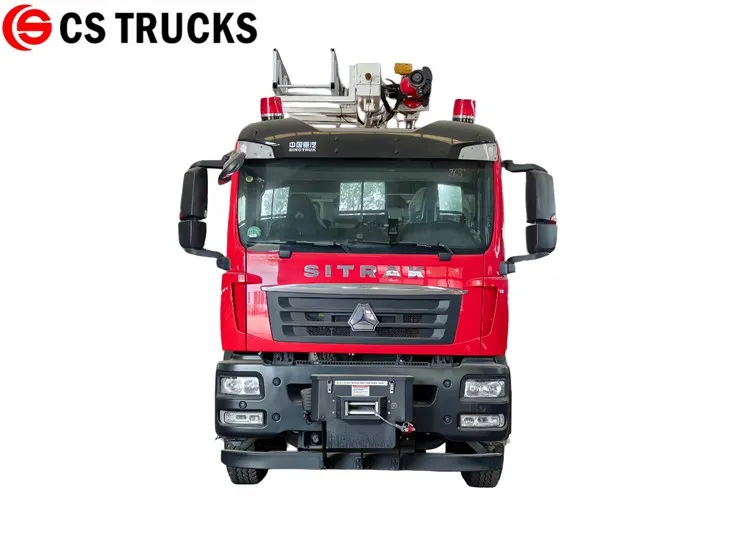

Front View of Left View of SITRAK HOWO 3600 Liters Fire Engine Truck

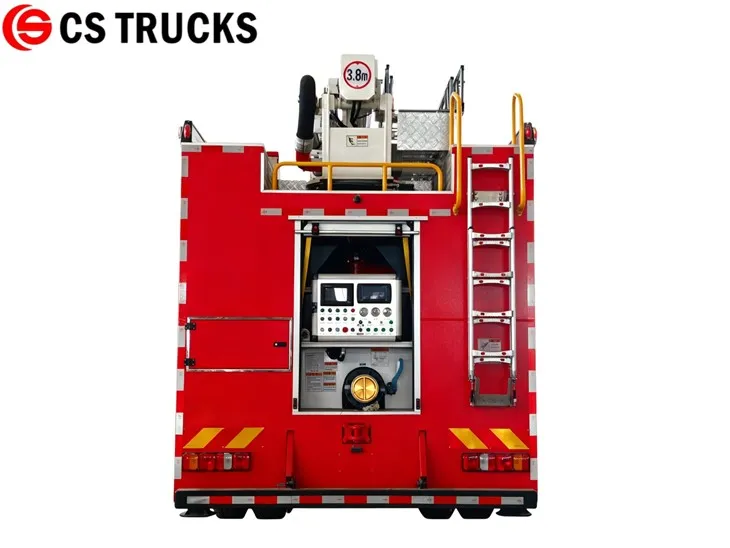

Rear View of SITRAK HOWO 350HP Fire Truck Price
VII.Firefighting Equipment List
NO.
Name
Specification
Unit
Quantity
1
Main Headlight Tube
1kW
Pcs
1
2
Cable Reel
Single phase/Three phase
Pcs
3
Single phase 2×30m
Three phase 1×30m
3
Portable Lights
50W
set
1
4
Safety Grounding Wire Assembly
set
1
5
Vehicle Tools
set
1
Original chassis equipped
6
Spare Tire
Pcs
1
Original chassis equipped
Note：We can equip you with relevant equipment according to your requirements
