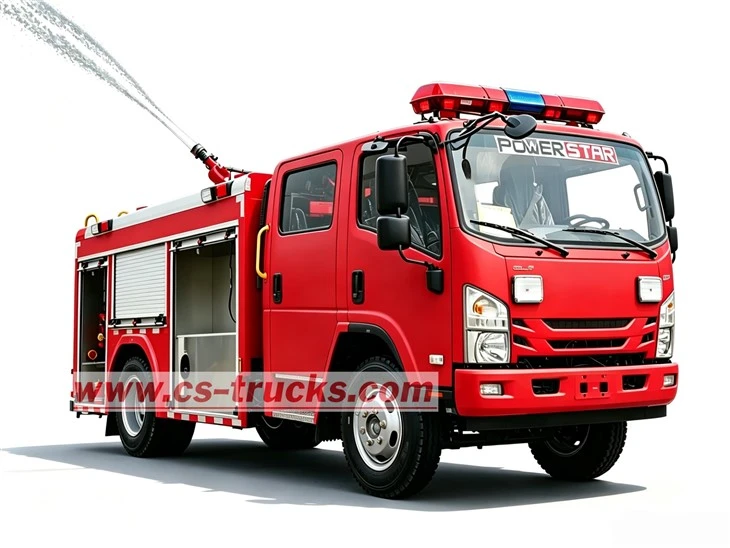

This ISUZU 4×2 Drive pumper fire truck is equipped with a 190HP 4HK1-TCG61 engine, offering strong power and maneuverability, allowing it to easily navigate narrow streets. Its 2500L foam fire fighting capacity is specifically designed for oil fires, and combined with a high efficiency fire monitor, it ensures rapid response and precise fire suppression, making it an ideal choice for protecting small to medium sized fires, chemical plant areas, and community safety. This model achieves an excellent balance between power, firefighting effectiveness, and off road capability, making it a reliable firefighting weapon.
Model: CSC5180XF
Capacity: 2500L
Drive: 4×2
Engine power: 190 HP
Engine type: 4HK1-TCG61
Send Inquiry
Description
This ISUZU 190HP fire fighting brush truck is equipped with a 190HP 4HK1-TCG61 diesel engine that meets Euro 6 emission standards, and an AMT automatic transmission, significantly reducing driver fatigue in urban conditions. The tank has a capacity of 2500 liters (2000L water + 500L foam) and is equipped with a CB10/40 fire pump and a PL8/32 fire monitor, enabling high volume, long range firefighting operations.
This fire truck is primarily designed for initial fire suppression in settings such as major urban thoroughfares, older residential areas, petrochemical zones, and airport support facilities. Its 4×2 drive configuration provides excellent maneuverability in narrow passages, while a water jet range exceeding 60 meters allows firefighters to operate from a safe distance away from the heart of the fire. This vehicle is ideally suited for fighting mixed fires involving petroleum, rubber, and electrical equipment, striking an optimal balance between firefighting effectiveness and operational convenience.
Key features of ISUZU fire engine
✳️Mature Chassis: The Isuzu 700P chassis has a large market share, readily available parts, low maintenance costs, and a low failure rate.
✳️Separate Liquid Loading: Water and foam tanks are independently compartmentalized, equipped with a proportioning mixer for real-time preparation of extinguishing agents.
✳️Versatile Performance: With both water and foam modes, a single vehicle can handle both solid and liquid fires-the two most common types.
✳️Long Distance Control: The fire monitor has a range of over 60m and is operated remotely for precise targeting, ensuring personnel safety.
🔸Storage Capacity: The tank has a total volume of 2500L, with a compartmentalized design: a 2000L clean water tank and a 500L foam liquid tank, meeting the requirements for long-term continuous firefighting operations.
🔸Driving Configuration: Left hand drive, air brakes, and equipped with an AMT (Automated Manual Transmission) for simple and easy operation.
Powertrain
🔸Powertrain: Equipped with a 4HK1-TCG61 diesel engine, 7790ml displacement, providing ample power reserves and rapid acceleration from a standstill.
🔸Environmental Standards: Meets Euro 6 emission standards, with comprehensive exhaust treatment, allowing for unrestricted driving in urban areas and industrial parks.
🔸Performance Advantages: Diesel fuel provides ample low speed torque, enabling stable operation of the vehicle mounted fire pump at full load for extended periods.
Chassis
🔸Tire Configuration: Standard 235/75R17.5 16PR heavy duty tires, 6 tires in total, providing strong load bearing capacity and suitable for complex road conditions such as construction sites and mountain roads.
🔸Load Bearing Structure: Dual wheel heavy duty layout at the rear, matching an 18ton gross vehicle weight, ensuring stable operation and minimal deformation even when fully loaded with a water foam tank.
🔸Handling Features: Hydraulic power steering, air braking system, ensuring safe and reliable braking on wet and slippery fire surfaces.
Intelligent Control System
🔸Real Time Monitoring: Clearly visualized data such as liquid level, pressure, and rotation speed provide a clear overview of the operating status.
🔸Easy Operation: One button switching between water circuit and automatic foam mixing functions allows for rapid firefighting operations by a single person, significantly reducing emergency response preparation time.
🔸Safety Protection: Emergency stop, idling protection, and antifreeze pressure relief protection reduce equipment wear and tear and effectively extend equipment lifespan.
driver's cab of ISUZU fire truck
This vehicle features a double row passenger compartment that can accommodate six firefighters; it offers excellent visibility through the windows, and the driver's cab is equipped with emergency warning lights, a reversing alarm with sound and light, and high powered rearview mirrors to ensure safe operation during emergency calls.
driver's cab
Front seat
Rear seat
Firefighting Operation System
(1) Vehicle-mounted Fire Pump
The CB10/40 is a low pressure fire pump designed specifically for fire trucks, and it is the core component that enables this Isuzu 700P foam fire truck to achieve efficient fire suppression.
Operating Performance: Rated flow rate 40L/s, working pressure 1.0MPa, maximum suction height 7m; capable of independently drawing water from ditches and ponds in the field.
Suction Efficiency: Priming time ≤35s; piston type vacuum pump, rear mounted installation, convenient for inspection and maintenance.
Model
Working Conditions
Flow(L/s)
Pressure(Mpa)
Rated Speed(rpm/min)
Shaft Power(KW)
Suction Depth(m)
CB10/40-XZ
1
40
1.0
3135±50
60
3
2
28
1.3
3390±50
61
3
3
20
1.0
3010±50
39
7
(2) Rooftop Fire Monitor
The PL8/32 is a dual purpose foam and water fire monitor, and also the core fire extinguishing terminal of this fire truck. It is responsible for accurately and remotely spraying the extinguishing agent delivered by the fire pump to the fire point.
Spraying Performance: Rated flow rate 32L/s, working pressure 0.8MPa; water jet range ≥60m, foam jet range ≥48m, for long distance suppression of oil fires.
Adjustment Range: 360° horizontal rotation without dead angles, pitch angle -45°~70°, free switching between water jet and foam modes.
Model
Flow(L/s)
Range(m)
Pressure(Mpa)
Pitch Angle (°)
Rotation Angle (°)
PS8/20W
20
Water ≥50
0.8
-15-45
0°~360°
PL8/24
24
Water ≥ 55; Foam ≥ 42
0.8
PS8/30W
30
Water ≥60
0.8
PL8/32
32
Water ≥ 60; Foam ≥ 48
0.8
PS8/40W
40
Water ≥65
0.8
PL8/48
48
Water ≥ 70; Foam ≥ 60
1.0
(3) Foam Mixing System
Fully automatic proportional foam mixer, automatically adjusts the foam mixing ratio to 6%, one button switching between water and foam modes.
Model
Mixing Ratio
Pressure Range
Flow Rate Range
Applicable Foaming Liquid Type
PH 64
6%
0.6~1.4MPa
16~64 L/S
B
Equipment Room
This vehicle is equipped with a double sided, multidoor aluminum alloy equipment compartment, featuring a layered storage design:
Stores fire hoses, foam guns, water distributors, fire extinguishers, breaching tools, emergency lighting, and life saving equipment.
Rear mounted integrated pump room for direct monitoring of pump pressure and level; equipped with a spare interface to support external supply of foam concentrate and clean water.
Side mounted folding ladder for easy inspection and maintenance of the roof mounted water cannon and tank.
Applicable Scenarios
ISUZU 4×2 Drive Pumper Fire Truck for Firefighting in the Factory Area
ISUZU 2500L Fire Engine Truck for Gas Station Fire Extinguishing
ISUZU 190HP Fire Fighting Brush Truck for Forest Fire Fighting
exterior views

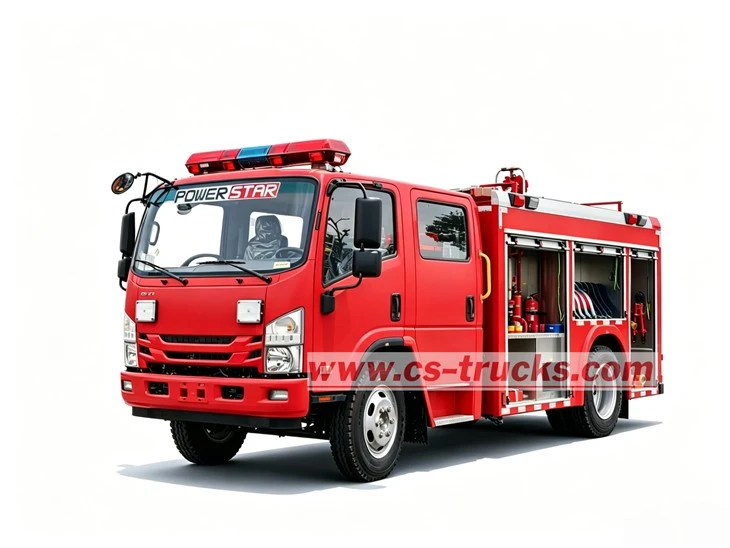

Front Left View of ISUZU 4×2 Drive Pumper Fire Truck

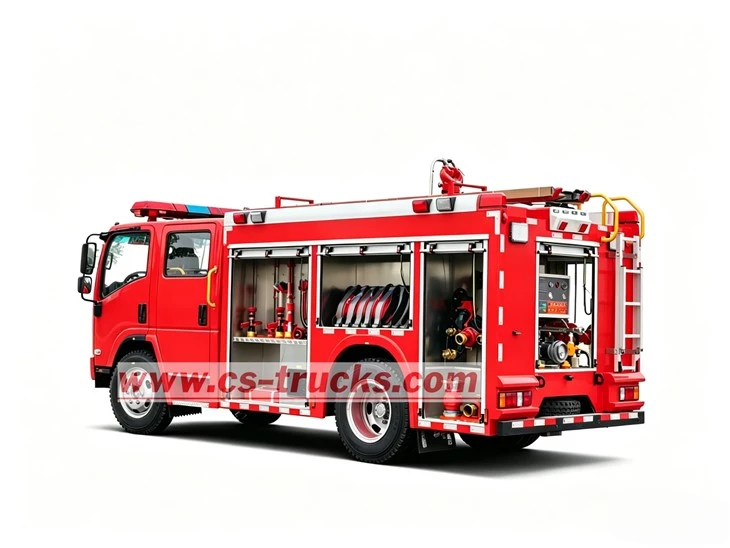

Rear Right View of ISUZU 2500L Fire Engine Truck

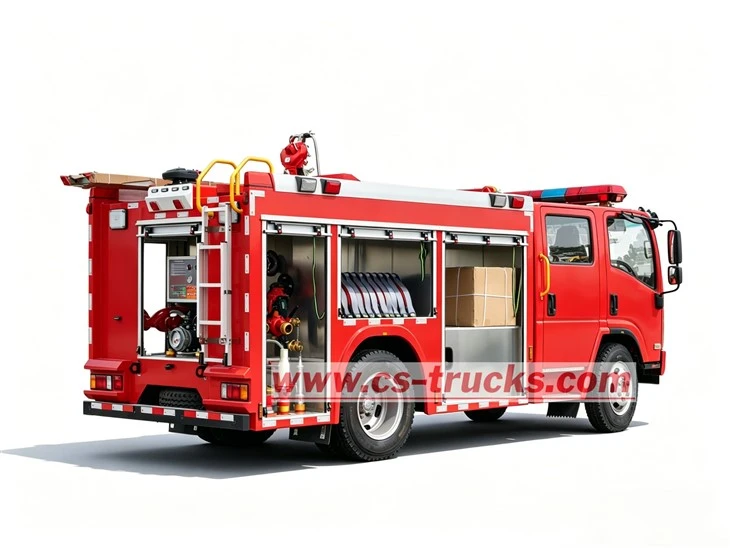

Rear Left View of ISUZU 190HP Fire Fighting Brush Truck

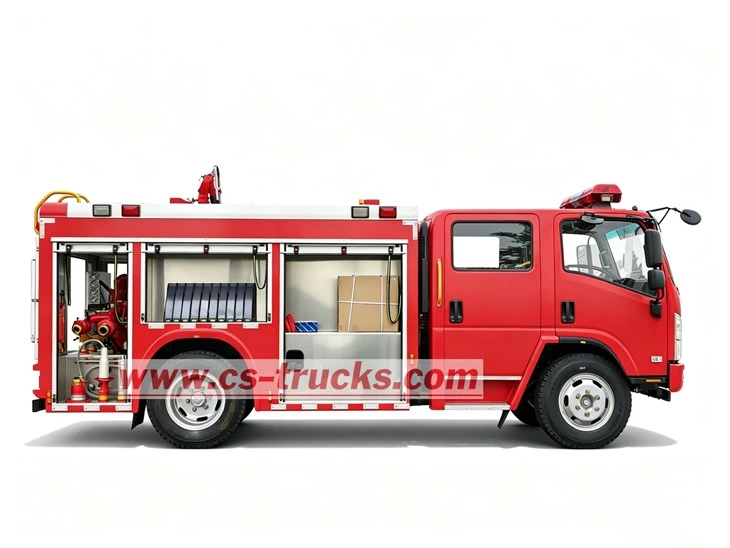

Right View of ISUZU 4×2 Drive Heavy Rescue Fire Truck

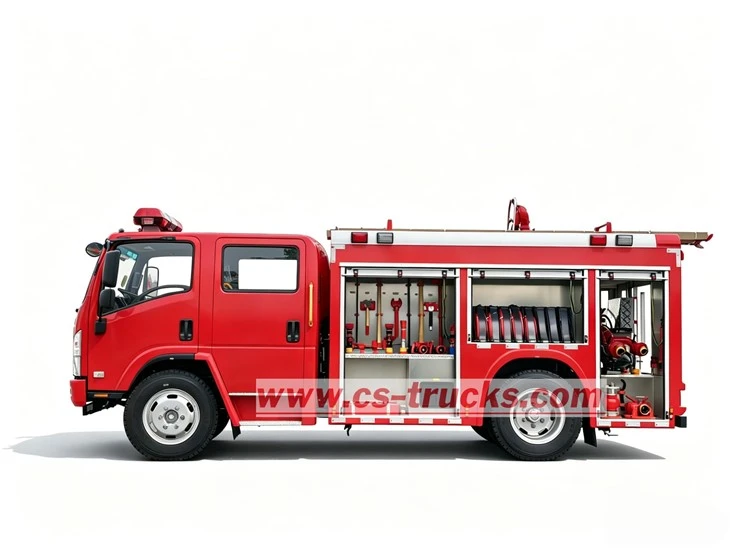

Left View of ISUZU 2500L Fire Trucks for Sale Near Me

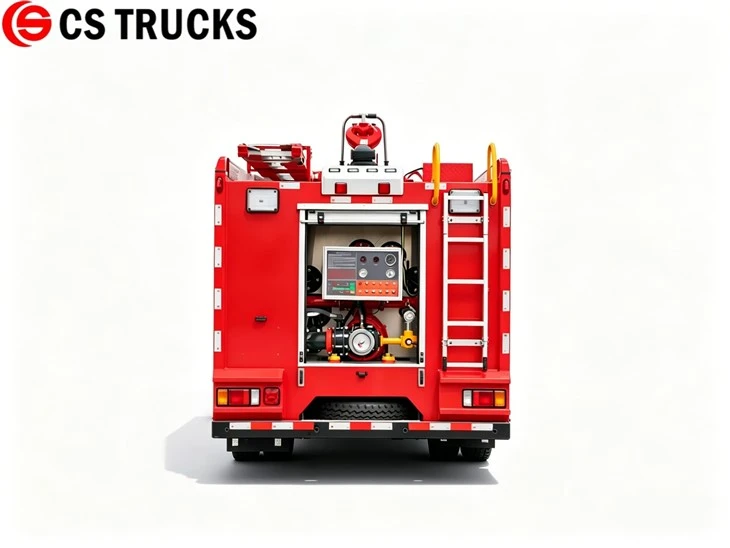

Rear View of ISUZU 190HP Fire Truck Water Tender
