HOWO 14 CBM rear loader waste compactor truck (also called garbage compactor vehicle, refuse collection truck, or solid waste packer truck) is designed for municipal solid waste collection and compaction. Typical tasks include gathering household refuse from residential communities, collecting commercial waste from shopping districts, or compacting mixed garbage at transfer stations.
With a 14 CBM body plus 2 CBM filler and a 251 HP Euro 6 engine, this HOWO garbage compactor truck handles dense urban routes and tight residential lanes with ease. It supports municipal sanitation departments, private waste management contractors, and industrial park cleaning crews.
*HOWO 14CBM Rear Loader Refuse Collection Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
✦ Chassis: SINOTRUK HOWO 4×2 chassis with 251 HP MC07.25 Euro 6 diesel engine
✦ Compactor Body: 14 CBM main chamber plus 2 CBM filler, Q345 wear-resistant carbon steel for heavy-duty compaction
✦ Loading System: Hydraulic rear bin lifter compatible with 120L, 240L, 660L, and 1100L bins, fill cycle ≤35 seconds
✦ Discharge System: Discharge time ≤40 seconds, hydraulic rear door for controlled and complete waste ejection
✦ Operation Scope: Municipal solid waste collection, residential refuse handling, commercial district compaction, industrial park cleaning
» II. Product Parameters for HOWO Water Spraying Truck::
| Product Name | Burkina Faso 14cbm Solid Waste Compactor Truck HOWO | ||
| Overall | Vehicle Model | CS5180ZYS | |
| Drive Type | HOWO 4*2 | ||
| Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 11000 kg | ||
| Maximum Speed | 90 km/h | ||

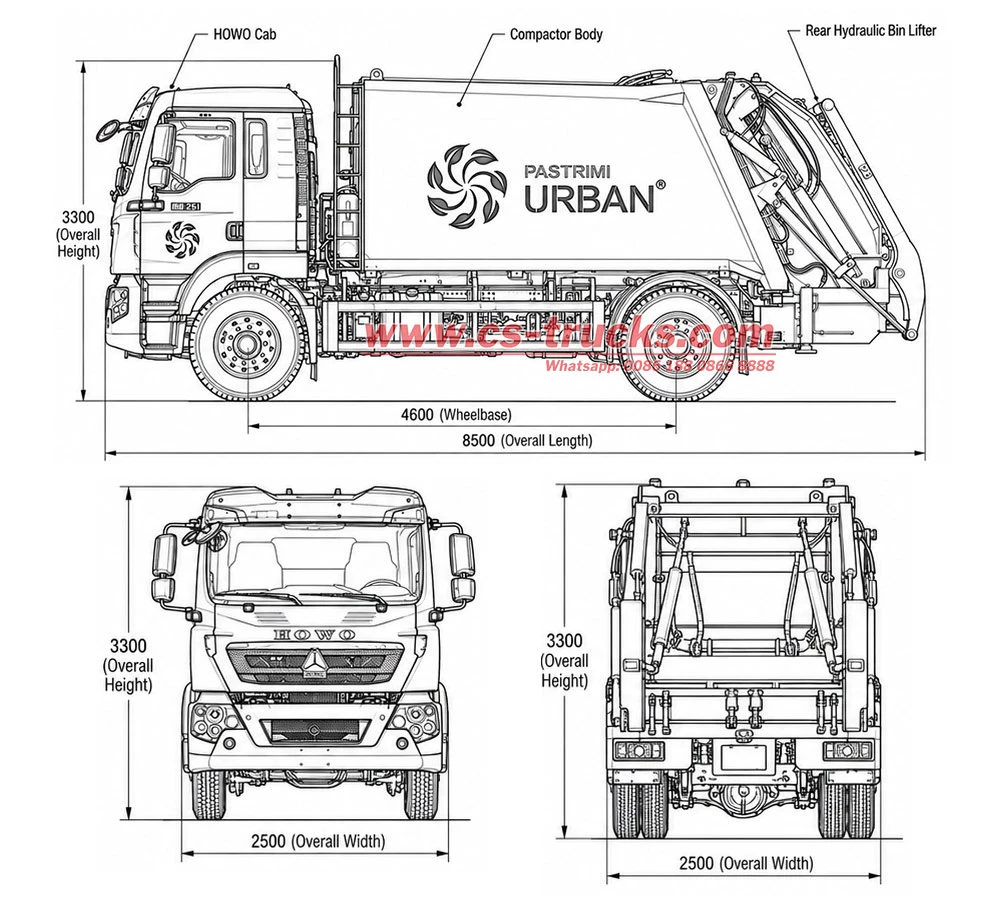

| Overall Dimensions L*W*H(mm) | 8500*2500*3300 mm | ||
| Engine | Engine Model | MC07.25 | |
| Fuel Type | Diesel | ||
| Power | 251 HP(185KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 6870 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK HOWO | |
| Tire No. | 6+1 | ||
| Tire Specification | 295/80R22.5 | ||
| Wheelbase | 4600 mm | ||
| Gear Box | Manual,9-speed forwards and 1 reverse | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Compactor Body | Volume of body | 14 CBM | |
| Volume of filler | 2 CBM | ||
| Time of one filling cycle | ≤35 seconds | ||
| Time of discharge | ≤40 seconds | ||
| Compaction Ratio | Compaction Ratio | ||
| Body Material | High-Strength Wear-Resistant Carbon Steel | ||
| Steel Grade | Q345 / Weather-Resistant Configuration | ||
| Rear Lifter Type | Hydraulic Rear Bin Lifter | ||
| Bin Compatibility | 120L / 240L / 660L / 1100L | ||
» III. Product Description:
HOWO 14 CBM Waste Compactor Truck Chassis
➤ Cabin：SINOTRUK HOWO 4×2 standard cab, single cabin, A/C and power steering
➤ Engine：MC07.25, 251 HP, inline 6-cylinder, 6.87 L displacement, Euro 6
➤Transmission: Manual, 9 forward and 1 reverse
➤Tires: 295/80R22.5, 6 wheels plus 1 spare
➤Wheelbase：4600 mm
HOWO 14 CBM Compactor Body – Loading & Discharge System
➤ Compactor Body: 14 CBM main chamber plus 2 CBM filler, Q345 wear-resistant carbon steel for heavy-duty compaction.
➤ Loading System: Hydraulic rear bin lifter compatible with 120L, 240L, 660L, and 1100L bins, fill cycle ≤35 seconds.
➤ Discharge System: Discharge time ≤40 seconds, hydraulic rear door for controlled and complete waste ejection.

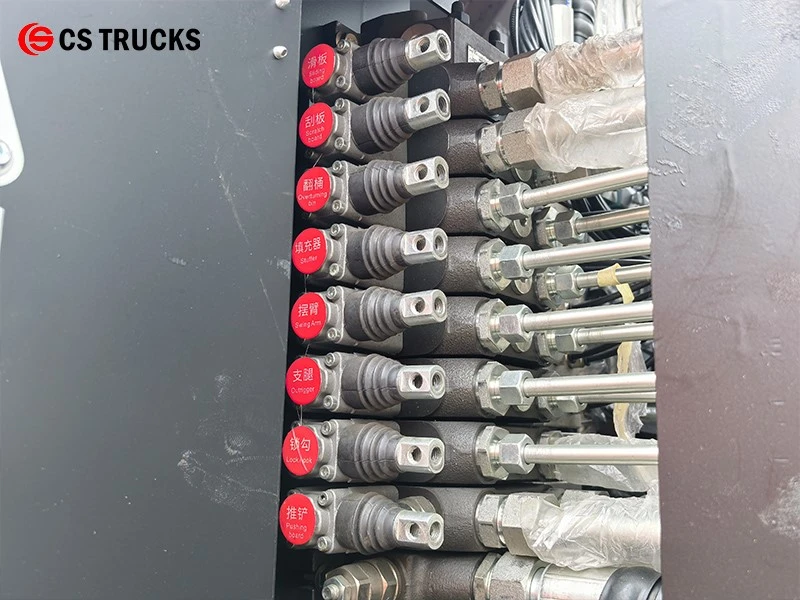

» IV. How to Operate Waste Compactor Hydraulic Control Valve:
HYDRAULIC MULTI-WAY VALVE OPERATING PRINCIPLE – HOWO WASTE COMPACTOR
1 SLIDING BOARD
Controls the sliding board cylinder to compress the loaded waste into the main body.
2 SCRATCH BOARD
The vehicle PTO drives the impeller through the drive shaft and gearbox.
3 OVERTURNING BIN
Water recirculates with suction-line air until the air is separated and discharged.
4 STUFFER
The impeller increases water velocity; the casing converts velocity into pressure.
5 SWING ARM
Pressurized water flows through the outlet and control valves to the spray system.
6 OUTRIGGER
Extends and retracts the hydraulic outriggers to stabilize the truck during heavy compaction operations.
7 LOCK HOOK
Engages the lock hook cylinder to secure the container or rear door safely in place.
8 PUSHING BOARD
Drives the pushing board cylinder to eject the fully compacted waste out of the rear door.
Product Details

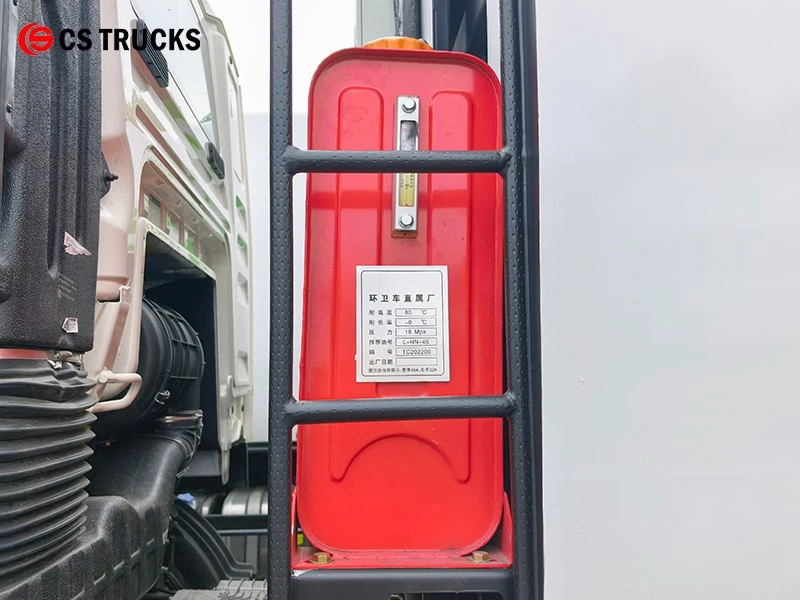

HOWO Compactor Truck Hydraulic Oil Tank With Level Gauge

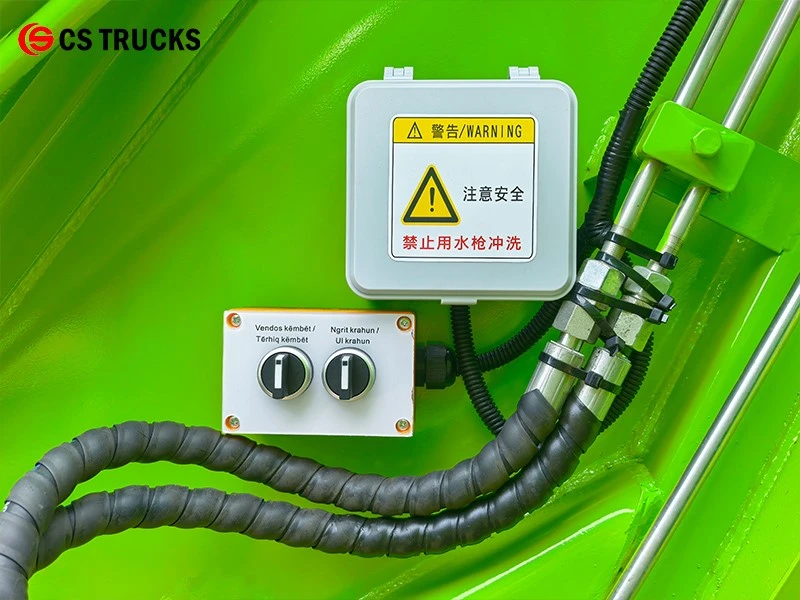

HOWO Compactor Truck Rear Operation Control Panel Warning Box

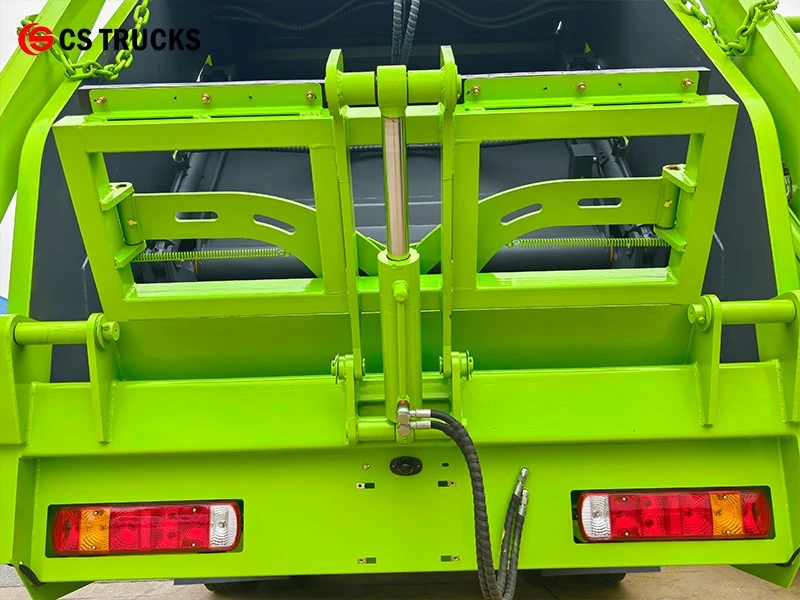

HOWO Compactor Truck Hydraulic Rear Bin Lifter Assembly

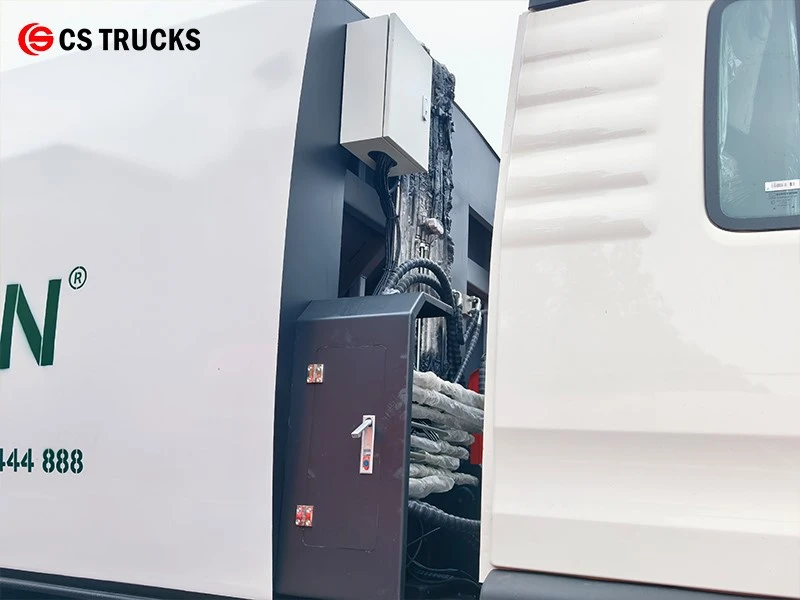

HOWO Compactor Truck Side Control Box & Wiring Harness

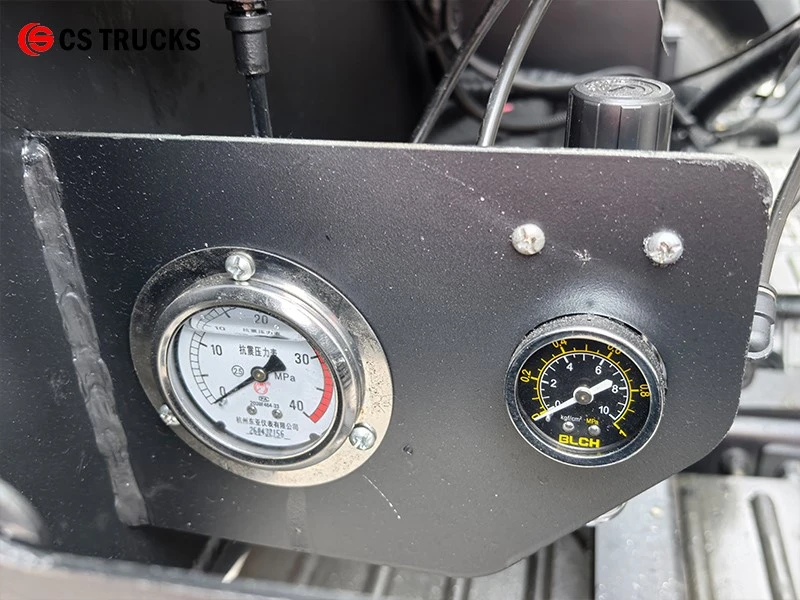

HOWO Compactor Truck Hydraulic Pressure Gauge Panel

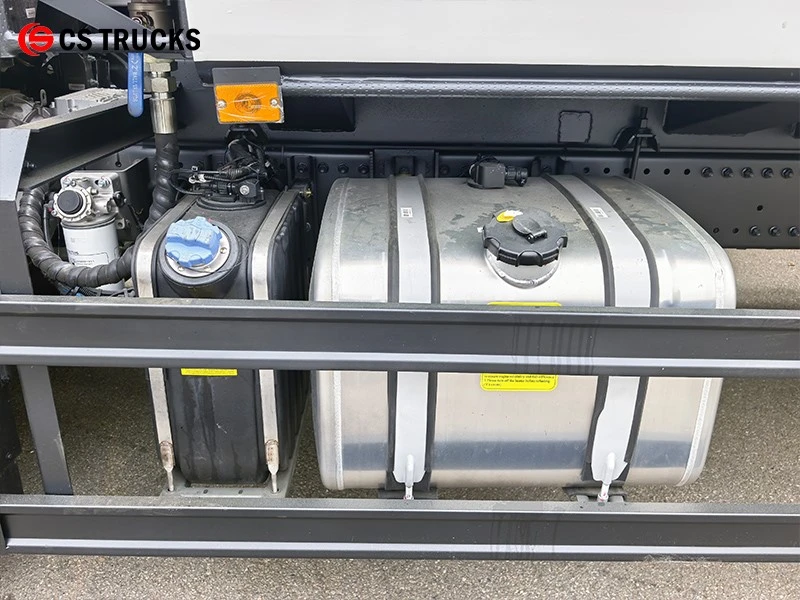

HOWO Compactor Truck Fuel Tank
» Ⅴ. HOWO 14 CBM Waste Compactor Truck Solutions:

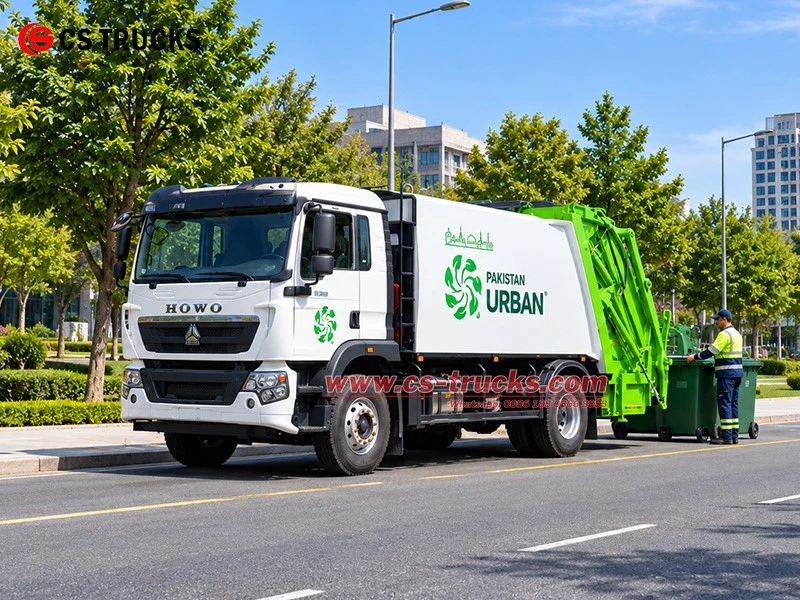

HOWO 251HP 14000L 4x2 Municipal Street Garbage Collection Truck

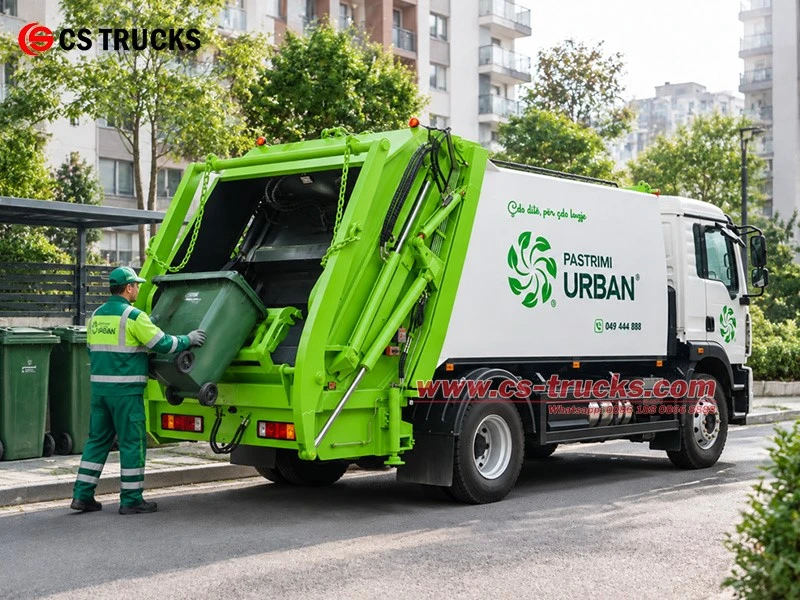

HOWO 251HP 14000L 4x2 Residential Community Waste Compactor Truck

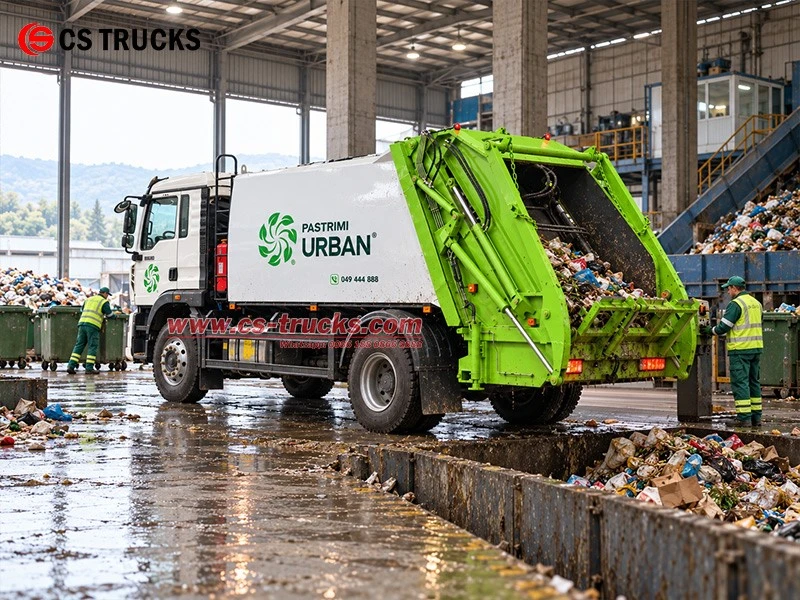

HOWO 251HP 14000L 4x2 Waste Transfer Station Compactor Truck

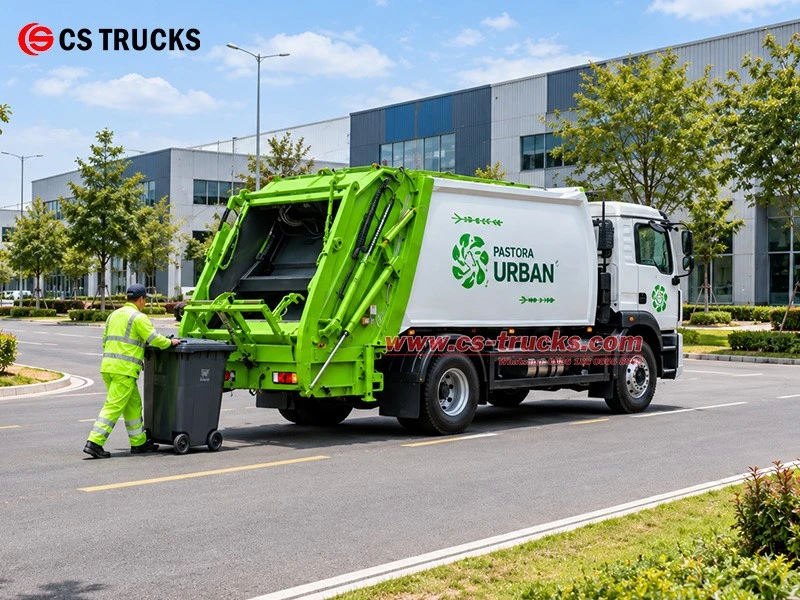

HOWO 251HP 14000L 4x2 Industrial Park Refuse Collection Truck

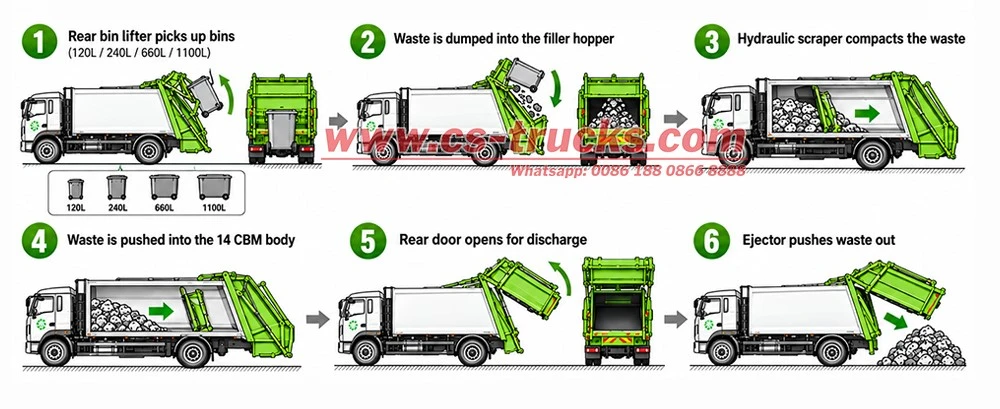

Ⅵ. How to Operate a HOWO Waste Compactor Truck:
➢ Step 1: Bin Lifting: Lower the rear bin lifter and hook the standard waste bin (120L/240L/660L/1100L), then raise and tilt it to empty waste into the filler hopper.
➢ Step 2: Filler Loading: Waste drops from the bin into the 2 CBM filler hopper, ready for the compaction cycle.
➢ Step 3: Scraper Compaction: The hydraulic scraper sweeps and compacts the waste, reducing its volume before pushing it into the main body.
➢ Step 4: Body Loading: The compacted waste is pushed into the 14 CBM main chamber. The compaction ratio ensures more waste per trip.

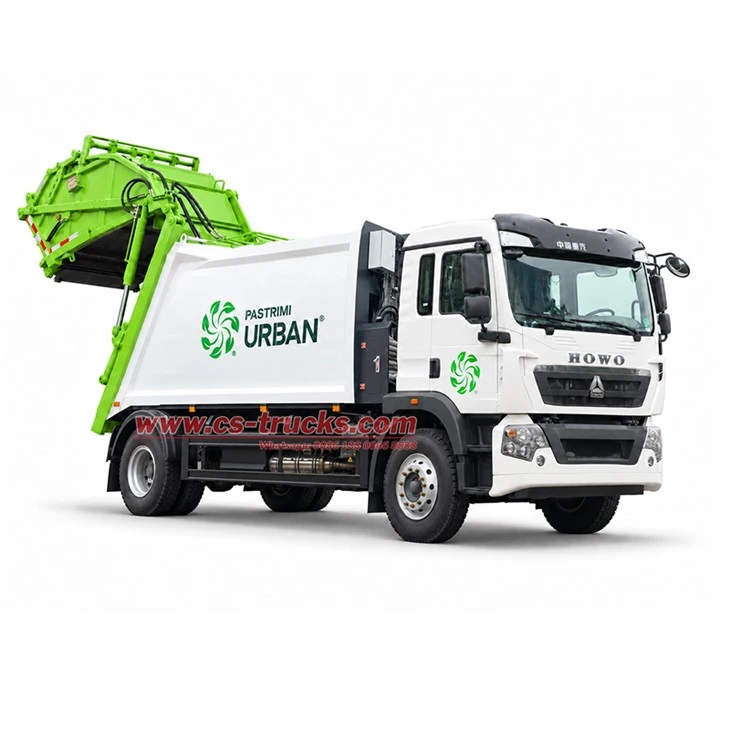

➢ Step 5: Rear Door Opening: At the disposal site, the hydraulic rear door opens fully to prepare for discharge.
➢ Step 6: Ejector Discharge: The hydraulic ejector plate pushes the fully compacted waste out of the rear door, completing the discharge cycle.
Ⅶ. HOWO 4X2 14000L Waste Compactor Truck Views:

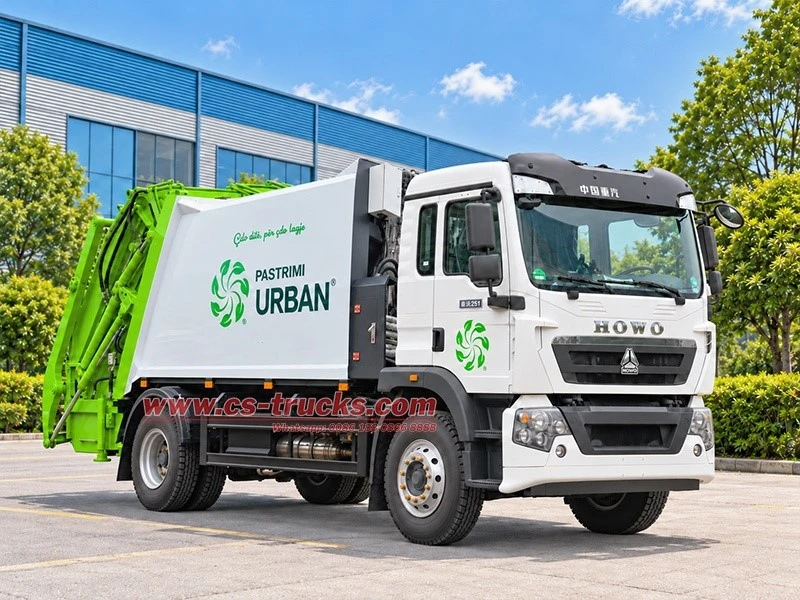

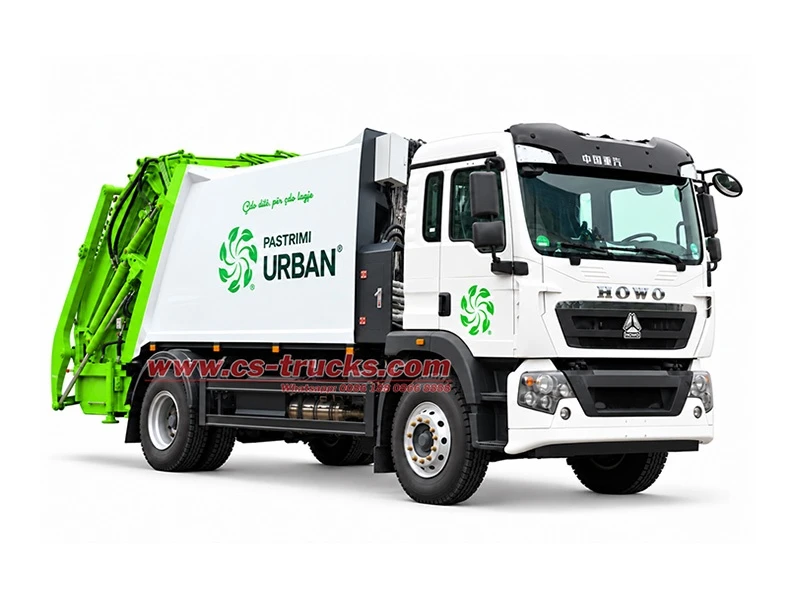

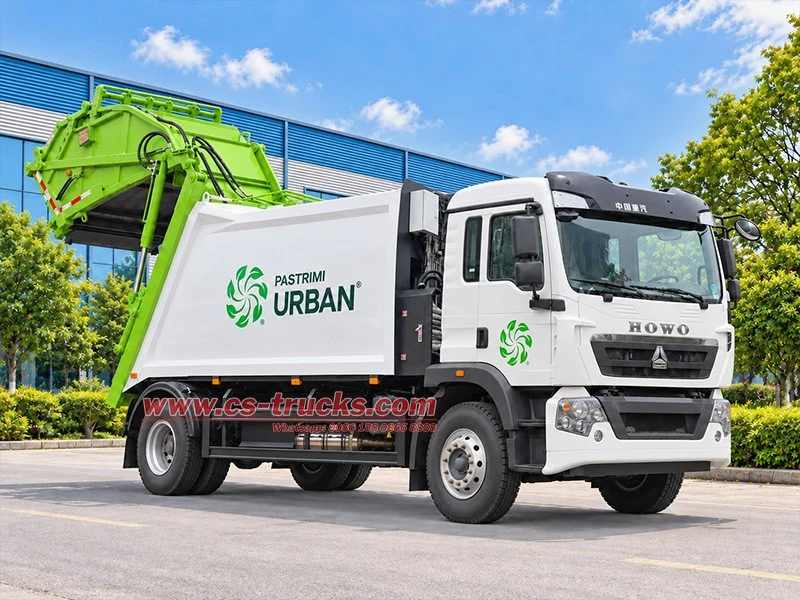

Front right view of HOWO 251HP 4x2 14cbm solid waste compactor truck

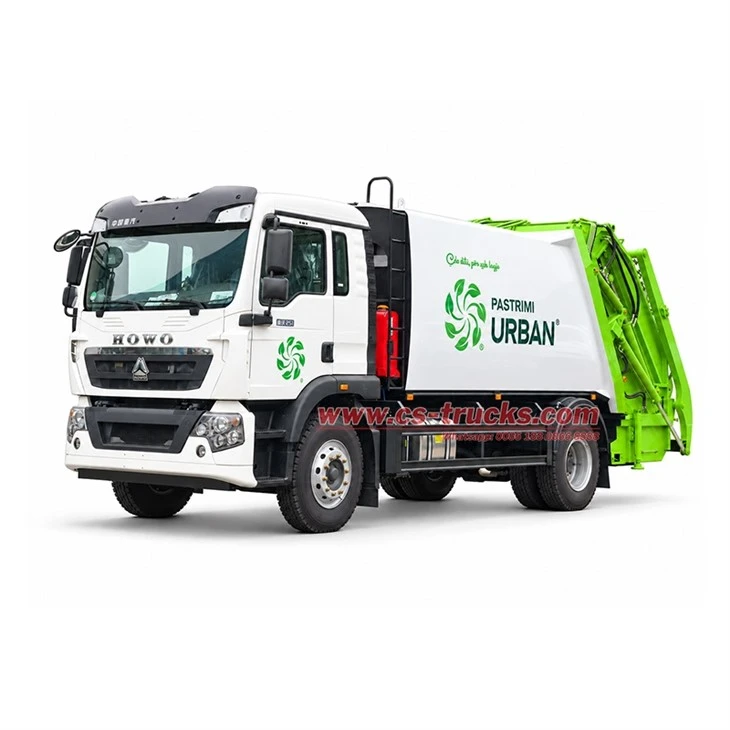

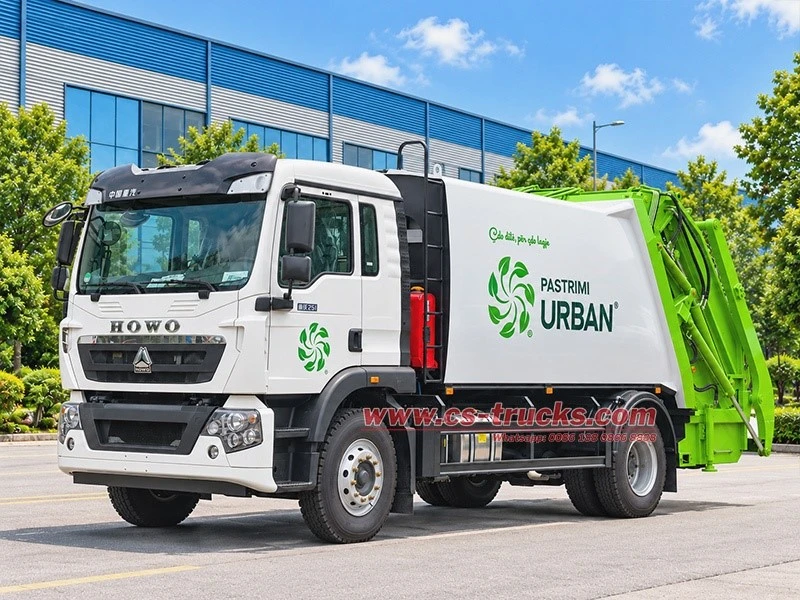

Front left view of SINOTRUK HOWO 251HP Euro 6 rear loader garbage truck

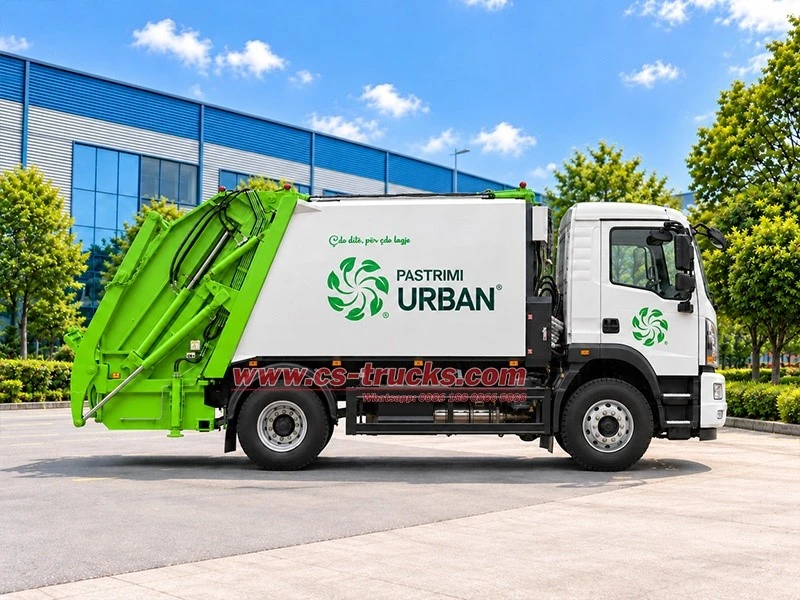

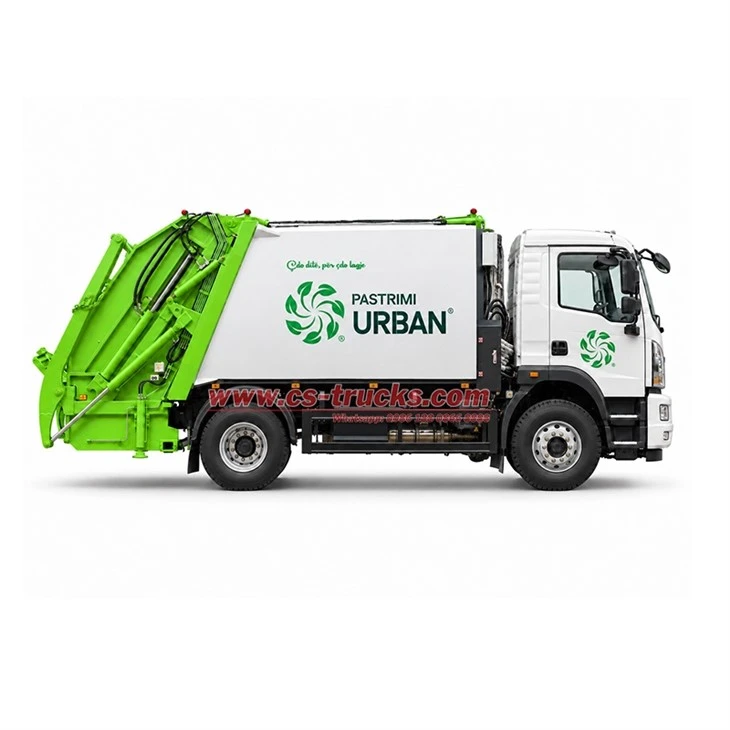

Right view of HOWO 251HP 14cbm solid waste compactor truck

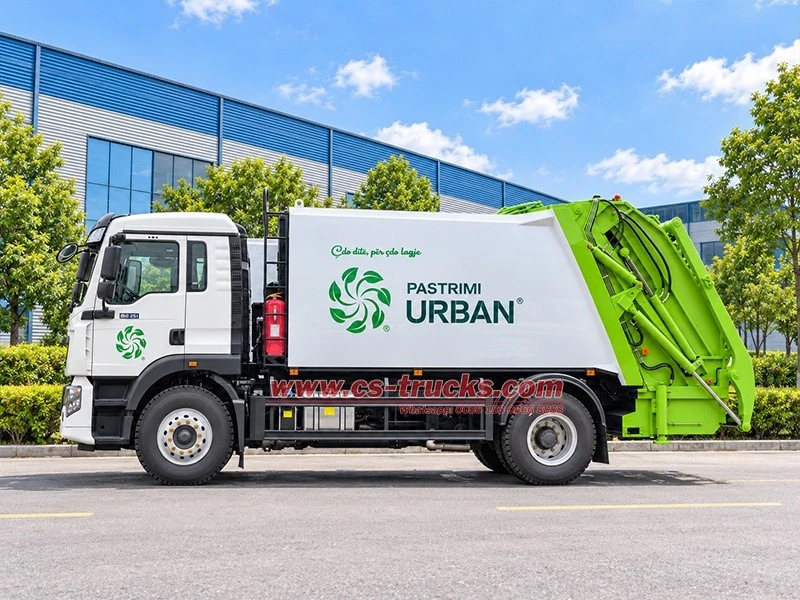

Left view of SINOTRUK HOWO 4x2 14cbm waste compactor truck

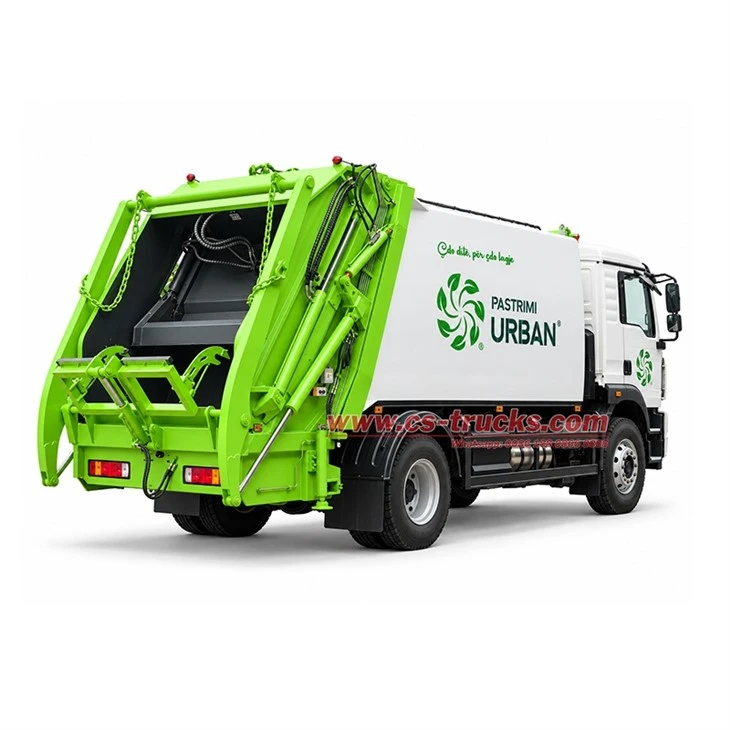

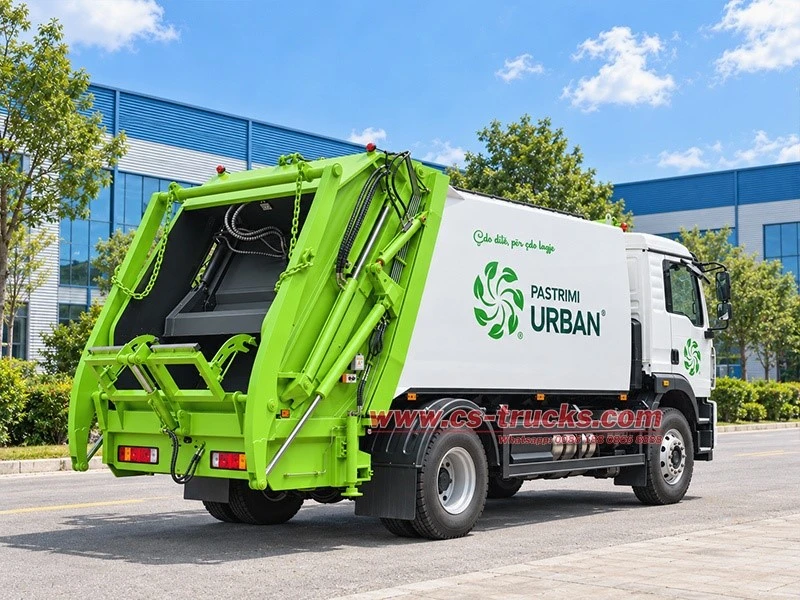

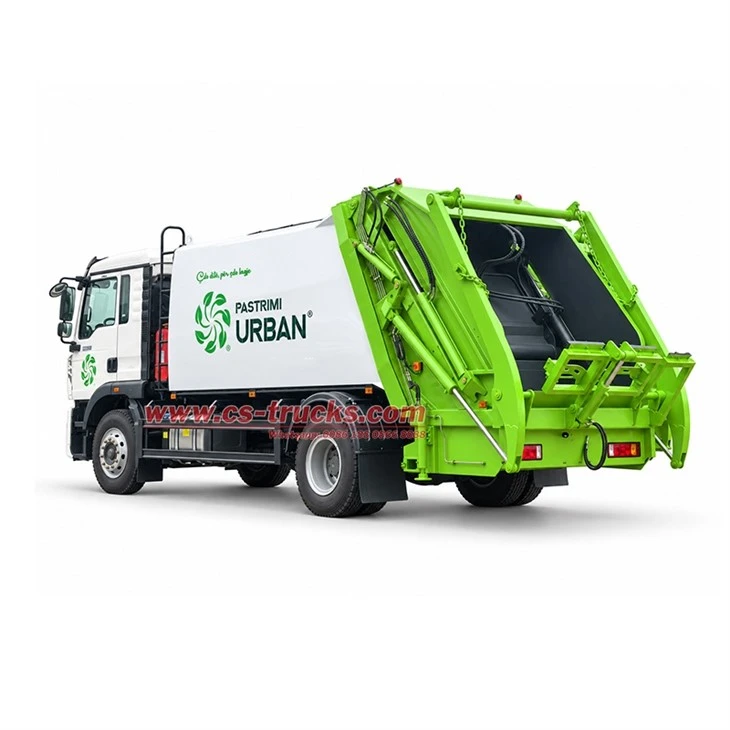

Rear Right view of HOWO 251HP Euro 6 refuse compactor truck

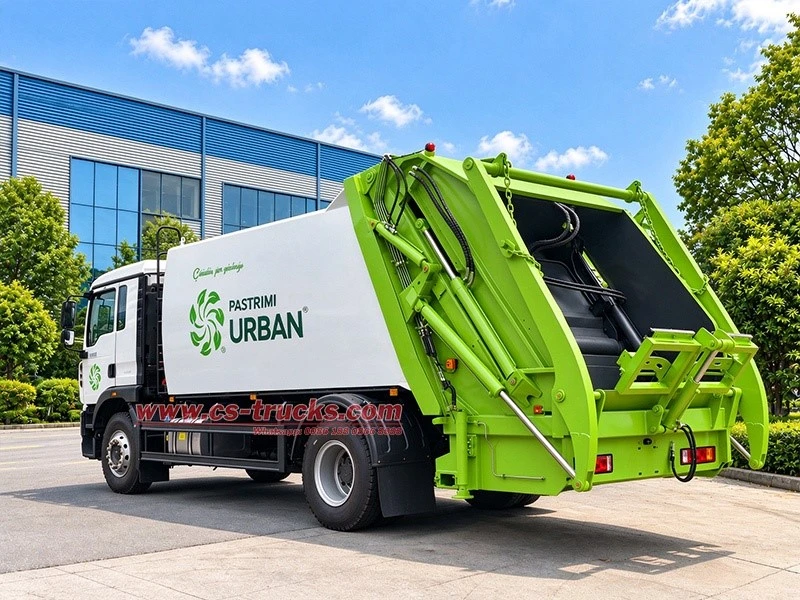

Rear Left view of HOWO 251HP rear loader solid waste compactor truck

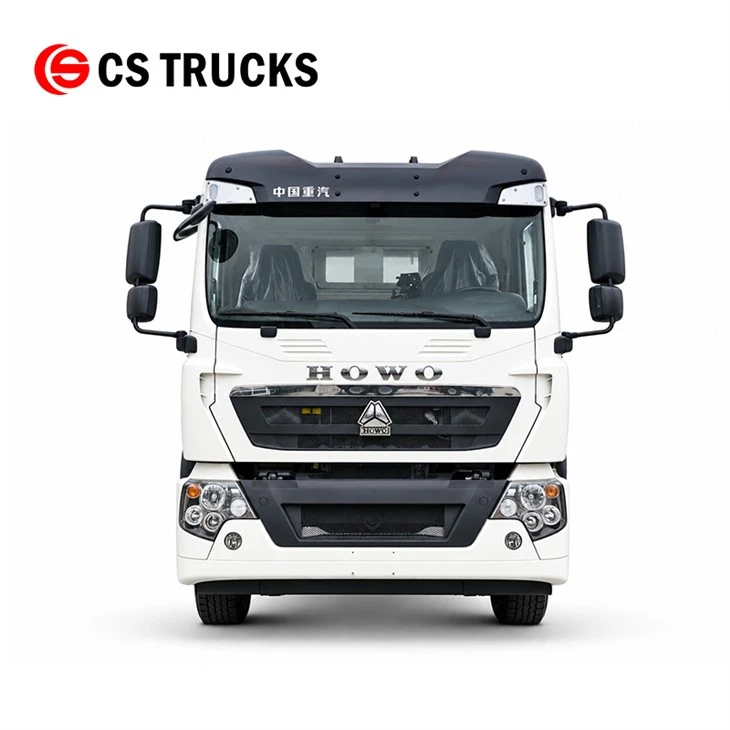

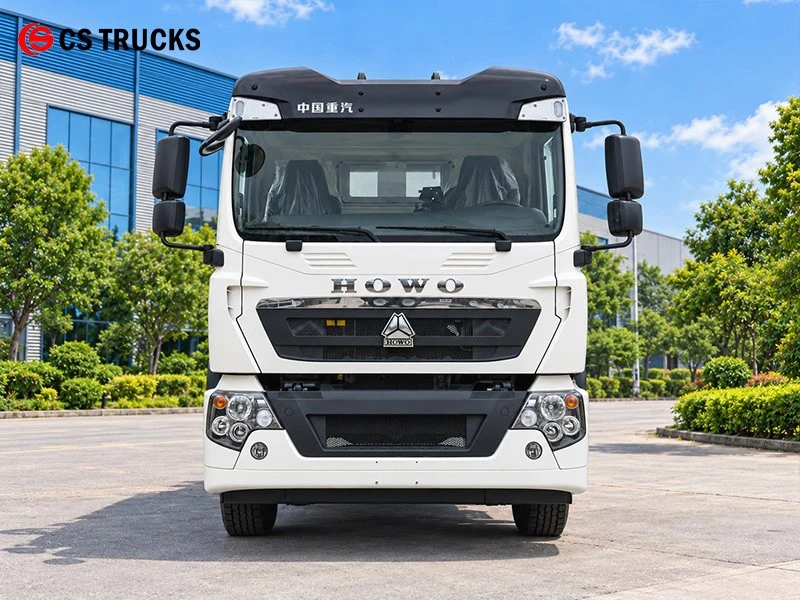

Front view of SINOTRUK HOWO 4x2 14cbm refuse collection truck

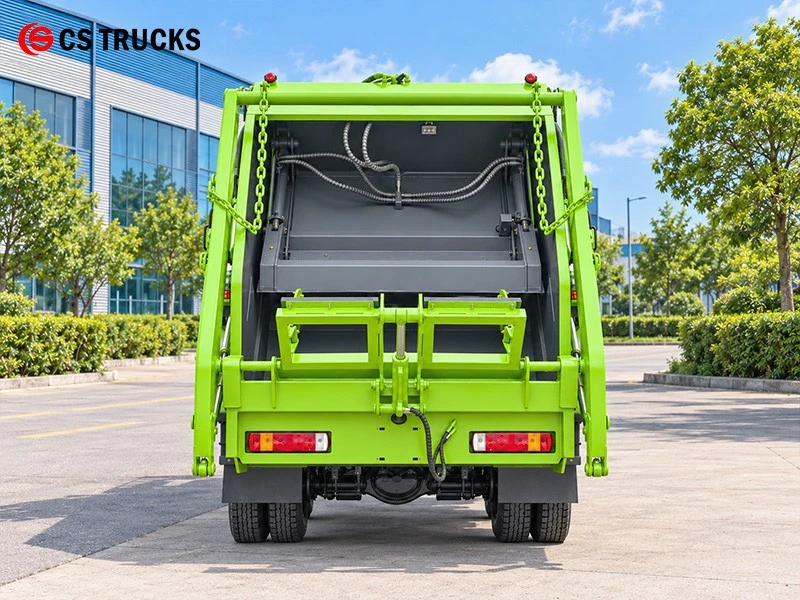

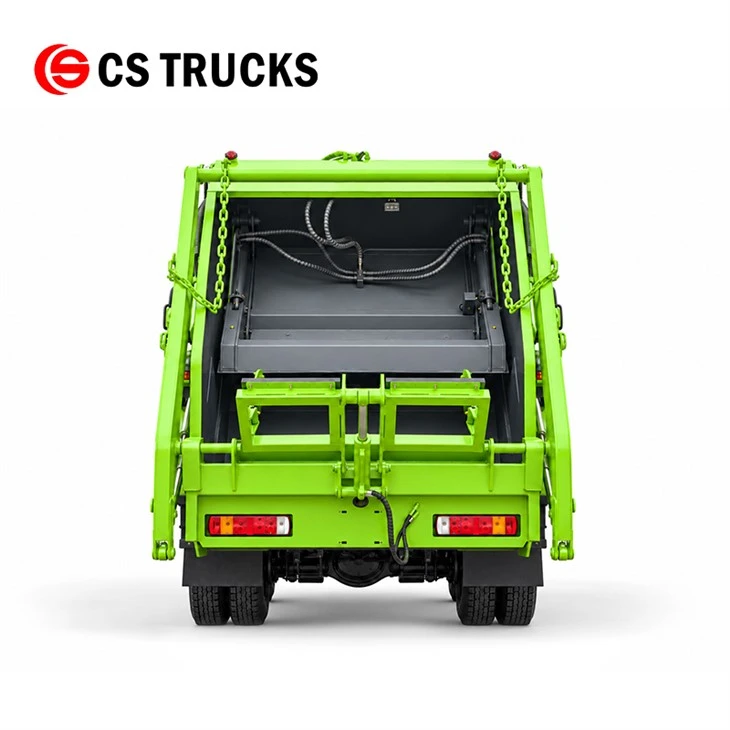

Rear view of HOWO 251HP Euro 6 diesel waste compactor truck
FAQ
Q1: What is the compactor body capacity and material of this HOWO garbage truck?
A: This HOWO waste compactor truck features a 14 CBM main body plus a 2 CBM filler, constructed from high-strength wear-resistant Q345 steel (weather-resistant configuration). It is equipped with a hydraulic rear bin lifter compatible with 120L, 240L, 660L, and 1100L bins.
Q2: What is the compaction cycle time and discharge time of this HOWO compactor?
A: The filling cycle takes ≤35 seconds, and the discharge time is ≤40 seconds. This ensures fast and efficient operation, reducing waiting time at collection points and transfer stations.
Q3: What type of engine and emission standard does this HOWO garbage compactor meet?
A: This HOWO rear loader compactor is powered by an MC07.25 diesel engine rated at 251 HP (185 kW), meeting Euro 6 emission standards. It is paired with a 9-speed manual transmission for reliable daily operation.
Q4: What is the chassis configuration of this HOWO waste compactor truck?
A: The truck is built on a SINOTRUK HOWO 4×2 chassis with a 4600 mm wheelbase, 295/80R22.5 tires (6+1), left-hand drive, and an air brake system. The 18000 kg GVW provides a stable platform for heavy municipal waste collection.
Q5: What types of waste bins can the hydraulic rear lifter handle?
A: The hydraulic rear bin lifter is compatible with standard 120L, 240L, 660L, and 1100L waste bins. This flexibility allows the truck to serve residential communities, commercial areas, and industrial parks without additional equipment.
Q6: What are the typical applications of this HOWO 14 CBM rear loader compactor truck?
A: It is widely used for municipal solid waste collection, residential community refuse handling, commercial district garbage compaction, and industrial park cleaning operations. It is suitable for both dense urban routes and narrow residential lanes.
