ISUZU Electricity Rear Loader Compactor With 100KW PMSM
ISUZU 4×2 Garbage Truck Trash Compactor
This ISUZU 100KW trash compactor vehicle is equipped with a 100kW permanent magnet synchronous motor and a 4×2 drive system, and features a 6CBM garbage bin. It is suitable for the fixed point collection and compaction of daily household waste in urban residential areas, commercial districts, and town streets. The all electric drive ensures low noise and zero emissions, allowing for operation in the early morning and at night. It balances maneuverability in narrow streets with high efficiency per collection, making it an economical and practical green waste collection equipment for small and medium sized sanitation operations.
This ISUZU 4×2 back loading garbage truck features a 4×2 drive configuration and a 6CBM container. It is equipped with a 100kW rated, 185kW peak permanent magnet synchronous motor and a CATL 106.95kWh lithium iron phosphate battery, supporting 2h fast charging. Compared to fuel powered sanitation vehicles, it boasts zero emissions, lower operating noise, and significantly reduced energy costs, making it more suitable for off peak operations in residential areas and scenic spots.
The onboard compression mechanism has a compression ratio of 1:3.4, a filling cycle of ≤40s, and an unloading time of ≤45s. The hydraulic system operates at a pressure of 20MPa and utilizes electromechanical integrated control. The container's bottom and side plates are made of 4mm steel plates, ensuring stable and efficient operation, suitable for urban sanitation waste collection and transportation.
ISUZU Compactor Truck Key Features
01.
Pure Electric Drive
Equipped with a TZ370XS-LKM1201 motor, rated power 100kW, zero emissions, low noise, suitable for early morning and nighttime operations.
02.
4×2 chassis
Compact structure, good maneuverability, easy access to residential areas and narrow town streets.
03.
6 CBM Capacity
Medium sized container volume, balancing single trip collection efficiency and vehicle flexibility, suitable for small to medium sized sanitation operations.
04.
Integrated Compression and Transfer
Rear mounted compression structure can connect to standard garbage bins, enabling fixed point collection and volume reduced transfer of household waste.
Technical Parameters
ISUZU Electricity Rear Loader Compactor with 100KW PMSM
Overall
Vehicle Model
CSC5080ZYS
Drive Type
4×2
Gross Vehicle Weight
8995 kg
Curb Weight
3150 kg
Capacity
6 CBM
Maximum Speed
100 km/h
Overall Dimensions(L*W*H)
7060*2200*2520 mm
Drive Motor
Type
Permanent Magnet Synchronous Motor
Model
TZ370XS-LKM1201
Fuel Type
Electricity
Rated/Peak Power
100/185 kW
Rated Voltage Of Power Battery System
618.2 V
Rated Capacity Of Power Battery System
173 AH
Chassis
Chassis Brand
Qingling
Tire No.
6
Tire Specification
7. 50R16LT 16PR
Wheelbase (mm)
3365 mm
Wheelbase (Front/rear)
1640/1655 mm
Axle Load
3300/5695 kg
Number of Axles
2
Number of Leaf Springs (Pieces)
6/6+6
Gear Box
Electronic Control
Steering Wheel
LHD
Brake
Air
Battery
Model
CATL/CB220
Type
LFP
Capacity
106.95 kWh
Energy Density
153.84 WH/KG
Nominal Voltage
154.56 V
Nominal Energy
26.73 kWh
Electrical Box Weight
175 kg
Electrical Box Model
L173TB2
Charging Method
Fast charging (2 hours)
Cab
Allowed 3 people
Superstructure
Tank Material Thickness
Bottom 4mm, Side 4mm
Compression Ratio
1:3.4
Filling Cycle Time
≤40 s
Unloading Time
≤45 s
Hydraulic System Pressure
20 Mpa
Hydraulic System Control Methods
Manual/electric integrated control
Hydraulic Cylinder Type
Double acting piston type
Oil Pump
Twin gear pump
Directional Control Valve
Multiway directional valve
Performance Characteristics
01
Powertrain
⚙️Motor Performance: Equipped with a permanent magnet synchronous motor, rated power 100kW, peak power 185kW, top speed 100km/h.
⚙️Battery Configuration: Equipped with a CATL 106.95kWh lithium iron phosphate battery, supporting 2 hours fast charging.
⚙️Handling Features: Electronically controlled single speed drive, D/N/R electronic shifting, simple operation without a clutch.
02
Compression system
⚙️Container Capacity: Effective volume 6CBM, compression ratio up to 1:3.4, large waste loading capacity.
⚙️Noise Advantages: Low operating noise, suitable for staggered operation in residential areas and scenic spots during off peak hours.
⚙️Operating Costs: Electricity consumption costs are significantly lower than fuel costs, requiring fewer maintenance items and resulting in longer term cost savings.
ISUZU Rear Loader Driver's Cab
Featuring a genuine Qingling Isuzu cab, it can accommodate 3 people and offers ample space. Equipped with electronic gear shifting, it eliminates the need for a clutch pedal, making operation easy and effortless. The vehicle boasts low noise levels and superior driving comfort compared to gasoline powered models, making it suitable for sanitation workers undertaking long term collection and transportation operations.
Driver's Cab
Driver's cab electrical control box
Gear Box
Working Principle Of ISUZU Truck Compactor
1
Scraper Opens
Once the filler is full of garbage, the scraper opens, preparing for the downward insertion to remove the garbage.
2
Skateboard Down
The skateboard drives the scraper downwards, inserting it into the garbage for crushing and primary compression.
3
Scraper Closing
The scraper rotates forward to further compact the waste.
4
Skateboarding Up
Compact the garbage and fill it into the garbage bin, then return it to the starting position.
Product Details
Hydraulic Oil Tank
Emergency Stop Button
Multi-way Valve
Control Panel
Power Battery Pack
Hydraulic Lifting Cylinder
Application Scenarios
ISUZU 4×2 Garbage Truck Trash Compactor for Commercial And Public Places
Suitable for commercial districts, hotels, parks, plazas, and other areas with high foot traffic and frequent waste generation. The vehicle's compression function can effectively reduce collection frequency and maintain environmental cleanliness.
ISUZU 100KW Trash Compactor Vehicle for Residential Area
The vehicle's compact design allows it to access relatively narrow community streets for collecting bin trash. Its low noise operation, thanks to its all electric drive, makes it ideal for use in residential areas early in the morning or at night, minimizing disturbance to residents.
ISUZU 6CBM Waste Management Rear Loader for Townships
Its pure electric chassis is adapted to urban road conditions, and with the rear mounted tipping mechanism, it can connect to standard garbage bins or small collection vehicles to complete the initial compression and transfer of garbage.
Exterior Views

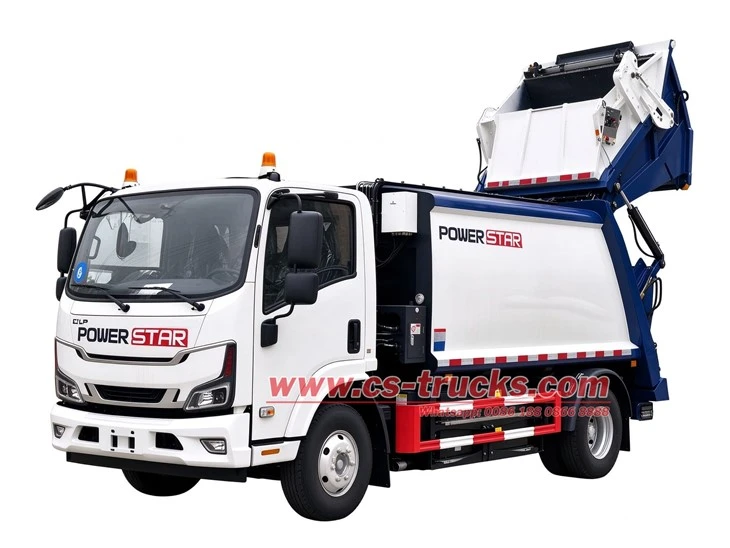

Front Left View of ISUZU 6CBM Waste Management Rear Loader

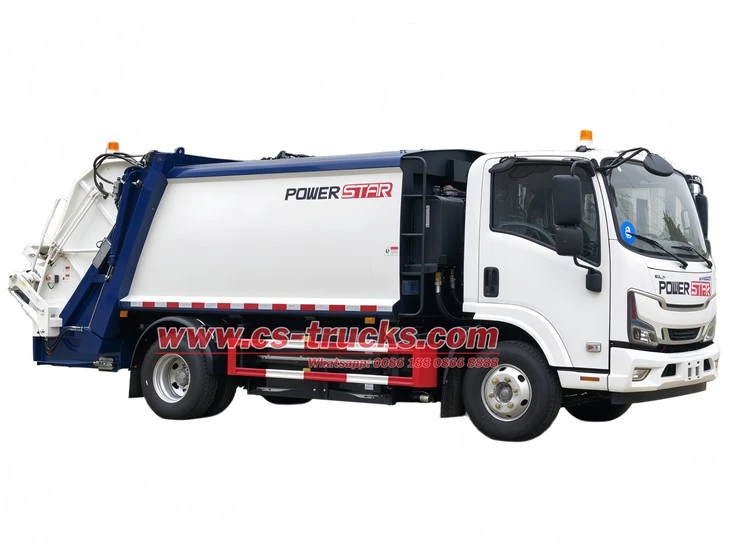

Front Right View of ISUZU 6CBM First Gear Rear Loader Garbage Truck

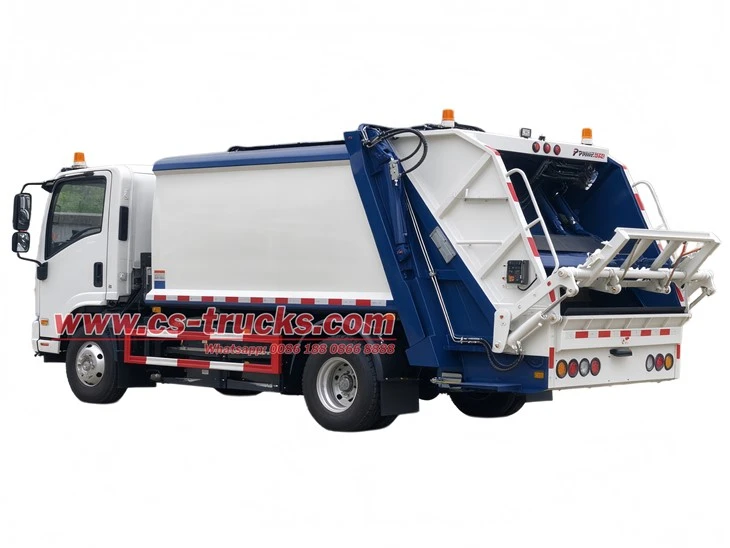

Rear Left View of ISUZU 4×2 Back Loading Garbage Truck

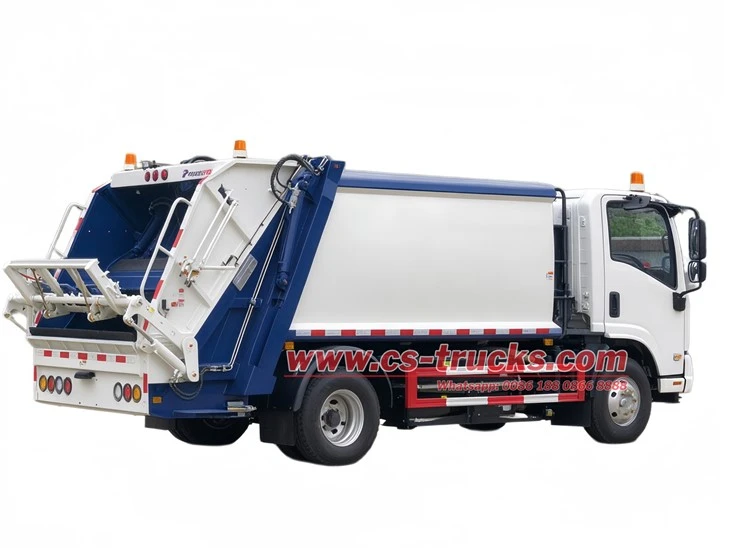

Rear Right View of ISUZU 4×2 Garbage Truck Trash Compactor

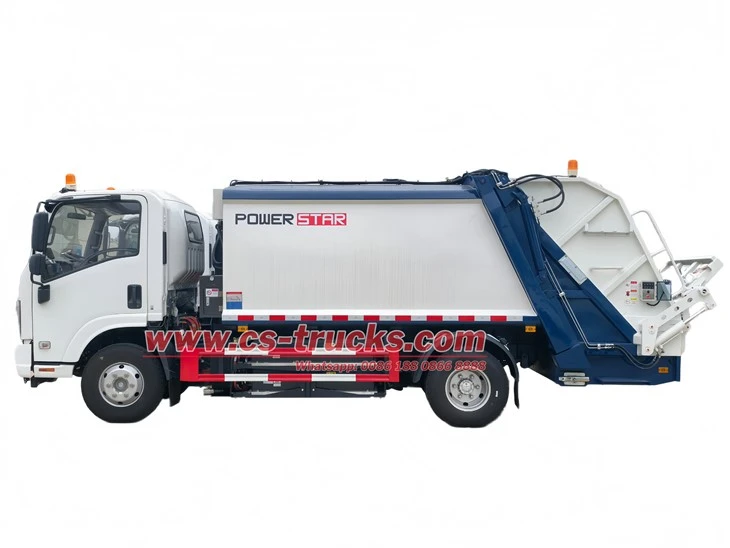

Left View of ISUZU 100KW Garbage Truck With Compactor

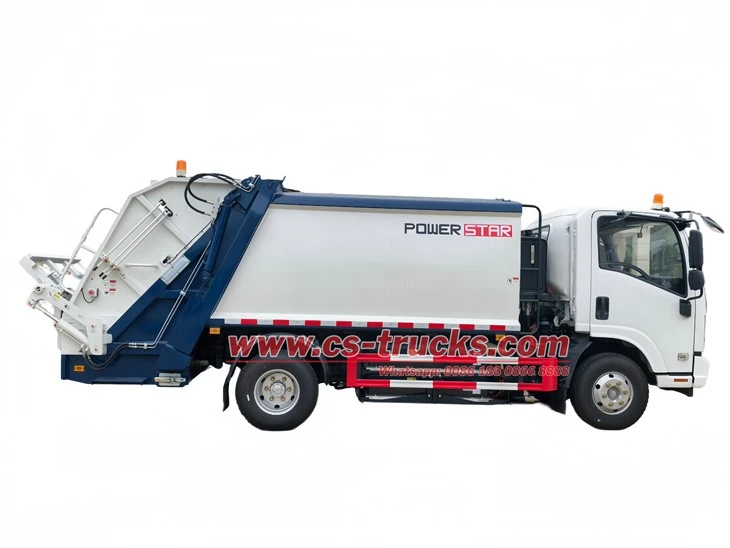

Right View of ISUZU 100KW Trash Compactor Vehicle

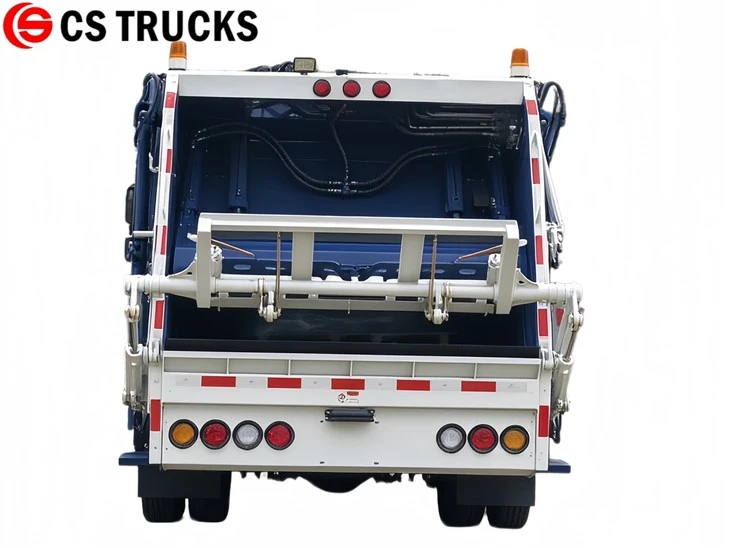

Rear View of ISUZU 4×2 Rear Load Trash Truck
Electric vs. Diesel Compactor Garbage Trucks:What's the Difference
Comparison Dimensions
Electricity Rear Loader Compactor
Diesel Compactor Garbage Truck
Energy consumption cost
Low electricity cost, no fuel consumption during idling
High diesel fuel costs, continuous fuel consumption at idle
Maintenance Costs
No engine related maintenance, minimal upkeep
Engine oil change and diesel system maintenance required
