Philippines 10CBM Rear End Loader Compactor Truck ISUZU
Philippines ISUZU 10CBM Rear Load Trash Truck
This Philippines ISUZU 4×2 loadmaster rear loader is equipped with a 187HP 4HK1-TCG61 engine and 4×2 drive, which combines strong power and fuel economy. With a large capacity of 10CBM and a high compression ratio, it is suitable for medium sized urban trunk roads and township consolidation. The vehicle has a compact design and intelligent operation, it not only ensures loading efficiency, but also takes into account low cost operation and environmental sealing. It is a cost effective and reliable choice for municipal sanitation.
Model: CS5100ZYS
Capacity: 10 CBM
Drive: 4×2
Engine power: 187 HP
Engine type: 4HK1-TCG61
Send Inquiry
Description
This Philippines ISUZU 10CBM compactor lorry utilizes the mature 4×2 Qingling chassis and is equipped with a Euro VI compliant engine, providing strong and stable power that is not prone to fatigue even after prolonged use. The vehicle features left hand drive and air brakes, and its compact and agile dimensions make it suitable for navigating narrow roads in Philippine urban areas and residential communities.
The Box is made of thickened, wear resistant carbon steel, offering excellent waste compression capabilities and significantly reducing the frequency of transfers. The hydraulic operation is efficient and fast, with multiposition control adaptable to various operating scenarios. The entire container lifts and unloads without residue, and the sealed body prevents sewage leakage, making it a practical sanitation equipment for urban waste collection.
Key Features
Manufacture:CS TRUCKS
Features:
♻️High Efficiency Power: Equipped with a 187HP 4HK1-TCG61 engine, providing ample power and rapid response during operation and driving.
♻️Large Capacity loading: A 10CBM extra large box, combined with a high compression ratio, allows for a larger single load, reducing the frequency of trips.
♻️Flexible Driving: The classic 4×2 drive configuration and moderate wheelbase ensure both load bearing capacity and agile maneuverability in urban areas.
♻️Economical and Durable: Mature engine technology ensures economical fuel consumption, and the high strength box results in low overall long term operating costs.
Technical parameters
Philippines 10CBM Rear End Loader Compactor Truck ISUZU
Overall
Vehicle Model
CS5100ZYS
Drive Type
4×2
Gross Vehicle Weight
10550 kg
Curb Weight
6940 kg
Overall Dimensions L*W*H
7560×2350×2600 mm
Maximum Speed
110 km/h
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
187HP/138kW
Emission Standard
Euro VI
Displacement
5193 ml
Engine Type
Inline four-cylinder, turbocharged and intercooled, high pressure common rail
Chassis
Chassis Brand
Qingling
Wheelbase
3900 mm
Tire Specification
235/75R17.5
Tire No.
6+1
Gear Box
MLD 6-speed manual transmission
Steering Wheel
LHD
Brake
Air
Superstructure
Capacity
10 CBM
Material
Carbon Steel
Thickness
side 4mm;bottom 5mm
Compression Ratio
≥1:3.4
Pressure
16MPa
Compression Time
20-28 s
Filling Time
8-10 s
Discharing Time
30 s
Unloading Method
The loader is lifted as a whole and the built-in pusher is pushed out simultaneously
Control Mode
Cab PLC panel + rear electrical control box + side manual lever
Product Description
Powertrain and Chassis
➤ Reliable Power: Equipped with a 4HK1-TCG61 187 horsepower engine that meets Euro 6 emissions standards, it provides ample power for long term operation of the hydraulic system.
➤ Agile Maneuverability: Featuring a 4×2 left hand drive configuration and compact overall dimensions, it navigates residential areas and narrow city streets with ease, while its air brake system ensures high safety.
Tank
➤ Sturdy Body: 10 CBM carbon steel body with 4 mm side panels and 5 mm reinforced, wear-resistant bottom panel; fully sealed welded construction to prevent sewage leakage.
➤ High Efficiency Loading: Compression ratio ≥ 1:3.4, resulting in outstanding waste volume reduction; significantly increased single load capacity, reducing the number of round trips for waste transfer.
Hydraulic System
➤ Fast Operation: With a hydraulic system pressure of 16 MPa, the loading process takes 8–10s, compaction takes 20–28s and the entire unloading cycle takes just 30s, ensuring a highly efficient workflow.
➤ Easy to Operate: With control stations located in the cab, at the rear of the vehicle, and on the side of the body, the front blade is raised as a whole for unloading, leaving no waste residue inside the bin.
How Does the Compaction Process Work?
1
Waste Collection
Use the loading chute at the rear of the vehicle to dump trash from bins or bags into the collection hopper.
2
Hydraulic Compaction
Mechanisms inside the truck, such as scrapers and slides, operate in a continuous cycle to shred and forcefully compact the waste, pushing it toward the front of the truck bed.
3
Leak-Proof Storage
Once full, the compartment and filling device are tightly locked to prevent spillage and odors during transport.
4
Efficient Unloading

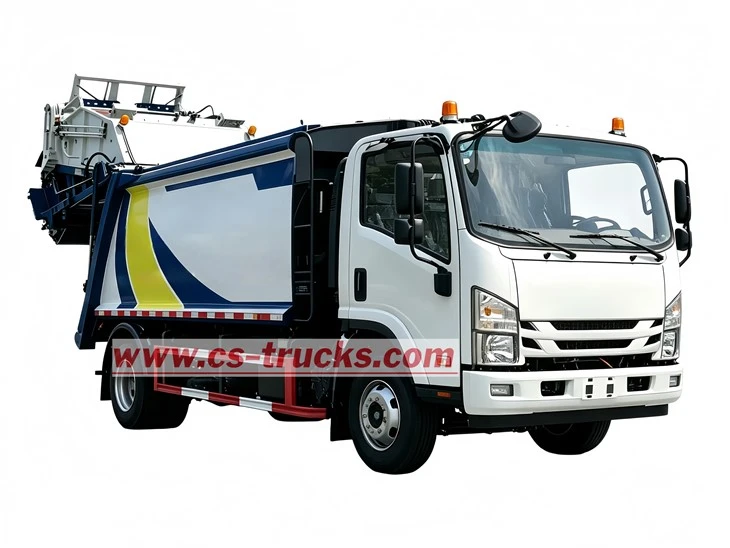

Upon arrival at the processing plant, open the rear door and use the push shovel inside the truck bed to push out the compressed garbage blocks.
Product Details
Multi-way Valve
Control Panel
Hydraulic Lifting Cylinder
Sealing Lock
Sewage Tank
Emergency Button
Hydraulic Oil Tank
Spare Tire
Application scenarios
Compactor garbage trucks are mainly used for the collection and transportation of household waste, covering various scenarios in both urban and rural areas:
Urban Sanitation: Used for collecting household waste in streets, residential areas, parks, and other areas.
Rural And Township Sanitation: Improves the efficiency of waste collection and transportation in towns and villages.
Public And Commercial Venues: Provides waste collection services for schools, hospitals, shopping malls, factories, mines, and other establishments.
Transfer And Transshipment: Connects with waste transfer stations to centrally transport waste to treatment plants (landfill/incineration).
Philippines ISUZU 10CBM Compactor Lorry for Residential Waste Disposal
Philippines ISUZU 4×2 Loadmaster Rear Loader for Factory Waste Disposal
Philippines ISUZU 10CBM Rear Load Trash Truck for Street Waste Disposal
exterior Views
Front Right View of Philippines ISUZU 10CBM Rear Load Trash Truck

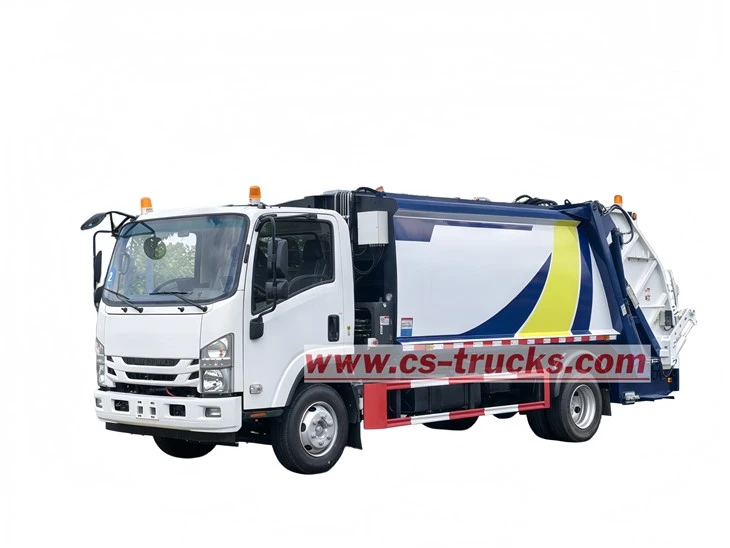

Front Left View of Philippines ISUZU 4×2 Loadmaster Rear Loader

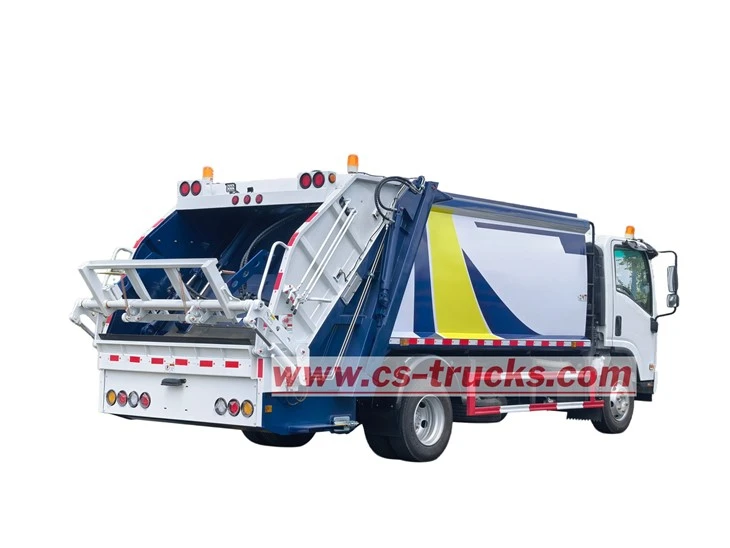

Rear Right View of Philippines ISUZU 187HP Garbage Truck With Compactor

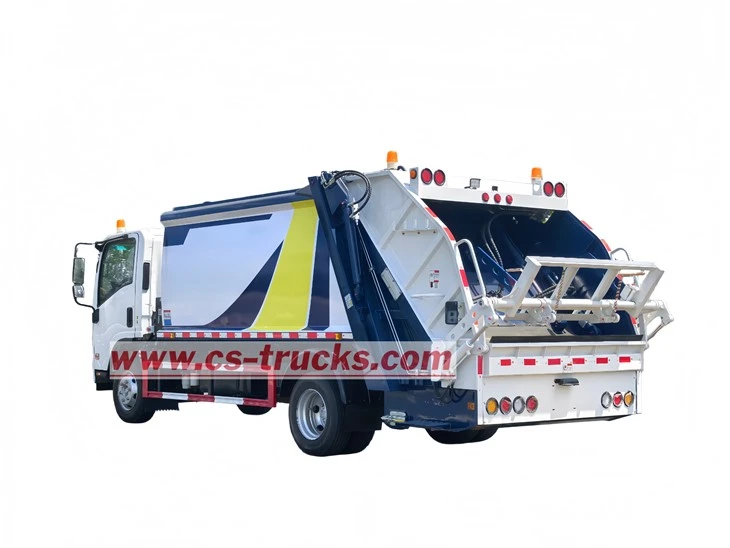

Rear Left View of Philippines ISUZU 10CBM Compactor Lorry

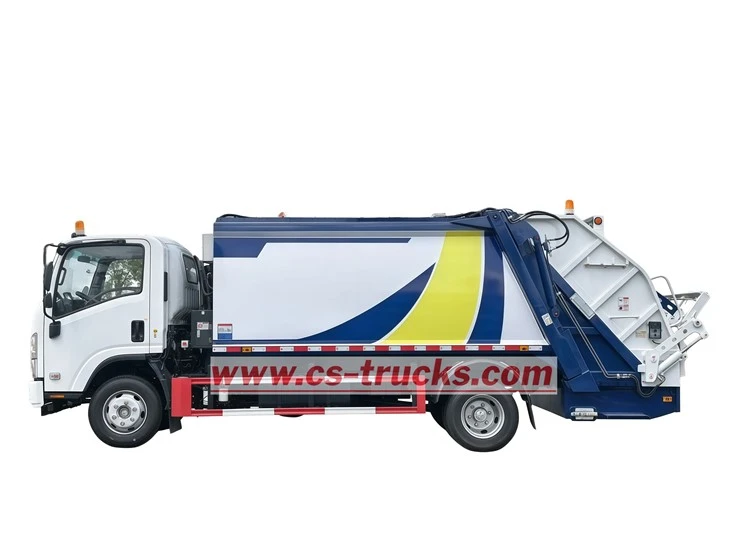

Left View of Philippines ISUZU 4×2 Rear Loader for Sale

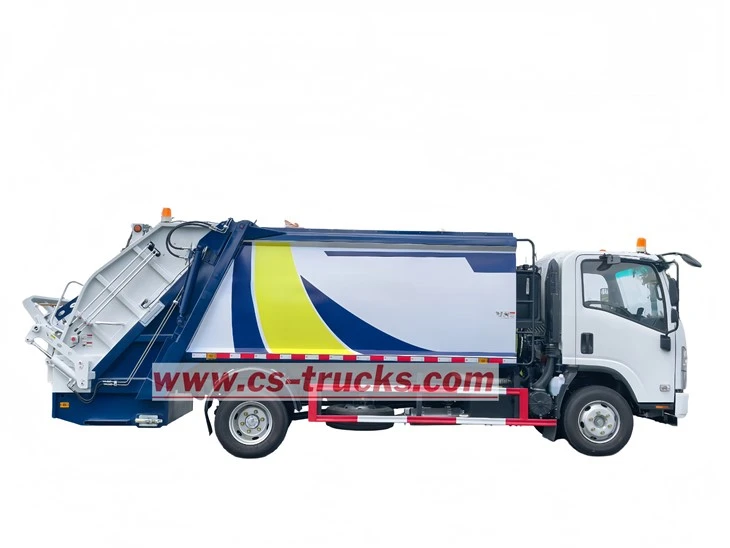

Right View of Philippines ISUZU 187HP Truck Mounted Garbage Compactor

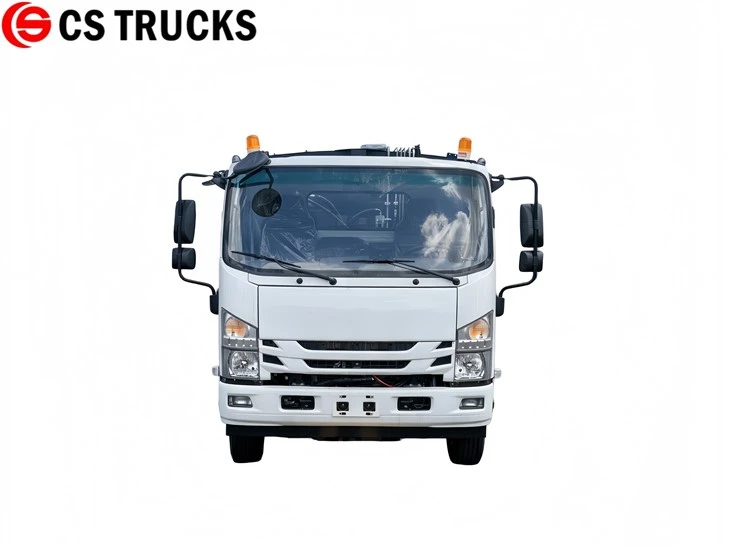

Front View of Philippines ISUZU 4×2 Compactor Vehicle

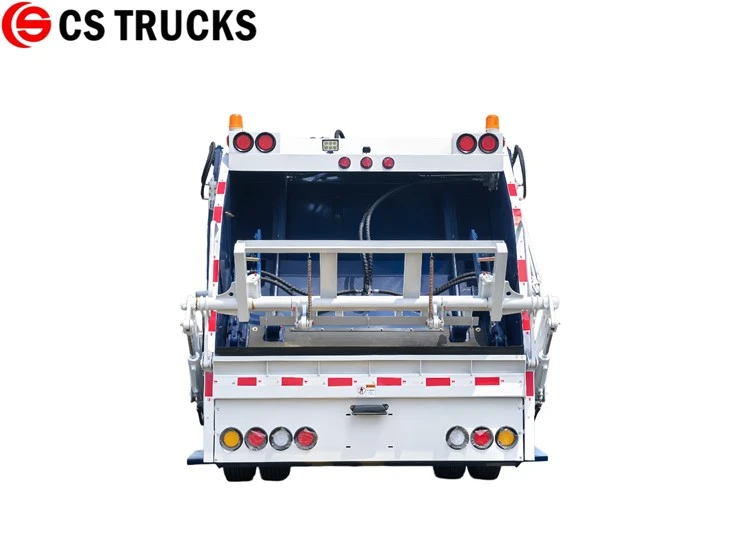

Rear View of Philippines ISUZU 10CBM Dumpster Compactor Truck
FAQ
What are the advantages of a compressed garbage truck over a regular garbage truck?
Equipped with a built in hydraulic compression mechanism, the compression ratio is ≥1:3.4, increasing the loading capacity by 3 times. The sealed box prevents sewage leakage and improves the efficiency of wastewater collection.
How long does a single task take?
A single feeding takes only 8-10s, a complete compression cycle takes 20-28s, and the unloading process is completed in 30s. The fast pace of single point operation effectively improves the efficiency of waste removal.
What services are offered?
We offer round the clock after-sales support, and all vehicles are fully customizable. We guarantee safe, convenient, and efficient global transportation services.
Can compactor trucks be customized?
Customizable chassis and emissions, multilingual electronic controls, body volume and paint scheme, and comes with English documentation and universal overseas repair parts.
