The HOWO 6X4 waste collector truck is equipped with a 310HP MC07.31-60 engine and a 6×4 heavy duty drive system, providing strong power and reliable load bearing capacity, making it ideal for complex urban and rural road conditions. It features a 15 ton large capacity compression compartment, enabling efficient handling of urban solid waste compression, collection, and transfer, meeting the demands of high intensity sanitation operations. It is a core main vehicle for large scale urban and rural garbage collection and transportation.
Model: CSC5250ZYS
Loading Tonnage: 15 Ton
Drive: 6×4
Engine Power: 310 HP
Engine Type: MC07.31-60
Send Inquiry
Description
Product Introduction
This HOWO 15Ton garbage truck with compactor(also known as a garbage compactor truck or refuse compactor truck) is built on a HOWO 6×4 chassis and is equipped with a 310HP engine, delivering powerful performance, smooth acceleration, and strong hill climbing capability, making it suitable for a variety of road conditions in cities, towns, and transfer stations.
The body features a high strength, fully sealed container with a high compression ratio and strong loading capacity, reducing the frequency of trips and lowering operating costs. Equipped with a waste water collection system to prevent leaks and secondary pollution, it is widely suitable for the collection and transportation of household waste in urban sanitation, rural towns, and industrial parks.
Technical parameters of HOWO rear loader truck
Products Name
15Ton HOWO Waste Compression Truck Rwanda
Tire Specifications
11.00R20
Vehicle Model
CSC5250ZYS
Tire No.
10
Drive Type
6×4
Gear Box
9-speed Manual
Loading Tonnage
15 tons
Steering Wheel
Left Hand Drive
Gross Vehicle Weight
25000 KG
Filling Time
8-10 s
Overall Dimensions L*W*H
10410×2520×3400 mm
Compression Cycling Time
≤ 23 s
Maximum Speed
102 km/h
Discharging type
push and self-discharging
Engine Model
MC07.31-60
Discharging time
≤45 s
Fuel Type
Diesel
Control type
electric and manual control
Power
310HP(228kW)
Hydraulic System Pressure
18 Mpa
Emission Standard
Euro IV
Garbage Compact Ratio
1:3~1:4
Displacement
6870 ml
Material of Garbage Bin
carbon steel
Engine Type
Inline six cylinder, water cooled, four stroke, turbocharged, intercooled, high-pressure common rail diesel engine
Ways of Loading
Rear loading with optional bucket lifting style
Wheelbase
4350+1300 mm
Performance advantages
Body Design and Structure
✦ Vehicle and Cab Design: With dimensions of 10410 × 2520 × 3400 mm, the compact layout balances loading capacity with maneuverability on the road. The left hand drive cab offers excellent visibility and a comfortable driving experience, catering to municipal and international operational practices.
✦ Body Structure and Performance: The waste body is constructed of carbon steel with an all sealed design, offering impact resistance and corrosion resistance to effectively prevent waste leakage and odor escape.
Powertrain and Chassis System
✦ Powertrain: Equipped with an MC07.31-60 inline six cylinder diesel engine featuring turbocharging with intercooling and high pressure common rail technology, compliant with Euro IV emissions standards, and paired with a 9-speed manual transmission for ample power.
✦Chassis Performance: Features a 6×4 rear dual axle drive configuration with 11.00R20 heavy duty tires, ensuring stable handling, excellent maneuverability, and high durability, making it ideal for demanding sanitation operations.
Operating System
✦ Loading and Compaction: Equipped with a 15Ton high capacity body, the waste compaction ratio is 1:3 to 1:4, ensuring excellent compaction results and the large single load capacity reduces the frequency of transfer trips.
✦ Operational Efficiency: Rear loading design with an optional trash bin lifting mechanism; loading time of 8–10 seconds, compaction cycle ≤23 seconds, and push plate self dumping ≤45 seconds, ensuring a highly efficient workflow.
Product Details
Emergency Stop Control Button
Tail End Main Control Panel
Sewage Tank
Multi-way Valve
Hydraulic Oil Tank
Push Plate Unloading Mechanism
How does a garbage truck work
Utilizing a combination of hydraulic and electronic control systems, the waste collection process is completed in four steps: loading → compaction → storage → unloading
1
Loading
The rear loading mechanism receives waste, and the scraper and slide plate work in tandem to push the waste into the bin.
2
Compaction
The hydraulic system powerfully compresses the waste, achieving a compression ratio of 1:3 to 1:4 for highly efficient compaction and increased capacity.
3
Storage
The fully sealed bin contains waste securely, preventing seepage and leaks while eliminating odor leakage.
4
Unloading
A built in push plate discharges the waste in one continuous motion, ensuring thorough unloading and efficient operation.
Application scenarios
Urban Waste Collection
Park Waste Disposal
Residential Waste Disposal
Exterior views

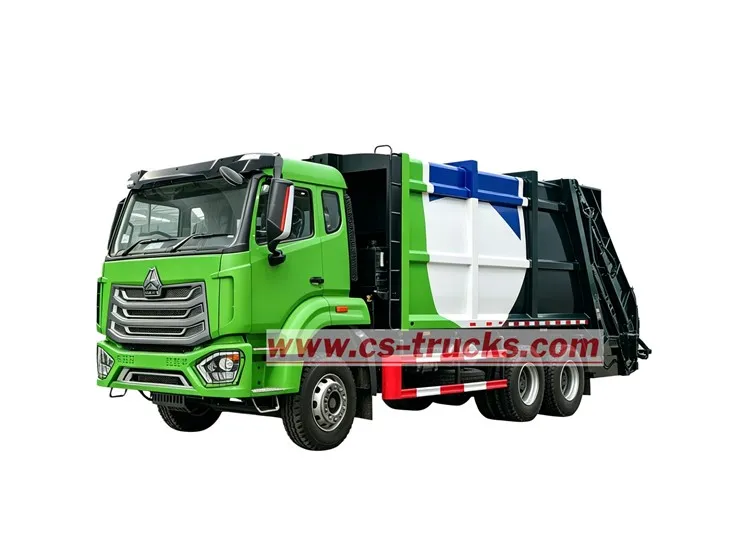

Front Right View of HOWO 15Ton Garbage Truck Trash Compactor

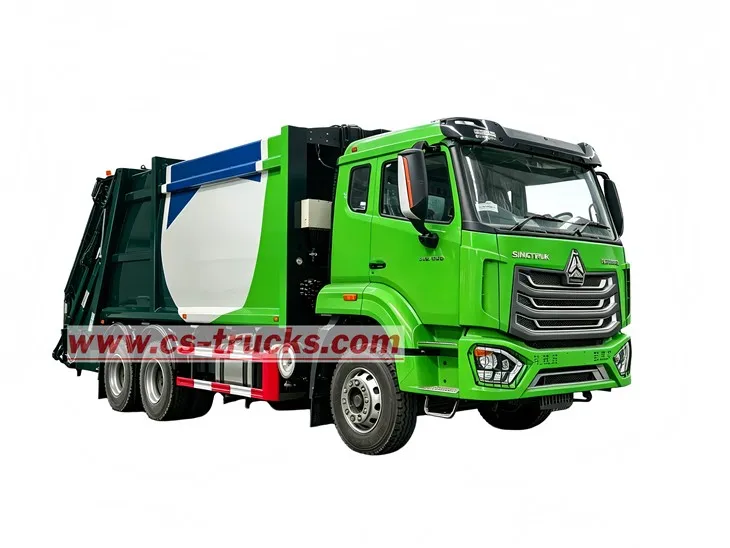

Front Left View of HOWO 15Ton Garbage Truck With Compactor

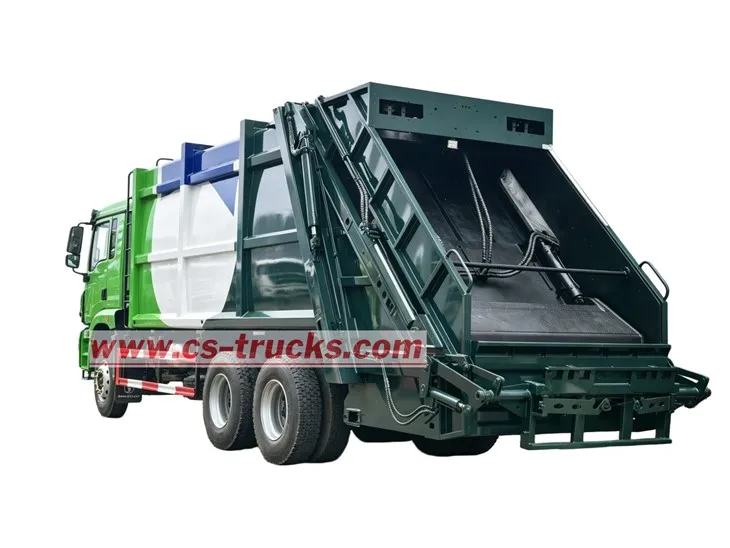

Rear Left View of HOWO 6X4 Compactor Truck Price

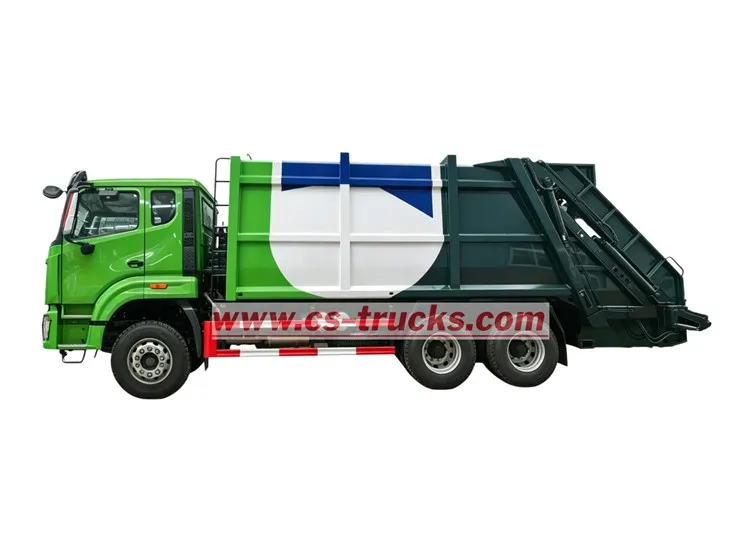

Left View of HOWO 6X4 Waste Collector Truck

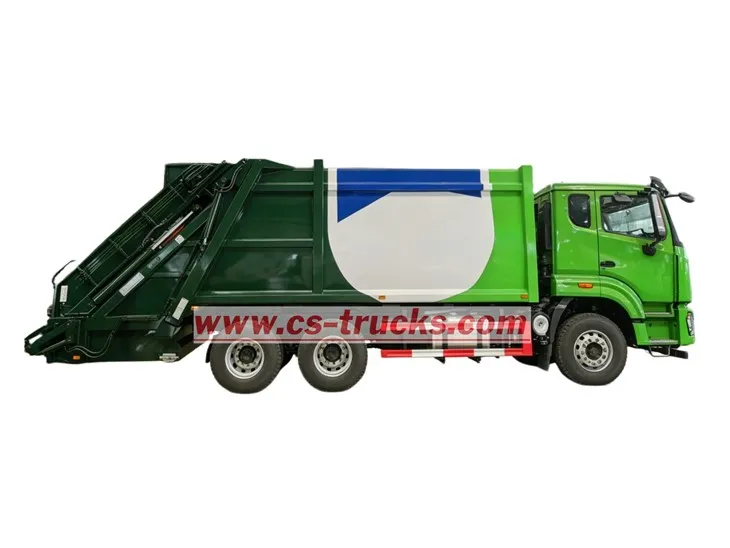

Right View of HOWO 6X4 Garbage Compactor Vehicle
Front View of HOWO 310HP Rear Loader Truck

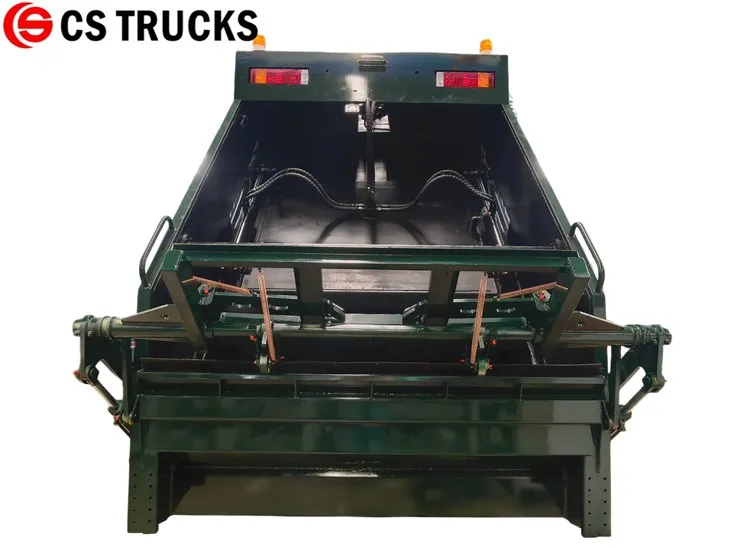

Rear View of HOWO 310HP Waste Compaction Rear Loader
Frequently Asked Questions
What is the loading capacity of a compactor garbage truck? What is the compression ratio?
The standard compression ratio ranges from 1:3 to 1:4, with a loading capacity 3–4 times that of a standard garbage truck, reducing the number of trips and improving collection efficiency.
Will there be any leaks of wastewater or odors?
The vehicle features a fully sealed design and is equipped with a separate wastewater tank. Leachate from waste is collected centrally, ensuring no leaks or odors throughout the entire transport process, in compliance with urban environmental standards.
Will the vehicle meet local emissions standards?
Customizable to meet the full range of Euro 2 to Euro 6 emission standards; we provide a complete set of export certification documents and support overseas customs clearance.
What services do we offer?
We provide 24/7 after sales support. Our professional technical and customer service team is always ready to provide timely consultation, guidance, and troubleshooting services anytime, anywhere.
