Philippines HOWO 300HP Garbage Truck With Compactor
The Philippines HOWO 10CBM Waste Compactor Truck is powered by a WP10.300E22 engine, delivering 300 horsepower and offering a large 10CBM load capacity. With its high maneuverability and efficient waste transport capability, this truck is primarily designed for the sealed collection and transportation of municipal sanitation waste in residential areas, commercial districts, and industrial parks. Through effective volume reduction via compression, it eliminates leakage and controls odor, making it ideal for routine urban and rural sanitation operations.
Model: CSC5180ZYS
Capacity: 10 CBM
Drive: 4×2
Engine Power: 300 HP
Engine Type: WP10.300E22
Send Inquiry
Description
This HOWO 4×2 trash compactor truck for sale (also known as a waste compactor truck or rear loader garbage truck) is a left hand drive model, equipped with a Weichai WP10.300E22 engine that meets Euro II emission standards, featuring a simple structure and easy maintenance. It comes with a 10 speed gearbox and a reliable air brake system, and the vehicle's speed and size offer a good balance of road flexibility and carrying capacity, enabling it to reliably handle sanitation transportation under various urban and rural road conditions.

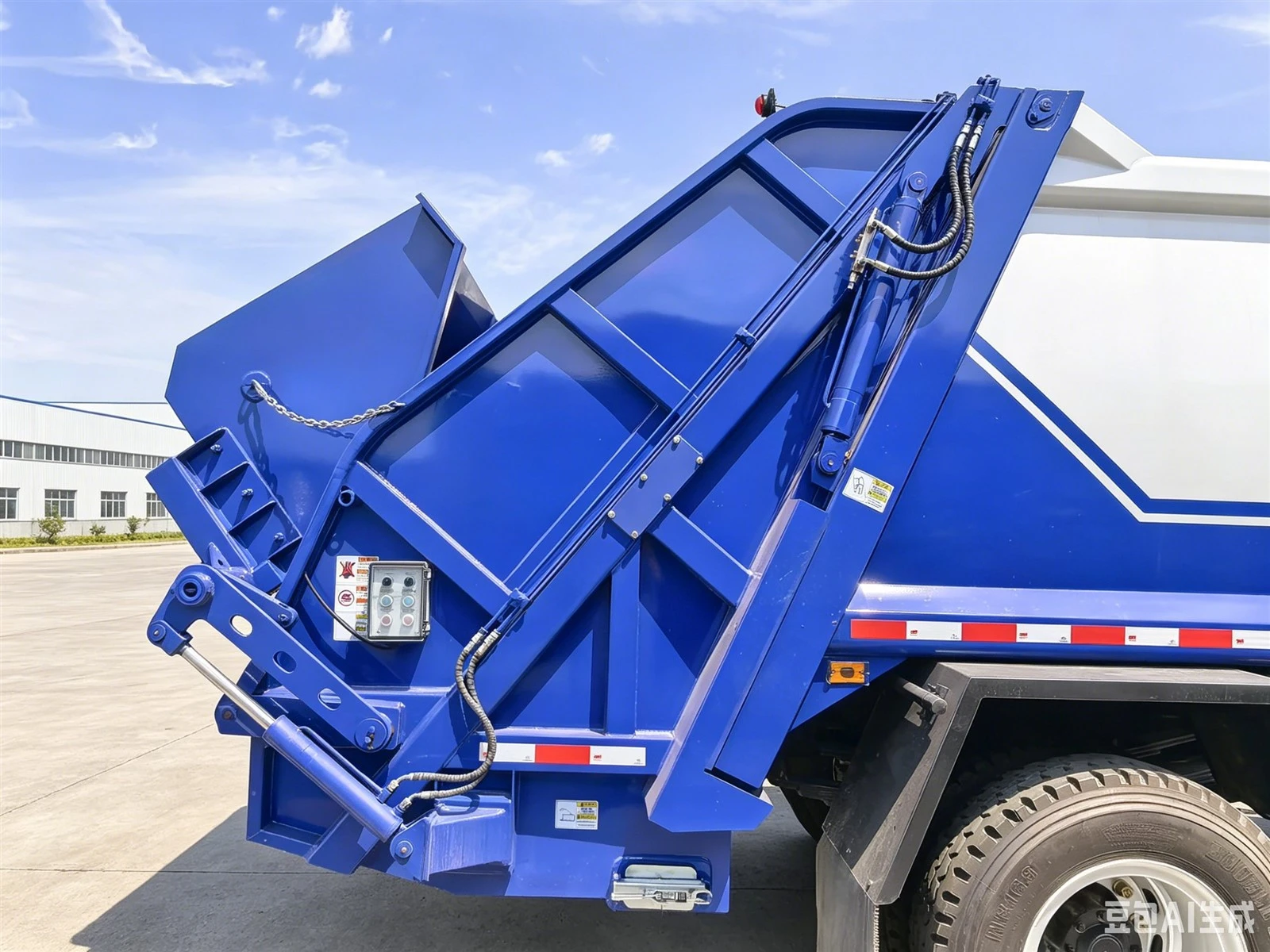

The vehicle body is constructed with thickened, wear resistant steel plates, featuring a compression ratio of 2.5:1 for high loading efficiency. The rear loading structure can lift and transport garbage bins, enabling rapid operation and unloading, and is supported by a stable hydraulic system. Both the cab and rear can be operated electrically or manually, and are equipped with dual side working platforms. Its push plate selfunloading system ensures a leak proof seal, making daily urban waste collection cleaner and more environmentally friendly.
Product Features
Manufacturer: CS TRUCKS
Features:
▶Chassis: Utilizes a 4×2 drive configuration, offering agile handling and strong adaptability for urban commuting.
▶Power: Equipped with a WP10.300E22 engine, delivering stable 300 horsepower and ample power for heavy duty waste collection.
▶Capacity: A standard 10CBM container allows for a large single load waste disposal capacity, reducing the frequency of transfers.
▶Wide Compatibility: Features closed compression operation, suitable for various sanitation collection scenarios.

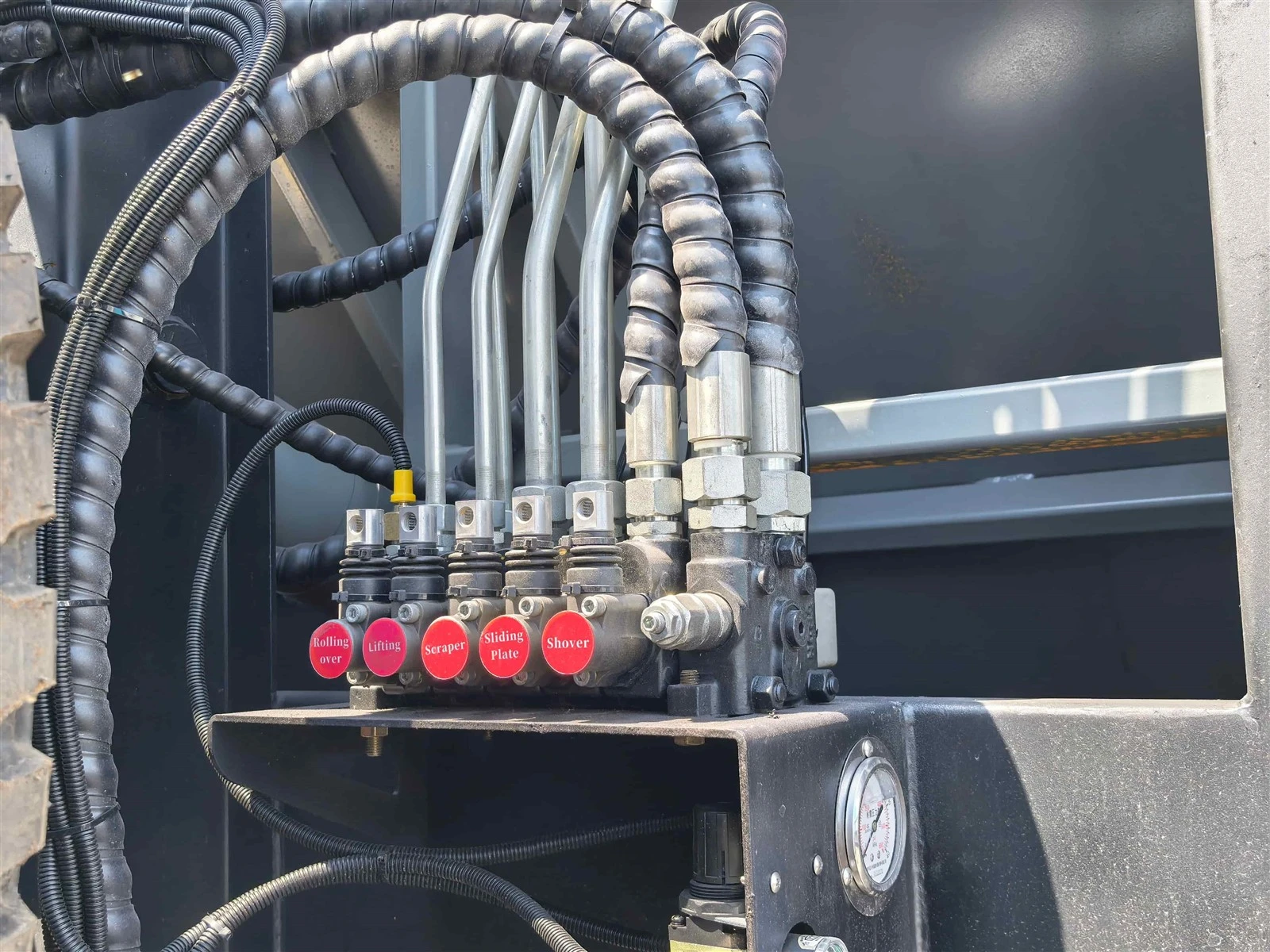

One control Panel on the back, One Control system in back of Cabin
Performance of HOWO Refuse Compactor Vehicle
Powertrain and Chassis
✦ Stable Powertrain: Equipped with a 300HP inline six cylinder engine, meeting Euro II emission standards, featuring a simple structure, convenient overseas maintenance, and stable and reliable operation under heavy loads.
✦ Reliable Chassis: The 4×2 left hand drive chassis features a 10 speed gearbox and air brake system, offering strong load bearing capacity, moderate speed, and suitability for navigating narrow roads and long distance transport.
Hydraulic System
✦ High Compression Efficiency: The 10CBM compartment uses thickened wear resistant steel plates, achieving a compression ratio of 2.5:1. A single compression cycle takes only 30s, significantly increasing the load capacity per trip and reducing transfer frequency.
✦ Fast Unloading: Utilizing a push plate self push unloading structure, unloading takes only 30s, ensuring thorough and residue free waste removal. The hydraulic system has a rated pressure of 16MPa, providing stable output and minimizing the risk of failure during prolonged continuous operation.
Operating System
✦ Dual-station Operation: Equipped with a rear control panel and a cab control system, supporting both electric and manual operation modes. Flexible operation is possible from both the ground and inside the vehicle, making daily operations and equipment debugging very convenient.
✦ Dual-platform Safe Operation: Dual side platforms are provided for two workers to assist with feeding and inspection. The optional rear bin lifter with ≥800kg capacity makes manual loading easier and safer.
Product Details

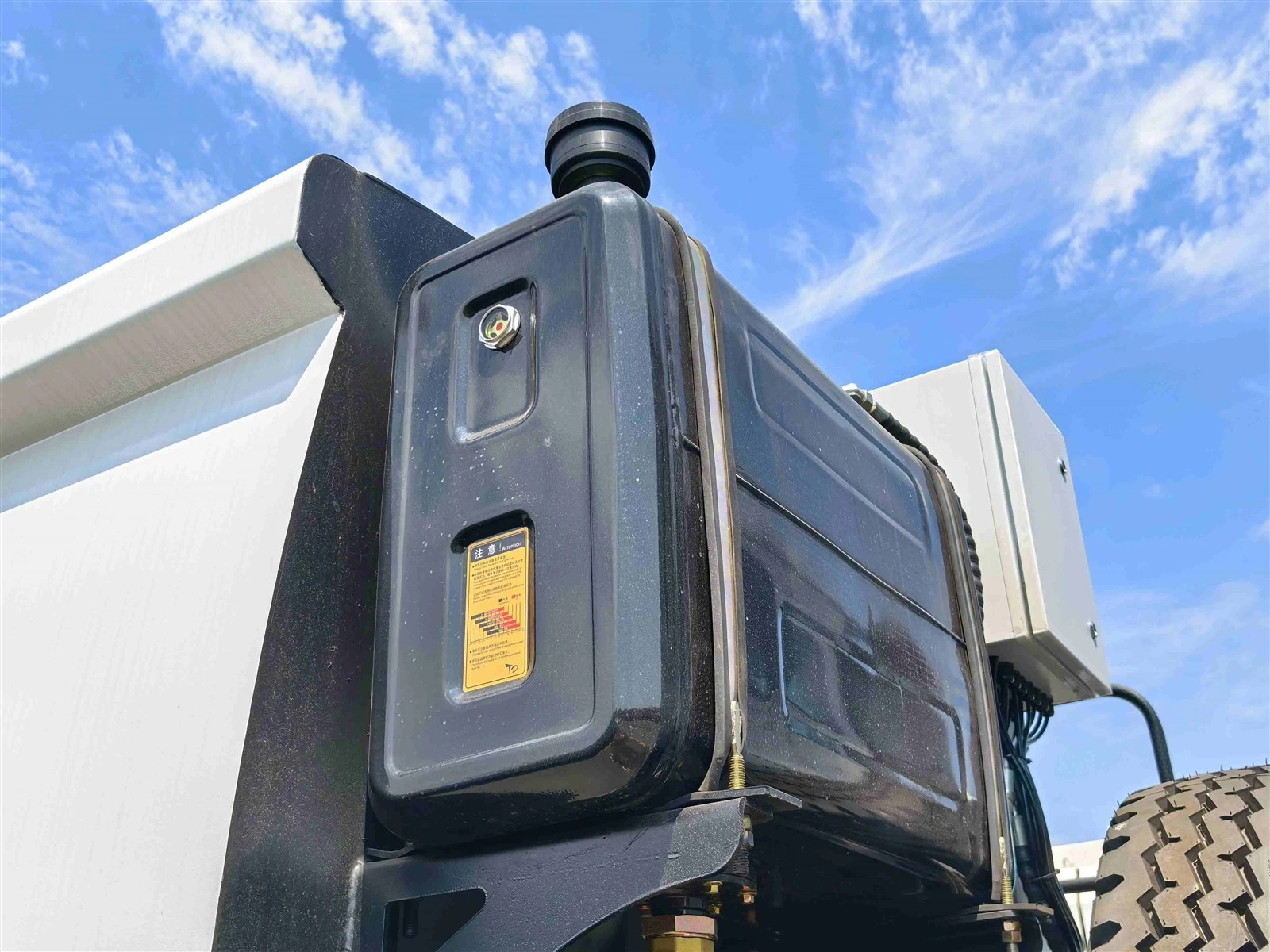

Hydraulic Oil Tank
Control Panel

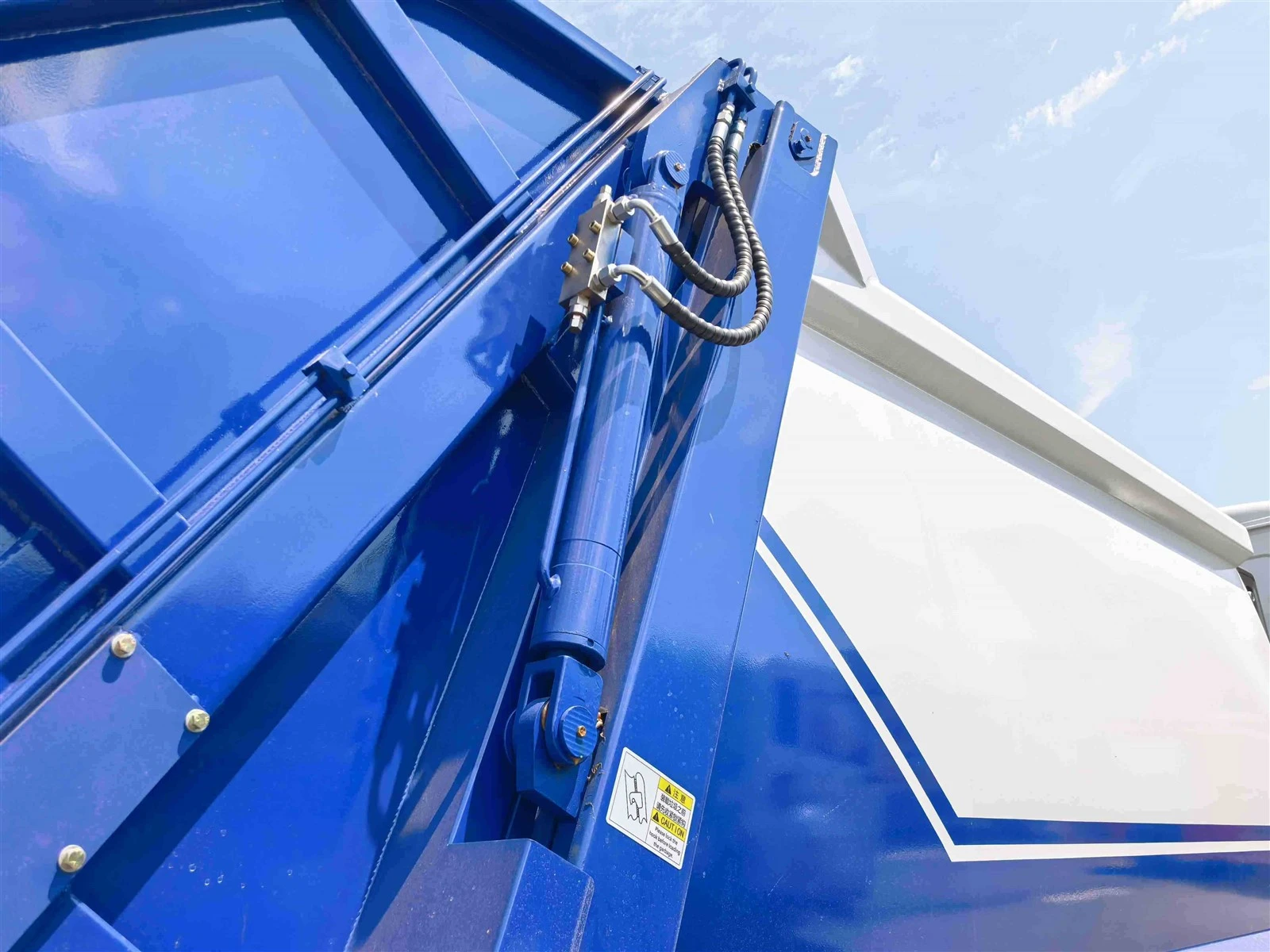

Hydraulic Lifting Cylinder

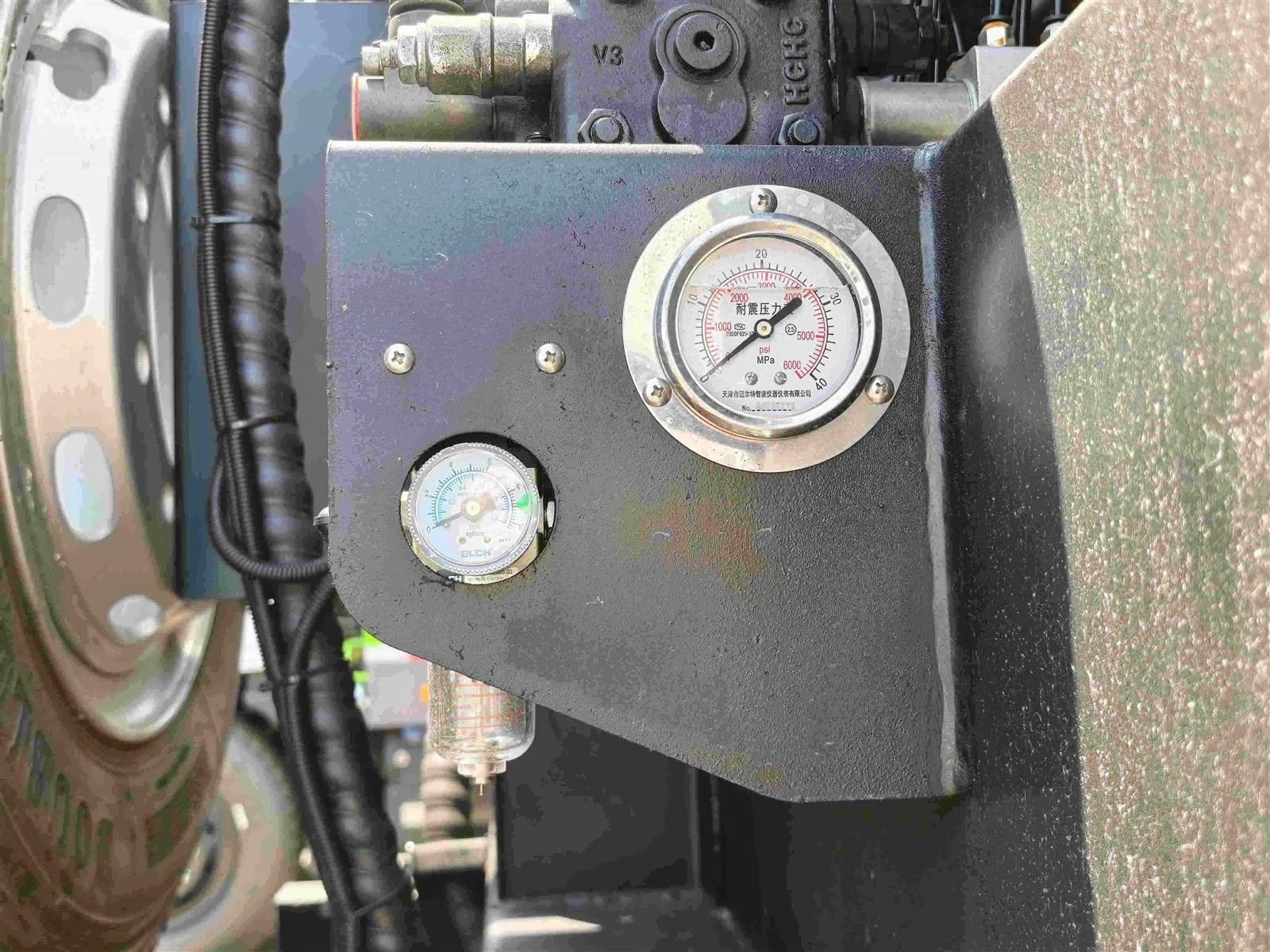

Pressure Gauge

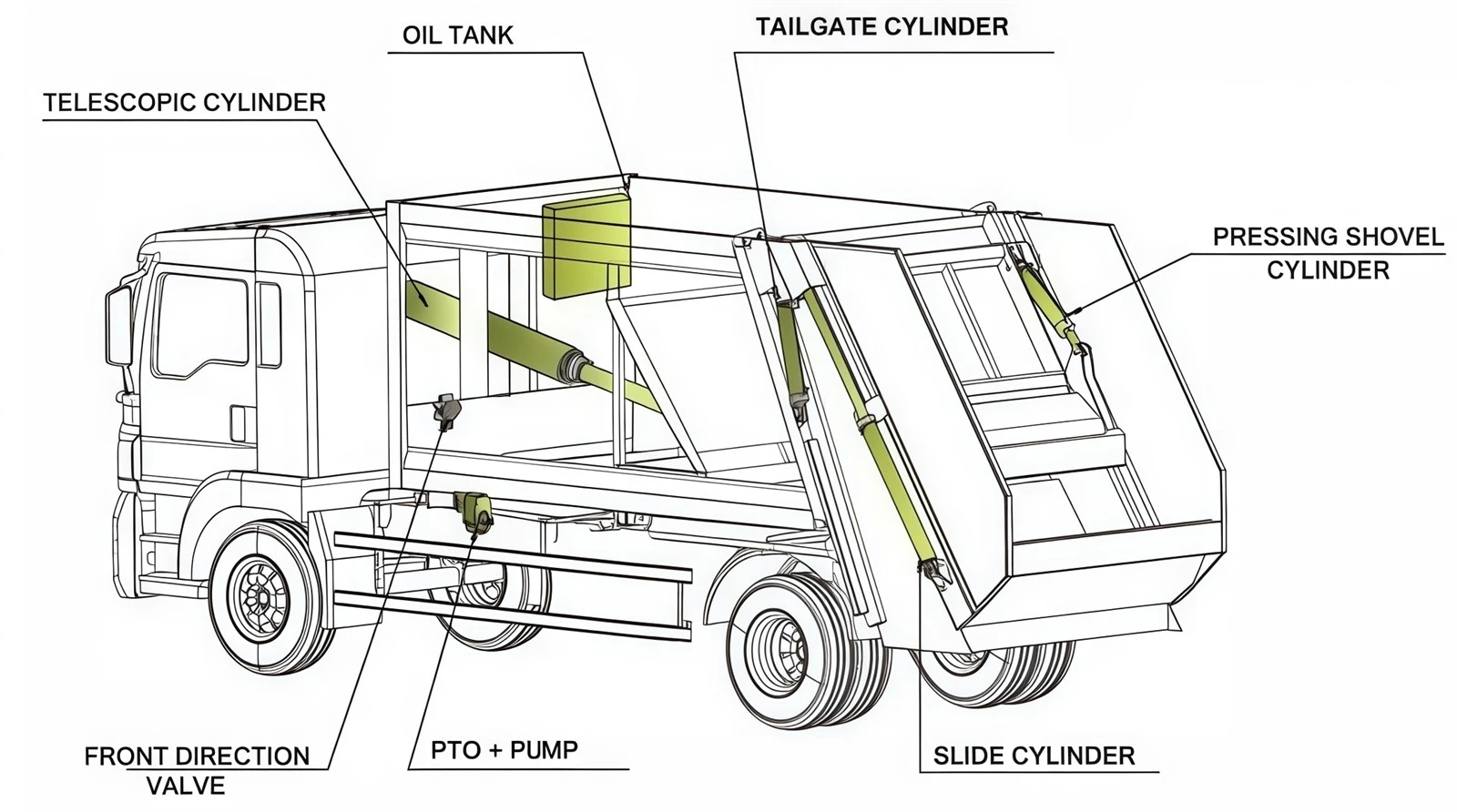

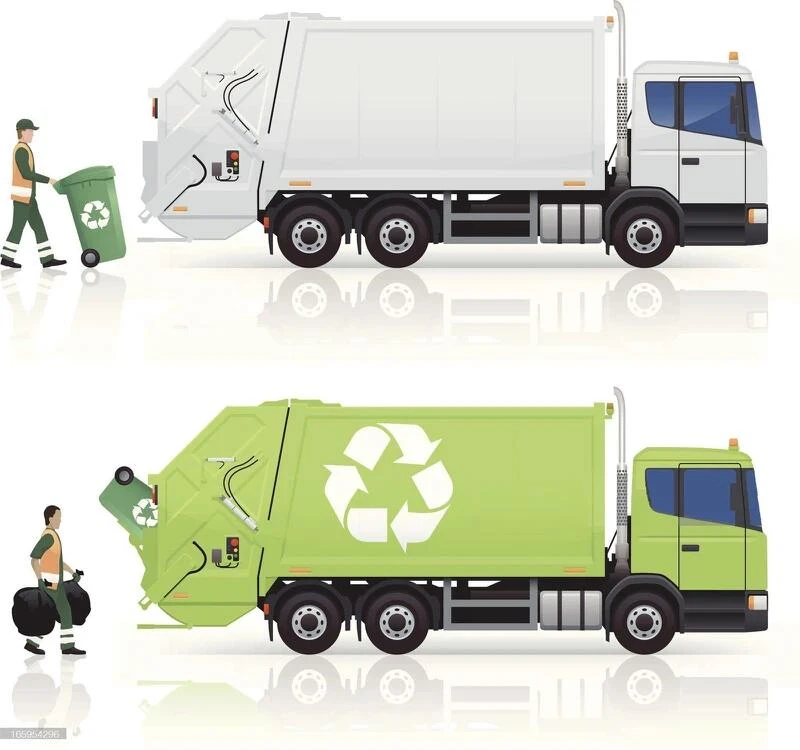

How a Garbage Compactor Works
The efficiency of a garbage compactor lies in its compression mechanism. This compression process not only optimizes space utilization but also minimizes environmental impact by reducing the number of transport trips required for waste disposal.
1
Collection
The collection process begins with the truck's hydraulic arms or mechanical system lifting garbage from bins or containers and dumping it into the truck's hopper.
2
Compaction
Once in the hopper, the garbage is pushed into a compaction chamber by hydraulic cylinders or compaction blades. This chamber compresses the garbage, reducing its volume by up to 70%.
3
Storage
The compressed garbage is then pushed into the truck's storage compartment. Due to the reduced volume, the truck can carry more garbage, thus reducing the number of trips to landfills.
4
Disposal
After collection, the truck travels to a disposal site, where the waste is unloaded and processed.
Application Scenarios

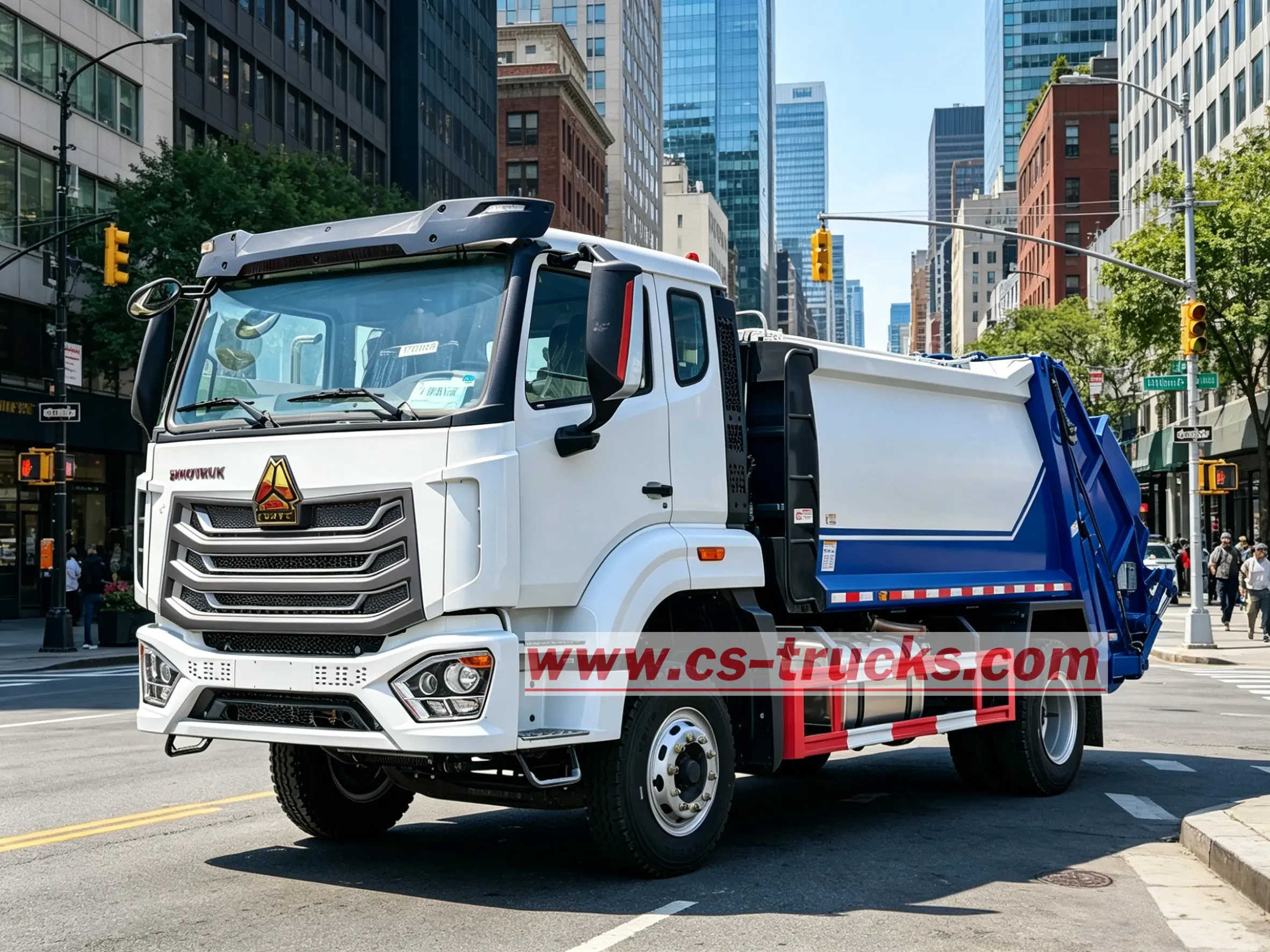

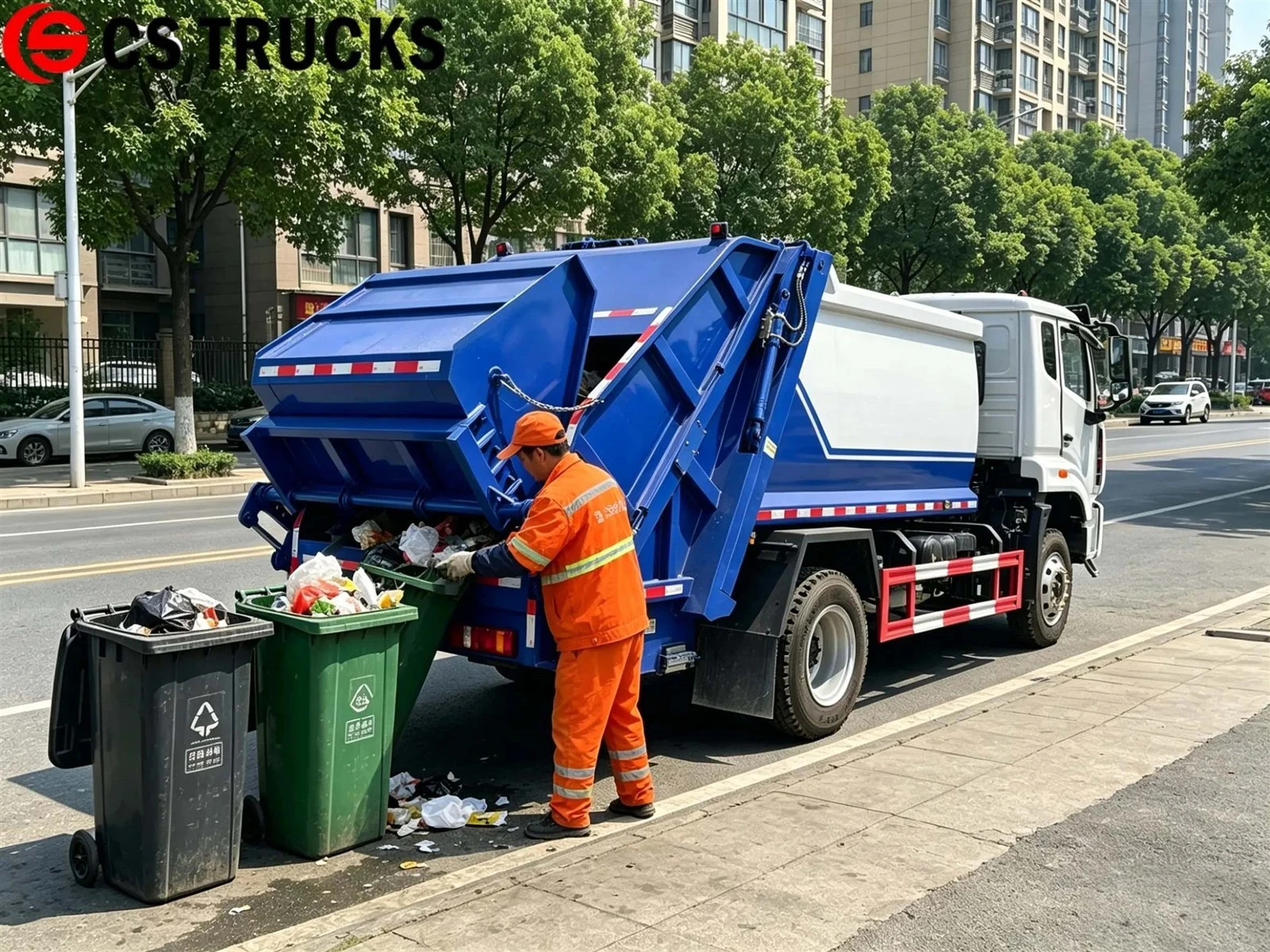

Urban Street Waste Disposal

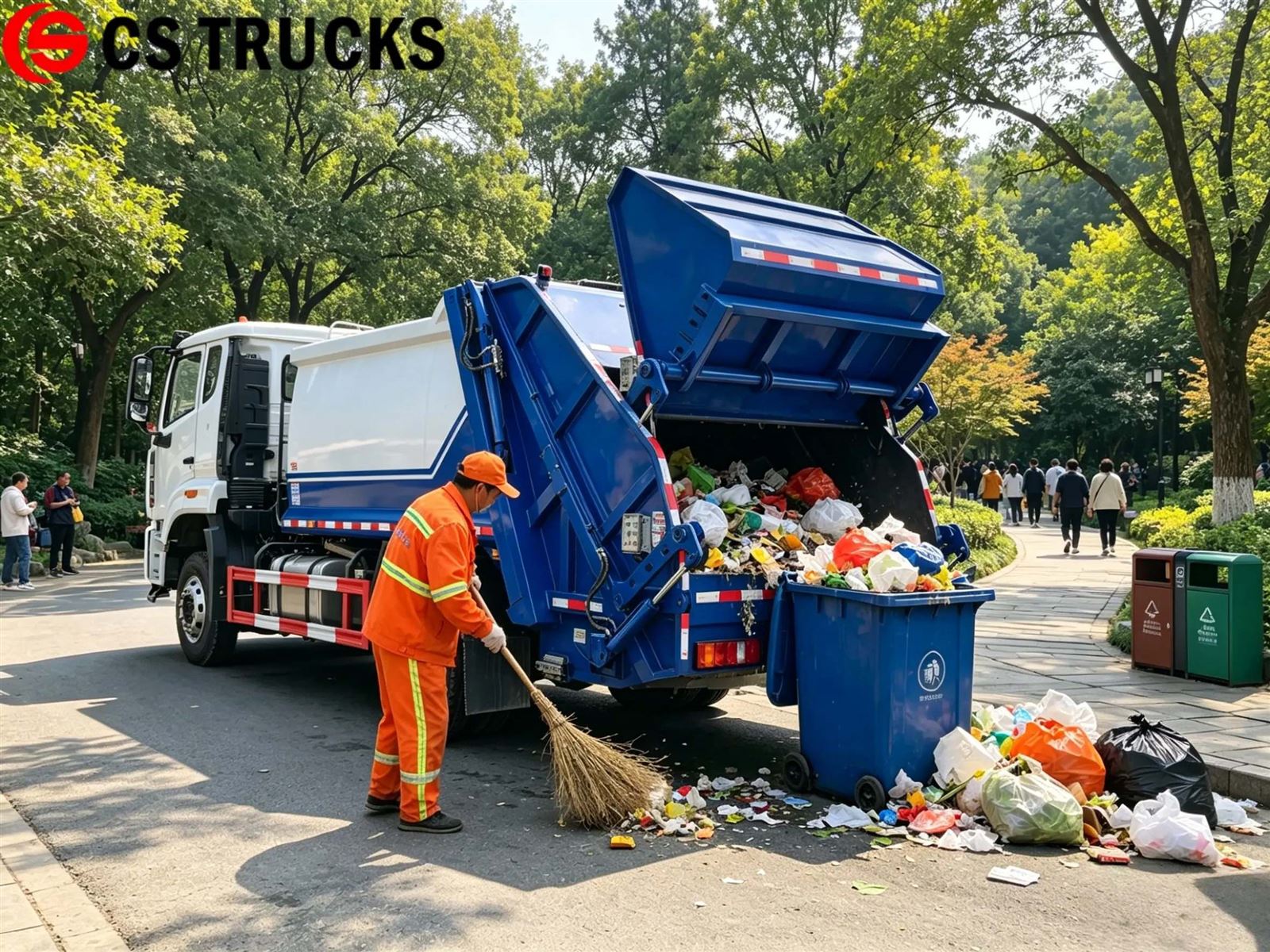

Waste Disposal in Scenic Areas

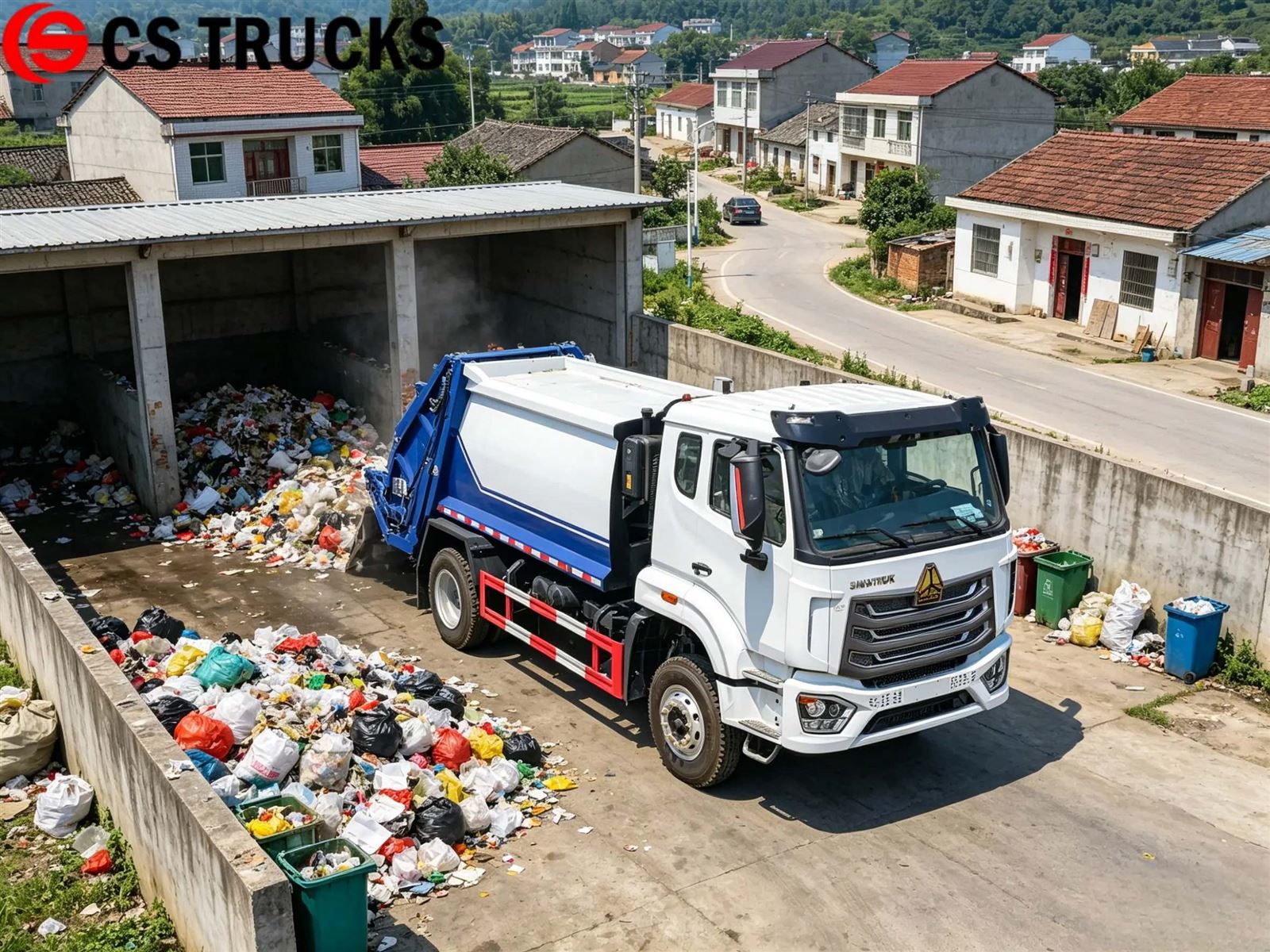

Township Garbage Station Garbage Disposal
Exterior Views

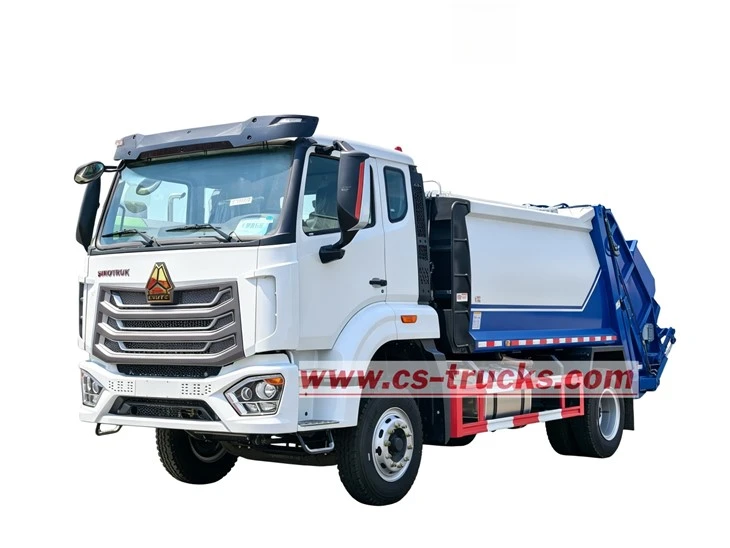

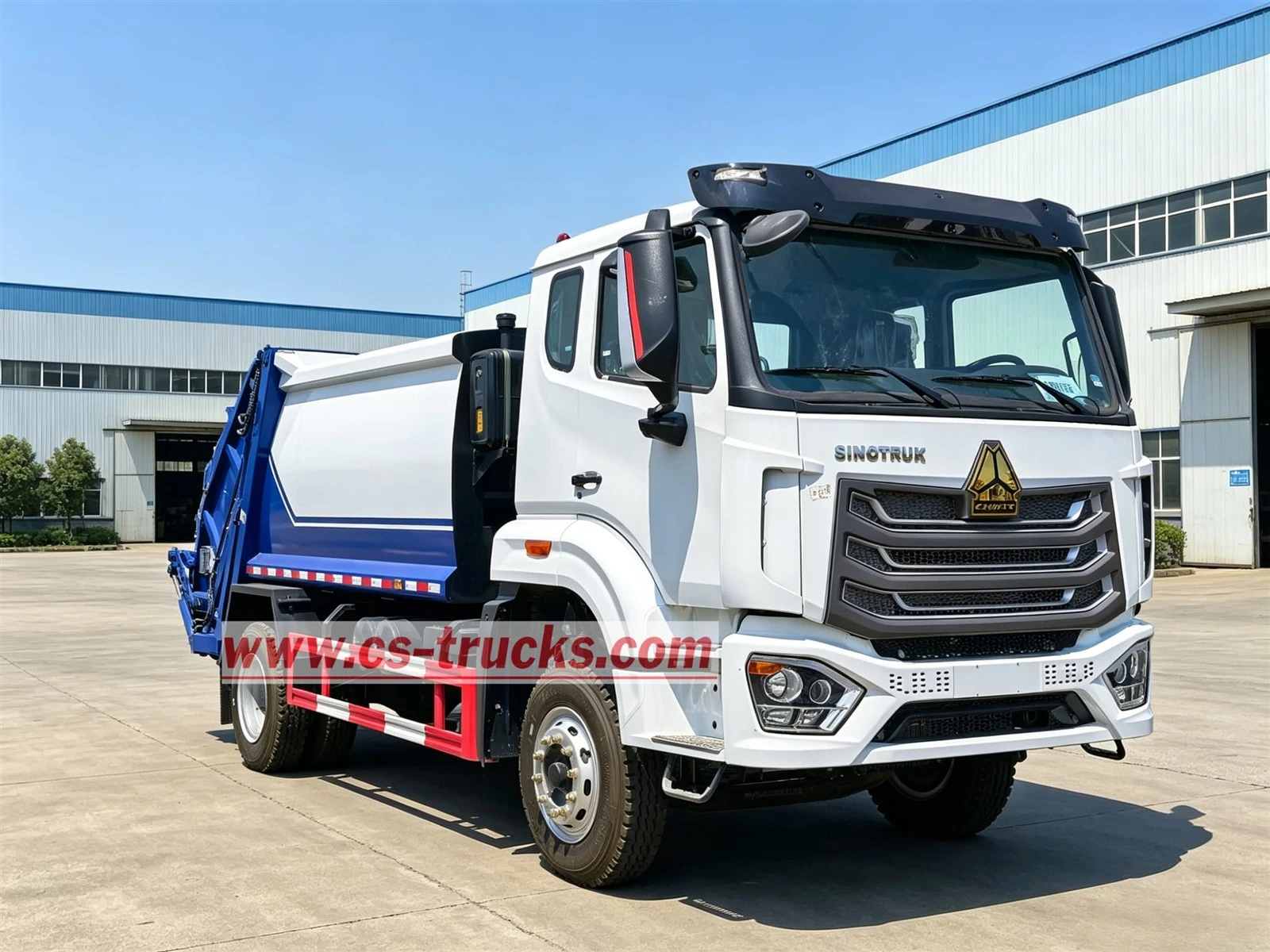

Front Right View of Philippines HOWO 10CBM Waste Compactor Truck

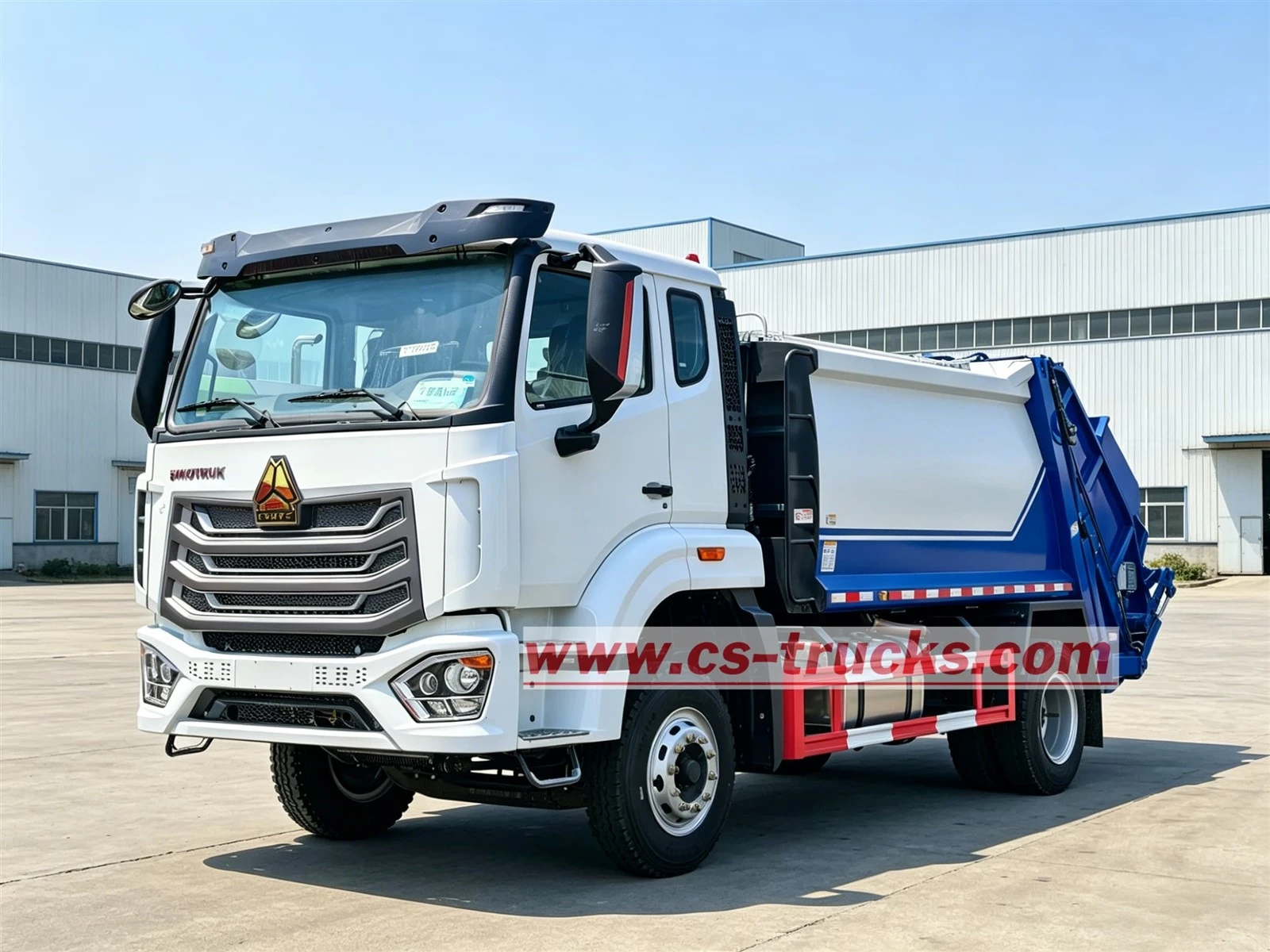

Front Left View of HOWO 4×2 Trash Compactor Truck for Sale

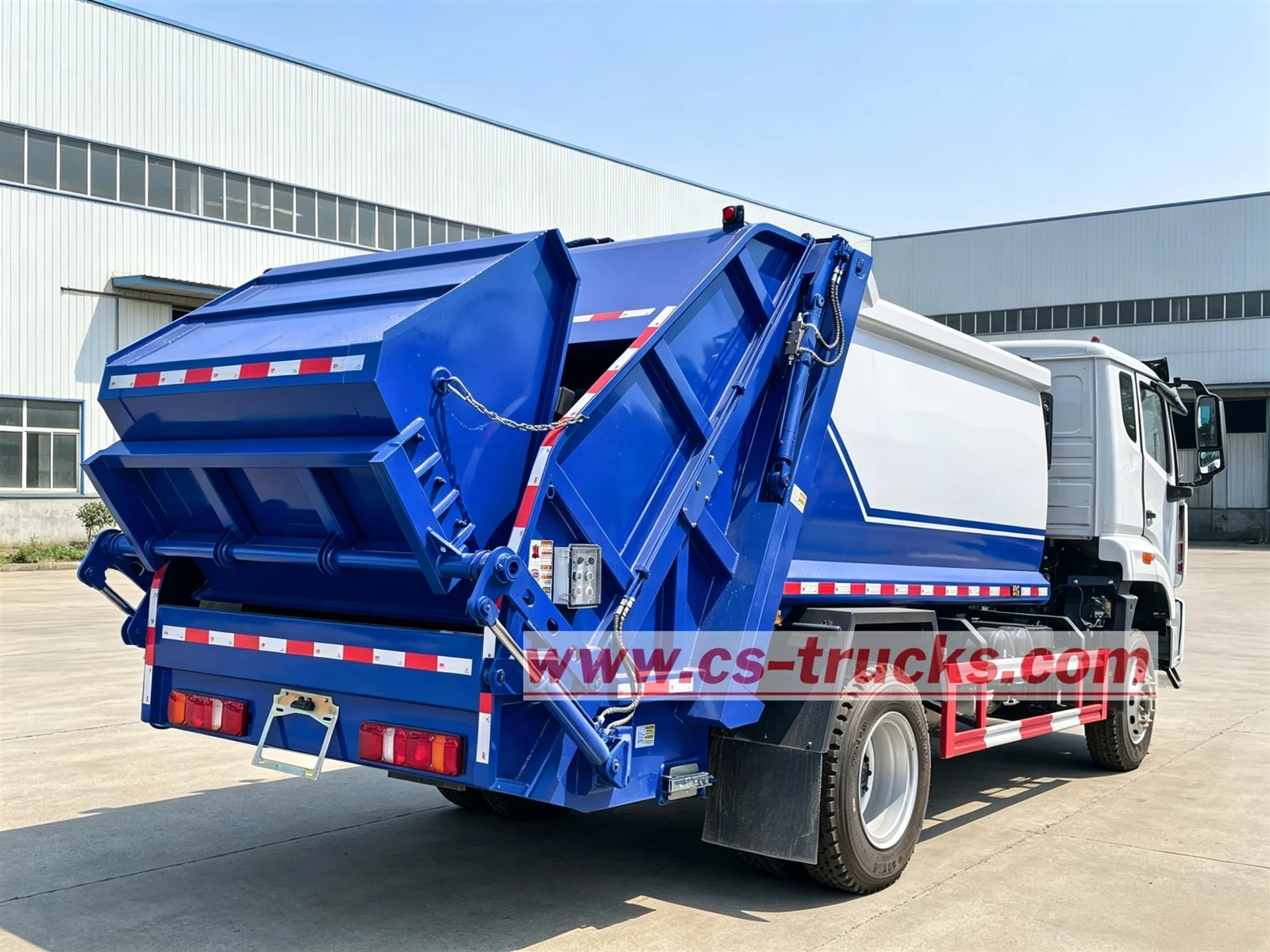

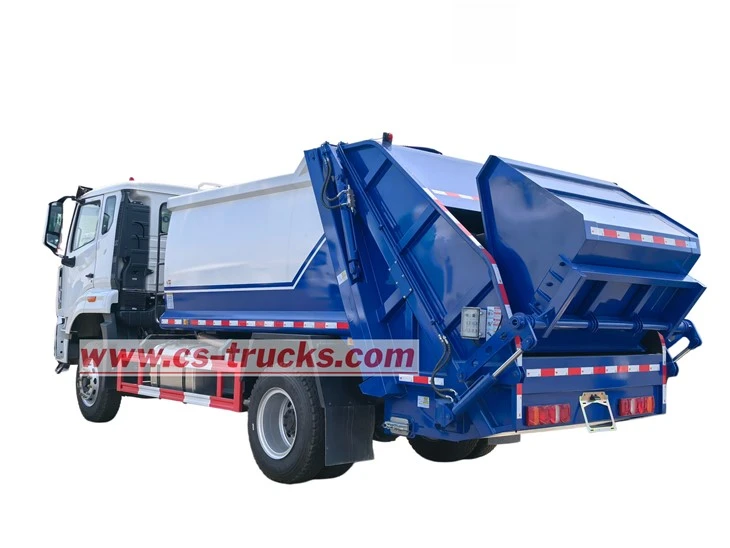

Rear Right View of Philippines HOWO 300HP Garbage Truck With Compactor

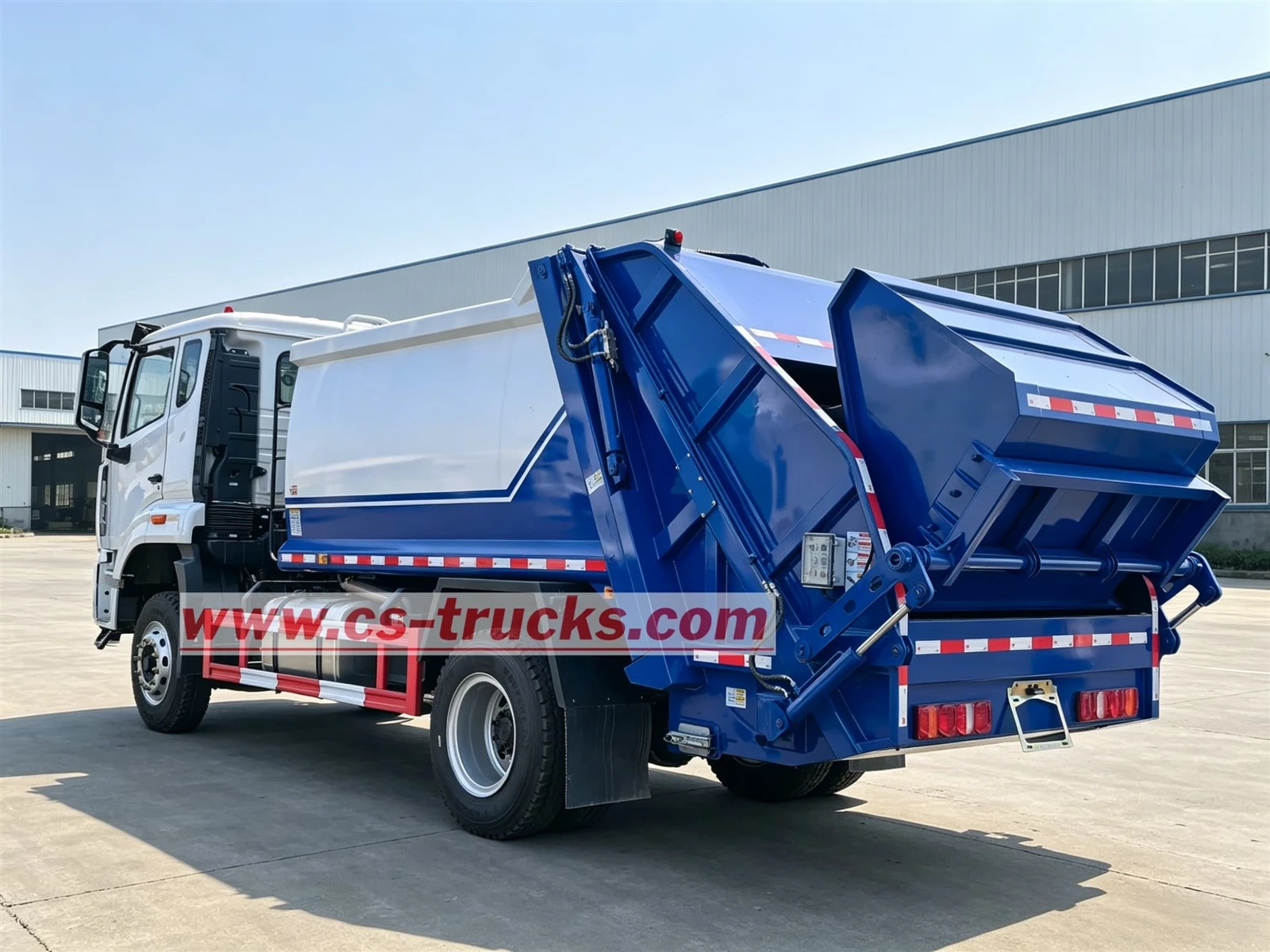

Rear Left View of Philippines HOWO 4×2 Waste Compactor Truck Prices

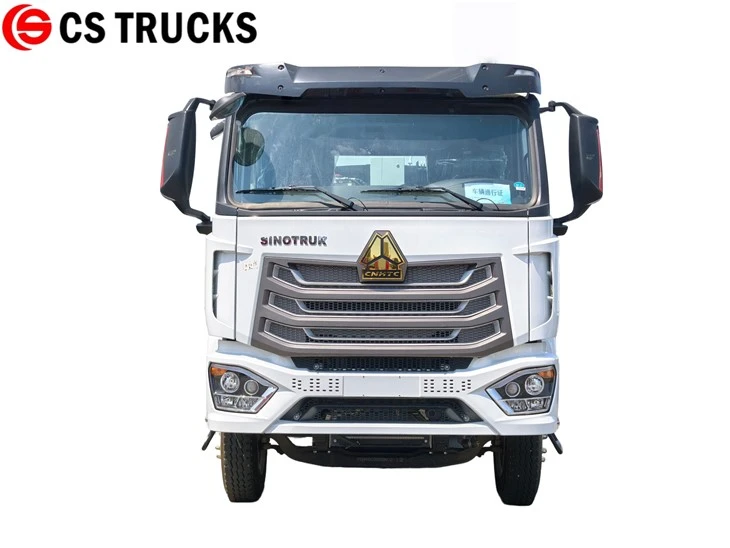

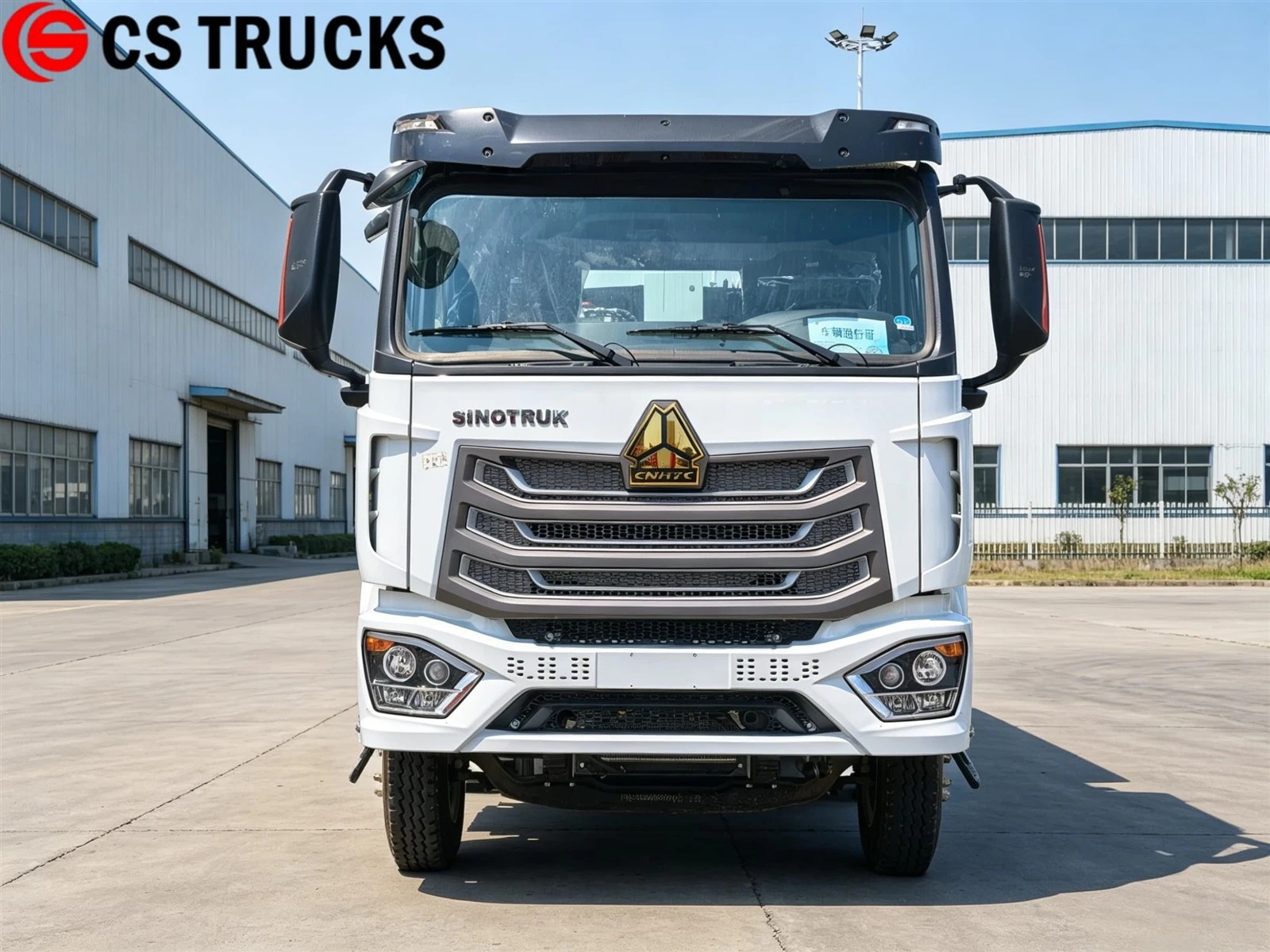

Front View of Philippines HOWO 300HP Used Rear Load Garbage Trucks

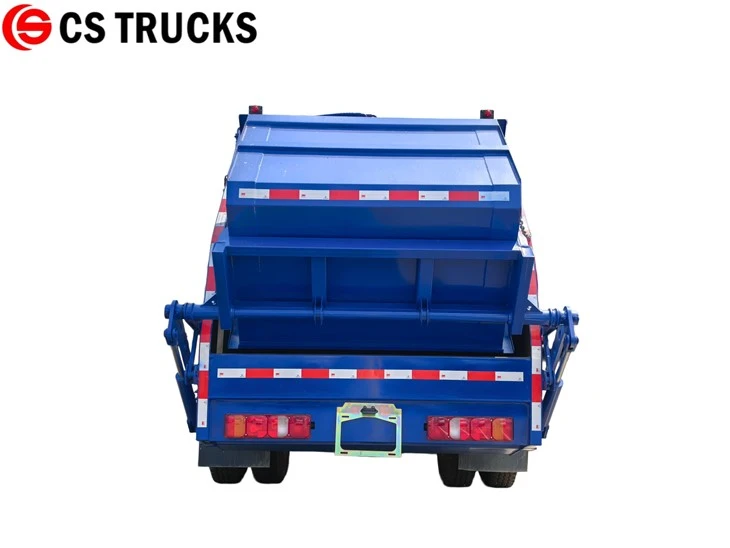

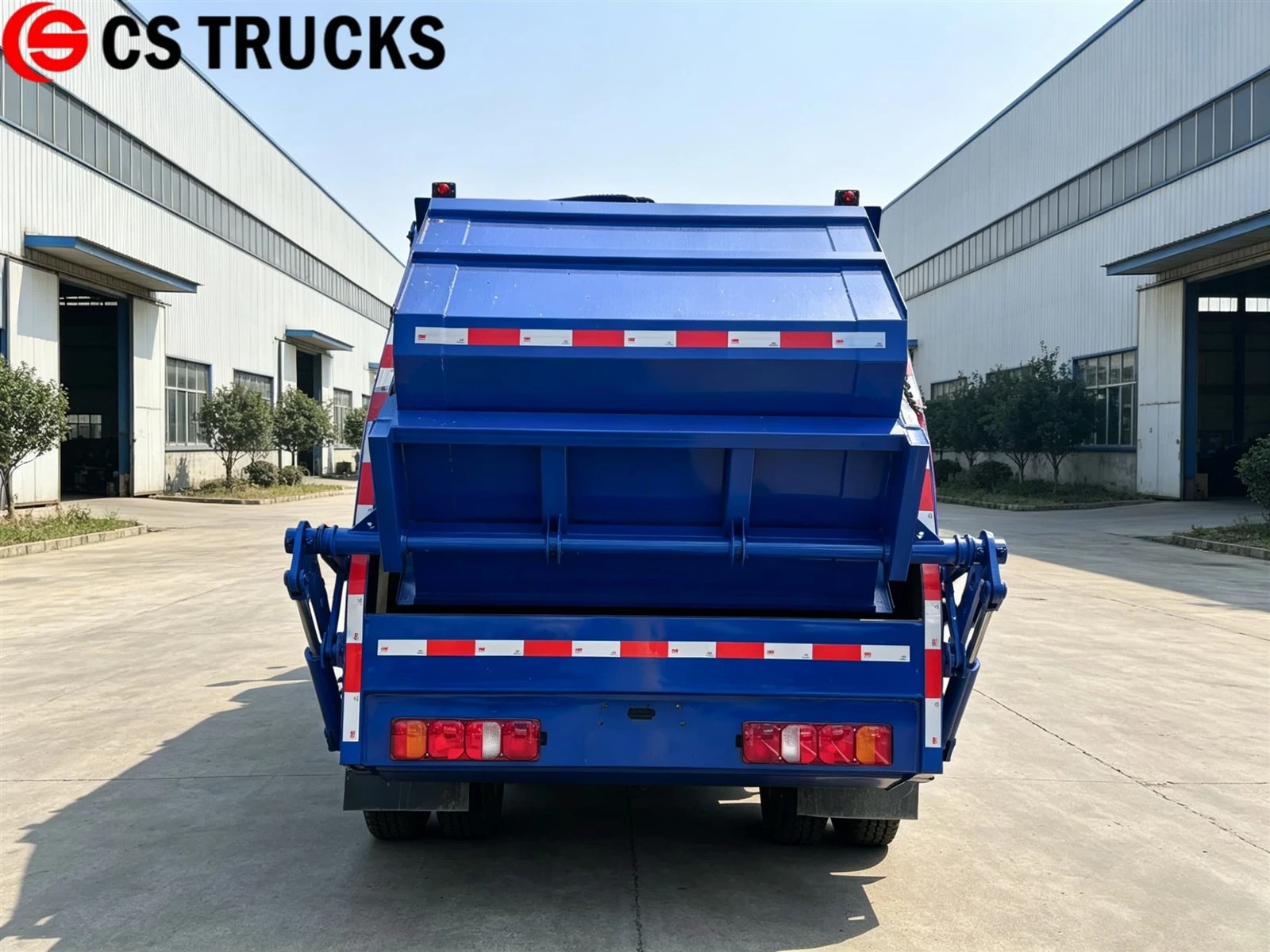

Rear View of Philippines HOWO 4×2 Back Loading Garbage Truck
HOWO Waste Compactor Truck Advantages
Efficiency Improvement: Equipped with compactors can carry more garbage per trip. This HOWOGarbage trucks improves garbage collection efficiency and reduces the number of trips required. Therefore, it saves time, fuel, and manpower.
Cost Effectiveness: Our HOWO Garbage compactors help municipalities save on operating costs by reducing the number of trips. Fewer trips mean lower fuel consumption, lower maintenance costs, and lower labor costs.
Enhanced Safety: The vehicle help reduce the risk of accidents during garbage collection. By compressing the garbage, it minimizes the possibility of garbage spilling from the truck during transport.
