Mauritius goverment buy and commissioning howo compactor lorries - Knowledge

Howo compactor garbage lorry has a very significant positive effect on the environment of Mauritius. This sinotruk garbage truck has the ability to efficiently collect and compress garbage, which greatly improves the efficiency of garbage disposal and environmental conditions. The impact of the Howo compactor garbage truck on the Mauritian environment has been very significant. Its efficient compression technology reduces waste disposal volume, reducing the need for landfills.

Compared with traditional garbage trucks, Howo trucks have a higher garbage loading capacity, reducing the number of vehicle trips and reducing the risk of air pollution and traffic congestion.

Howo compactor lorry — Howo 4x2 drive compactor lorry in CS TRUCKS factory

1, Howo garbage trucks have high collection capabilities and can collect all types of garbage quickly and accurately. Mauritius is a small island country facing a growing waste problem and needs an efficient waste collection system. Howo garbage trucks can quickly reach every corner and collect garbage from roads, alleys and residential areas, ensuring that all garbage can be processed and cleaned up in time to avoid environmental pollution and health problems.

2, Howo garbage trucks have strong compression capabilities and can effectively reduce the volume of garbage. Mauritius has limited land resources and limited landfill capacity, so the compression treatment of garbage has become particularly important. Howo garbage trucks use advanced compression technology to compress garbage immediately and reduce the volume of garbage. This not only saves the space required for waste disposal, but also reduces the need for waste incineration and landfill, effectively reducing environmental pollution and greenhouse gas emissions.

3, Howo garbage trucks operate stably and reliably and can meet the garbage disposal needs of Mauritius. Mauritius is a country with complex terrain and narrow roads. Garbage trucks need to be able to adapt to various road conditions and environmental conditions. Howo garbage trucks are designed based on advanced technology and have good maneuverability and operational stability. They can operate efficiently under various complex road conditions, ensuring the stability and continuity of garbage collection and processing.

Howo 260 HP 12 m³ Garbage Compactor Truck Specification

Vehicle Brand	CS TRUCKS		Chassis brand: Howo
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm		8690x2500x3500
	Wheelbase (mm)		4500
Weight in KGS	Gross Weight		16000
	Payload Weight		10 Tons
	Front /Rear axles loading capacity		5000 / 10000
Cab	DONGFENG 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension
Driving type	4x2 left hand drive, 6 wheels
Engine	Model		WEICHAI
	Horse Power（HP)		260 HP
	Emission standard		Euro 3
Gearbox	FAST 6-shift transmission, Manual, 6-speed forward, 1 reverse gears
Fuel tank (L)	400
Tire	10.00-20 tire 6 pcs including one spare tire
Upper body
Body Capacity	12 CBM	Hopper Capacity		1.4 cbm
Body Material	Weather Resisting Steel	Sewage Tank		200L + 100L
Compressing Ration	≥ 1:3.4	Working zone Lighting		2 lamps
Dust Bin Lifter	2 bins 240L	Control		Siemens Automatic-PLC system
	Optional 1100L,660L			Manual, semi-automatic, automatic
Loading Cycle Time	15 ～ 20 sec	Foot Stands		2 sets
Discharging Time	10 ～18 sec	Painting		Two primers, and one final paint coating
Discharging system	Horizontal ejection	Color and Logo		According to wish
Standard equipment	“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds.
*Documents*	English operation manual, Spare parts list, and all necessary export doc

TECHNICAL SPECIFICATIONS AND OTHER REQUIREMENTS FOR COMPACTOR LORRY , Supply, Testing and Commissioning of Compactor Lorries of body Capacity 12.0m³ – 13.0m³

*Item No.*	*Description*	*Specifications*	**Mandatory (√)/ desirable ()***	*Compliance of specification Offered*	*Details of* *non-compliance/* *deviation*
	ENGINE	Diesel, Water-cooled	√
		Engine Capacity 5000cc – 8500cc Bidder to specify capacity for turbocharged or specify capacity for naturally aspirated	√
		Payload – 5000kg±10% (calculation to be given)	*
	STEERING	Right hand drive, power steering and preferably adjustable	√
	GROSS VEHICLE WEIGHT	13000 kg-18000 kg	√
	TRANSMISSION	Automatic	√
	WHEELBASE	4000 – 5500 mm	*

*Item No.*	*Description*	*Specifications*	**Mandatory (√)/ desirable ()***	*Compliance of specification Offered*	*Details of* *non-compliance/* *deviation*
	COMPACTOR	Capacity of body: 12.0 – 13.0 m³	√
		Compactor – Be factory built, factory fitted and of steel construction	√
		Body Panel and Roof – Minimum 2.5mm thickness	√
		Body Floor – Minimum 2.5mm thickness	√
		Side Panel – Minimum 2.5 mm thickness	√
		Operation Controls to be of lever or push button type	√
		Emergency Stop to be provided on both sides Tail gate locking device to be preferably hydraulically activated	√ *
	HOPPER	Capacity: 1.0 m3 – 1.6m3	√
		Hopper Bottom Plate – Minimum thickness of 5.0 mm	√
	COMPACTING RATIO	Minimum compaction Ratio: 3:1	√
	BRAKE	Air over hydraulic dual circuit or fully pneumatic type	√
		Auxiliary Exhaust Brake	√
		Preferably with ABS and EBD	*
	POWER TAKE OFF	Factory fitted to meet hydraulic requirement of compactor preferably with inside cab control	√

*Item No.*	*Description*	*Specifications*	**Mandatory (√)/ desirable ()***	*Compliance of specification Offered*	*Details of* *non-compliance/* *deviation*
	CREW CABIN LOCALLY MANUFACTURED	To be ergonomically designed so as to accommodated at least four (4) helpers with appropriate headroom and legroom space.	√
		Interior height to be about 1900mm from floor and width of about 800mm	√
		One near side door of full width and height with flush type door handle complete with key and heavy duty hinges. Door to open to 180⁰ complete with appropriate retainer at fully open position	√
		Two laminated sliding windows (one on door and other on opposite side) with appropriate locking devices. To be finalized at construction stage with Mechanical Engineer	√
		Two heavy duty roof extractors	√
		Roof to be fitted with about 35mm thick polystyrene insulation or other suitable heat insulation material to prevent heat radiation and covered with white Alucobond sheet	√
		Panel Sheet: 2.0-3.0 mm thick of galvanized sheet metal	√
		Flooring to be of Aluminium Checkered plate of 3-5mm thick. It should be appropriately designed to allow access for maintenance activities	√
		Heavy duty cushion seat of about 40mm thick with cushion back rest of full width preferably with retractable seat belts (four minimum)	√
		Aluminium grab handle of about 25mm dia. Opposite seat	√
		Step ladder with hot dipped galvanized material and with anti-skid steps. Grab handle to be knurled.	√

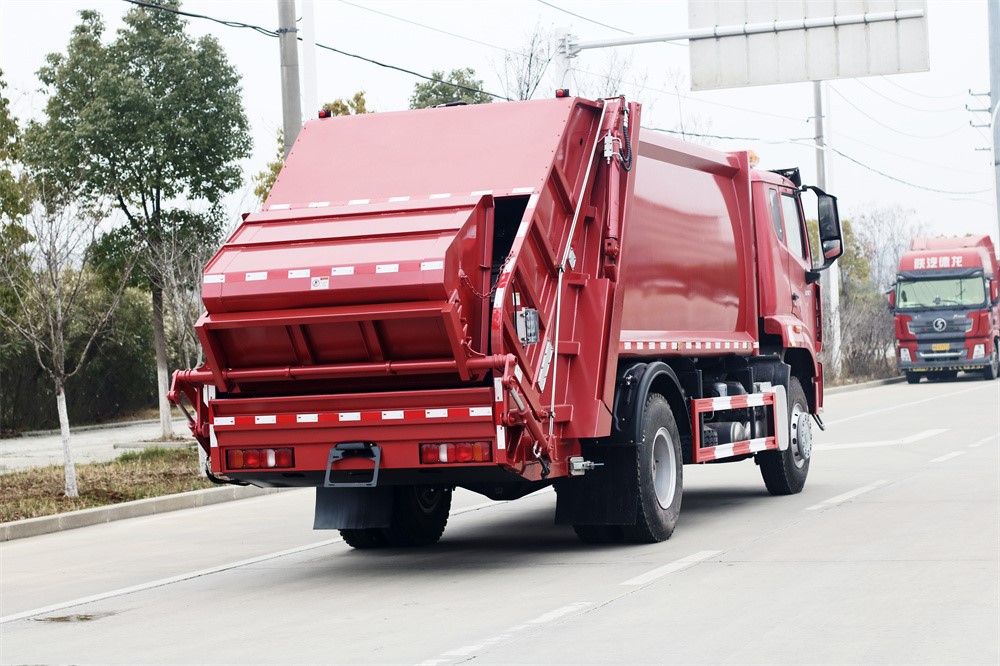

Howo compactor lorry waste truck

*Item No.*	*Description*	*Specifications*	**Mandatory (√)/ desirable ()***	*Compliance of specification Offered*	*Details of* *non-compliance/* *deviation*
	SPEED LIMITER	To be fitted as per NTA regulations and comply with BS AU 217 or approved equivalent	√
	CABIN	Seating capacity for driver + 2, all with seat belts	√
		Original interior and exterior rear view mirrors	√
		AM/FM radio, heater/defroster	√
		Heavy duty rubber mats to cover completely the cabin floor	*
		Tilt type preferably	√
		Instrumentation panel with all warning indicators	√
		Air-conditioned	√
	REAR LIGHTS	Suitably located, mounted on protective galvanized grilles	√
		Garbage Compactor Lorry should be provided with the following
	ACCESSORIES	Revolving beacon lamps or LED Flashing light on cab and rear of compactor body with covered galvanized grilles	√
		Rear warning sign + Fluorescent Reflective band and warning buzzer as per NTA regulations	√
		Spare wheel suitably located and secured for easy access and manipulation	√
		One set of standard tools complete with tool box	√
		Fist Aid box for seven persons, appropriately fixed in cabin	√
		Warning Triangle, yellow chalk and standard forms	√
		Two fog LED lamps at rear with galvanized grilles painted with black finish	√
		Lockable fuel tank cap and hydraulic oil tank cap	√
		2 kg dry powder fire extinguisher as per NTA regulations suitably mounted within driver’s reach	√
		Appropriate Hydraulic jack of about 10T capacity, wheel spanner, etc	√
		Leachate collector of stainless steel grade 316 to be appropriately positioned underneath the compactor body with appropriate ball valve of 1” dia. The approximate volume shall be about 0.1m³	√
		Other standard accessories to be provided	*
	MATERIALS	Only Hot dipped galvanized, stainless steel grade 316 and stainless steel fasteners to be used where required. All welded joints to be cold galvanized.	√
*Item No.*	*Description*	*Specifications*	**Mandatory (√)/ desirable ()***	*Compliance of specification Offered*	*Details of* *non-compliance/* *deviation*
	GUARDS	Front original and rear heavy duty galvanized steel mudguards with mud flaps as per NTA regulations	√
	GUARDS	Rear under-run protection and side guards as per NTA regulations	√
	PAINTING	Appropriate etch primer for galvanized material and undercoat to be applied prior to finish colour	√
		Cabin: White	√
		Crew cabin: Dark green of same colour code as compactor	√
		Chassis: Black	√
		Compactor body: Dark Green	√
		Painting of same shall be effected only after confirmation of conditions as per items 11, 14 and 17	√
	CORROSION WARRANTY	Corrosion warranty period of five years on locally manufactured crew cabin	√
