Technical Specifications of CSC5180ZYS Garbage Compactor Truck

1. Product function overview

The CSC5180ZYSD6 series garbage compactor is a new generation of rear-loading garbage truck independently developed and designed by CS TRUCKS on the basis of absorbing the advantages of similar products at home and abroad. The vehicle has beautiful appearance, excellent performance and advanced control. It adopts two-way compression technology to collect and transfer urban domestic waste. It has strong loading capacity. The maximum volume of the box can reach 14m3 (can load 9 tons of domestic waste). Its comprehensive performance reaches The advanced level of similar domestic products. Based on HOWO 4×2 heavy duty chassis, it has excellent quality and excellent power performance.

1)  Working principle: When the hopper is filled with garbage, the scraper rotates up, and the sliding plate drives the scraper to move downward together. It is inserted into the garbage for crushing and first compression. The scraper scrapes together to further compact the garbage. The scraper is in place. Then the skateboard moves upward, compacting and filling the garbage into the trash bin, and then returns to the starting position. The entire working process is automatically controlled. When the garbage is continuously pressed and filled, the push shovel gradually retreats (moves toward the front end of the box) under the action of the squeezing force, so that the garbage evenly fills the entire garbage bin. When the vehicle unloads garbage at the treatment (or landfill) site, the loader is lifted, the shovel is pushed backward, and the garbage in the garbage bin is pushed out in the horizontal direction.

2) Applicable working conditions: It is mainly suitable for the collection and transportation of barrels, bags and bulk domestic waste in urban residential areas, communities, large factories, mines, institutions and schools. There are a variety of barrel turning (bucket) mechanisms suitable for various garbage collection methods for different users.

2. Technical specifications

3. Product description

1) Compactor body structure: The compactor box is welded with reinforced beams and high-strength steel plates to form a solid frame structure. The sides are made of whole panels without longitudinal tailor welding. The upper and lower reinforced beams on the side panels are integrally formed with the side panels, and are cooled using special equipment. Bending molding and large R-angle molding improve the rigidity. There are no longitudinal welds on the side panels, which effectively avoids defects such as fatigue failure of the welds caused by long-term use of the traditional tailor welding process. The top surface is an arc surface, and the bottom plate of the box is in contact with the box. The body side panels adopt advanced tailor welding technology, which avoids the phenomenon of box leakage caused by long-term use of traditional welding processes. A large-capacity sewage collection tank is installed in the front and lower part of the box, which improves the vehicle's sewage storage capacity. The overall box appearance is beautiful and lightweight. Light, good force-bearing, not easy to deform.

Pushing blade assembly: The pushing blade is welded by a rectangular steel pipe frame and a bent plate. Adjustable sealing strips are installed on both sides and top of the pushing blade to ensure the gap between the pushing blade and the box. It is not only lightweight in structure, but also can make the garbage evenly distributed, clean and thorough discharge.
Hopper assembly: Mainly composed of filler shell, slide plate, scraper and other components. The filler slide is cold-formed with high-strength wear-resistant materials, and the lower arc plate is made of high-strength wear-resistant materials. It is made into a shape, and a leakage hole is processed on the curved plate to facilitate the flow of sewage inside the filler into the lower sewage storage tank to avoid leakage of sewage during transportation. There is a large-capacity sewage storage tank at the bottom of the filler. The sewage tank has two large caliber sewage discharge port; integral nylon sliders are used on both sides of the skateboard, which are self-lubricating, highly stable, and have better wear resistance; the scraper's stress-bearing parts are partially strengthened, with a solid structure and light weight.
Tilting mechanism: The tilting mechanism is made of bent materials and profiles welded together, with a solid structure and beautiful appearance.

2) Introduction to hydraulic system
The hydraulic cylinder is a well-known Chinese brand - Xiamen Yinhua/Yantai Weilai Brand, a Chinese mainstream sanitation truck cylinder supplier. All seals of the cylinder use the HALLITE brand imported from the UK to ensure the service life of the cylinder.
The hydraulic oil pump is the aluminum alloy gear pump produced by Hefei Changyuan/Hefei Wanye, which has stable performance and high reliability.
The multi-way reversing valve is Yangzhou Zhongmei, Hunan Honghui, Shanghai Qiangtian, Italian HC and other brands, which are the mainstream supporting manufacturers of domestic sanitation vehicles.
Hydraulic pipelines are well-known Chinese brands, the steel pipes are from Xuzhou Qiu Tong, and the hoses are from Guangzhou Tianhe.

3) Introduction to electrical control system

The system is built using modular design ideas and is mainly composed of five parts: a control box assembly, a front operation CAN bus keyboard, a rear operation button box group, a proximity switch sensor, and a car body wiring harness. Each component is connected by aviation plug-ins and is automotive-grade waterproof. Connectors such as plug-ins are docked with each other. High integration, simple system, easy installation, simple wiring, simplified system, high protection level, water resistance, corrosion resistance, IP67 protection level, 9~36VDC wide operating voltage range, single button life of more than 1 million times, has been used in engineering machinery, Sanitation machinery is widely used in the industry, with high reliability, stable performance, backlight function, convenient for night operations, and elegant appearance.

The upper body wiring harness adopts an integrated design, with high reliability and convenient installation and wiring. It is produced by a professional manufacturer of automotive and engineering machinery wiring harnesses. It has a professional conduction detection platform for garbage compression trucks. The accuracy rate is 100% and meets the QC/T29106-2014 automotive wiring harness standard. The functions of each joint are clearly marked, error-proofing, easy installation and high efficiency.

4. Main performance features and advantages

Environmental protection:
● Reasonable working speed and excellent components control the working noise of the entire vehicle and reduce noise pollution.
● The joint surface between the hopper and the garbage bin is sealed with double layers of rubber. At the same time, a sewage diversion device is installed at the seal to divert sewage into the sewage tank of the filler, effectively preventing sewage leakage and reducing environmental pollution.
● The hopper cover completely covers the feeding port, eliminating the flying of garbage and dust caused by the air flow disturbance at the rear of the vehicle during the transfer process, and reducing odor pollution at the same time.
Efficient:
● Adopting two-way compression technology, high garbage compression ratio and strong loading capacity
● The hopper has a large volume, the loading and pressing operation efficiency is high, and the loading operation cycle time is less than 10 seconds.
Intelligent:
● Different from the traditional PLC control mode commonly used in the domestic industry, the product draws on advanced foreign mature technology in terms of control mode and adopts the most advanced "CAN bus + dedicated controller mode", which has a high degree of automation, good reliability and low failure rate. Low and long service life.
● Engine power output control realizes fully automatic control through the electrical system, ensuring that the engine can automatically change speed under various operating conditions of the garbage truck, avoiding power loss and system heating, resulting in low fuel consumption and good economy.
● A multimedia real-time monitoring system can be selected to monitor pressure filling, loading, unloading and reversing rear view information to protect vehicle operation safety.

Features:
Large sewage holding capacity : Two sewage tanks on the side of the frame and under the filler make full use of the vehicle space , and the maximum sewage holding capacity can reach 850L.

● High adaptability: Different users can choose different titling mechanisms according to different garbage collection methods: standard garbage cans ZBT59003-88 (300 liters), plastic trash cans (240 liters, 660 liters, 1100 liters), semi-sealed three-angle (800L), fully sealed floor bucket (1400L) and bucket swing arm mechanism.

● Corrosion resistance and strong rigidity: The main parts such as trash cans, push shovels, and fillers that are in contact with the garbage are made of high- strength steel or wear-resistant steel. The overall structure has outstanding performance, and the overall rigidity and wear resistance are strong.

●Beautiful and elegant appearance. The horizontal section of the garbage bin is a rectangular frame, the longitudinal section is a trapezoidal frame, and both sides and top are arc shaped. The whole machine has a beautiful and elegant appearance.

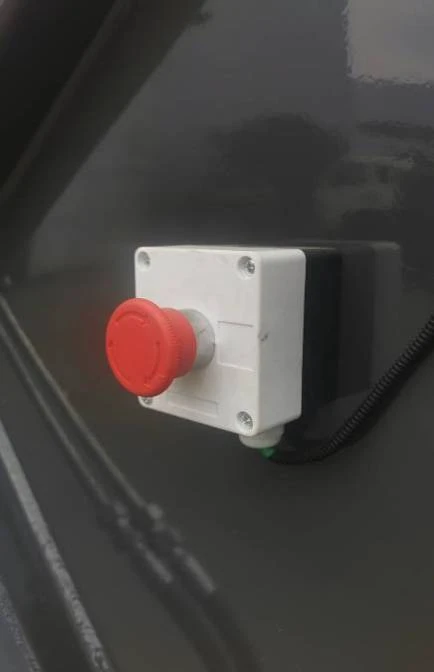

● High safety: The advanced hydraulic lifting safety circuit is equipped with a two-way balance valve on the lifting cylinder. During the lifting process of the filler, even if the oil pipe bursts, the filler will not suddenly drop and cause a serious accident. There are emergency stop buttons on both sides of the tail of the loader to facilitate the operator to stop the loading action in an emergency and improve the safety of the vehicle.

● High-quality electrical and hydraulic components are equipped with high-quality pneumatic multi-way valves, which improves product reliability. The key components of the electrical system are all imported components, such as proximity switches and control buttons, which improves the reliability of the garbage truck.

● Easy to operate: The operation control box is installed in the cab and the rear of the vehicle respectively. The operation control box in the cab can control the pushing and unloading and select the operating mode. The operation control box at the rear of the vehicle controls the operation of the pressing and filling mechanism and the tilting mechanism, it is very convenient to operate and use, especially in landfills. Operators can complete unloading without getting off the truck.

● The pipeline layout is beautiful and reliable: the hydraulic system steel pipe adopts American EATON extrusion molding technology , eliminating the traditional clamping structure. It has beautiful appearance, good repeated disassembly and assembly, and no leakage during production period .

● Assembled guardrail: The side guardrail support adopts an assembled structure, and the overall appearance is beautiful, making it easy to interchange aluminum alloy guardrails and conventional guardrails.

● Steel castings : The oil cylinder support, trash can lifting component, bucket guide plate, connecting rod support and other stress-bearing parts are integrally cast and formed with steel castings, which have a solid structure and are not easy to break.

● Stamping parts : The access hatch covers on both sides of the loader, the proximity switch sensor plate, the sewage outlet cover, etc. are all made of stamped parts, with beautiful appearance and light weight.

● Laser cutting : The whole vehicle uses laser cutting, which has high precision and high product consistency, improving product quality stability.
