ISUZU GIGA Van cargo

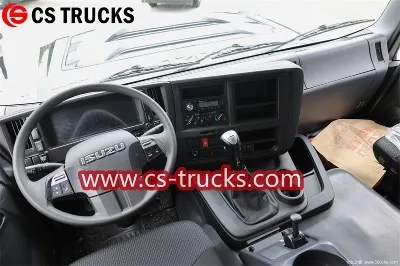

ISUZU GIGA heavy-duty is an outstanding model that combines high performance and reliability. It is designed for companies that require heavy-duty capacity and efficient transportation solutions. The van cargo adopts ISUZU GIGA heavy-duty model, which embodies excellent technical craftsmanship and sturdy design. It has a 4x2 drive configuration and is equipped with a new luxury 5X cab that can accommodate 2 passengers with a sleeper to ensure driving comfort and convenience.
In order to improve the operating experience, the driving seat adopts air suspension, and the vehicle provides electric windows, central door locks, ABS anti-lock braking system and original air conditioning, which fully reflects its humanized design concept. This truck has a gross vehicle weight (G.V.W) of 25,000 kg, its dead weight is 12,000 kg, and it can carry a payload of 16,000 kg, which fully meets the needs of heavy freight.
The maximum speed can reach 95 kilometers per hour, and the fuel tank capacity is 400L, which is suitable for long-distance transportation and highway driving. The tire specification is 295/80R22.5, the front wheel track is 1,960 mm, and the rear wheel track is 1,855 mm, ensuring the driving stability of the vehicle. In terms of power, the ISUZU GIGA heavy-duty van is equipped with the ISUZU 6UZ1-TCG61 engine, which meets the EURO 6 emission standards. The engine displacement is 9,671 ml, the maximum power is 380 horsepower, and the peak torque reaches 1,800 Nm, ensuring strong power output and economical fuel efficiency. The inline six-cylinder configuration is equipped with a high-pressure common rail direct injection system and an exhaust gas supercharger to achieve excellent performance and emission control.
In terms of the body, the standard size provides ample cargo loading space. The thickness of the body panel varies from 105 mm to 85 mm from the floor to the top, respectively, to ensure the stability of the structure. The ISUZU GIGA Van Cargo is equipped with a heavy-duty aluminum alloy "T"-shaped airflow floor, and the optional body material is aluminum or stainless steel, and the cooling system and additional side doors can be selected to meet different business needs.
ISUZU GIGA heavy-duty vans are an indispensable choice in the heavy-duty transport industry with their sophisticated design, powerful engines and a wide range of functional options. Whether you are pursuing efficient transportation or need to cope with complex freight challenges, this truck can provide excellent performance support and lead your business to success.
Products Description
|
ISUZU GIGA heavy-duty van cargo |
|||
|
Chassis Brand |
Isuzu |
Chassis Model |
GIGA heavy-duty |
|
Steering Wheel |
Left Hand Drive |
Drive Train |
4 x 2 |
|
Cab Style |
Single Cab |
Seating Capacity |
3 |
|
Main Configuration |
Power Windows, Power Door Locks, ABS, Factory Built A/C |
||
|
G.V.W |
25,000kg |
||
|
Kerb Weight |
12,000kg |
||
|
Rated Payload |
16000 Kgs van cargo |
||
|
Overall Dimension |
11900* 2600 * 3980 mm |
||
|
Wheelbase |
4600mm |
||
|
Max. Speed |
95Km/h |
||
|
Rim/Tires |
295/80R22.5 |
||
|
Front Track |
1,960mm |
||
|
Rear Track |
1,855mm |
||
|
Engine Brand |
Isuzu |
||
|
Engine Model |
6UZ1-TCG61 |
||
|
Engine Emission |
EURO 6 |
||
|
Displacement |
9,671cc |
||
|
Max. Power |
380 hp |
||
|
Max. Torque |
1800N.m |
||
|
No. of Cylinder |
6 |
||
|
Key Features |
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger |
||
|
Truck Body outside Size |
7.2m(L)x2.5m(W)x2.58m(H) |
Truck Body Inner Size |
7.01m(L)x2.33m(W)x2.37m(H) |
|
Roof/Floor Panel |
105mm Thickness |
Side Wall Panel |
85mm Thickness |
|
Front Wall Panel |
105mm Thickness |
Rear Door Panel |
85mm Thickness |
|
Side Door Quantity |
1 (One) Set |
Side Door Location |
On Right Side Wall |
|
Side Door Type |
Can option |
||
|
Rear Door Type |
Full Szie Double Opening Rear Door |
||
|
Truck Body Flooring |
Heavy Duty Aluminum Alloy T Type Airflow Flooring |
||
|
Ceiling Light |
3 (Three) Sets of 12/24V Multi-Voltage LED |
Marker Light |
2 Sets Of White LED On Front; |
|
2 Sets Of Red LED On Rear |
|||
|
Ceiling Light Switch |
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch |
Insulating Curtain |
European Standard -40C PVC Strip Curtain System For Rear Door |
|
Equipment |
All standard accessories: basic tool kit, English manual…… Optional: ** Box material could be aluminum or stainless steel. ** Cooling system is optional. ** Extra side door is optional. |
||
The ISUZU 380hp GIGA van cargo is mainly used in the following areas:
1.Long-distance logistics transportation:
- Reason: Large vans have large cargo capacity and long driving range, which are very suitable for long-distance transportation.
- Advantage: Ensure the safety and integrity of the goods, reduce the number of unloading and loading on the way, and improve transportation efficiency.
2.Wholesale distribution:
- Reason: Large quantities of goods need to be transported from warehouses to various wholesale markets.
- Advantage: A large amount of goods can be transported at one time, reducing transportation costs and reducing transportation frequency.
3.Cold chain logistics:
- Reason: For food and medicines that require temperature control, the car body can be equipped with an optional cooling system.
- Advantage: Ensure the freshness and safety of goods during transportation, and meet the transportation of goods with different temperature requirements.
4.E-commerce express delivery:
- Reason: The e-commerce industry needs to deliver goods to various places quickly and in large quantities.
- Advantage: High load capacity and long wheelbase can load more packages and reduce the number of distribution fleets.
5.Construction site transportation:
- Reason: A large amount of construction materials needs to be transported to the construction site.
- Advantage: The cabin has a large space, which can accommodate long and irregularly shaped items, and multi-location distribution is efficient.
In these applications, the main advantages of the ISUZU GIGA 5x cabin cargo truck include:
1.High load capacity: significantly reduce the single transportation volume and improve logistics transportation efficiency.
2.Safety and reliability: ensure driving safety through sturdy design and safety systems such as ABS.
3.Flexibility: different configurations can be selected according to needs, such as cooling system or side doors, to adapt to a variety of transportation environments.
4.Economical: reduce unit transportation costs through large load and fuel-efficient engine design.
