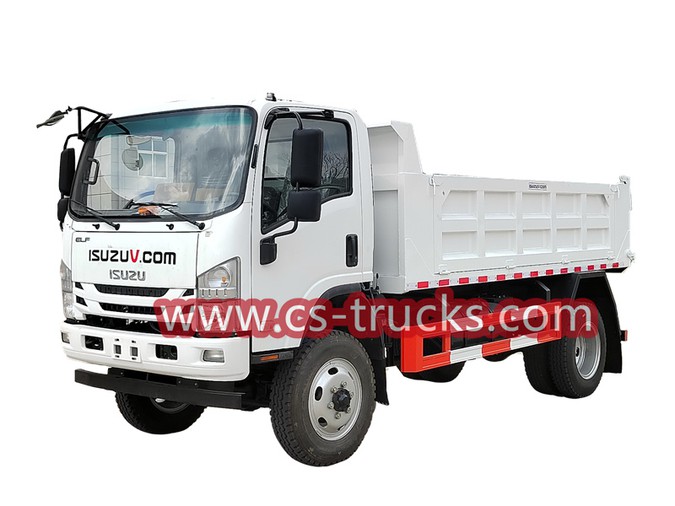

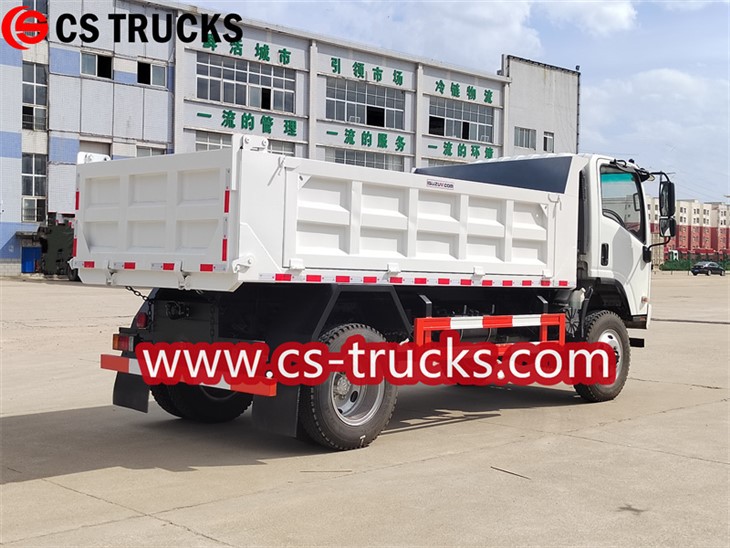

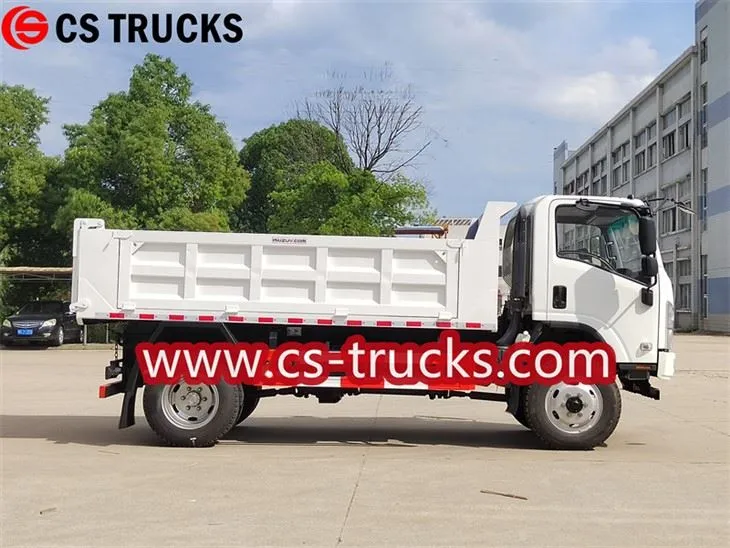

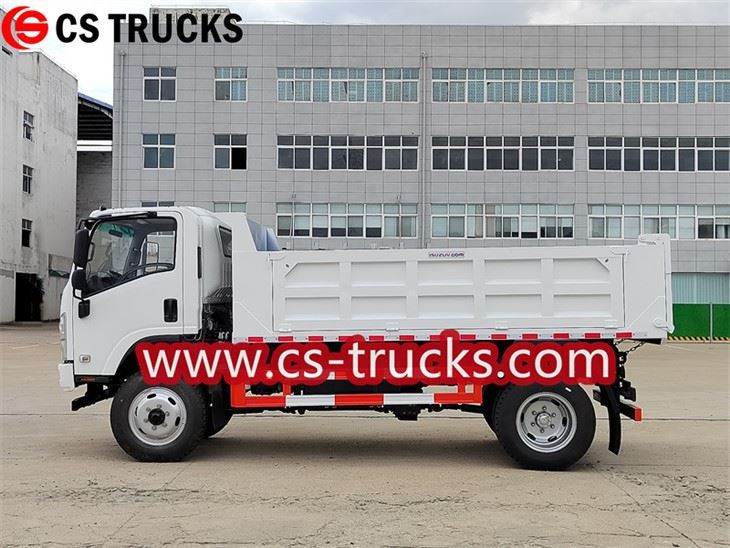

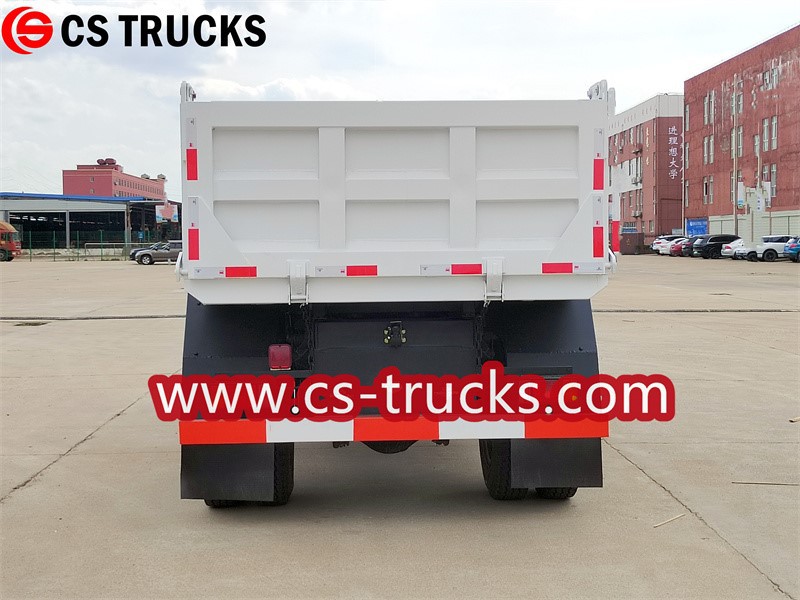

The 4 Wheel Drive Isuzu Garbage Dump Truck also called 4WD Isuzu waste dump truck,Isuzu 4x4 700P dump truck,Isuzu 4x4 all wheel drive dumper,Isuzu 700P 4x4 tipper,Isuzu 4x4 off road hook loader,Isuzu 4WD 5tons waste dumping truck,is a versatile, rugged waste management vehicle designed to effectively address a wide range of sanitation challenges. Built on a rugged Isuzu chassis, this 4 wheel drive Isuzu garbage dump truck combines the reliability and performance of a 4WD system with the features required for efficient waste collection and disposal.
The Isuzu 700P 5-cubic-meter dump truck represents a cutting-edge solution for waste management operations, combining the reliability of the Isuzu 700P platform with the efficiency of a 5-cubic-meter dump body. With its dump capabilities, rugged structure, driver-centric design and advanced technology integration, this dump truck provides municipalities, waste management companies and sanitation departments with a versatile and reliable tool to solve waste collection challenges, promote cleanliness and contribute to a sustainable urban environment.
Built on an Isuzu 700P Class II chassis, the 4WD Isuzu garbage dump truck with a 5m3 cargo capacity is an integral part of the waste management fleet, bringing greater efficiency, versatility and reliability to waste collection and processing operations. Combining the rugged Isuzu 700P platform with a 5m3 dump body, this purpose-built vehicle offers the best balance of payload capacity and maneuverability for urban and rural waste management tasks.
The combination of the Isuzu 700P chassis and dump truck configuration provides a solid foundation for waste handling operations. The 5m3 dump body allows for efficient loading and unloading of waste, ensuring fast turnaround times and increased productivity during waste collection. This capability is essential for managing different waste streams and meeting the demands of different collection routes.
By adopting the Isuzu 700P platform, this dump truck benefits from the vehicle's reputation for reliability, performance and durability. The Isuzu 700P chassis' robust structure provides the necessary strength and resilience to cope with the rigors of waste collection operations, ensuring the dump truck can easily withstand heavy workloads and challenging working conditions.
Products Description
|
4 wheel drive Isuzu garbage dump truck |
||
|
Truck model |
PT5100GYW |
|
|
Cab |
Single row cab, with power steering. Electronic flameout |
|
|
Driving Type |
4x4, left hand driving |
|
|
Max Speed (km/h) |
95 |
|
|
Overall dimension(mm) |
6180*2260*2580(mm) |
|
|
Dimensions of dump body(mm) |
4000*2000*800 |
|
|
GVW( kg) |
10550 |
|
|
Curb weight |
5000 |
|
|
Wheelbase(mm) |
3360 |
|
|
Passengers in cab |
3 |
|
|
F/R track base (mm) |
1680/1650 |
|
|
F/R overhang (mm) |
1110/1710 |
|
|
Approach/Departure Angel |
15/20 |
|
|
Tire |
235/75R17.5,6+1 tire |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MLD 6-speed,manual |
|
|
Multi-way valve |
Yangzhou Zhong Mei hydraulic |
|
|
Bridge |
Front axle |
4T |
|
Rear axle |
7T |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Power |
190HP/150KW |
|
|
Max Torque |
507N·m/2600rpm |
|
|
Fuel Type |
Diesel fuel |
|
|
Fuel Capacity |
100L |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
5193 |
|
|
Emission |
Euor 6 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Dump Performance |
Loading Capacity |
5 tons |
|
Dump body |
4000*2000*800mm |
|
|
Body Material |
High performance carbon |
|
|
Thickness |
Side 3 bottom 5 |
|
|
Lifting Style |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Angel |
45 degree |
|
|
Lowering Time |
20s |
|
|
Tailgate |
15s |
|
|
Drop Side |
Auto release |
|
|
Painting |
Detachable |
|
|
Optional Equipment |
1.Dust bin lifting system (with any option) |
|
|
2.Rear vision camera |
||
|
3.Italy import multi-way valve |
||
|
4.Optional stainless steel waste water tank |
||

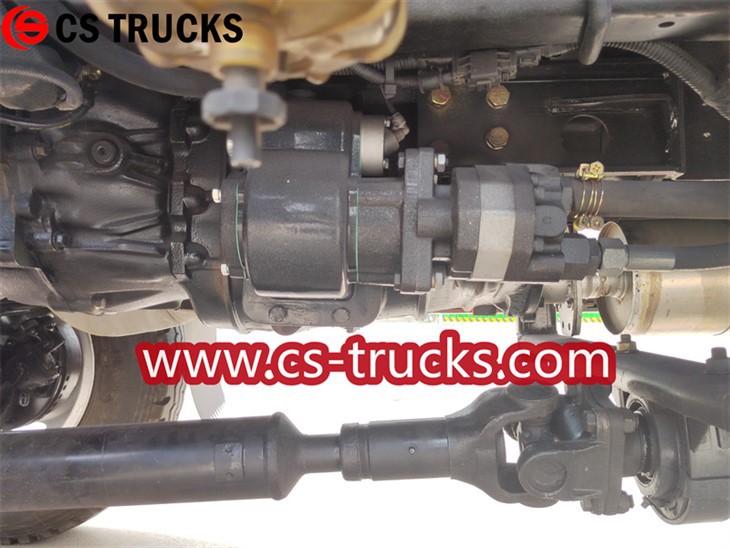

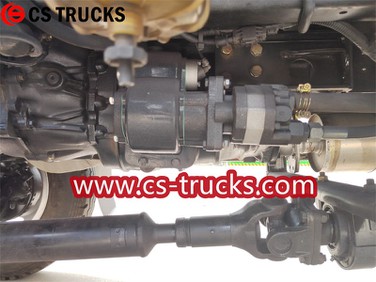

At the heart of this garbage dump truck is an innovative four-wheel drive system that enables the vehicle to easily navigate a variety of terrains and challenging environments. This feature ensures that the truck can access remote areas, travel on rough roads, and collect garbage from different areas, providing a comprehensive solution for municipal waste management tasks.
The four-wheel drive function of the Isuzu garbage dump truck further enhances its operational versatility and performance. Whether driving on city streets, construction sites or rural roads, the four-wheel drive system ensures optimal traction, stability and control, allowing the vehicle to transport garbage efficiently and reliably even in challenging conditions.
The cargo compartment of the Isuzu 700P 5cbm garbage dumper truck is designed to maximize capacity while remaining easy to use and maintain. With a capacity of 5 cubic meters, the truck can accommodate large amounts of garbage, reducing the number of trips required to empty bins and containers. The body is made of durable materials to withstand the rigors of daily use, including exposure to corrosive materials and adverse weather conditions.
The Isuzu 700P 4x4 tipper truck is equipped with a durable dump body that provides high-capacity waste handling capabilities. The dump body design facilitates efficient loading and unloading of waste materials, increasing the productivity of the truck and simplifying the waste collection process. This feature enables sanitation workers to speed up waste disposal activities and keep urban and rural areas clean.
Isuzu 700P 4x4 tipper truck
The dump capacity of the Isuzu 700P 5cbm dump truck simplifies the waste handling process, allowing sanitation workers to unload quickly and resume collection activities immediately. This feature not only improves operational efficiency, but also minimizes downtime, allowing waste management teams to optimize their schedules and effectively maintain cleanliness standards in residential and commercial areas.
In terms of waste management features, this Isuzu truck is equipped with advanced garbage compression technology. The compaction mechanism compresses the collected waste, maximizing the truck's carrying capacity and reducing the number of trips required for waste disposal. This efficiency not only improves operational efficiency, but also minimizes fuel consumption and carbon emissions, contributing to environmental sustainability.

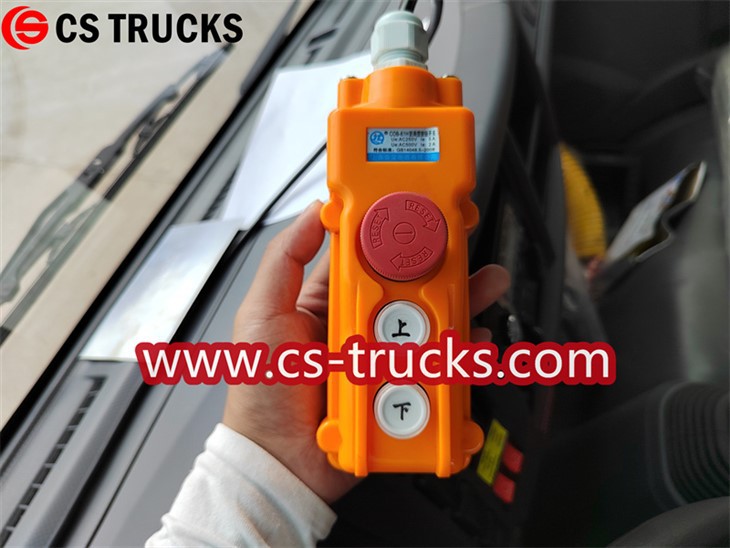

Furthermore, one of the key features of the Isuzu 700P 4x4 off road hook loader, is its hydraulic lift system. This system allows the driver to quickly and easily empty the cargo box at the push of a button. The dump body rises smoothly and efficiently, discharging the waste into a designated area or larger dumpster. This eliminates the need for manual labor and significantly reduces the time and effort required to empty dumpsters and containers. This streamlines the waste collection process, supports recycling programs, and promotes sustainable waste management practices within communities.
The Isuzu 700P 4WD 5cbm waste tipper is designed with driver comfort, safety, and ease of operation as a priority. The ergonomic cab layout provides the driver with enhanced visibility, intuitive controls, and a comfortable workspace, improving alertness and operating efficiency during waste collection activities. Safety features such as an advanced braking system, stability control mechanism, and proximity sensors increase driver safety and help prevent accidents on the road.
The Isuzu 700P 4X4 dump truck integrates advanced technologies to further enhance its waste management capabilities. Optional features such as GPS tracking systems, digital route optimization software and on-board weighing systems provide valuable tools for fleet management, route planning and operational performance monitoring. These innovations enable waste management companies to streamline operations, optimize resource utilization and enhance service delivery of waste collection and disposal services.
