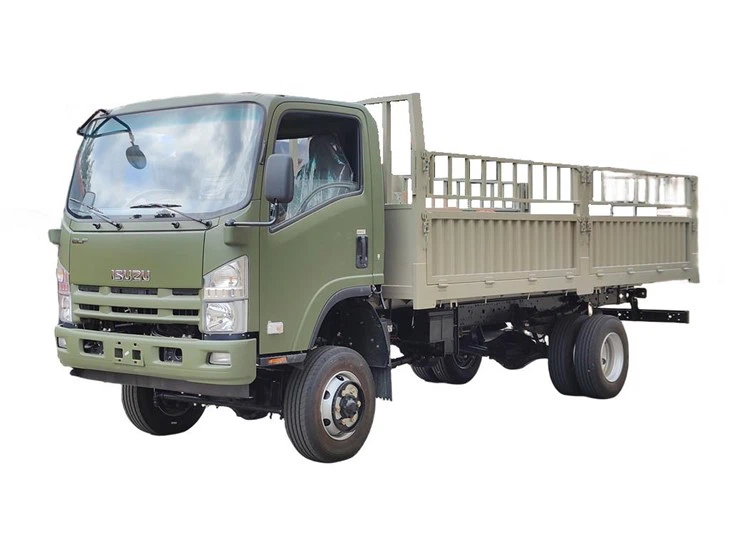

Isuzu NPR 4x4 Troops Carrier

Cargo Truck mounted on ISUZU NPS / NPR 4x4 truck, which also can be named as Isuzu offroad troops carrier, it is a reliable, versatile, and high-performance vehicle that has proven to be a valuable asset to businesses of all sizes around the world. Known for its durable construction, impressive hauling capacity, and excellent maneuverability, ISUZU all wheel drive 4x4 Cargo Truck has become a popular choice for a wide range of cargo transportation needs.

ISUZU NPR troops carrier trucks with function configuration: auxiliary oil tanker, oil barrel. water barrel, anti-skid chain, tarpaulin, tool box, insulated ladder and other military accessories.

Traction connection device: traction hook in the front or at rear, electrical connector, pneumatic brake connector, etc.

----► Japanese ISUZU NPR / NPS truck chassis

----► 4x4 offroad model, left hand drive
----► Japan technology 4HK1 diesel engine, 140kw / 190HP
----► 235/75R17.5 tubeless tires
----► High strength steel and wooden carrier body

----► Foldable chairs and curtain, for military troops carrier

----► Towing winch with force can be up to 44100N

Original Japanese ISUZU NPR truck chassis, QL1110ANKAY model with 4HK1-TCG61 diesel engine 190HP, MLD 6-shift manual gearbox, 4x4 offroad driving model, single cabin door with 2+1 seats.

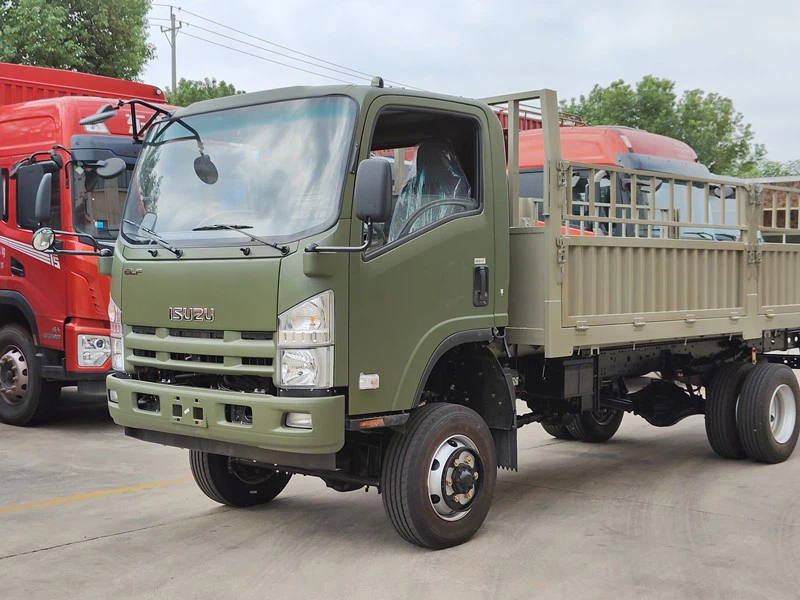

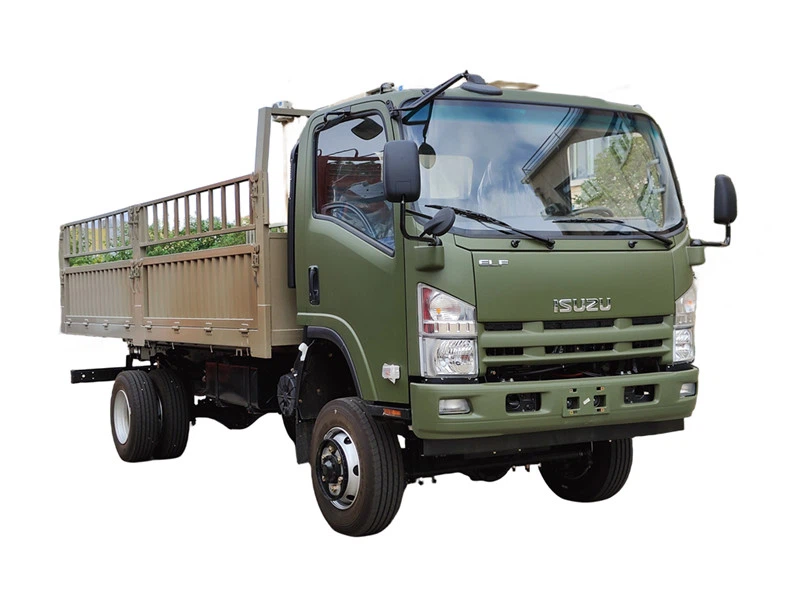

Japanese ISUZU 4x4 truck mounted carrier

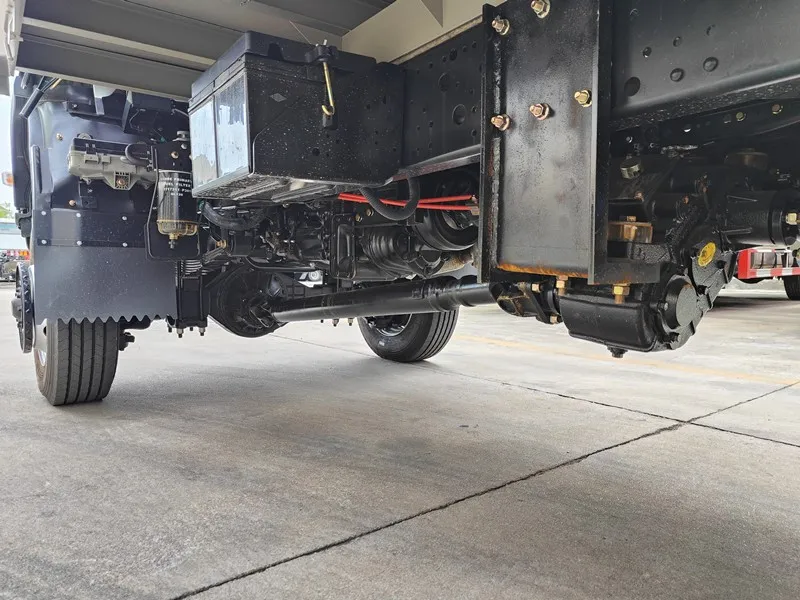

ISUZU 4x4 truck mounted troop carrier body

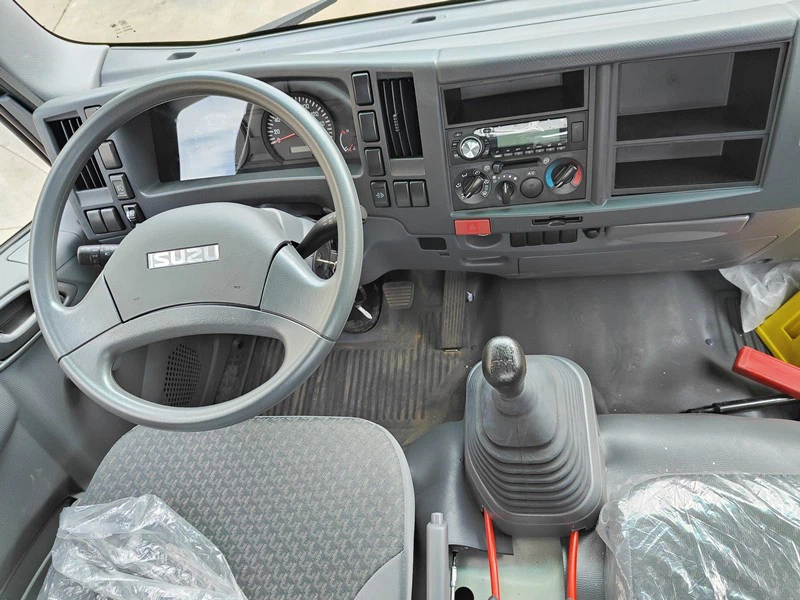

Japan ISUZU NPR truck cabinet

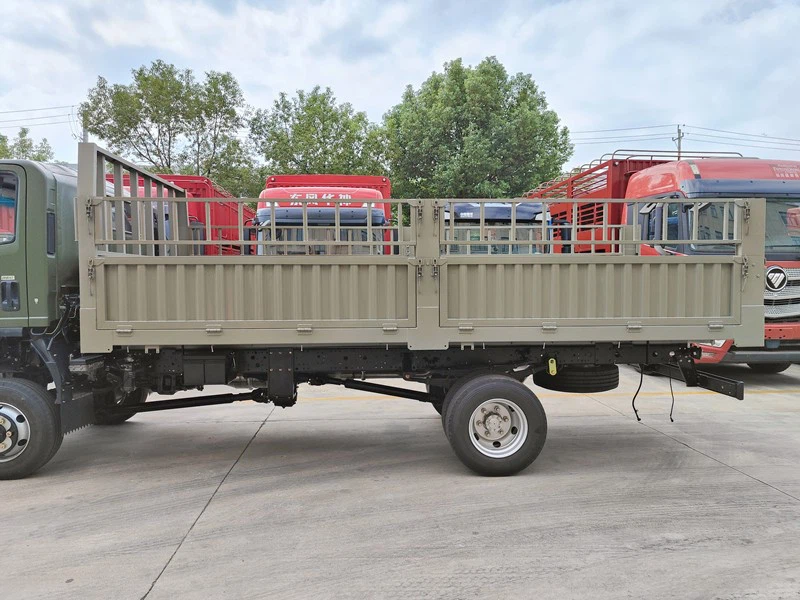

Troop carrier truck body

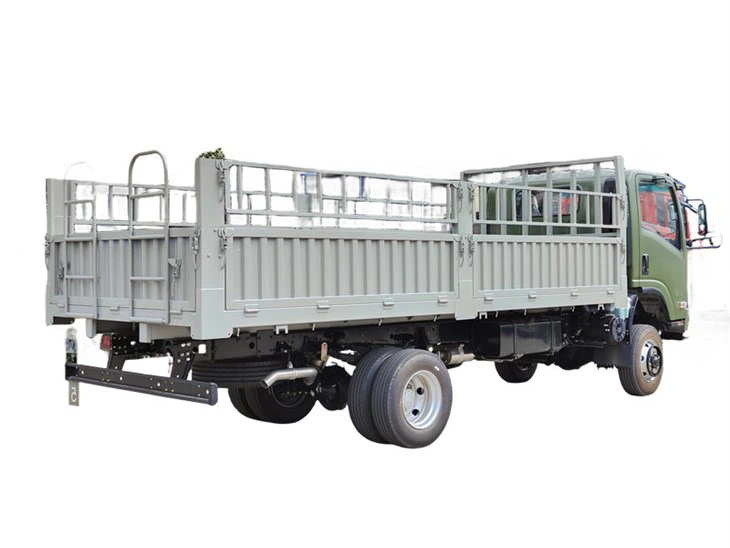

Cargo body mounted ISUZU

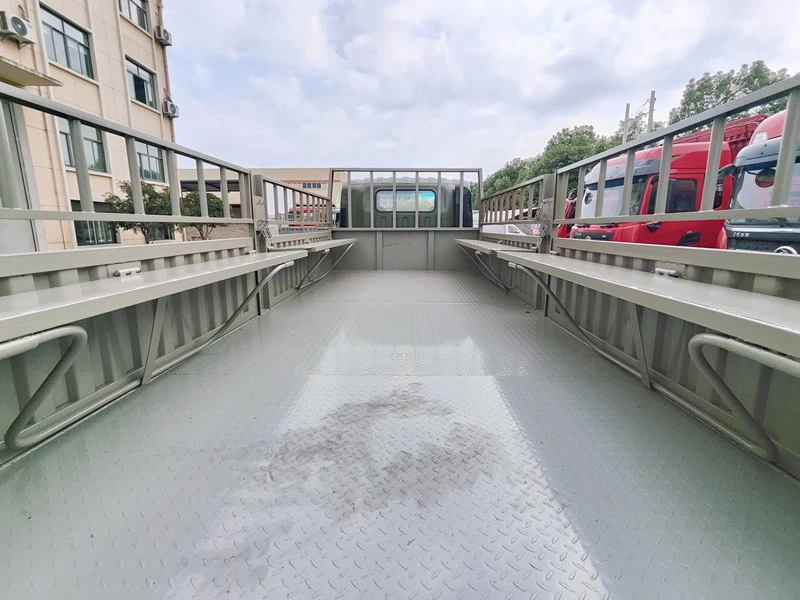

Isuzu troop carrier truck with seats

The good running-in and maintenance for a new ISUZU vehicle have a great influence on its performances and service life. Therefore, the following precautions must be strictly observed during the initial run-in of 1000 kilometers:

1. During the running-in period of initial 1,000km, please control the engine speed and driving speed according to the following requirements.

Limit engine speed: ≤2300 rpm, Speed: ≤ 90 km/h

2. Must avoid engine over speed, sudden start and unnecessary emergency parking.

3. The engine must be heated at idling speed to the normal operating temperature before driving.

Below showing details of the instruments and indicators of the ISUZU 4x4 soldier transport trucks:

In order to ensure driving safety and maintain reliable Isuzu cargo truck operation performance, inspections and adjustments shall be made in accordance with the items required by the chapter “Service and Maintenance”. Your authorized dealer is willing to perform regular maintenance checks on your vehicle.

ISUZU offroad 4x4 truck

ISUZU 4x4 truck front axle

ISUZU all wheel drive 4x4 truck

4x4 truck mounted ISUZU

The Isuzu NPR / NPS 4x4 all-wheel drive personnel carrier is a transportation vehicle specially designed for use in the military and security fields. It is mainly used to transport soldiers and equipment and has good off-road and impact resistance capabilities. The following is a detailed structural summary of the Isuzu all-wheel drive personnel carrier:

Body structure: The body structure of the Isuzu all-wheel drive personnel carrier is usually welded from solid steel plates and has good strength and rigidity. The car body adopts a box structure, which not only helps to strengthen the overall rigidity of the car body, but also effectively protects the safety of personnel and equipment in the car.

Engine and power system: Isuzu's all-wheel drive personnel carrier is equipped with a powerful diesel engine with high torque and low fuel consumption. The engine transmits power to all four wheels through the transmission system, achieving full drive.

Suspension system: Isuzu's all-wheel drive personnel carrier adopts an independent suspension system to improve the vehicle's passability and driving comfort. The front and rear wheels adopt independent suspension, equipped with strong suspension springs and shock absorbers, which can keep the vehicle stable and smooth on rough terrain.

Armor protection: Isuzu all-wheel drive personnel carriers can provide different levels of armor protection according to mission needs to protect the occupants from attacks and explosions. The body and bottom are covered with protective panels to provide effective bulletproof and explosion-proof capabilities.

Equipment and Conveniences: The Isuzu all-wheel drive personnel carrier is equipped with various facilities and equipment to provide the basic needs and combat needs of soldiers. This includes seats, isolation areas, communication equipment, firefighting equipment, medical equipment, etc. to ensure personnel safety and combat efficiency.

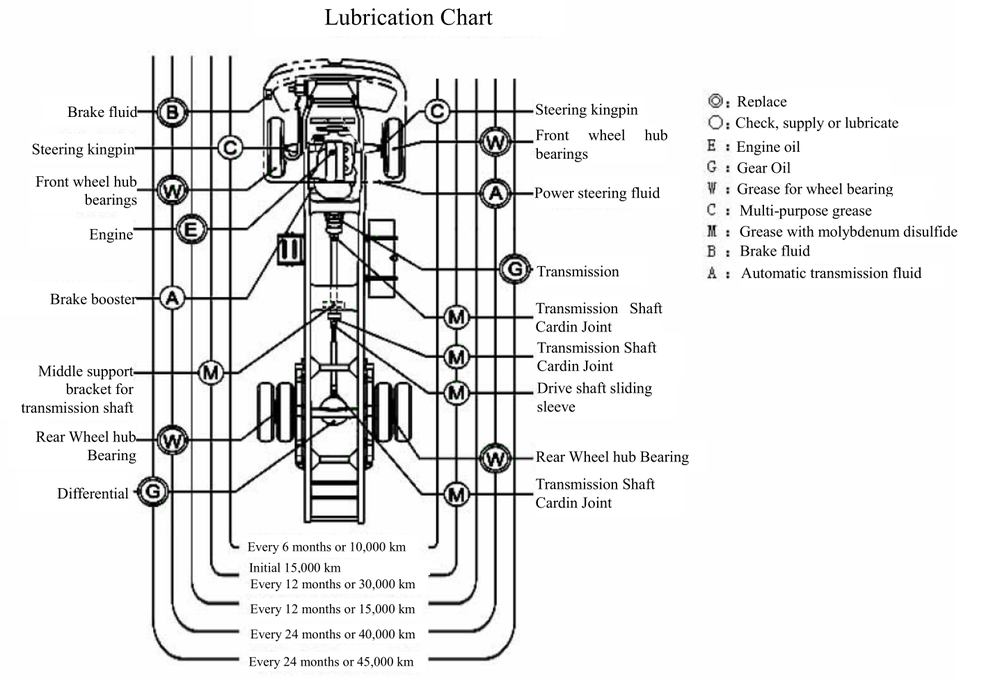

Below chart showing lubrication chart for ISUZU 4x4 truck:
