The Congo BEIBEN 6x4 water tank truck is equipped with a 20CBM large capacity water tank, providing extended range and higher operating efficiency; its 6×4 rear axle drive offers strong load bearing capacity and good road adaptability, ensuring stable driving on complex terrains. Powered by a Weichai WP10.290E32 engine, it boasts 290HP, strong climbing ability, fuel efficiency, durability, and convenient maintenance.
Model: CSC5260GSS
Capacity: 20 CBM
Drive: 6×4
Engine power: 290 HP
Engine type: WP10.290E32
Send Inquiry
Description
This Congo BEIBEN 20CBM water bowser truck features a 6×4 drive layout, a top speed of 100km/h, and a body adapted to African road conditions; it is equipped with a WP10.290E32 290HP engine, providing strong power, paired with a Fast 9 speed transmission, a tropical specific cooling design, optional left or right hand drive, air brakes, and heavy duty tires, ensuring stable and reliable driving on rough terrain.
It comes standard with a 20CBM large capacity water tank, a water system flow rate of 1000L/min, a head of 60m, and a front spray distance of ≥20m, offering excellent self-priming performance; the tank features a safety anti slip walkway, a stable electrical system, and optional features such as ABS. It is highly adaptable to various scenarios including municipal dust suppression, mining area sanitation, and green space irrigation.
★Congo BEIBEN 2629 Water Sprinkler Tanker Truck★
Product Specifications
Product Name
Congo BEIBEN 2629 water sprinkler tanker truck
Overall
Vehicle Model
CSC5260GSS
Drive Type
6x4
Gross Vehicle Weight
26000 kg
Curb Weight
9496 kg
Maximum Speed
100 km/h
Overall Dimensions L*W*H
10576*2500*3430 mm
Engine
Engine Model
WP10.290E32
Fuel Type
Diesel
Power
290 HP(213KW)
Emission Standard
Euro Ⅲ
Displacement
9726 ml
Engine Type
6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis
Chassis Brand
BEIBEN
Tire No.
10+1
Tire Specification
12R22.5
Wheelbase
5050+1450 mm
Gear Box
FAST 9JS150A, 9-speed forwards and 1 reverse
Steering Wheel
Left / Right hand drive
Brake
Air brake
Superstructure
Water Tank Capacity
20 CBM
Electrics
Operating Voltage
24V,negative grounded
Batteries
2x12 V,165 Ah
Horn,headlamps,fog lights,brake lights,indicators and reverse light
Man way access hole on top of tank; manhole diameter:¢500mm
Front Spray Function
Front spray bar with fan sprayer,spray range: ≥20m
Man Walk Way
With skid resistance man walk way on top of tank
Flow Rate
1000 L/m
Head of Delivery
60 m
Shaft Power
22.5
Suction Height
6.5 m
Efficiency
0.95
Performance and advantages
01
Operation and Configuration
⚑ Operational Safety: The top of the tank is equipped with a non-slip walkway and a 500mm diameter manhole cover for easy inspection and cleaning of the tank interior; the electrical system is 24V negative grounded and equipped with two 12V 165Ah batteries to ensure long-term operation.
⚑ Abundant Configurations: Optional features include ABS, driving recorder, engine skid plate, vertical exhaust pipe, and more; left or right hand drive cab options are available to adapt to different national traffic regulations.
02
Excellent sprinkling performance
⚑ Large Capacity Tank: This vehicle is equipped with a 20CBM large capacity tank, allowing for continuous operation with a single load, reducing the number of trips and improving efficiency, which is suitable for roads, construction sites, mines, and other similar environments.
⚑ High Lift and Large Flow Rate: Equipped with a high performance sprinkler system, the water pump can lift dust up to 60m, with a flow rate of 1000L/min, the pre-spray range is ≥20m, enabling long distance, wide area spray coverage and effectively improving the efficiency of single operations.
03
durable chassis
⚑ High Load Capacity: It adopts a 6×4 chassis with a wheelbase of 5050+1450mm, is equipped with 10 12R22.5 tires, and has a total weight of 26000kg, ensuring stability and reliability when fully loaded.
⚑ Reliable Braking System: Equipped with a full air braking system, it offers strong braking force and rapid response; the radiator is designed specifically for tropical climates, and with optional automatic brake clearance adjustment arms and metal piping, it effectively ensures the vehicle's braking reliability and overall durability in high-temperature and dusty environments.
04
Reliable power system
⚑ Ample Power: Equipped with a Weichai WP10.290E32 engine, delivering 290HP and a displacement of 9726ml, the engine utilizes turbocharging and intercooling technology, providing strong power during heavy load starts and hill climbing, meeting the demands of high intensity operations.
⚑ High Efficiency Transmission: Equipped with a Fast 9JS150A nine speed gearbox, the gear ratios are rationally designed, and shifting is smooth, effectively reducing fuel consumption and improving the handling and economy of the overall vehicle.
Products Details
Bottom Through Water Circuit Ball Valve
BEIBEI Water Truck Front Spraying Equipment
Anti-aircraft Water Cannons
BEIBEN Water Truck Tire
BEIBEN Water Bowser Driver's Cab
Rear Side High Pressure Nozzle
Application scenarios
Urban Road Cleaning of Congo BEIBEN 6x4 Water Tank Truck
Construction Site Dust Control of Congo BEIBEN 6x4 Water Tanker for Sale
Emergency Fire Fighting of Congo BEIBEN 20CBM Water Bowser Truck
Garden Maintenance of Congo BEIBEN 20CBM Truck Bed Water Tank
Product Exterior Views

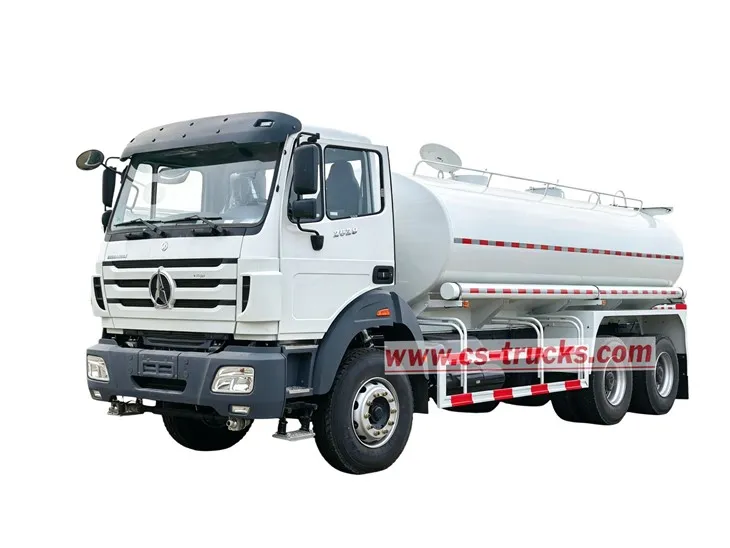

Front Left View of Congo BEIBEN 2629 Water Sprinkler Tanker Truck
Front Right View of Congo BEIBEN 2629 Water Truck for Sale

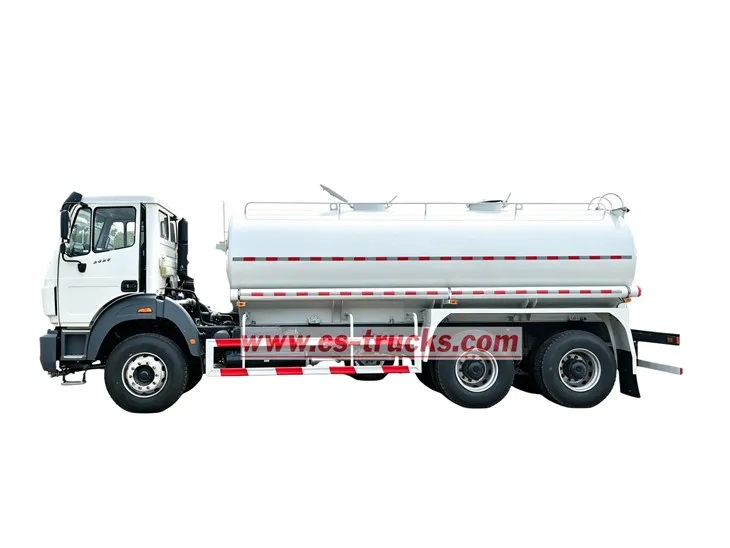

Left View of Congo BEIBEN 6x4 Water Tank Truck

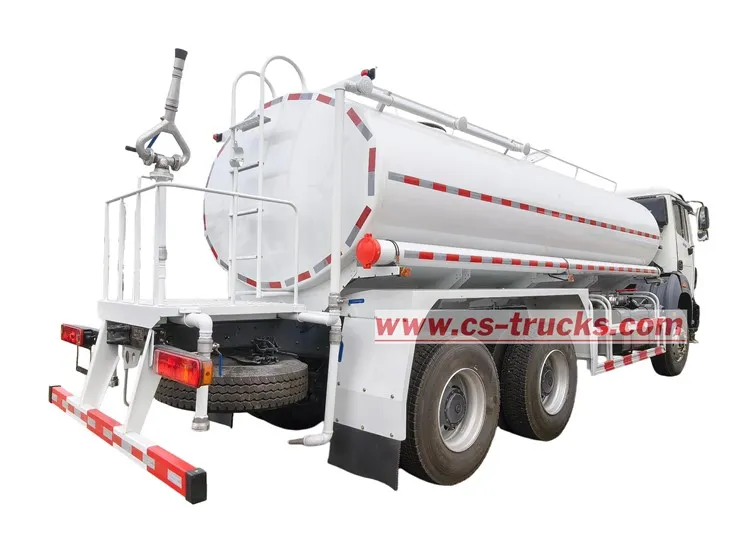

Rear Right View of Congo BEIBEN 6x4 Water Tanker for Sale
Rear Left View of Congo BEIBEN 20CBM Water Bowser Truck

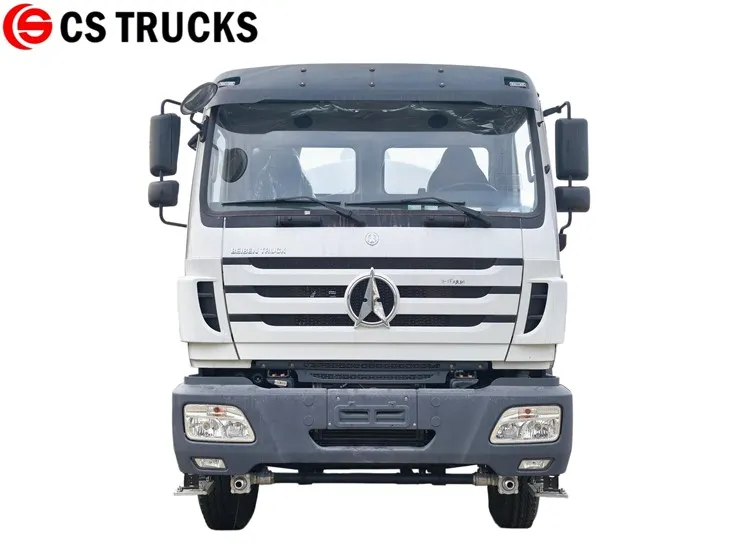

Front View of Congo BEIBEN 290HP Water Bowser Truck

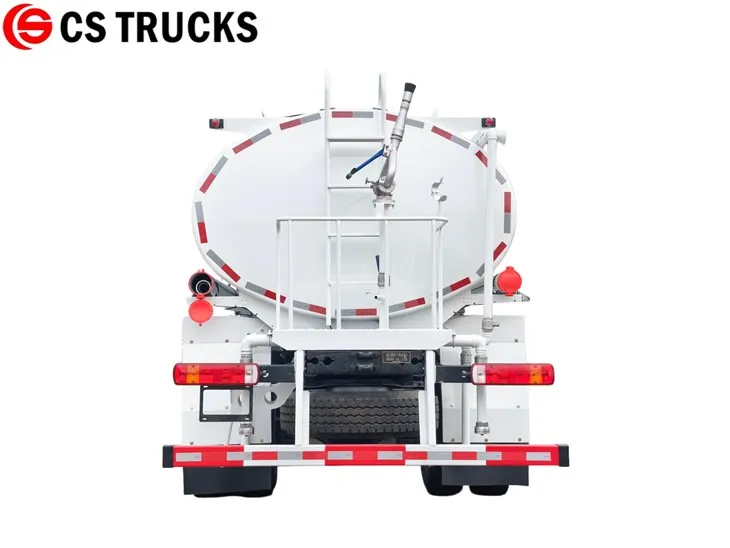

Rear View of Congo BEIBEN 290HP Water Tanker Delivery
