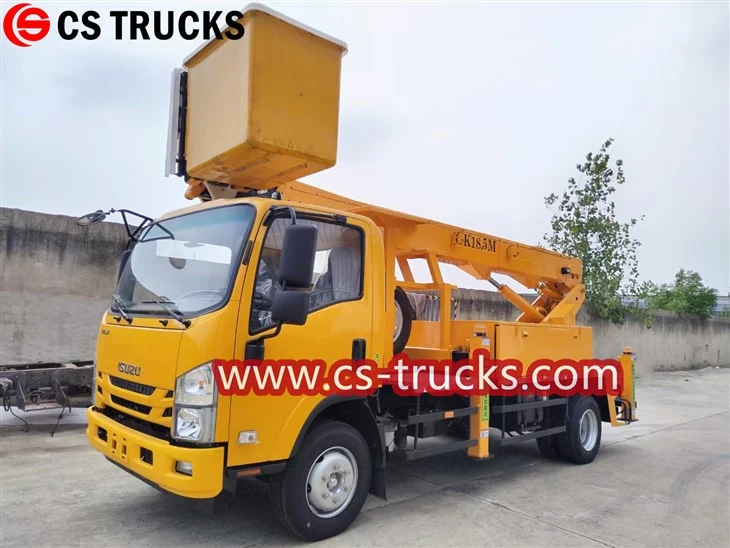

This Isuzu insulated boom aerial work truck is based on the Isuzu NPR chassis and adopts a 4X2 drive mode, which is maneuverable and flexible. Equipped with an integrated lifting system, the maximum operating height can reach 21.7 meters, the operating radius is 13 meters, and it can rotate within the range of 90° and 95° on the left and right respectively. The insulation design is excellent, the working bucket has an insulation performance of 20kV/5min, and the internal insulation can reach 50kV/5min. The telescopic arm is made of FRP and steel, supports up to 360° rotation, and improves safety and operational flexibility. The power system is equipped with an ISUZU 4HK1 diesel engine, which meets the Euro VI emission standards, has an output power of 190 horsepower, and can carry 3 passengers at the same time, suitable for a variety of complex aerial work scenarios.
TECHNICAL PARAMETERS
|
Isuzu Insulation Aerial Lift and Bucket Truck |
|
|
Vehicle Description |
|
|
Chassis brand |
Isuzu |
|
Traction type |
4X2 |
|
Overall dimensions |
6050*2000*3000mm |
|
G.V.W. |
10900kg |
|
Curb weight |
4365kg |
|
Bucket |
|
|
Max. rated load |
280kg |
|
Max. work height |
21.7m |
|
Max. work radius |
13m |
|
Swing angle |
Left90°,right95° |
|
Bucket insulation |
20kv/5min |
|
Bucket inner insulation |
50kv/5min |
|
Outriggers |
|
|
Type |
H type |
|
Vertical breadth |
4166mm |
|
Horizontal breadth |
1980~3830mm |
|
Boom |
|
|
Type |
one section articulated + two sections telescopic |
|
Material |
FRP + steel |
|
Rotation angle |
360° |
|
Upper insulated boom |
141kV/1min/ 700 electrode gap |
|
Lower insulated boom |
50kV/3min/ 400 electrode gap |
|
Winch |
|
|
Rated load |
490kg |
|
Lifting height |
21.6m |
|
Chassis |
|
|
Model |
ISUZU NPR |
|
Wheelbase |
3815mm |
|
Passengers |
3 persons |
|
Engine |
|
|
Model |
ISUZU 4HK1 |
|
Engine power |
190HP |
|
Discharge Standard |
euro 6 |
|
Fuel |
Diesel |
The insulating arm in the aerial work vehicle is usually composed of fiberglass reinforced plastic (FRP) and steel, each of which has specific characteristics that make them suitable for high voltage protection.
1.Insulation performance: FRP is a composite material composed of resin and glass fiber. The resin itself is a good insulator with high resistance and can effectively block the current. This aerial work vehicle can be used for voltages ≥35000V.
2.Strength and lightweight: Glass fiber provides excellent strength while being light, reducing the overall weight of the arm and making aerial work more flexible.
3.Corrosion resistance: FRP is resistant to chemical corrosion and is suitable for operations in a variety of severe weather conditions, extending its service life.
4.Structural strength: Steel provides the necessary mechanical strength and stability to ensure the arm's load-bearing capacity and operational stability.
5. Comprehensive characteristics: By combining FRP with steel, the insulating arm not only has excellent insulation performance, but also provides sufficient mechanical strength. This enables it to effectively resist the risks of high voltage environments and protect the safety of operators. The overall design needs to take into account both insulation and practicality to ensure reliable use under various complex conditions.
Our Advantages
• Work range
Both the upper and lower booms and the telescopic boom contain insulated sections, which cooperate with insulated inner and outer bucket, make live operation safer and more reliable, and can realize a full range of live operation, is suitable for live operation with voltage of less than 66kV.
• Simple and reliable appearance
The oil pipes and wires at the bucket is located inside and not exposed to the outside, there is no need to worry that the pipes and wires are broken by external tree branches in a messy environment, thus endangering the performance of the vehicle and even personal safety.
• Multi-insulation protection
The upper boom and lower boom arm are insulated, and the bucket is insulated, make the hot line operation safer and more reliable.
• Centralized lower operating table
The lower operating table is located in the rear of the vehicle, can control the stabilizers, the Upper and engine.
• Multi-functional anti-misoperation handle
The design of two main control handles in the bucket adopts a misoperation prevention mechanism. Only while pressing the handle safety switch, the machine can be operated.
• Independent detection device for separate outriggers
Different outrigger span has different work range, can suitable to various workplaces, such as small spaces, which can carry out unilateral operation.
• Hydraulic safety device
Equipped with various balance valves, hydraulic locks, etc., which can ensure operation safety even if the tubing is broken.
• Interlocked between Upper and Lower
The stabilizers can't be operated when the Upper device has not retracted fully; The Upper can't be operated when the stabilizers has not grounded fully.
• Hydraulic tool interface
There has an interface in the bucket, it provides power for hydraulic tools while working.
• Emergency device
It has a series of emergency safety devices: engine start and turn off, emergency stop, emergency pump, etc.
• Automatic throttle
Switch the throttle automatically according to different actions, and reduce the throttle to the idle state automatically while no moving, reduce the energy consumption effectively.
