This HOWO 4×2 Drive fire fighting truck is equipped with a Yunnei YN4102QBZL engine, outputting 116HP, and features a 4×2 drive configuration with a 5CBM tank capacity. Positioned as a flexible, multifunctional community fire sprinkler truck, it is specifically designed for narrow streets, towns, and factory areas. Integrating a high pressure fire pump and sprinkler system, it can both extinguish initial fires and meet daily greening and dust suppression needs, making it an ideal choice for grassroots firefighting and sanitation operations.
Model: CSC5050XF
Capacity: 5 CBM
Drive: 4×2
Engine Power: 116HP
Engine Type: YN4102QBZL
Send Inquiry
Description
This HOWO 116HP Water Truck with Fire Cannon uses a 4×2 right hand drive chassis and is equipped with a YN4102QBZL Euro VI diesel engine with a power of 86kW. The vehicle has a reasonable weight and load capacity, and is equipped with a six-speed manual transmission and air brakes, ensuring stable and reliable driving. With a total volume of 5CBM, it can be used for emergency fire fighting, road dust suppression and watering, and landscaping irrigation, making it suitable for daily operations and emergency duty in various sites such as factories, towns, and properties.
The vehicle is equipped with a CB10/20 dedicated fire pump and a PS30 roof mounted fire monitor. The fire pump provides stable water suction with a maximum suction lift of 7m. The accompanying manual fire monitor can rotate 360° horizontally, has a rated flow rate of 30L/s, and a maximum spray distance of 55m, enabling flexible and efficient long distance firefighting operations, which a highly practical dual purpose vehicle for both fire protection and environmental sanitation.
Key Features of HOWO fire tender
1
Powertrain and Chassis
Equipped with a Yunnei YN4102QBZL engine, outputting 116 horsepower, and matched with a 4×2 drive configuration, providing reliable power suitable for urban and rural roads.
2
Tank Capacity
The tank volume is 5CBM, sufficient for single fire emergency or greening watering operations, combining practicality and economy.
3
Function Integration
Integrates a fire pump and water spraying system, offering multiple operating modes including front spraying, rear spraying, side spraying, and high pressure water cannon, making it a versatile vehicle.
4
Flexibility and Mobility
The vehicle's compact size and good maneuverability make it suitable for fire patrols and watering operations in narrow streets, communities, and factory areas.
Technical parameters
RED HOWO Water Truck with Fire Cannon
Vehicle Model
CSC5050XF
Drive Type
4×2
Capacity
5CBM
Gross Vehicle Weight
5500 Kg
Curb Weight
4200 kg
Overall Dimensions L*W*H
7000×2200×2900 mm
Maximum Speed
95 km/h
Engine
Engine Model
YN4102QBZL
Fuel Type
Diesel
Power
116HP/86kW
Emission Standard
Euro 6
Displacement
3.76 L
Engine Type
4 cylinders, in-line,4-stroke,diesel engine
Chassis
Wheelbase
3800 mm
Tire Specifications
7.00RI6LT
Tire No.
6+1
Gear Box
Manual 6-speed
Steering Wheel
RHD
Brake
Air
Fire Pump
Model
CB10/20
Flow
20 L/s
Max Working Pressure
1.0 MPa
Max Suction Height
7 m
Rated Speed
3130±50
Maximum Allowable Import Pressure
0.4 MPa
Fire Monitor
Model
PS30
Flow
30 L/s
Rated Working Pressure
0.8 MPa
Max Working Pressure
1.0 Mpa
Range
≥55 m
Horizontal Rotation
0~360°
Performance and advantages
01.
Vehicle configuration
✦Tank: With a tank capacity of 5CBM, it can meet both fire emergency water needs and daily watering operations, making it economical and practical.
✦Flexible Size: The overall dimensions of the vehicle are 7000×2200×2900mm, its compact body makes it easy to enter and exit narrow passages in residential areas, streets and alleys and industrial parks, and it has strong site adaptability.
02.
Powertrain and Chassis
✦Powerful Performance: Built on the Howo 4×2 right hand drive chassis, it is equipped with a YN4102QBZL diesel engine with a power of 86kW, providing ample power, meeting Euro 6 emission standards, and achieving a top speed of 95km/h, making it highly maneuverable and efficient.
✦Stable Braking: It features a six-speed manual transmission with air brakes, 7.00R16LT tires, a reasonable wheelbase, stable load bearing capacity, safe braking, and adaptability to complex road conditions.
driver's cab of HOWO fire truck
Main Driver's Cab
Gear Box
Control Panel
Fire Pump
This vehicle is equipped with a CB10/20 fire pump with a flow rate of 20L/s, a maximum working pressure of 1.0MPa, and a maximum suction height of 7m, which can quickly build up fire-fighting water pressure.
Operating Conditions
Flow(L/s)
Pressure(MPa)
Rotational Speed
Power
Deep Suction(m)
1
20
1.0
3130±50
35.0
3
2
14
1.3
3430±50
35.0
3
10
1.0
7
Note:
Before pressing the pump switch,the air reservoir must be greater than 0.5 MPa.
If water is not filled into the pump after 40 seconds of continuous pumping,check whether there is leakage in the suction pipe, and then divert water again after checking.
fire monitor
Equipped with a PS30 fire monitor, with a rated flow of 30L/s, a rated pressure of 0.8MPa, a maximum range of over 55 meters, and 360° horizontal rotation, it has a wide coverage area and effectively responds to initial fires.
Model
PS20
PS30
PS40
PS60
PS80
PS100
Flow Rate (L/s)
20
30
40
60
80
100
Rated Working Pressure (MPa)
0.8
1.0
1.2
Working Pressure Range (MPa)
0.8~1.0
0.8~1.2
1.0~1.4
Jet Radius (m)
≥50
≥55
≥60
≥70
≥80
≥85
Horizontal Rotation Angle (°)
360
Vertical Rotation Angle (°)
-70～+90
-60～+70
-70～+90
-70～+80
-70～+90
Spray Angle (°)
100
Installation Method
Seat Installation
Connection Flange
DN65
DN100
DN125
Operating Radius (mm)
500
600
800
Environment
-10℃~+50℃ ≤95%RH
Application scenarios
HOWO 4×2 Drive Fire Fighting Truck for Green Irrigation
HOWO 5CBM Fire Truck Water Tank for Forest Fire Fighting
HOWO 116HP Fire Department Utility Truck for Township Firefighting
HOWO 4×2 Drive Fire Truck Equipment for Road Cleaning
Exterior Views
Front Left View of HOWO 4×2 Drive Fire Fighting Truck

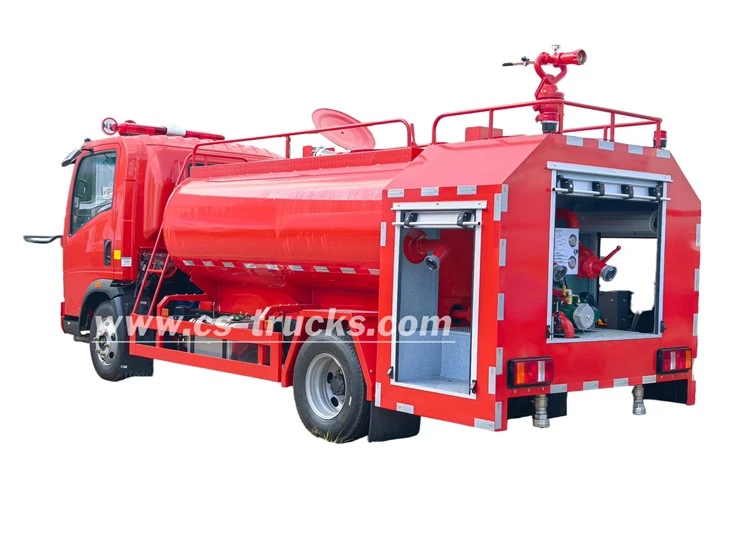

Rear Left View of HOWO 5CBM Fire Truck Water Tank
Left View of HOWO 116HP Fire Department Utility Truck
Front View of HOWO 4×2 Drive Fire Truck Equipment
Rear View of HOWO 116HP Water Truck with Fire Cannon
