This ISUZU 4×2 foam unit fire truck is equipped with an 4HK1-TCG61 engine, delivering a powerful 189HP. With its 4x2 agile drive system, it can easily navigate complex road conditions in both urban and rural areas. Its 5000 liter total capacity is scientifically formulated with 4000 liters of water and 1000 liters of foam, meeting the needs of prolonged firefighting operations while also ensuring efficient suppression of fires involving flammable liquids such as oil, which is an ideal choice for fire and rescue teams and industrial enterprises dealing with initial and medium sized fires.
Model: CSC5100XF Capacity: 4000L water + 1000L foam (5000L total) Drive: 4×2 Engine Power: 189 HP Engine Type: 4HK1-TCG61
Send Inquiry
Description
ThisISUZU 189HP medium duty rescue truckadopts an 4x2 Euro VI chassis fitted with a 4HK1-TCG61 diesel engine delivering 139kW rated power, featuring a 4000L water tank and a 1000L foam tank,along with a 3 person cab. Boasting outstanding mobility, it can rapidly arrive at diverse accident sites for firefighting missions.
The vehicle is equipped with a CB10/40 fire pump and a PL8/32 fire monitor. The fire pump has a flow rate of 40L/s and a maximum suction depth of 7m; the fire monitor has a flow rate of 32L/s, a water range of ≥60m, and a foam range of ≥48m. This vehicle is equipped with an intelligent control system that can switch between water and foam extinguishing modes and has functions of liquid storage, water supply, and spraying. It is suitable for fire fighting in various scenarios such as factory areas and roads.
ISUZU Water TenderKey Features
1
Tank Capacity
Total volume 5000L, including a 4000L water tank + 1000L foam tank, enabling both water and foam firefighting operations.
2
Chassis Drive Type
4×2 drive type, highly maneuverable in urban areas, suitable for emergency firefighting in urban areas and factories.
3
Power Configuration
Equipped with a 4HK1-TCG61 engine, outputting 189HP, providing ample power to meet the load requirements of firefighting operations.
4
Functional Positioning
Foam water dual media firefighting, suitable for both ordinary fires and fires involving flammable liquids such as oil.
Technical Parameters
2026 Philippines BFP Fire Tender Trucks
Overall
Vehicle Model
CSC5100XF
Drive Type
4×2
Capacity
Water
4000L
Foam
1000L
Gross Vehicle Weight
10550 kg
Curb Weight
3400 kg
Overall Dimensions L*W*H
6980×2250×3100 mm
Maximum Speed
95 km/h
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
189HP/139kW
Emission Standard
Euro 6
Displacement
5193 ml
Engine Type
4 cylinders in line, water cooling, turbo charged diesel engine, inter cooling
Chassis
Wheelbase
3815 mm
Tire Specification
235/75R17.5 16PR
Tire No.
6+1
Gear Box
6-Speed manual
Steering Wheel
LHD
Brake
Air
Cab
3 People
Fire Pump
Model
CB10/40-XZ
Max Working Pressure
1.144 MPa
Max Suction Height
7 m
Flow Rate
40 L/s
Rated Speed
3135±50 r/min
Speed Ratio
1:1.4
Water Diversion Time
≤50 s
Fire Monitor
Model
PL8/32
Flow
32 L/s
Rated working pressure
0.8 MPa
Max working pressure
1.0 MPa
Range
Water
≥60 m
Foam
≥48 m
Pitch Rotation
- 15～+70°
Horizontal Rotation
0～360°
Performance And Advantages
Chassis And Powertrain
✅Powertrain: Equipped with a 4HK1-TCG61 Euro VI diesel engine, 189HP power, turbocharged and intercooled, providing stable power output to meet the needs of heavy duty firefighting operations.
✅Transmission: 6-speed manual gearbox, 4×2 drive configuration, maximum speed 95km/h, fast urban maneuverability, suitable for rapid response in urban areas.
✅Vehicle Specifications: Gross vehicle weight 10550kg, wheelbase 3815mm, left hand drive cab seating 3 people, air brakes, safe and reliable driving.
Tank Liquid Carrying Capacity
✅Liquid Carrying Capacity: Total volume 5000L, including a 4000L water tank + a 1000L foam tank, supporting both water and foam fire suppression.
✅Firefighting Adaptability: Capable of extinguishing both conventional solid fires and flammable liquid fires such as oil fires, covering a wide range of operational scenarios.
Intelligent Control System
✅Real Time Status Monitoring: The integrated control unit in the cab displays key operating data such as water tank and foam tank levels, water pump pressure, and speed in real time.
✅Convenient Operating Mode Switching: One button switching between water extinguishing and foam extinguishing modes, automatic foam mixture preparation, reducing operator difficulty.
Firefighting Operation System
Fire Pump
The vehicle is equipped with a CB10/40 fire pump, with a maximum working pressure of 1.144MPa, a maximum suction depth of 7m, a rated flow of 40L/s, and a priming time of ≤50s. It can quickly draw water from natural water sources and provide a stable and powerful hydraulic output for the vehicle's water and foam fire extinguishing operations.
Model
Operating Conditions
Flow Rate(L/s)
Pressure(MPa)
Rated Speed(r/min)
Shaft Power(KW)
Suction Depth(m)
CB10/40
1
40
1.0
3135±50
60.0
3
2
28
1.3
3390±50
60.0
3
3
20
1.0
3010±50
39.0
7
Fire Monitor
The vehicle is equipped with a PL8/32 electrically controlled fire monitor, with a horizontal adjustment range of 0°～360° and a pitch adjustment range of -15°～+70°. The maximum water range is ≥60m and the maximum foam range is ≥48m. It can switch between water and foam media to meet the needs of long-distance fire extinguishing operations.
Proportion Mixer
Model
Mixing Ratio
Maximum Mixing Flow Rate
Structural Type
PH64
3%~6%
64 L/s
Pump In Ringr Ringe
ISUZU Fire Truck Equipment Room
The vehicle has roller shutter style equipment compartments on both sides. The left compartment holds various demolition and rescue tools such as fire axes and crowbars, while the right compartment stores fire hoses, vehicle mounted fire pumps, and various fire interfaces, water distributors, and other pipe fittings in layers. The compartments are neatly divided and can be used to store fire extinguishing and rescue equipment in a classified manner, making it easy to quickly access various equipment during fire operations.
Fire Extinguisher
Demolition Tools
Fire Hose
Foam Gun
Hose Bridge
Water Distributor
Driver's Cab
Application Scenarios
ISUZU 4×2 Foam Unit Fire Truck for Roadside Assistance
ISUZU 189HP Forest Fire Fighting Vehicles for Factory
ISUZU 5000L Fire Department Utility Truck for Gas Station
Exterior Views

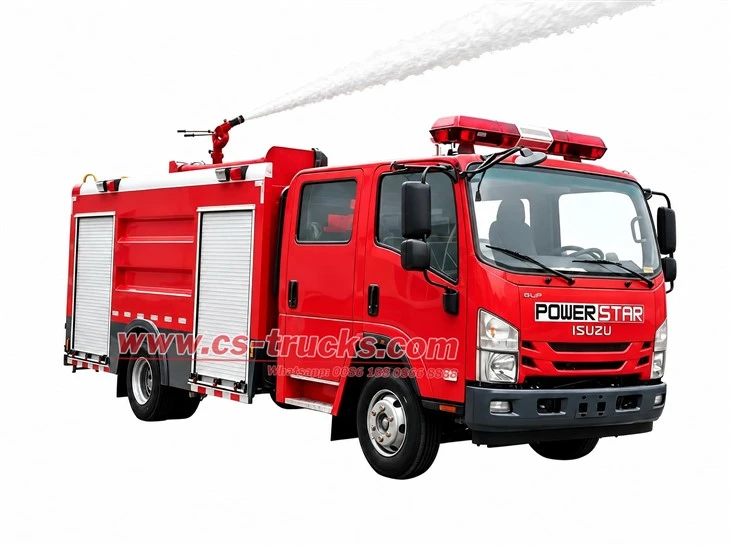

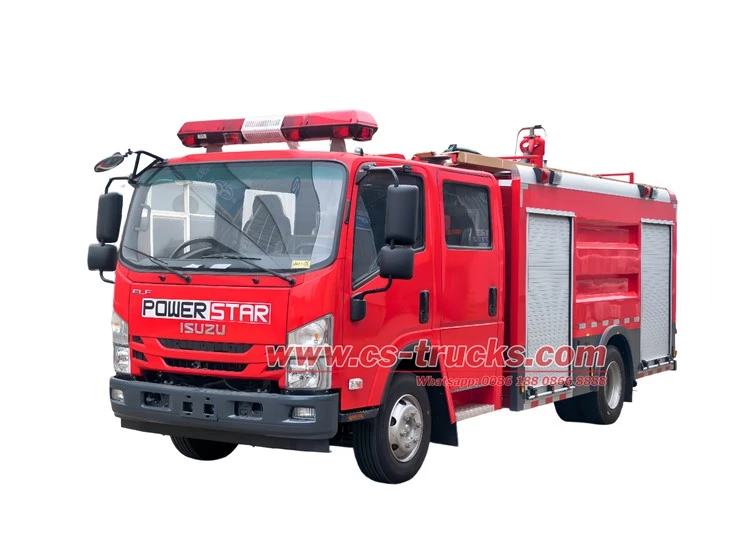

Front Left View of ISUZU 4×2 Foam Unit Fire Truck
Front Right View of ISUZU 4×2 Wildfire Fighting Vehicles
Rear Left View of ISUZU 189HP Medium Duty Rescue Truck
Rear Right View of ISUZU 189HP Forest Fire Fighting Vehicles

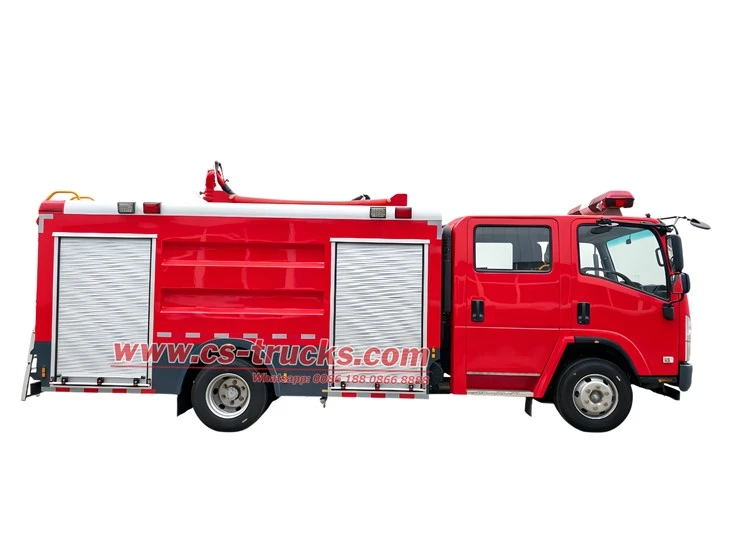

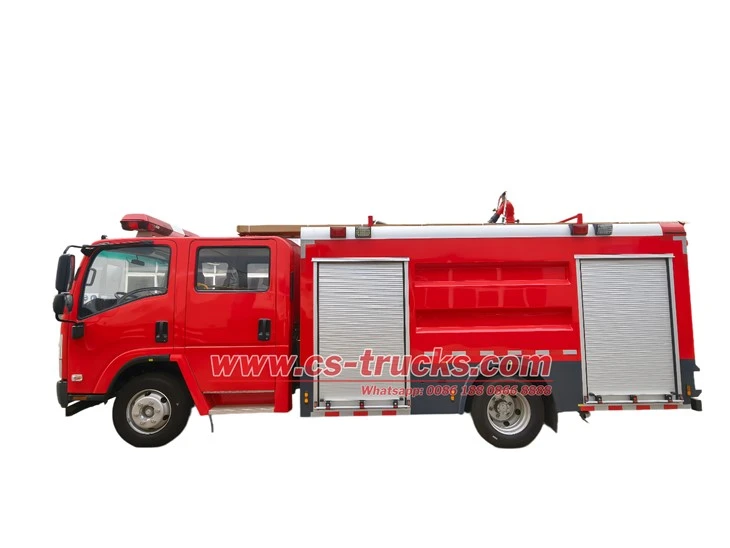

Left View of ISUZU 5000L Fire Truck Ladder Truck

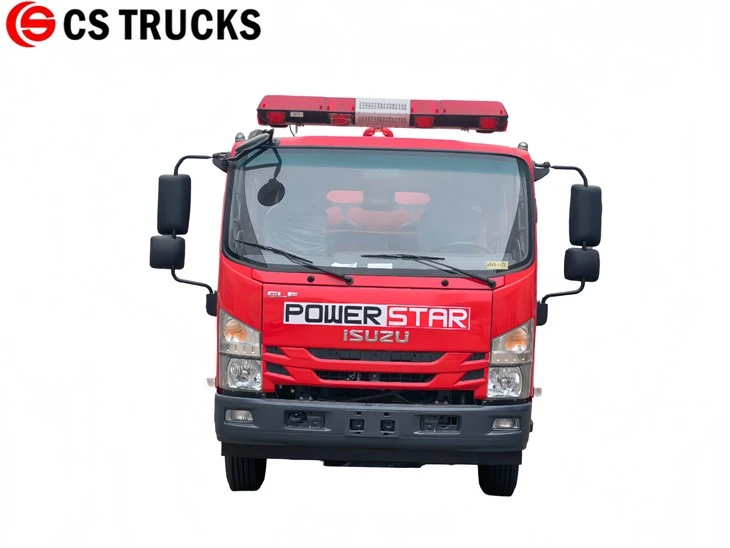

Front View of ISUZU 5000L Fire Department Utility Truck

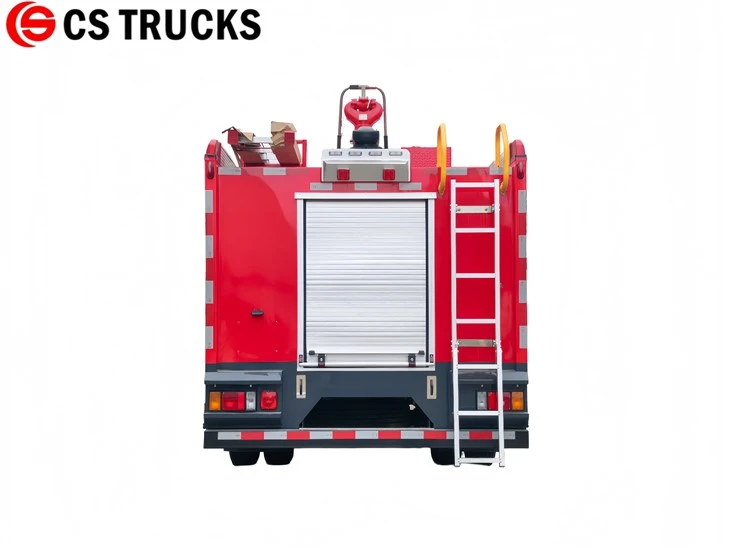

Rear View of ISUZU 4×2 Ladder Truck for Sale
