The ISUZU 6×4 Drive hook truck dumpster for sale is equipped with a powerful 380HP 6UZ1-TCG61 engine, designed specifically for heavy duty operations. This truck features a mobile garbage compression station, eliminating the need for civil engineering construction and allowing for flexible deployment in any open area. The chassis is reliable and easy to maintain, making it widely applicable to various sanitation operation scenarios such as city streets, residential communities, and parks.
Model: CSC5250GB
Capacity: 30 Ton
Drive: 6x4
Engine power: 380 HP
Engine type:6UZ1-TCG61
Send Inquiry
Description
The ISUZU 380HP hook lift dump truck (also known as a hooklift loader or roll on/roll off garbage truck) is equipped with a 30CBM mobile garbage compression station, which is a heavy duty sanitation vehicle designed for the efficient collection and transfer of urban household waste. Built on the ISUZU GIGA 6×4 sturdy truck chassis, it is powered by a 6UZ1-TCG61 380HP Euro 6 engine, providing strong performance.
It forms a collaborative "one truck, one station" operation mode with the mobile garbage station, and is widely used for garbage collection and transportation in garbage transfer stations, residential areas, commercial areas, and large event venues.
ISUZU Hook Truck Dumpster Core features
Manufacture:CS TRUCKS
Features:
🟢Superior Load Capacity: 30Ton lifting capacity + 6×4 sturdy chassis, specifically designed for handling construction waste and industrial waste.
🟢Optimal Power: 380HP ISUZU engine, powerful and reliable, easily handling complex working conditions.
🟢Mobile Waste Station: Mobile stations can be hoisted and moved at any time, making them particularly suitable for temporary waste disposal, emergency response, and areas with limited space.
🟢Sealed and Environmentally Friendly: Fully enclosed container body, preventing leakage and spillage, achieving clean transportation.
✔️Heavy Duty Chassis: Isuzu 6×4 chassis, gross vehicle weight 25 tons, rated hook load 30 tons; heavy duty wide tires combined with a short wheelbase result in a compact body and good road passability.
✔️Powerful Engine: 6UZ1-TCG61 six-cylinder engine, 380HP, Euro 6 emission standard, compliant for overseas registration, ample low end torque suitable for sturdy lifting boxes.
✔️Transmission and Braking: 12-speed manual transmission with factory installed PTO, full air brakes, top speed 90km/h, left/right hand drive customization available.
Hydraulic Control System
✔️Imported Core Components: Italian oil pump, ATOS valve assembly, with selflocking overload protection and a safety anti-fall box.
✔️Durable Piping and Heat Dissipation: National standard seamless and weld-free piping, resistant to sewage corrosion; equipped with air cooling and high-pressure filtration to extend hydraulic life.
✔️Intelligent Multimode Control: Siemens PLC touch screen electronic control, paired with a 30m wireless remote control, allowing operation from multiple positions including the cab and rear of the vehicle.
Hook Boom Lifting System
✔️High Efficiency Operation: 30MPa high pressure hydraulic pressure, 50° large unloading angle, rapid unloading in 40-50 seconds, leaving no waste residue.
✔️Wear Resistant Container: 5mm thick carbon steel side panels and 6mm thick carbon steel bottom plate, corrosion resistant and deformation resistant, airtight, leak proof, and odorless.
✔️Flexible Operation: Separable, floor standing mobile compression container, no civil engineering required, multiple containers per vehicle for cyclical transfer, reducing operating costs.
mobile Garbage Station
The mobile garbage station is designed to withstand corrosion and wear in sanitation environments, with 5mm thickened carbon steel plates on the side walls and an upgraded 6mm wear resistant steel plate on the bottom plate. It has the following features:
✅Small Footprint: No need to build fixed medium sized terminal stations, clothing and daily necessities points
✅High Efficiency of Installation: high ratio of output, large amount of volume
✅Sealing Properties: Fully sealed design, no secondary staining during transport
In addition to mobile compression stations, you can also choose from various types of trash cans to suit your needs, such as fully sealed trash cans, open trash cans, and custom made containers of different volumes.
Main System Oil Pump
Italian imported high pressure gear pump
Valve Assembly
Italian imported solenoid valves, stackable hydraulic locks, cartridge relief valves, etc.
Hydraulic System Piping
1. Adopting international standard DIN 24°
2. Rigid tubes should be precision seamless bright tubes (no welding should be done between the rigid tube and the tube fitting).
Electrical Control Unit
1. Siemens PLC
2. The external interface uses a touch screen.
3. Schneider Electric components are used in relays, limit switches, etc.
4. This pressure sensor uses components customized by German company, HGTECH.
Air Cooling Device
The hydraulic oil tank is equipped with a high efficiency, low-noise air cooler from Honghui Technology to ensure that the system operates at the set temperature.
Wireless Remote Control Device
The imported remote control device can be effectively operated at any angle within a 30m range (the device can be operated according to user needs).
High Pressure Filter
Honghui Technology High Performance Filters
How Hook Lift Systems Work
1. Mechanical Structure
The hook arm loading and unloading system operates via a hydraulic mechanism consisting of a hook arm, a winch, and a lifting cylinder. The hook arm extends and retracts to engage with the container, while the winch assists in lifting and lowering the container. The lifting cylinder provides the hydraulic power required to perform these actions.
2. Container Loading and Unloading
When loading a container, the truck's hook arm extends and hooks onto the container. The hydraulic system then lifts the container onto the truck's chassis. During unloading, the process is reversed: the hook arm lowers the container to the ground and disengages it.
3. Container Types
Hook arm loaders can handle various types of containers, each designed for a specific type of waste. Open top containers are suitable for general waste, compactor containers are used to compress waste to reduce volume, and roll on/roll off (RO-RO) containers are suitable for large volumes of bulk waste.
Product Details
Hydraulic Oil Tank
Fuel Tank
Tire
Multi-way Valve
Hydraulic Lifting Cylinder
Application Scenarios
This vehicle is suitable for the following main scenarios:
✅Urban Waste Transfer Stations: Transporting mobile compactors from collection points to transfer stations.
✅Residential Communities And Commercial Areas: Collection and transfer of daily household waste.
✅Large Event Venues: Rapid waste removal from sports events, music festivals, exhibitions, etc.
✅Industrial Areas And Construction Sites: Transportation of industrial waste and construction debris.
✅Public Areas Such As Parks And Squares: Environmental sanitation and waste removal.
exterior views

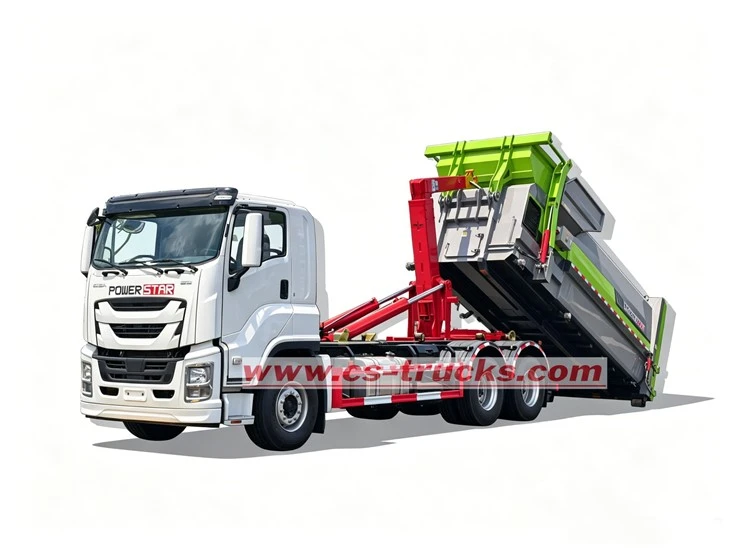

Front Left View of ISUZU 30Ton Hook Lift Garbage Truck

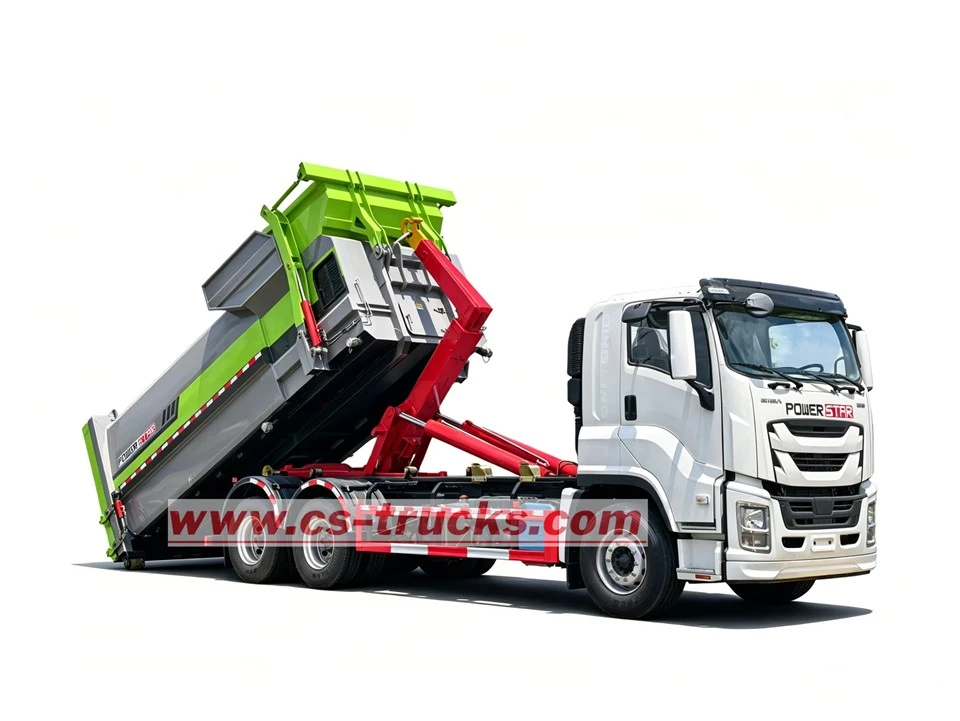

Front Right View of ISUZU 380HP Hook and Lift Truck

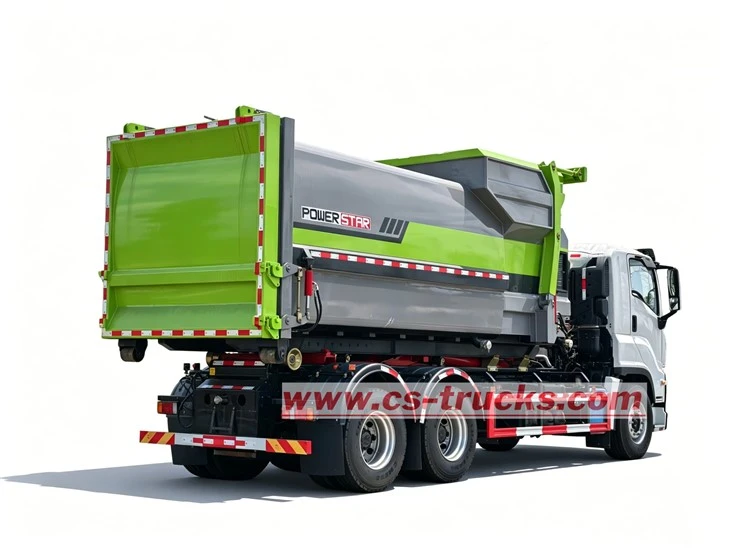

Rear Right View of ISUZU 6×4 Drive Hook Truck Dumpster for Sale
Rear Left View of ISUZU 30Ton Hook Truck Dumpster

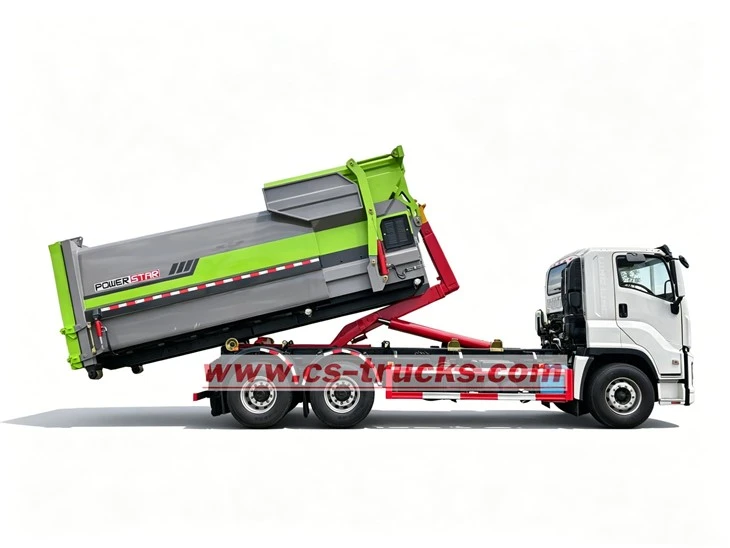

Right View of ISUZU 380HP Hook Lift Dump Truck

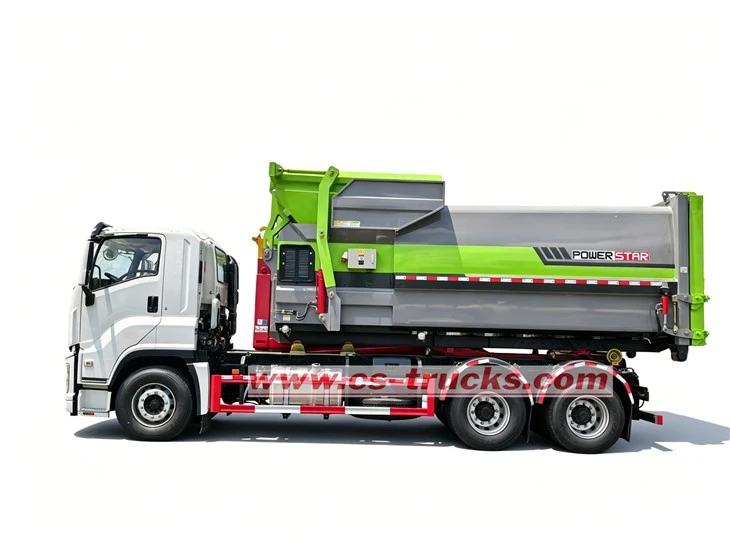

Left View of ISUZU 6×4 Drive Used Hooklift Truck for Sale
FAQ
What is a hooklift truck used for?
Hook lift garbage trucks utilize a hydraulic hook lift system to achieve efficient, cyclical operation with one truck carrying multiple containers. Loading, unloading, and dumping can be completed quickly by a single person. The entire transportation process is sealed, leak free, and odorless, making them widely applicable to sanitation scenarios such as city streets, residential areas, and commercial districts.
What is the difference between a hooklift and a dump truck?
Hooklift garbage trucks offer multiple containers per truck, with separate truck and container units, making them suitable for multipoint, cyclical collection. Dump trucks, on the other hand, integrate truck and container units, allowing for lifting and unloading, making them suitable for transporting bulk materials. In short: hooklift trucks offer flexible container switching to reduce costs, while dump trucks offer high efficiency for heavy loads.
Will there be any sewage leakage during full load transport? What is the unloading process?
The system includes reversing hooks, container transport, and self unloading with lifting; the container is equipped with a sewage tank and sealing strips, ensuring no leakage of leachate throughout the process. The transport is also equipped with hydraulic locking to prevent spillage and tipping.
Compared to fixed garbage stations, what are its advantages, and what types of sites is it suitable for?
It is suitable for residential areas, factories, construction sites, and scenic areas, requiring no civil engineering foundation pit; it can be flexibly relocated, features sealed compression and volume reduction, occupies little space, and produces less odor.
