Hook lift garbage trucks are highly versatile waste management vehicles built on the principle of "one truck, multiple containers." Instead of a permanently fixed body, these hook lift garbage trucks use hydraulic hook arms to load, transport, and unload detachable containers (often called drop-off boxes or garbage bins). This design allows a single chassis to serve multiple garbage collection points, lowering empty containers and lifting full ones.
When selecting a hooklift truck, the cargo box design is a crucial decision. The two most common configurations are hydraulically opened side-panel cargo boxes and standard fixed-side-panel cargo boxes. Neither is inherently superior or inferior; both are designed for specific operational realities. This guide compares their structural differences, loading efficiency, and applicable scenarios to help fleet managers and contractors make informed decisions.
Quick Answer
Hydraulic side-opening hooklift garbage trucks use hydraulic cylinders to open the left and/or right side walls of the truck bed. This allows for the rapid loading of bulky waste, pallets, and construction debris from the side using forklifts or excavators, significantly reducing manual labor. Standard hooklift garbage trucks have fixed side walls and are loaded by dropping waste through an open top or rear door. Standard truck beds are simpler, lighter, and cheaper.

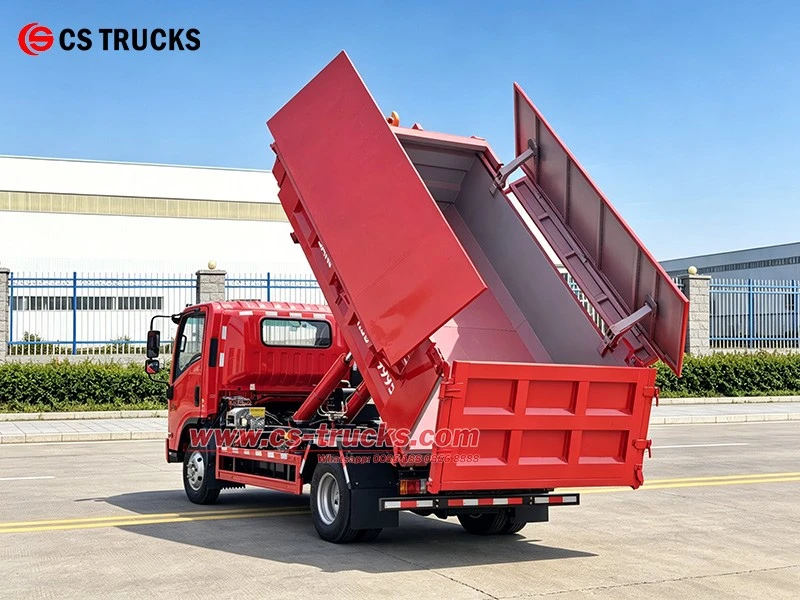

» I. What Is a Hydraulic Side-Opening Garbage Truck?
Hydraulic side-opening garbage trucks feature side panels that can be opened and closed via a hydraulic mechanism. Depending on the truck body structure, the side panels can be designed to open on one or both sides.
Compared to traditional truck bodies with fixed side walls, this design provides more convenient side access within the truck body.
1.1 Key Characteristics:
- Hydraulic Side Panels: Reduces the need for manual operation of heavy side doors.
- More Convenient Side Access: Depending on the specific design, the interior of the container can be accessed from one or both sides.
- More Flexible Loading and Unloading: Suitable for materials that are bulky or difficult to handle through limited openings.
- Integrated Container Design: The opening mechanism can be integrated into the vehicle body or the dumpster structure, depending on the model.
- Hydraulic Drive: Uses components such as hydraulic cylinders, hoses, valves, and locking mechanisms.
1.2 Typical Applications:
- Hydraulic side-opening garbage trucks may be suitable for the following operations:
- Industrial waste collection
- Recyclable sorting and processing
- Construction and demolition debris transport
- Garden and landscaping waste transport
- Bulky waste disposal
- Work sites requiring frequent side access to materials
Practical suitability depends on the container structure, waste type, unloading method, and available space on site.
1.3 Key Advantages:
The biggest advantage of a hydraulic side-opening garbage truck is more convenient access to the interior of the container. With the side panels open, operators can more easily reach materials that are difficult to handle through top or rear openings.
Hydraulic drive also reduces the manual effort required to move side doors, making frequent opening and closing more convenient.
For businesses handling bulky, irregularly shaped, or mixed materials, this design may simplify some loading and unloading processes.
1.4 Potential Limitations:
The additional hydraulic components and moving side panels require regular inspection and maintenance. Seals, hinges, hydraulic cylinders, locking points, and hoses must all be kept in good condition.When the side panels are open, sufficient space is also required beside the vehicle. In narrow work environments, nearby vehicles, walls, equipment, or pedestrians may limit operating space.
Therefore, this design can only provide maximum value when the convenience of side opening matches the actual work process.

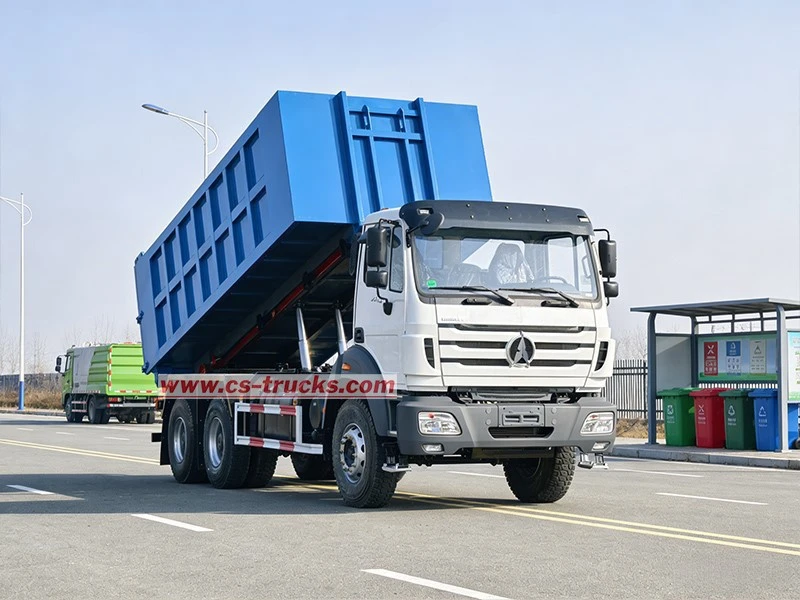

» II. What Is a Standard Hook Lift Garbage Truck?

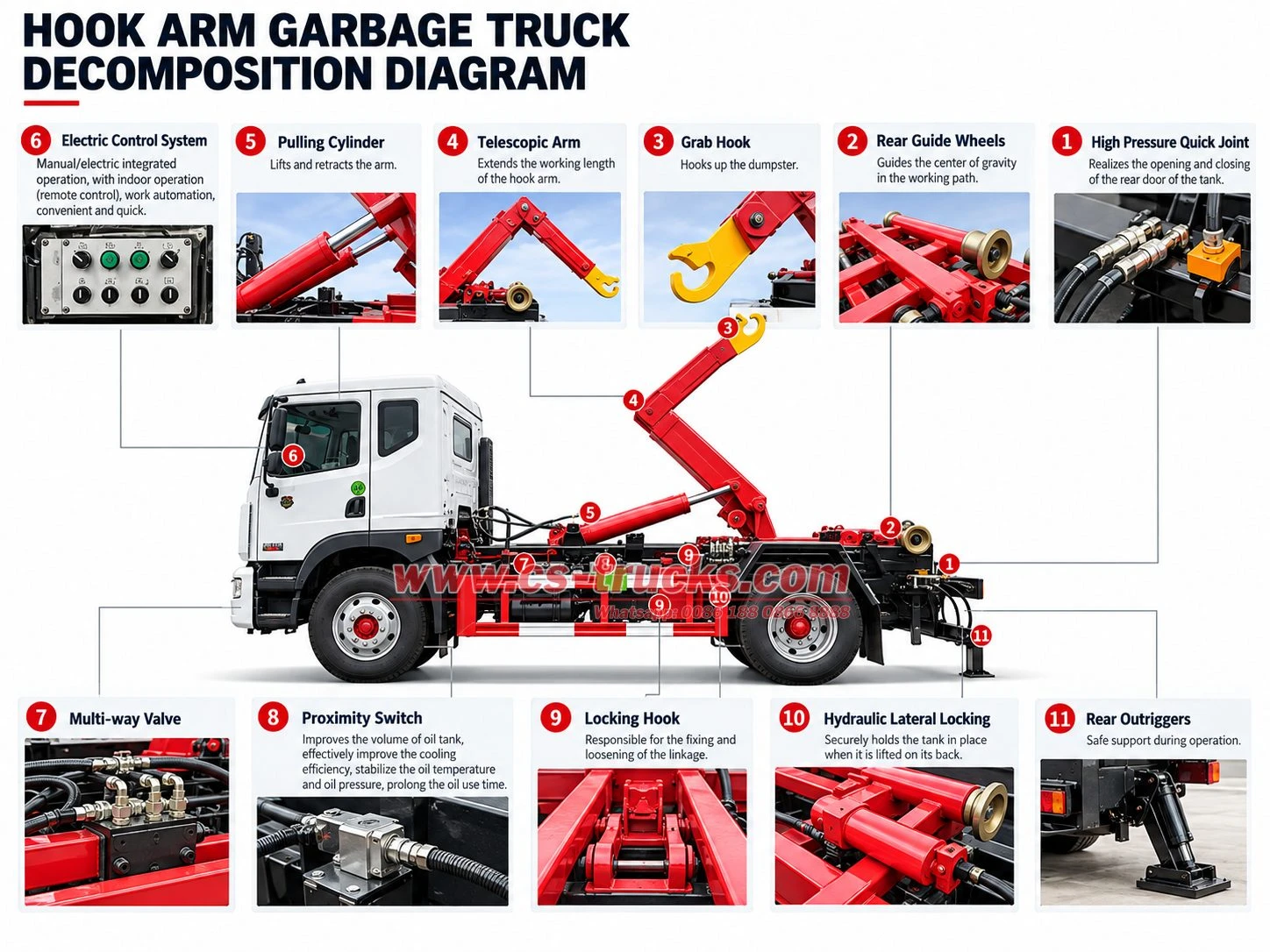

A standard hook lift garbage truck, also known as a hook lift waste transport vehicle, uses a hydraulic hook lift system to load detachable dumpsters onto the vehicle chassis or unload them from the chassis.
During loading, the hook arm connects to a compatible dumpster, and the hydraulic lifting mechanism pulls the dumpster onto the vehicle chassis. When unloading or changing dumpsters, the mechanism returns the dumpster to the ground as designed.
2.1 Key Characteristics:
- Hydraulic Hook Lift Mechanism: Loads and unloads compatible detachable dumpsters.
- Replaceable Dumpsters: One vehicle can serve multiple locations or perform different tasks, provided compatible dumpsters are available.
- Fixed Side Wall Design: Provides a conventional container structure; material access is determined by the dumpster's openings and door design.
- Dumpster Changeover Capability: A full dumpster can be dropped off, and another dumpster can be collected or transported.
- Application Flexibility: Depending on the lifting system and compatible container configuration, it can be used for waste collection, recycling, construction material transport, and other transport tasks.
2.2 Typical Applications:
- Standard hook lift garbage trucks are generally suitable for the following operations:
- Construction and demolition debris transport
- Commercial and industrial waste collection
- Recycling processing facilities
- Waste transfer operations
- Garden and landscaping waste services
- Multi-location waste collection
2.3 Potential Limitations:
Standard hook lift dumpsters with fixed side walls generally offer less convenient side access than purpose-built side-opening containers.

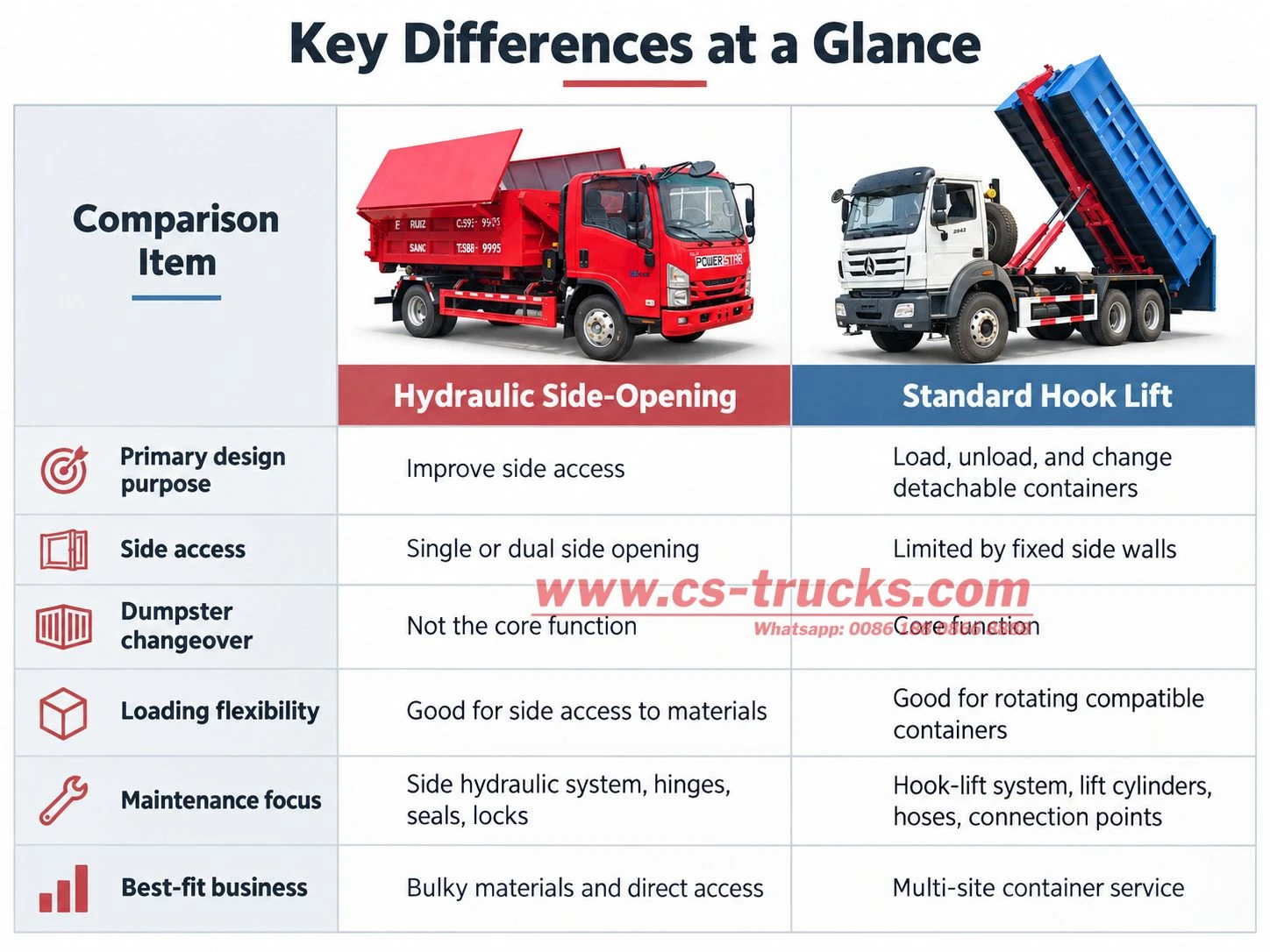

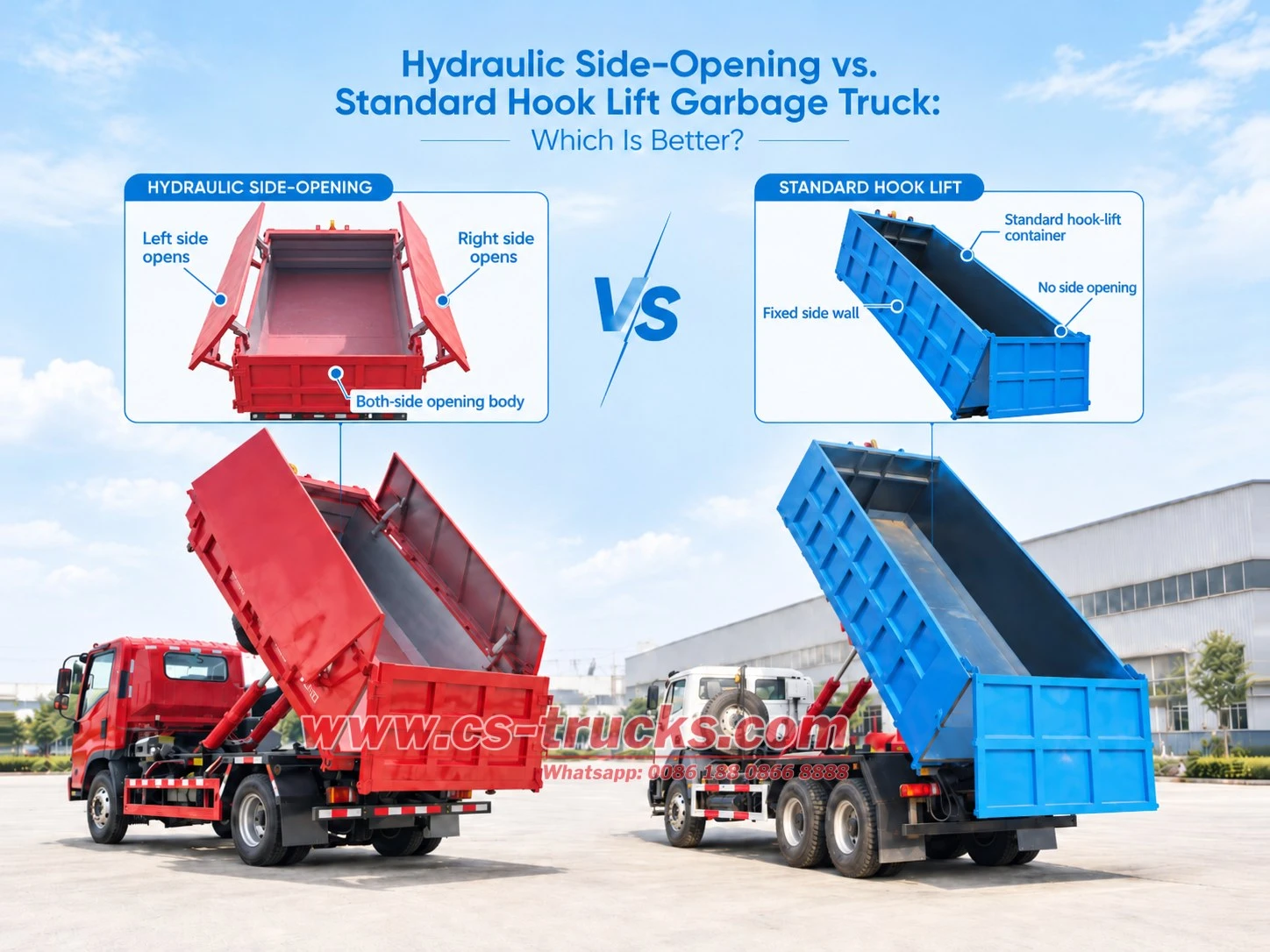

» III. Key Differences Between Hydraulic Side-Opening and Standard Hook Lift Garbage Trucks

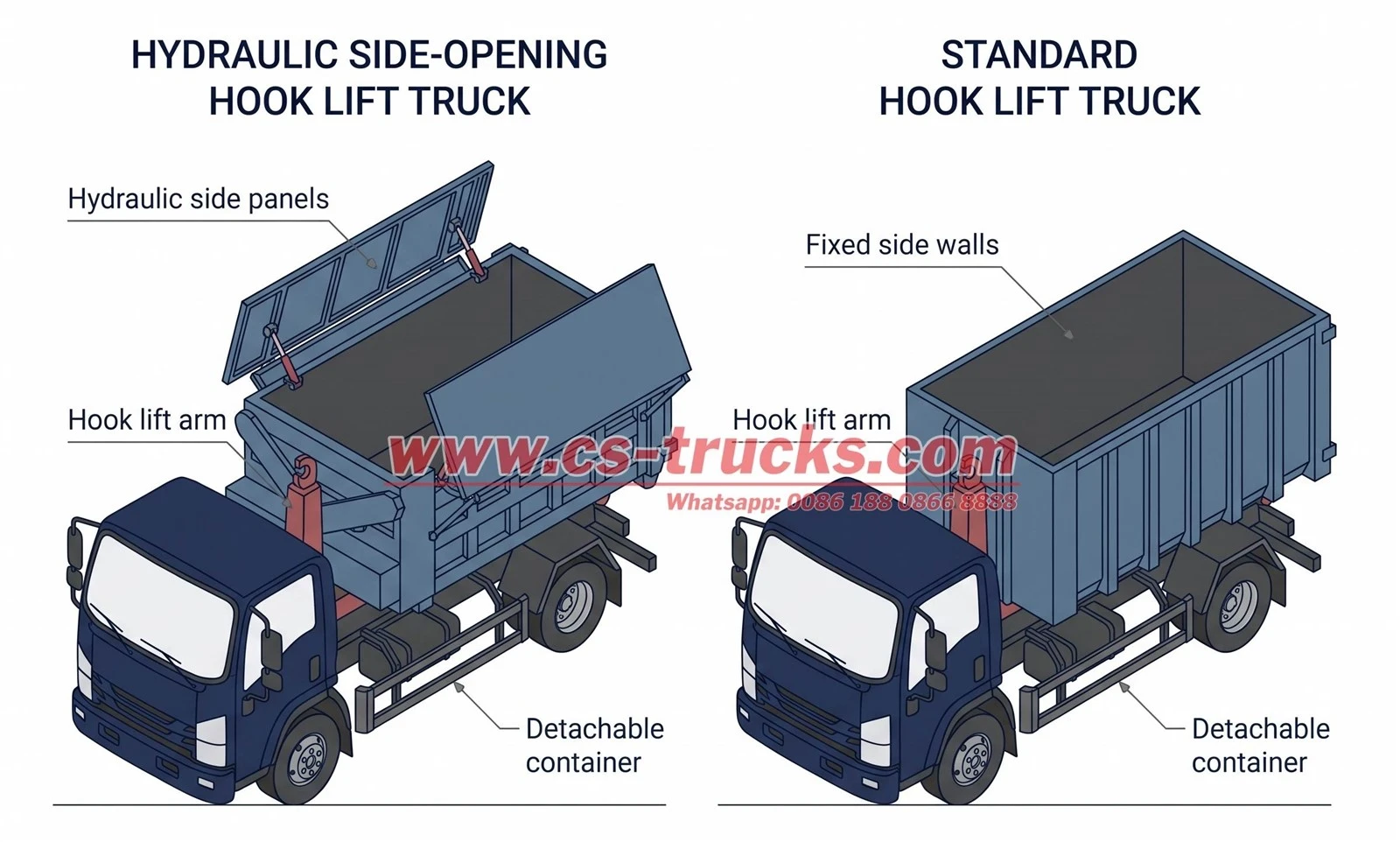

The following table compares the two vehicle configurations shown in the image in this article. Different brands and models may have different features and technical parameters.
| Comparison Item | Hydraulic Side-Opening Garbage Truck | Standard Hook Lift Garbage Truck |
|---|---|---|
| Primary Design Purpose | Improve side access to the container | Load, unload, and change detachable dumpsters |
| Side Access | Single or dual-side opening depending on design | Usually limited by fixed side walls |
| Dumpster Changeover | Not an inherent mandatory feature of this design | Core function of the hook lift system |
| Loading Flexibility | Suitable for operations requiring side access to materials | Suitable for operations requiring compatible dumpster changes |
| Unloading Method | Depends on container design; side panels can be opened under specified procedures | Dumpster can be placed on the ground; systems supporting tipping can also perform corresponding unloading |
| Fleet Flexibility | Depends on whether the container is fixed or detachable | High flexibility when multiple compatible dumpsters are available |
| Key Maintenance Items | Side panel hydraulic system, hinges, seals, and locking mechanisms | Hook lift mechanism, lifting hydraulic cylinders, hoses, locking mechanisms, and dumpster connection points |
| Site Requirements | Sufficient lateral space required when side panels are open | Sufficient space required for dumpster loading, unloading, and lifting cycles |
| More Suitable Business | Operations requiring direct side access to materials | Operations requiring dumpster changes or service to multiple locations |
» IV. Which Garbage Truck Has Higher Loading and Unloading Efficiency?
Loading and unloading efficiency depends on the material type, site layout, dumpster design, and specific work process.
When a Hydraulic Side-Opening Garbage Truck Is More Efficient
If workers or equipment need direct side access to materials, a hydraulic side-opening garbage truck may be more suitable.
For example, some bulky waste, recyclables, and irregularly shaped items are difficult to position through limited openings. Side access can simplify the material placement process or provide a more suitable unloading method.
Hydraulic side panels can also reduce the need for manual door operation. However, the actual operating cycle still depends on the hydraulic system, load conditions, operating procedures, and safety interlocks.
When a Hook Lift Garbage Truck Is More Efficient
If daily operations require frequent dumpster changes, a hook lift garbage truck may be more efficient.
For example, a construction contractor serves multiple construction sites simultaneously. As long as site conditions and equipment configuration are suitable, the driver can collect a full dumpster while leaving an empty one, without having the vehicle stay on site waiting for the dumpster to be filled.
This working method separates the time required to fill the dumpster from the vehicle's actual operating time.
For waste transfer companies, recycling processing companies, and contractors serving multiple customers, this operational flexibility may be more valuable than simply adding side access.
Efficiency Conclusion: If the business primarily requires convenient side access to materials, prioritize the side-opening design; if the core requirement is dumpster changeover and reducing vehicle waiting time, prioritize the hook lift design.
» V. Application Scenarios for Both Hook Lift Garbage Trucks
| Scenario | Recommended Configuration | Reason |
|---|---|---|
| Construction sites with pallets and bulky debris | Hydraulic Side-Opening | Forklifts can load directly from the side, saving time and labor |
| Industrial plants with heavy machinery waste | Hydraulic Side-Opening | Excavators or loaders can deposit heavy items without lifting over walls |
| Municipal solid waste (MSW) | Standard Hook Lift | Waste is dropped from the top; no side access required |

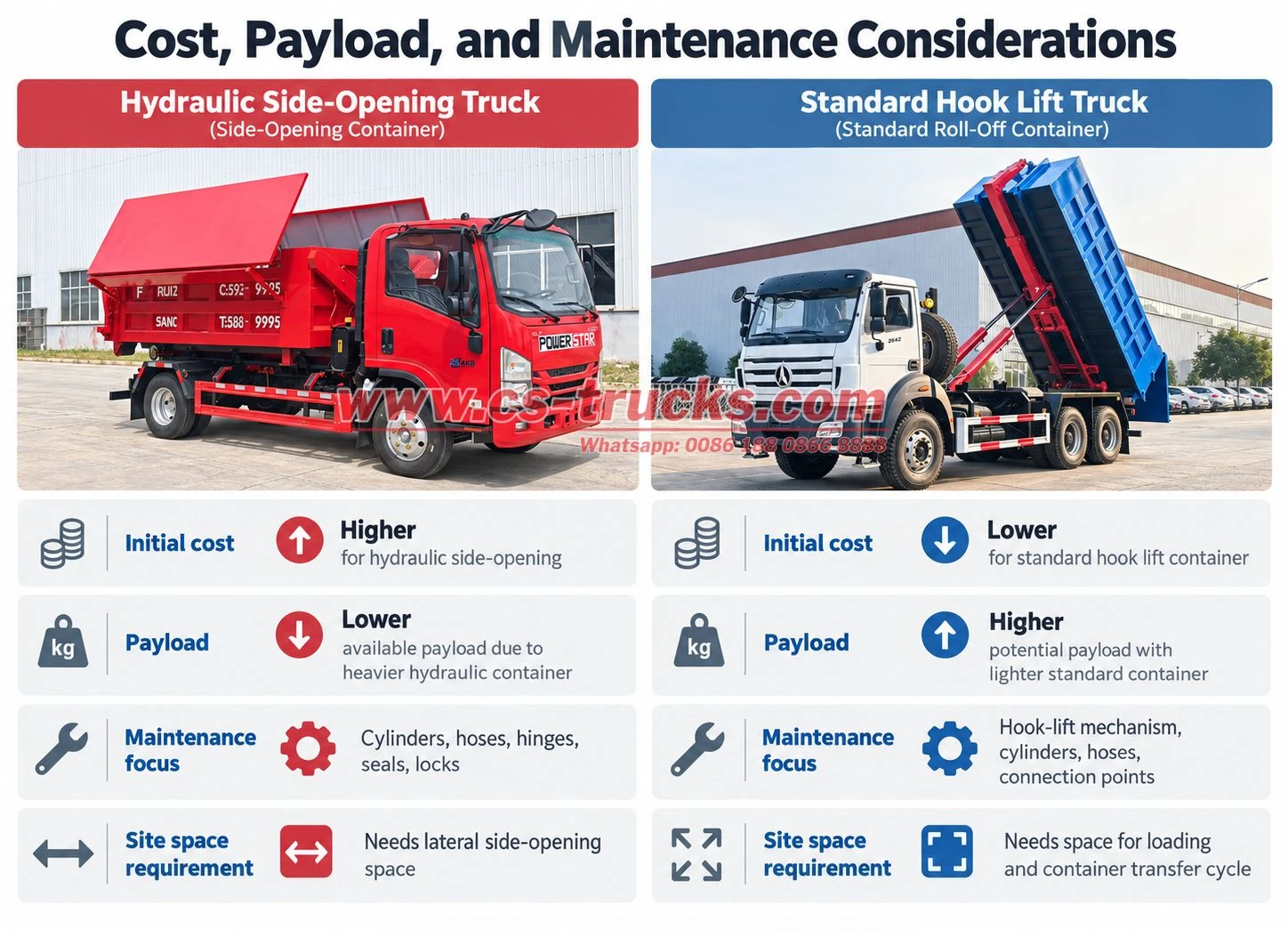

» VI. Cost and Maintenance Considerations
Initial Cost: The hydraulic side-opening container is significantly more expensive due to the hydraulic cylinders, hoses, control valves, and reinforced hinges. The standard container is a simple steel box and costs less.
Weight and Payload: The hydraulic system adds weight to the container. In a hook lift truck, every kilogram of container weight reduces the available payload. On routes where maximum payload is critical, the standard container may be the better choice.
Maintenance: The hydraulic system requires regular inspection of hoses, cylinders, and fluid levels. Standard containers require only structural inspection for rust and weld integrity.
» VII. Frequently Asked Questions (FAQ)
Q1: Can a standard hook lift container be converted to hydraulic side-opening?
A: In practice, no. The conversion requires cutting the side walls, installing hinges, adding hydraulic cylinders, routing hoses, and installing a control system. It is almost never cost-effective compared to purchasing a purpose-built side-opening container.
Q2: What happens if the hydraulic system fails on a side-opening container?
A: If the hydraulic system fails, the side walls cannot be opened or closed. Operations may be halted until the system is repaired. This is why regular hydraulic maintenance is critical.
Q3: Is the hydraulic side-opening container more expensive?
A: Yes, more expensive. The initial purchase price is higher because of the added hydraulic cylinders, control valves, reinforced hinges, and complex manufacturing process. However, this cost can be offset over time if it drastically reduces loading time and labor costs on high-volume sites.
Q4: Does a hydraulic side-opening truck carry less weight than a standard hook lift?
A: Generally, yes. The hydraulic system (cylinders, hoses, and fluid) adds "tare weight" to the container. This means less of the truck's Gross Vehicle Weight (GVW) is available for carrying actual waste. If maximum payload is your top priority, a standard container is usually lighter.
Q5: How long does it take to open or close the hydraulic sides?
A: Modern hydraulic systems are highly efficient. Depending on the size of the container and the pump capacity, opening or closing the side walls typically takes only a few seconds, allowing for rapid loading and unloading cycles.
Q6: Can I load a hydraulic side-opening container from the rear as well?
A: Yes. Most hydraulic side-opening containers still have a rear door or tailgate. This means you can open the tailgate for traditional rear loading or top loading, while the hydraulic sides offer an additional, highly efficient loading option for bulky items.

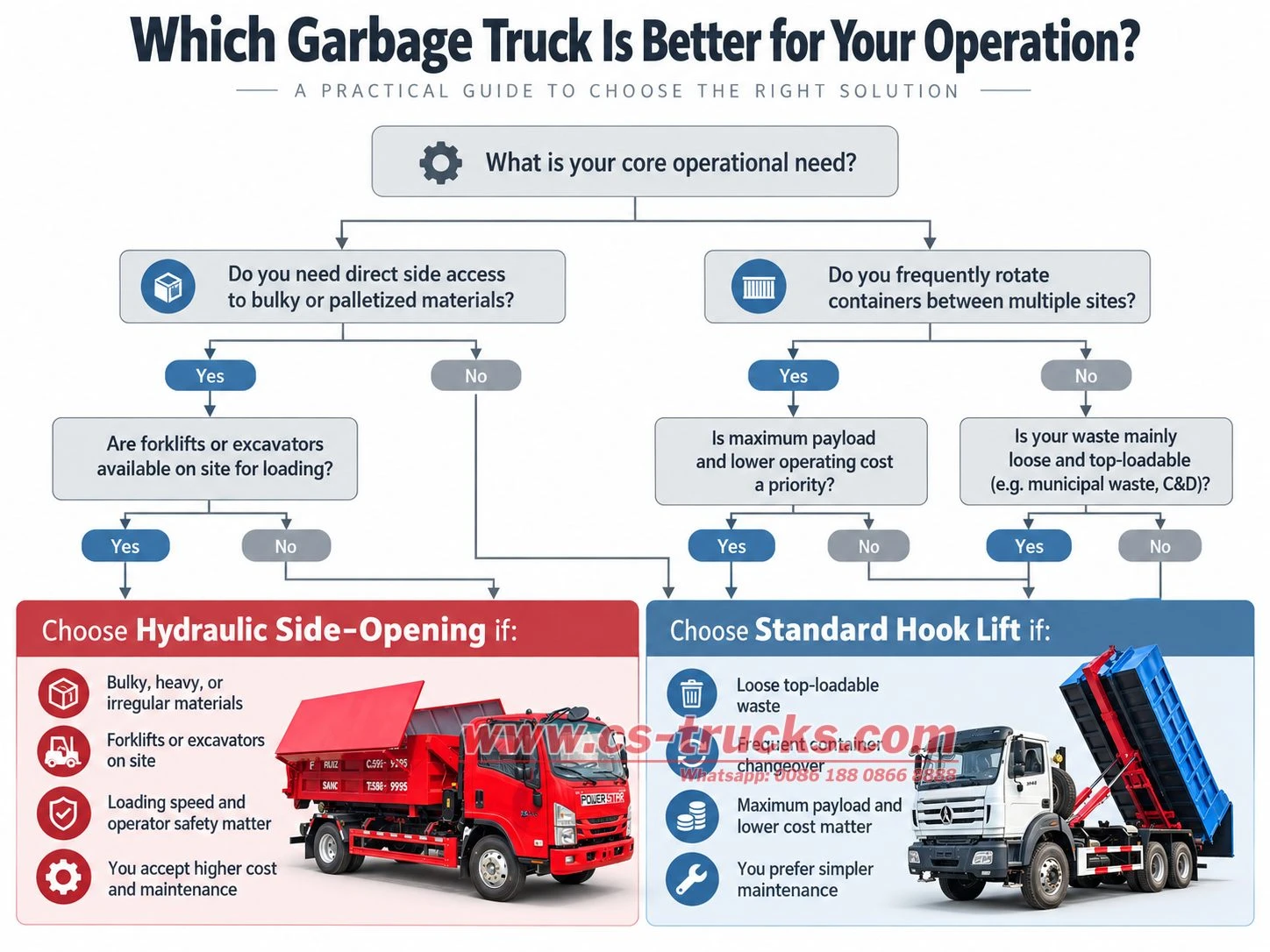

» VIII. Summary
Choosing between a hydraulic side-opening and a standard hook lift garbage truck is not a matter of "better" or "worse"-it is a matter of matching the container design to the waste stream and loading equipment.
Choose hydraulic side-opening if:
You handle bulky, heavy, or palletized waste
You have forklifts or excavators on site
Loading speed and operator safety are priorities
You are willing to accept higher initial cost and maintenance
Choose standard hook lift if:
You handle loose, top-loadable municipal or commercial waste
You do not have side-loading equipment
Maximum payload and lowest cost are priorities
You prefer simpler maintenance
