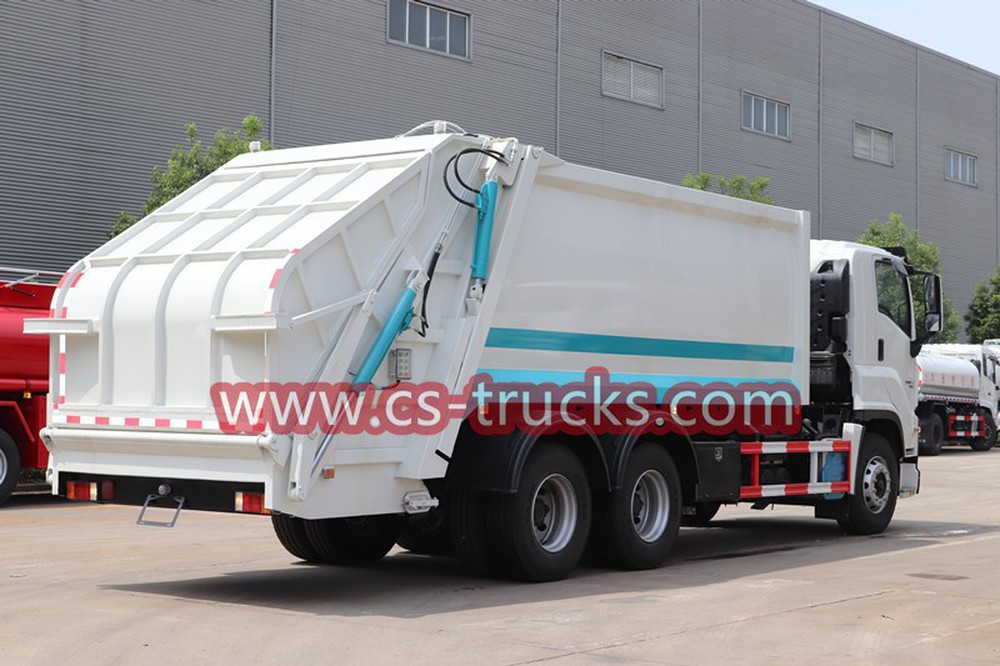

Kuwait Isuzu Giga Garbage truck with rear loading, based on the Isuzu Giga 6x4 chassis with a body volume of 16 cubic meters (hereinafter referred to as a car), is designed for mechanized loading, compaction, transportation of unloading solid household waste. The special equipment includes: a body with a rear cover, a push plate, a loading and unloading mechanism, hydraulic and electrical systems.
All-season operation from -25 ° C to + 45 ° C.
Kuwait tender DESCRIPTION of Isuzu Giga Garbage compactor truck 16m3,The car must be manufactured in accordance with the requirements of the "General technical regulation on the safety of wheeled vehicles put into circulation in the Republic of Uzbekistan" and comply with the ISO 9001 standard.
Chassis characteristics
Basic chassis Isuzu giga
Wheel arrangement 6x4
Permissible hollow mass of the vehicle 25000 kg
Permissible front axle load 6000 kg
Permissible rear axle load 10000 kg
Carrying capacity 6000 kg
Wheelbase 4500+1370 mm
Car turning diameter, no more than 16 m
Cab over engine, extended type H5 (L2000), two-seater, with one berth.
A third operator seat must be installed.
Cab color white RAL 9016.
ISUZU Giga Euro 5 engine water cooled diesel engine.
Engine power 350 HP or 380hp
Air intake system facing up, dry air filter on the right, muffler on the bottom right.
Single plate clutch with a diameter of 395 mm.
Transmission mechanical 10-speed.
Suspension: front and rear semi-elliptical springs.
Rear axle: with single-stage central final drive
Fuel tank 300 l.
The voltage of the on-board network is 24 V, battery 165 Ah - 2 pcs., Generator 28V 55A 1540 W.
- Tires 12.00R20.
Superstructure specifications
Are common
The volume of the superstructure (body) is 14 cubic meters.
The volume of the loading hatch is up to 1.3 cubic meters.
Type of cargo household waste with a density of 0.43 ÷ 0.50 t / m3.
Material superstructure (body) wear-resistant steel
Overall height of the garbage collection vehicle, no more........... 3200 mm.
Loading height of a folding lock, no more.......... 1300 mm.
Superstructure (body)
The body must be reinforced with struts and mounted on the chassis with flexible support elements.
Inside the body there must be an ejector plate (piston) on the rails, which is driven by a double-acting telescopic cylinder.
Ladder on the driver's side.
An auxiliary frame (subframe) is manufactured and mounted on the chassis in strict accordance with the recommendations of the chassis manufacturer
Back flip cover
The rear hinge cover must be connected to the body using the upper hinges. The rear hinged cover itself should consist of a slide, a scoop, a hopper and its cylinders. When the debris is inside the hopper, with the help of a slide and a scoop, it is raked into the body and compressed by pressure with a plate (piston). The skids move in parallel and the scoop moves in a circle to pick up debris inside the body. The skids slide on rails on rollers or shoes. The slide cylinder has the ability to work outside the rear hinged cover.
Optional equipment of the rear hinged cover:
bunker lifting system, hydraulic universal, for lifting containers of 1100 liters, 770 and 240 liters;
rubber seals between the tailgate and the body for prevention of contaminated water seepage outside;
safety locks on the rear hinged cover to prevent the rear hinged cover from falling suddenly during service;
two safety strips;
ladders on both sides of the rear hinged cover with handrail; Hydraulic system
The hydraulic pressure is generated by a hydraulic pump installed on the PTO of the chassis gearbox.
Power take-off, connection system to them and engine speed control system.
The hydraulic system must consist of the following elements:
one telescopic double-acting cylinder for pushing out the plate;
two hydraulic cylinders for the slide;
two hydraulic cylinders for the scoop;
two hydraulic cylinders for opening the rear hinged cover;
two hydraulic cylinders for container lifting system with lifting hopper adaptation;
a tank for hydraulic fluid with a volume of 110 liters with filters during compression-decompression and a fluid level indicator;
hydraulic fluid pump;
pipelines for the hydraulic system.
working pressure of the hydraulic system 150-180 mPa Leading to action
There should be two control systems for superstructure operation.
The installation must have two control methods, one of the systems is controlled using levers. Another from the control panel. The control panel contains a single permanent switch, an emergency stop button, a signal for the driver and an engine accelerator. The opening of the rear hinged cover and the push-open movement of the ejector plate (piston) are manually operated using two directional valves. The movement of the scoop, sled and container lifting system is influenced by three electro-pneumatic valves.
Coloration
The body and the tailgate must be coated with a three-layer anti-corrosion paint, body color is white RAL 9016. Documentation
Operating manuals in Russian.
Each superstructure must be provided with an identification plate with the following data:
full name of the manufacturer;
marking of the superstructure;
factory number;
year of issue.
Other requirements
Sound signaling of engaged reverse gear at the end of the frame.
The superstructure must be equipped with a camera to view the working process of the garbage truck from the driver's cab.
Spare wheel carrier with lifting and lowering mechanism.
The width of the fenders above the rear tires must be within the body superstructure.
Yellow rotating beacon at the front and rear of the body.
Subframe construction in strict accordance with the recommendations of the chassis manufacturer.
To ensure that the body does not interfere with the desired deformation of the frame, the attachment of the subframe must be movable at the front and fixed (rigid) at the rear.
Working headlight for illumination in the dark.
One-piece steel fenders with rear wheel mudguards.
Easily removable side guards.
Side marker lights and rear reflectors.
Reflective contour markings (white on the sides, red on the back).
Spare parts kits (spare parts, tools and accessories) according to the manufacturer's statement for the warranty period.
Plastic water tank with soap dispenser.
Toolbox. Note:
The technical data of the specification may differ depending on the equipment.
The manufacturer reserves the right to make changes due to technical progress.
REQUIREMENTS AND RESPONSIBILITIES
The superstructure manufacturer must ensure that the superstructure with attachments and accessories meets the requirements of the chassis manufacturer.
Installation of the superstructure is carried out in accordance with the recommendations of the chassis manufacturer.
In each case, when installing an add-on, it must be ensured that:
axle loads never exceeded the permitted value;
the front axle load has reached a certain minimum value.
The layout of the fasteners is previously agreed with the chassis manufacturer during the development of the superstructure design documentation.
If during the installation of the subframe the threaded connections of the frame parts are affected, then they should be replaced with new threaded connections of at least strength class 10.9 with mechanical locking against loosening, tighten the threaded connections with the torque recommended by the chassis manufacturer.
The responsibility for the qualified design, production, installation of superstructures, changes in the chassis structure is always and fully borne by the company that carries out the manufacture, installation and changes.
WARRANTY AND SERVICE OF END PRODUCTS
The MANUFACTURER, for his part, undertakes:
Conduct training on its territory for 3 - 5 representatives of the CUSTOMER to carry out activities for service support of products.
Provide the CUSTOMER, upon his request, with the necessary design, technological and repair documentation to the extent necessary for him to perform service activities, as confidential information without the right to transfer it and its copies to third parties without the consent of the MANUFACTURER.
Provide the CUSTOMER with spare parts catalogs, standard time catalogs, a list of special tools for after-sales service of the MANUFACTURER's products, as well as a warranty claim form and a guide to the warranty procedure.
Consider and send to the CUSTOMER its decision on reclamation acts within five working days from the receipt of their copies by fax or e-mail.
All questions arising in the course of the fulfillment of this contract must be promptly resolved by representatives of the MANUFACTURER's service department.
To reimburse the CUSTOMER for labor costs of time for warranty repairs, as well as compensate for the purchase cost of spare parts used by the CUSTOMER for such repairs.
The guaranteed service life of the attachment is 24 months from the date of commissioning.
Post-warranty service: during the entire service life - at least 5 years.
