Assembly Manual For Garbage Compactor Body Kits
Number 1-4 Compactor body
1. Tank Assembly:
2. Tail Gate Assembly
3. Scraper Assembly
4. Slide Plate Assembly
Number 5-19 Spare Parts
5. Four Function Multi-Way Valve
6. Hydraulic Oil Tank
7. PLC Control Box

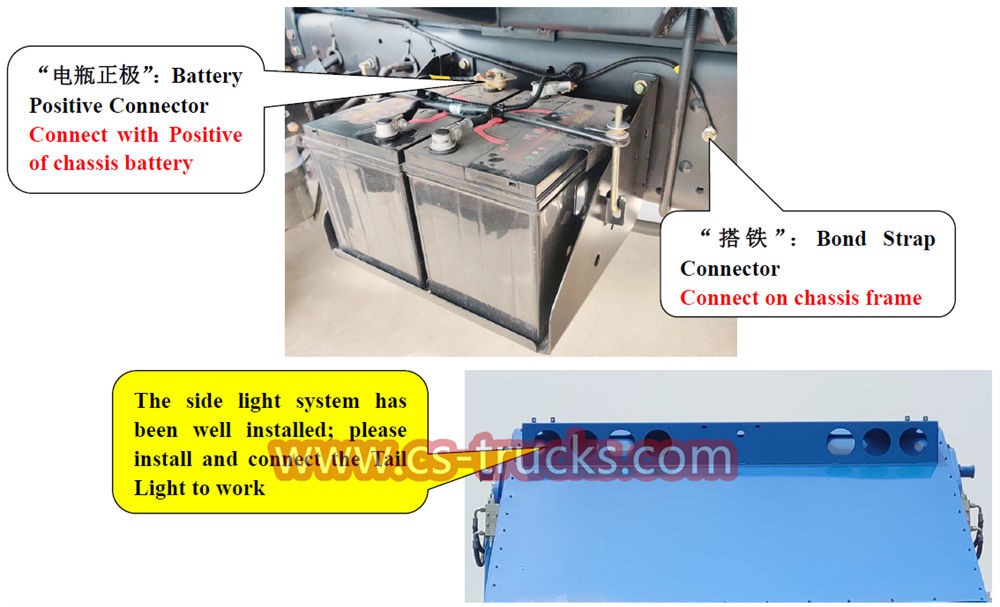

8. Electric System
9. Balance Valve
For LEFT SIDE & RIGHT SIDE:
The Upper hydraulic pipeline connect with Upper valve
The Down hydraulic pipeline connect with Down valve
Make sure the hydraulic pipeline well connected before next work.
10. Hosepipe, oil pipe & Joint
11. Slide Plate Oil Cylinder
12. Scraper Oil Cylinder

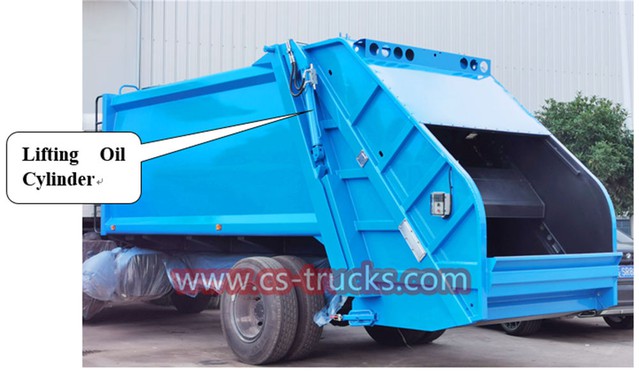

13. Lifting Oil Cylinder
14. Push Pate Oil Cylinder
15. Sliding Block
16. Hose Protector
17. Ball Valve (Waste Water Tanker outlet control valve)

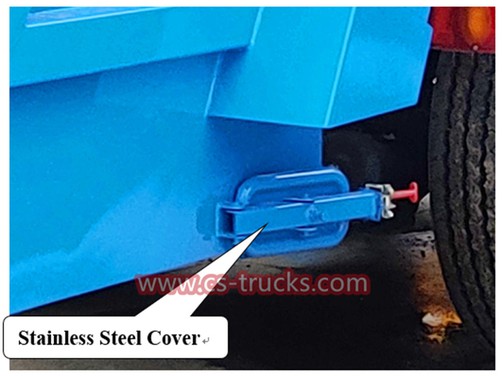

18. Stainless Steel Cover
19. Side lamps
Number 20-29 Others
20. Cushion
21. U-style Bolt
22. Side Fence Assembly
23. Waste Water Tank Assembly (With Support)
Steps 1:
Dragging out the garbage compactor body and tailgate by forklift; then cut the support wheels, each one have two wheels.
Steps 2:
1.Make sure two sides Hydraulic Pipeline connect firstly
For LEFT SIDE & RIGHT SIDE:
The Upper hydraulic pipeline connect with Upper valve
The Down hydraulic pipeline connect with Down valve
2. Make sure the Compactor Body and Tailgate connect secondly
Firstly: Connect the Compactor Body and Tailgate with Pin
Second: Connect the hydraulic pipelines on top; just to make Tailgate can work
Oil Pipeline 1 & 2: Tailgate UP / DOWN hydraulic oil pipeline (Refer to 9. Balance Valve)
(1→Tailgate Hydraulic Cylinder Inlet Oil Pipeline)
(2→Tailgate Hydraulic Cylinder outlet Oil Pipeline)
Oil Pipeline 3 & 4: Scraper ON / OFF hydraulic oil pipeline
(3→Scraper Hydraulic Cylinder outlet Oil Pipeline)
(4→Scraper Hydraulic Cylinder inlet Oil Pipeline)
Oil Pipeline 5 & 6: Slide Plate UP / DOWN hydraulic oil pipeline
(5→Slide Plate Hydraulic Cylinder inlet Oil Pipeline)
(6→Slide Plate Hydraulic Cylinder outlet Oil Pipeline)
Steps 3:
After Compactor Body and Tailgate well connected. Fix the Rear Loader Body on customer FUSO FM657 Chassis: Use U-style bolt to connect chassis frame and auxiliary frame.
Steps 4:
Install the PTO & Oil Pump on Chassis Gearbox; then connect the Rear Loader Body and the Chassis by using oil pipeline, make sure all hydraulic pipeline system well connected as showing.
Steps 5:
Connect the Gas Cylinder and Hand Cable Accelerator.
Steps 6:
Install the Rear Lamp and connect the Side Lamp to work.
