Rwanda 3.2Tons Boom Loader Crane Truck FAW

This Rwanda FAW 4×2 truck loader crane uses a compliant light duty cargo chassis and is equipped with a high performance diesel engine that meets Euro VI standards, balancing strong power with fuel economy. The vehicle body is compact and agile, and the air brake system provides stable braking. It meets the needs of cargo transportation and long distance relocation, and can efficiently handle the daily material transfer of infrastructure, building materials, and municipal engineering projects.

The vehicle is equipped with a two section telescopic crane,its lightweight body does not take up cargo space, and the lifting performance is stable and reliable. The boom's tilt and 360° full rotation design allows for operation without blind spots, and it can flexibly lift materials at different heights and distances without the need for additional crane rental. It solves both transportation and lifting needs in one go, significantly reducing equipment investment costs for construction sites and individual operators.

Manufacture: CS TRUCKS

Key Features:

▶︎Powerful Engine: Equipped with a FAW 165HP engine, providing strong power and economical fuel consumption to meet the demands of high intensity operations.

▶︎High Load Capacity: Rated lifting capacity of 3.2 tons, coupled with a 4x2 drive configuration and a robust chassis, ensuring smooth and reliable lifting operations.

▶︎Flexible Operation: Short wheelbase and small turning radius allow for flexible operation in confined spaces such as construction sites and municipal roads.

▶︎Wide Operating Range: Supports installation with renowned brand cranes, achieving a maximum operating radius of 7.56m and a lifting height of 9.8m, enabling fast and efficient loading and unloading.

01

Vehicle Overview

📌Highly Maneuverable: With overall dimensions of 5995×2200×2950mm and a wheelbase of 3300mm, the vehicle has a small turning radius, making it suitable for operation on narrow roads in Rwandan cities and construction sites.



📌High Speed and Efficiency: A maximum speed of 110km/h, equipped with a Fast 8J45TA gearbox, providing smooth shifting and high efficiency for long distance transport.

02

Powertrain

📌Powerful Performance: Equipped with a CA4DD3A17E68 engine, delivering a maximum power of 121kW and ample torque, providing excellent performance in hill climbing and heavy load starts.



📌Energy Saving And Environmentally Friendly: Utilizing high pressure common rail technology, this 2.5L engine meets Euro VI emission standards, offering economical fuel consumption and complying with Rwandan environmental requirements.

03

Chassis Configuration

📌Drivetrain: 3300mm wheelbase, 4×2 drive, small turning radius, suitable for urban areas and narrow spaces.



📌Stable Load Capacity: Equipped with 8.25R16 tires (6+1 tires), air braking system, fast braking response, and reliable driving safety.



📌Left hand Drive Design: Compliant with driving habits in Rwanda and most left hand driving countries, easy to operate.

04

Crane performance

📌Wide Operating Range: Maximum working radius of 7.56m, maximum lifting height of 9.8m, and luffing angle of 0~75°, covering various loading and unloading surfaces.



📌Flexible Operation: 360° full rotation design, crane weight of only 1229kg, compact structure, precise operation, improving loading and unloading efficiency.

Hydraulic oil tank

multi-way valve

Lifting cylinder

Fixed outriggers

With its compact size and agile performance, this vehicle can adapt to a variety of application scenarios:

• Construction Engineering: Lifting and unloading of building materials such as steel bars and pipes, suitable for narrow construction sites.
• Municipal Emergency Repair: Rapid lifting and transport of equipment for the installation of streetlights and traffic facilities, and for pipeline repair.
• Landscape and Greening: Lifting and stacking of large trees, landscaping stones, and greening materials.
• Logistics and Warehousing: Autonomous loading and unloading of large goods within factories and stations, reducing costs and increasing efficiency.

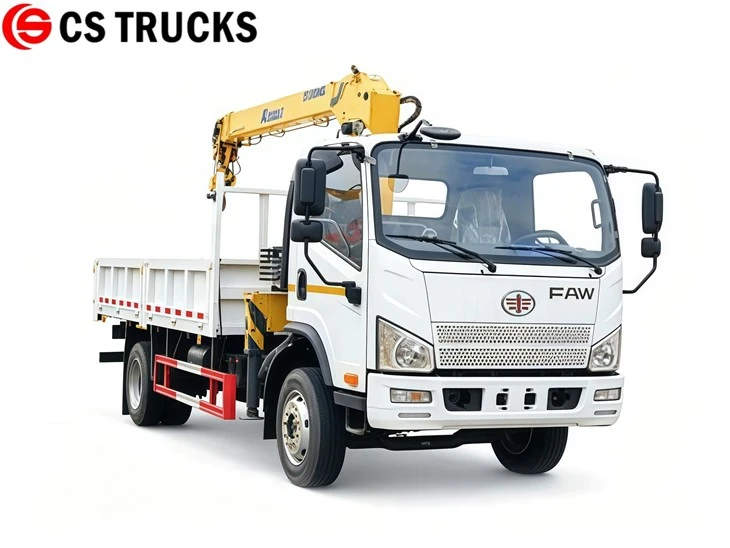

Front Right View of Rwanda FAW 165HP Boom Crane Truck

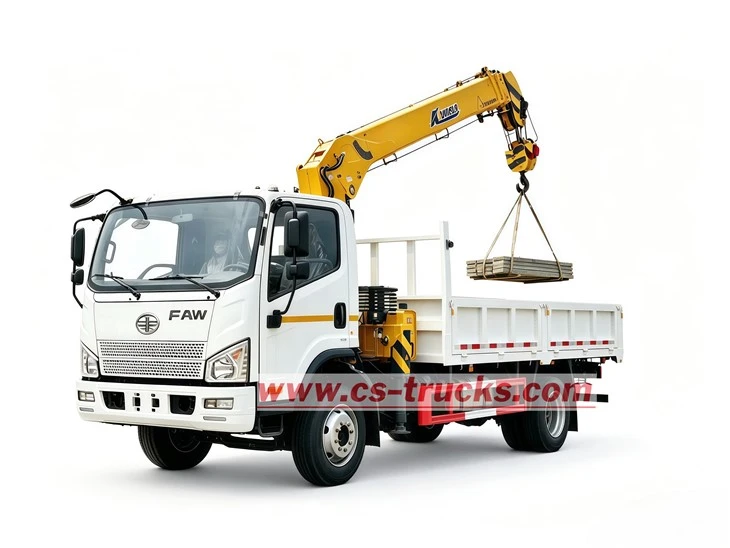

Front Left View of Rwanda FAW 3.2Tons Boom Truck Services

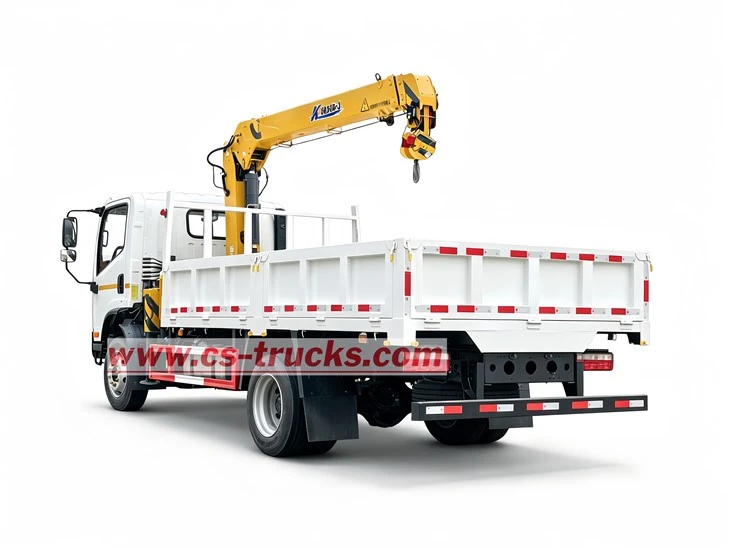

Rear Left View of Rwanda FAW 4×2 Crane Truck for Sale

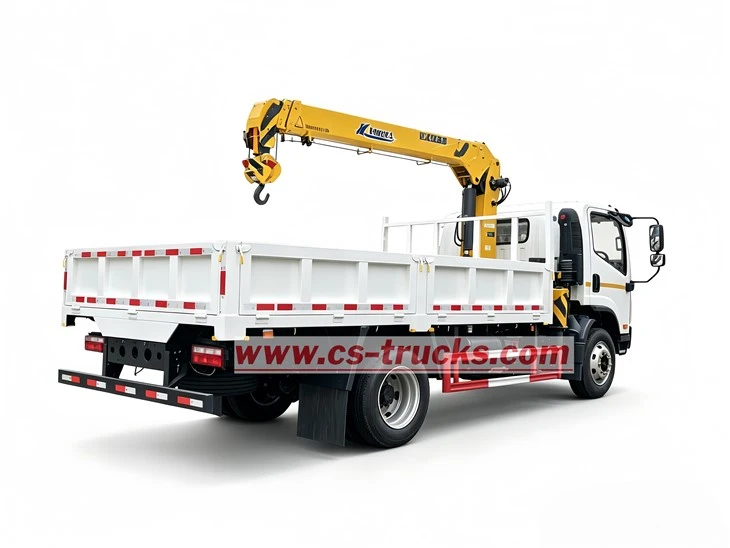

Rear Right View of Rwanda FAW 3.2Tons Boom Loader Crane Truck

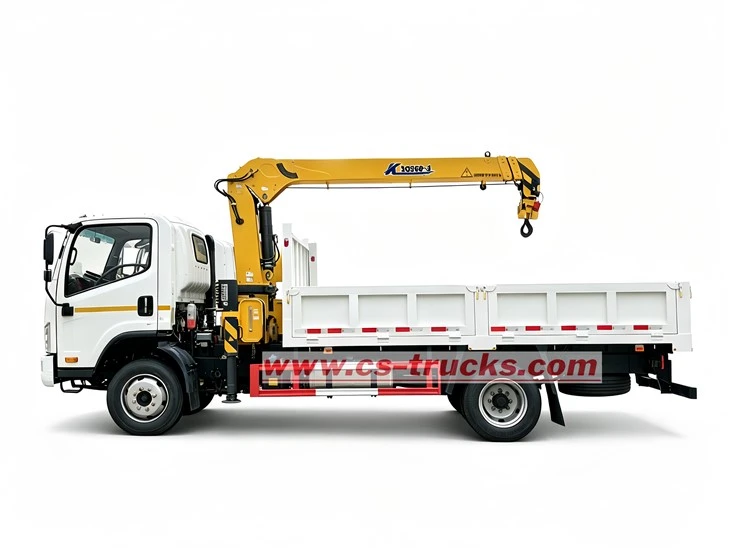

Left View of Rwanda FAW 3.2Tons Hydraulic Crane Truck

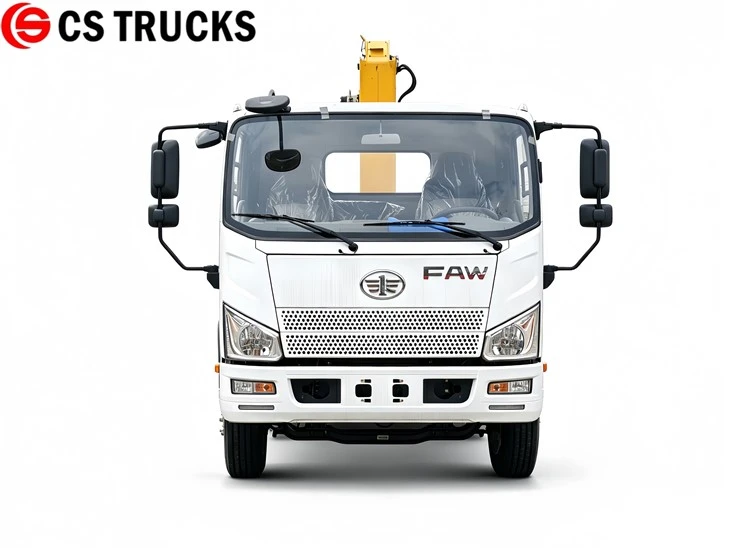

Front View of Rwanda FAW 4×2 Truck Mounted Boom Crane

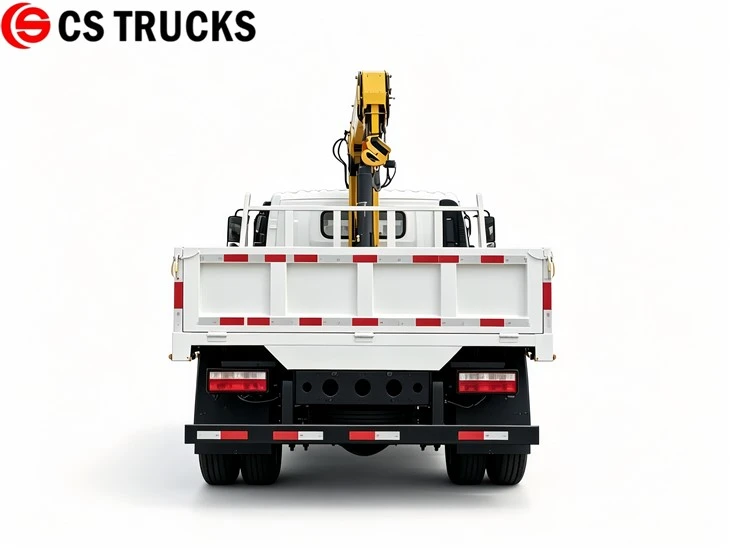

Rear View of Rwanda FAW 165HP Truck Bed Crane
