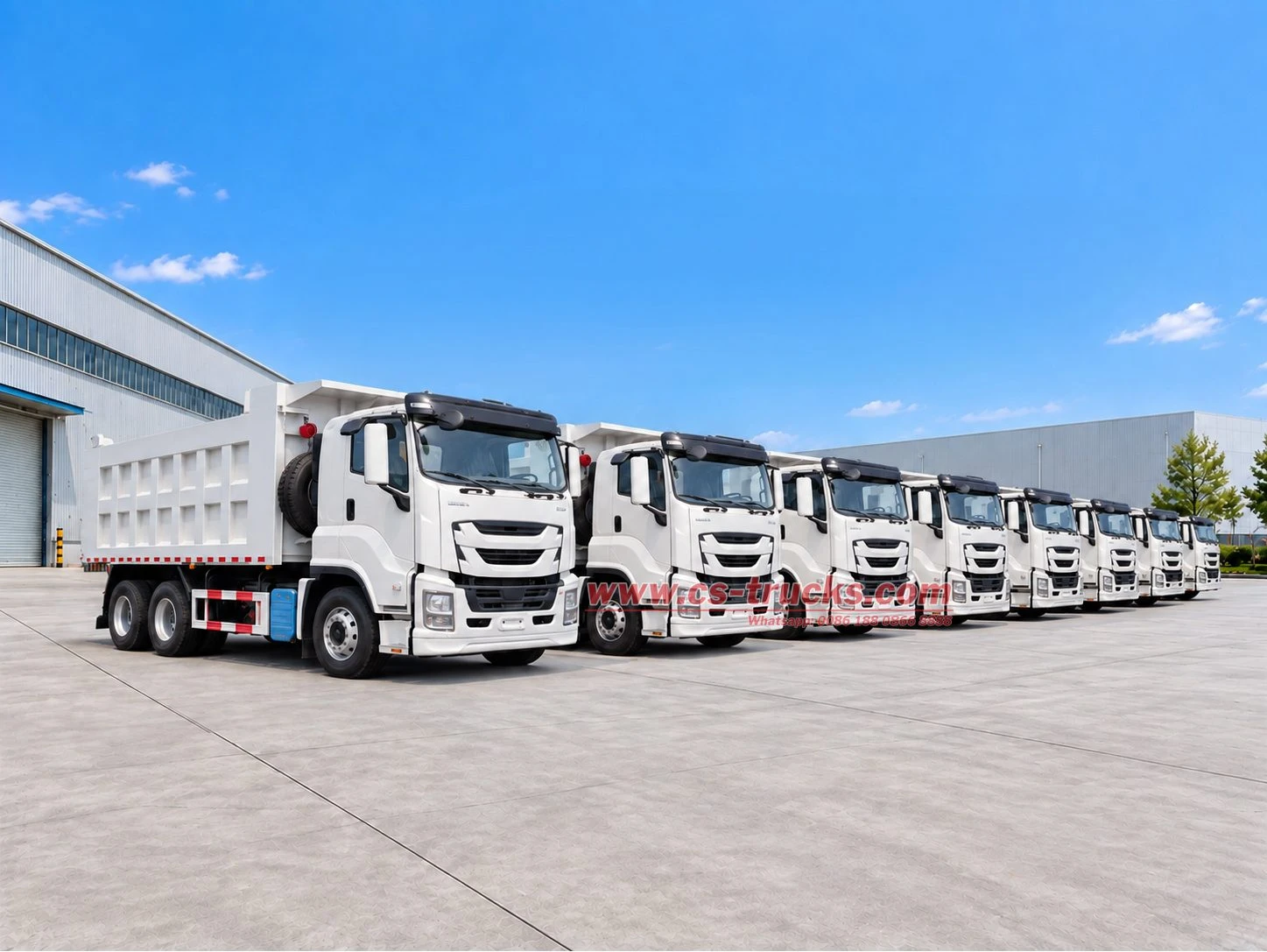

10 units brand new ISUZU GIGA 30 tons dump trucks are successfully finished in CS TRUCKS factory. All 10 unitsISUZU GIGA dump trucks have caught the latest shipment, loaded in China seaport and discharged in Manila seaport Philippines, then will be used in multiple industries in Philippines, including in construction, mining, infrastructure, etc.

Compared with other dump trucks all over the world, CS TRUCKS produced dump trucks designed based on Top quality ISUZU GIGA heavy truck chassis, equipped with ISUZU 6WG diesel engine with 420HP power output, super power output and lower fuel consumption. The dump body with loading capacity 30 tons, dimension 5600×2300×1500mm, carbon steel material (side 6mm, bottom 8mm), front lifting system for efficient unloading, making it an ideal heavy-duty transportation solution for construction and mining applications in Philippines.
10 Units ISUZU GIGA 30 Tons Dump Truck Exported to Philippines
Client: Mr. Santos
Project: Manila Infrastructure Construction Project
Year: 2026, October
▪ Project Background :
Customer Mr. Santos is engaged in construction and heavy logistics industry in Philippines, who recently obtained the infrastructure project contract requiring heavy-duty transportation equipment, and urgently needs to purchase a batch of high-performance and reliable dump trucks for operation. Mr. Santos visited CS TRUCKS factory, inspected the production line and vehicle manufacturing process in detail. He gave high recognition to CS TRUCKS professional manufacturing capability and quality control system, and finally confirmed purchase totally 10 units ISUZU GIGA 30 tons dump trucks for his project. What he need is high efficient, good quality, durable, low maintenance heavy-duty truck.

1, ISUZU GIGA heavy truck chassis -- 2026 year brand new, No recondioned, No used
2, Dump body -- Dimension 5600×2300×1500mm, carbon steel material (side 6mm, bottom 8mm), loading capacity 30 tons
3, Lifting system -- Front lifting system for efficient and stable unloading
4, Safety Device -- ABS braking system, air brake, driving data recorder for safety and reliable operation
Key Points:
→ ISUZU GIGA Dump Truck
→ 30 Tons Heavy-duty Dump Truck
| Name | ISUZU GIGA 30 Tons Dump Truck |
|---|---|
| Chassis | ISUZU GIGA heavy truck chassis 2026 |
| Drive Type | 6x4, Left hand drive |
| Engine | ISUZU 6WG, 420HP |
| Tire & Wheel | 295/80R22.5 |
| Brake | Air Brake |
| Cabin | Aircon |
| Loading Capacity | 30 Tons |
| Dump Body Size | 5600×2300×1500 mm |
| Body Material | Carbon steel (Side 6mm, Bottom 8mm) |
| Lifting System | Front lifting |
| Unladen Weight | 9000 kg |
| Gross Vehicle Weight | 25000 kg |
| Horsepower | 380 HP (PS) |
| Wheelbase | 3985×1370 mm |
| Number of Tires | 10 units |
| Additional Equipment | Power steering system, Air conditioner, ABS braking system, Maintenance-free battery, Retro-reflective markings, Tubeless tires, Central locking system, Electrically controlled windows, Driving data recorder (DVR), Extended front bumper, Aluminum lightweight fuel tank, Front chrome kit |
| Painting | 100% customized painting and logos |

ISUZU GIGA 30 Tons Dump Truck
● Powerful Engine – ISUZU 6WG diesel engine delivers 420HP with super power output and lower fuel consumption for heavy-duty construction and mining operations.
● High-capacity Dump Body – Dump body dimension 5600×2300×1500mm with loading capacity 30 tons, manufactured with carbon steel (side 6mm, bottom 8mm) for maximum durability and wear resistance.
● Front Lifting System – Front lifting system ensures efficient and stable unloading performance in various working conditions.
Reliable Chassis & Power Performance
● ISUZU GIGA Chassis – Adopts ISUZU GIGA heavy truck chassis with stable and durable overall performance for heavy-duty working conditions.
● Strong Axle Structure – 6x4 drive type with wheelbase 3985×1370mm provides strong carrying capacity and stable driving performance.
● Air Brake System – Air brake system with ABS ensures safe and reliable braking performance in all conditions.


Complete Safety & Comfort Configuration
● Safety Equipment – ABS braking system, driving data recorder (DVR), retro-reflective markings for comprehensive safety protection.
● Comfort Configuration – Air conditioner, power steering system, central locking system, electrically controlled windows for comfortable driving experience.
● Additional Equipment – Maintenance-free battery, tubeless tires, extended front bumper, aluminum lightweight fuel tank, front chrome kit for enhanced durability and appearance.
100% Customized Dump Body
● Dump Body – The 5600×2300×1500mm dump body with carbon steel material (side 6mm, bottom 8mm) ensures durability and safety during heavy-load transportation.
● Loading Capacity – 30 tons loading capacity meets the requirements of heavy-duty construction, mining and infrastructure projects.
● Lifting System – Front lifting system provides stable and reliable unloading performance for efficient operation.

▪ Working Principle :
CS TRUCKS professional Engineering Department 100% customized 10 units ISUZU GIGA 30 tons dump truck, mounted on ISUZU GIGA LHD 6x4 heavy truck chassis. Matched with ISUZU 6WG diesel engine 420HP, air brake system. Dump body with carbon steel material, dimension 5600×2300×1500mm, side 6mm, bottom 8mm, loading capacity 30 tons, front lifting system for efficient unloading. As for painting, 100% customized as per customer requirements. Below are official technical drawings for the ISUZU GIGA 30 tons dump truck and working principle.


▪ Product Features :

ISUZU GIGA Dump Truck Front Lifting System
♦ The lifting system ensures efficient and stable unloading performance.
♦ Hydraulic cylinders provide strong and reliable lifting power for heavy-load dumping.
♦ Suitable for construction sites, mining areas, and infrastructure projects.

ISUZU GIGA Dump Truck Dump Body
♦ Dump body dimension 5600×2300×1500mm with loading capacity 30 tons.
♦ Carbon steel material with side 6mm and bottom 8mm ensures maximum durability and wear resistance.
♦ High-strength structure suitable for heavy-duty transportation of sand, gravel, soil and other materials.

ISUZU GIGA Dump Truck Chassis & Safety
♦ ISUZU 6WG diesel engine with 420HP provides super power output and lower fuel consumption.
♦ Air brake system with ABS ensures safe and reliable braking performance in all conditions.
♦ 6x4 drive type with wheelbase 3985×1370mm provides strong carrying capacity and stable driving performance.


▪ How to Operate a Dump Truck:
🔹 Step 1: Bring the vehicle to a complete stop, apply the parking brake, and place the transmission in neutral.
🔹 Step 2: Start the engine and keep it running at low to medium speed (do not run at high speed).
🔹 Step 3: Depress the clutch pedal, wait approximately 3–5 seconds, and move the power take-off (PTO) control lever to the "Engaged" position.
🔹 Step 4: Slowly release the clutch pedal and shift the transmission into a low forward gear (usually 1st or 2nd gear) so that the PTO drives the hydraulic pump through the transmission.
🔹 Step 5: Move the lift control valve handle to the "Lift" position. The dump bed will begin to rise slowly.
🔹 Step 6: Observe the unloading process and control the lift height as needed. When the maximum angle is reached, the limit device should automatically stop the lifting. If there is no automatic limit function, immediately move the control valve to the "Hold" position.
🔹 Step 7: After unloading is complete, move the control valve to the "Hold" position, keep the dump bed raised, and confirm that all material has been unloaded.




Product Details

ISUZU GIGA Dump Truck Cabin Interior

ISUZU GIGA Dump Truck FAST 12-Speed Gear Shift Lever

ISUZU GIGA Dump Truck Hydraulic Oil Tank

ISUZU GIGA Dump Truck Rear Bumper & Tail Light Assembly

ISUZU GIGA Dump Truck Rear Door Safety Chain

ISUZU GIGA Dump Truck Rear Door Manual Lock Hook
