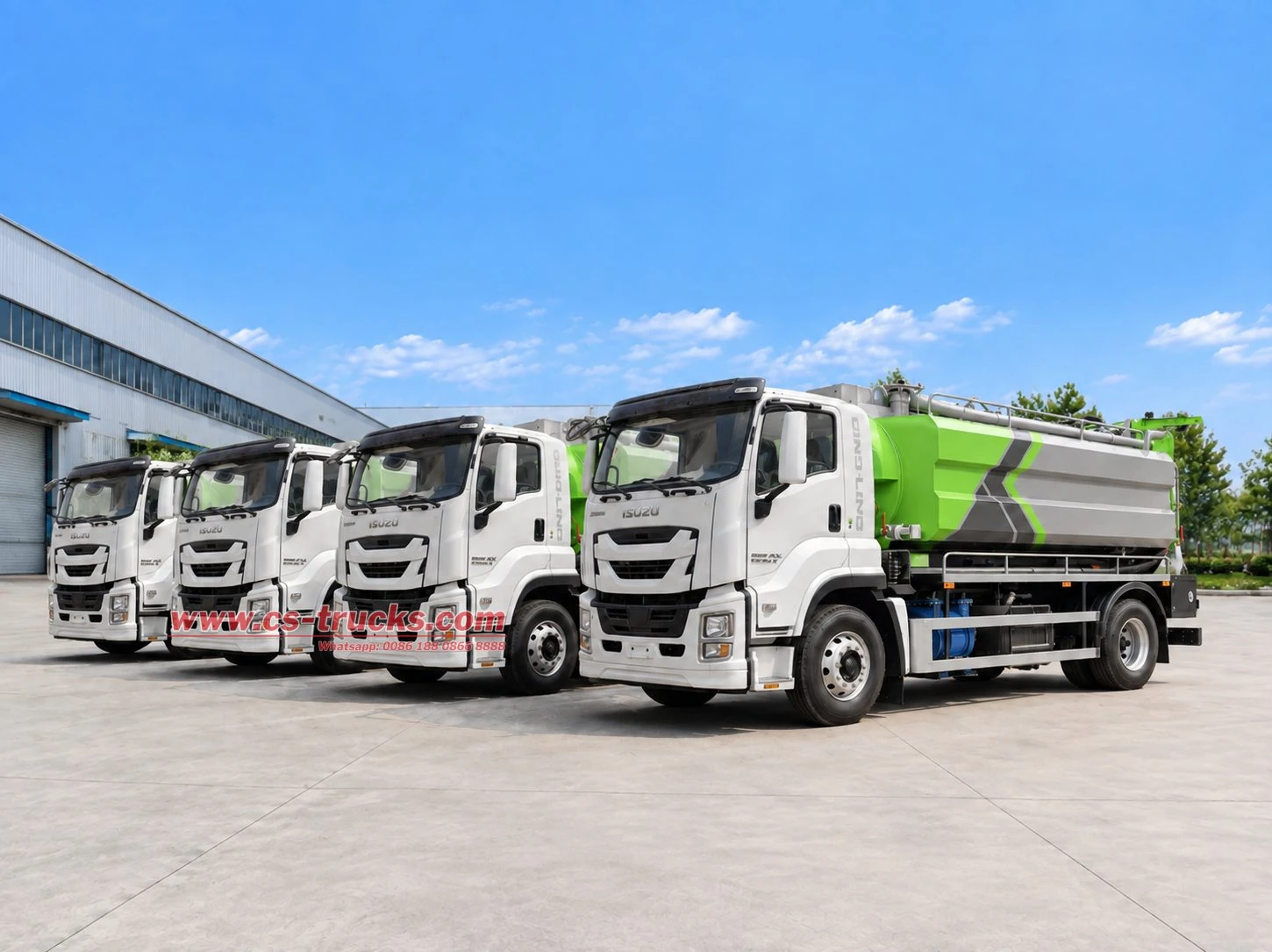

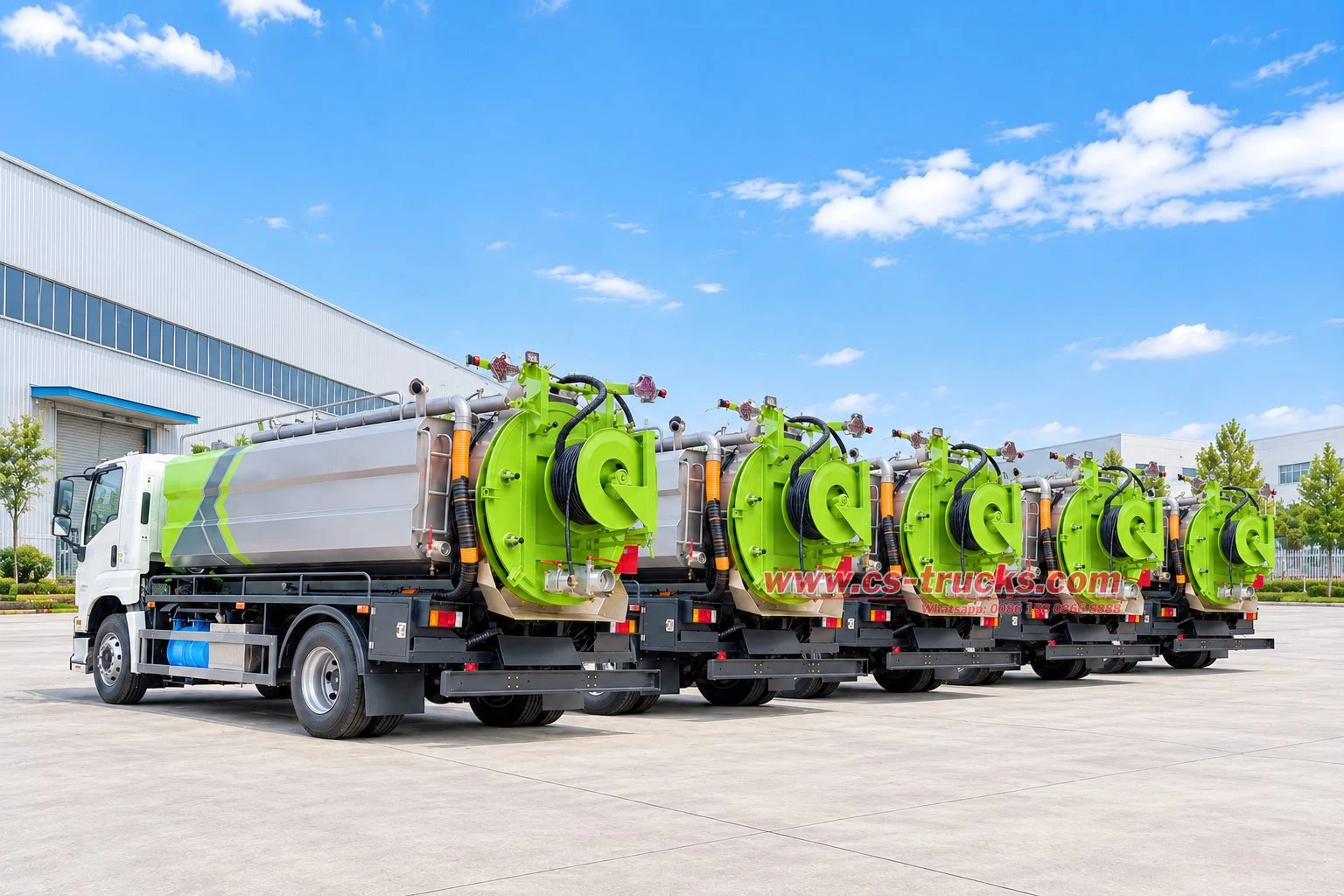

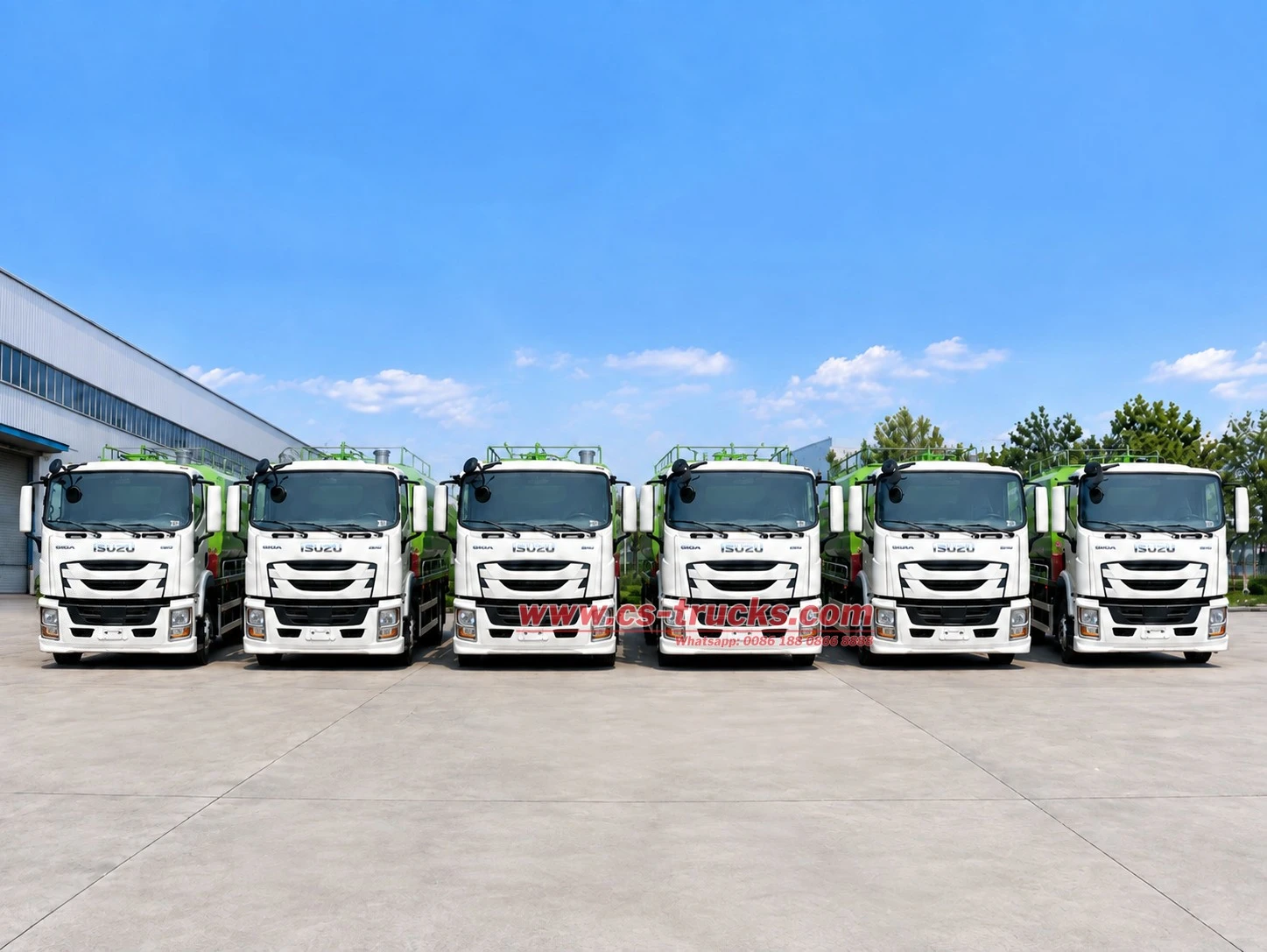

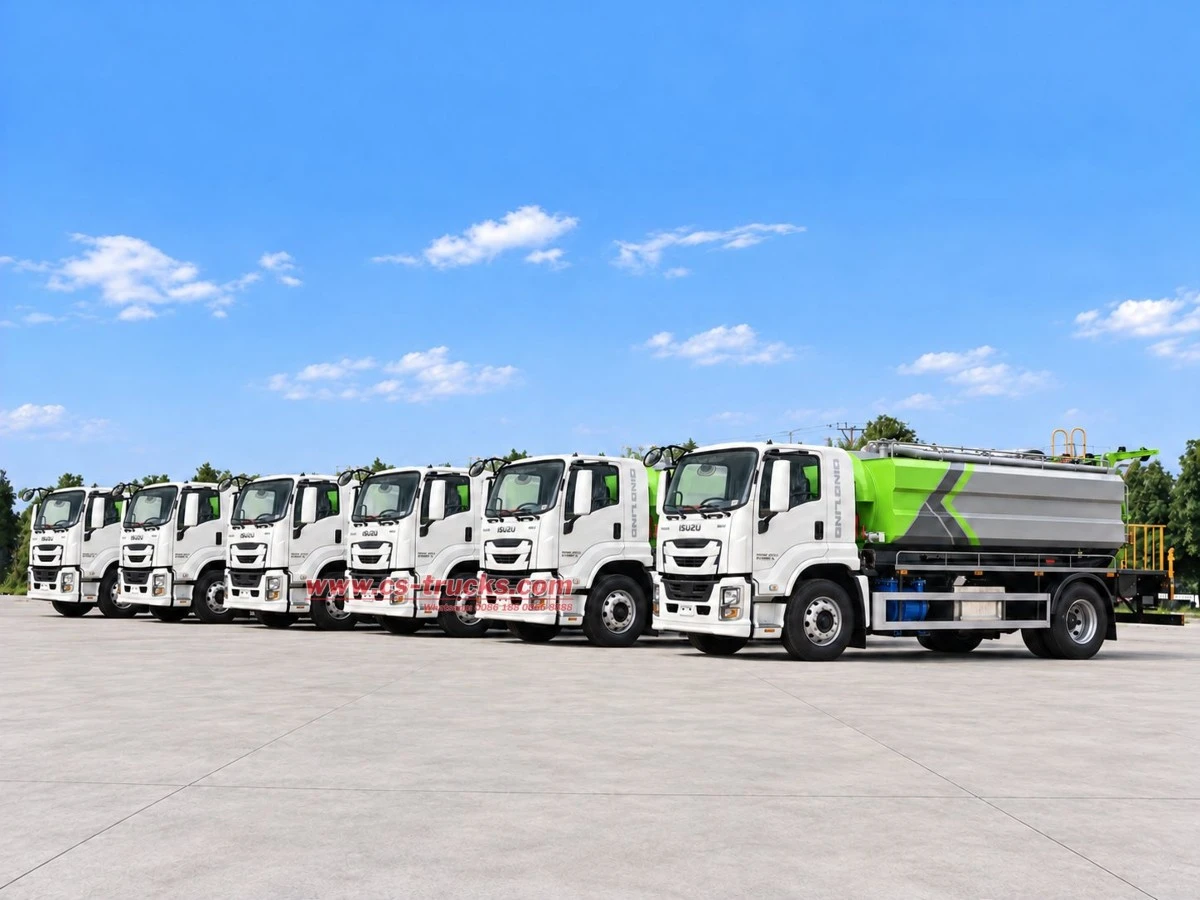

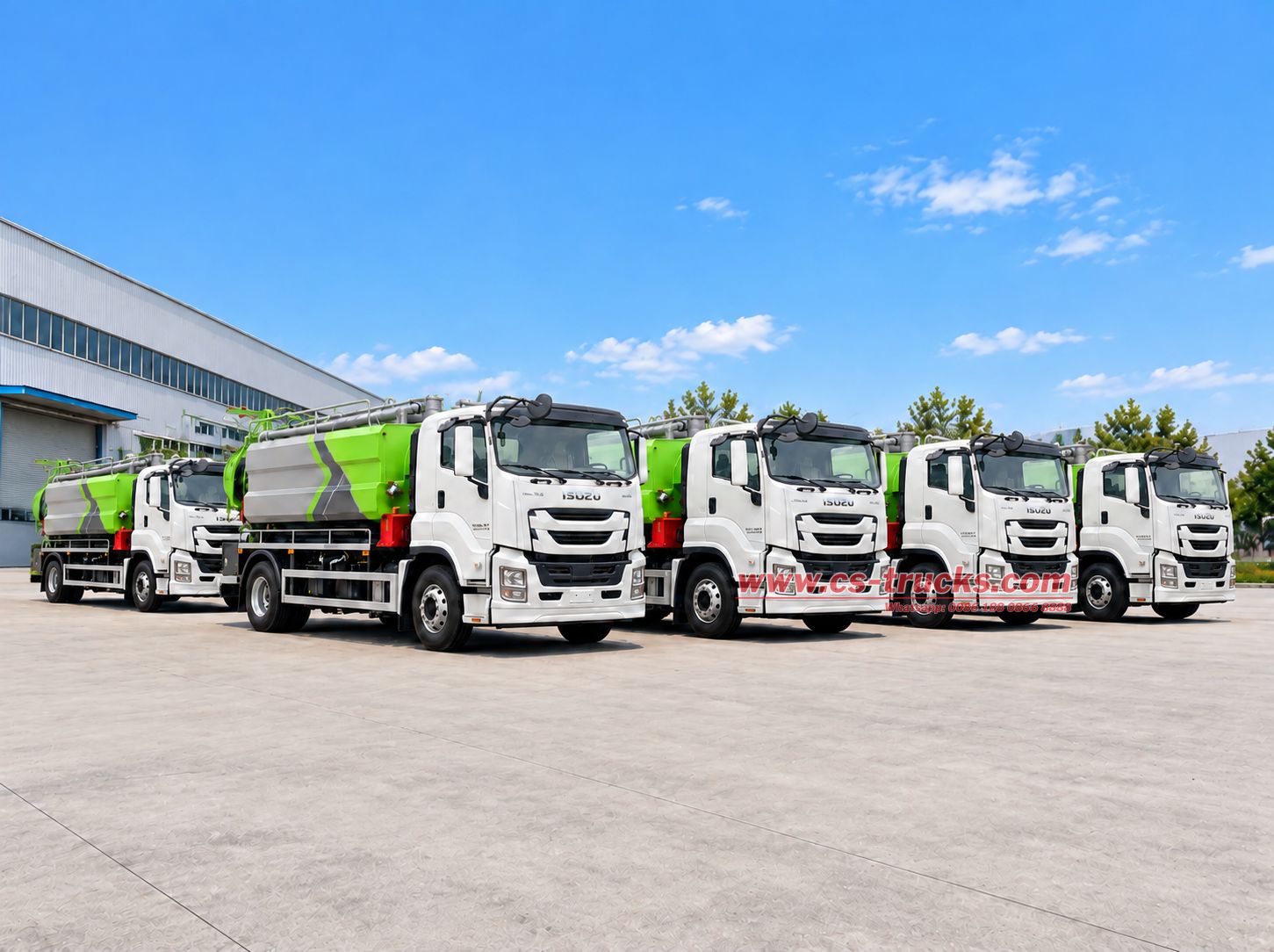

8 units brand new ISUZU FTR sewer suction pumper trucks with jetting are successfully finished in CS TRUCKS factory. All 8 units ISUZU vacuum sewage trucks have caught the latest shipment, loaded in China seaport and discharged in Mombasa seaport Kenya, then will be used in multiple cities in Kenya, including in Nairobi, Mombasa, Kisumu, etc.
Built on the reliable ISUZU FTR 4×2 chassis, this multifunctional sewage tank truck integrates high-efficiency vacuum sewage suction and powerful water jetting cleaning into one compact, high-performance unit. Compared with other sewer suction trucks all over the world, CS TRUCKS produced vacuum sewage trucks equipped with ISUZU original 4HK1-TCG61 diesel engine with 205HP power output, Euro 6 emission standard, and a durable 8m³ sewage tank plus a 3m³ cleaning tank constructed of 5mm thick high-quality carbon steel, delivering exceptional working efficiency with a maximum vacuum degree of 18KPa, a 9-meter effective suction range and a fast suction time within 3 minutes, making it an ideal all-in-one solution for municipal sanitation, environmental governance and pipeline maintenance in Kenya.
8 Units ISUZU FTR Sewer Suction Pumper Truck With Jetting Exported to Kenya
Client: Mr. Mwangi
Project: Nairobi City Sanitation Service Project
Year: 2026, September
▪ Project Background :
Customer Mr. Mwangi is engaged in the urban sanitation service industry in Kenya, who recently obtained the municipal sewage management project contract from Nairobi city government, and urgently needs to purchase a batch of high-efficient and reliable sewer suction pumper trucks for operation. Mr. Mwangi visited CS TRUCKS factory, inspected the production line and tanker manufacturing process in detail. He gave high recognition to CS TRUCKS professional manufacturing capability and quality control system, and finally confirmed purchase totally 8 units ISUZU FTR sewer suction pumper trucks with jetting for his sanitation project. What he need is high efficient, good quality, durable, low maintenance sewage truck.
1, ISUZU FTR 4x2 truck chassis -- 2026 year brand new, No recondioned, No used
2, Combined tanker -- 8m³ sewage tank + 3m³ cleaning tank, 5mm thickness high-quality carbon steel
3, Vacuum pump -- Italy brand MORO, BP vacuum pump customized installed
4, Safety Device -- First level and second level overflow valve, side view level gauge, oil-water separators for safety and reliable operation
Key Points:
→ Sewer Suction Pumper Truck
→ ISUZU FTR Vacuum Sewage Truck With Jetting
| Name | ISUZU FTR Sewer Suction Pumper Truck With Jetting |
|---|---|
| Overall Dimension | 8300×2580×3150 mm |
| GVW | 18000 kg |
| Curb Weight | 9350 kg |
| Sewage Tank | 8 m³ (8000 Liters) |
| Cleaning Tank | 3 m³ (3000 Liters) |
| Drive System | 4x2 |
| Chassis Brand | ISUZU FTR |
| Steering | LHD/RHD |
| Cab | Single row, 2 seats, with A/C |
| Wheelbase | 4500 mm |
| Tire | 295/80R22.5, 6+1 units |
| Engine Model | ISUZU 4HK1-TCG61 |
| Emission Level | EURO 6 |
| Displacement | 5.19 L |
| Horse Power | 205 HP |
| Fuel | Diesel |
| Gear Box | ISUZU MLD, 6 speed |
| Brake System | Air brake |
| Front Axle | 7T |
| Rear Axle | 13T |
| Fuel Tank | Iron, 200L |
| Tank Material | 5mm thickness, high quality carbon steel |
| Tank Structure | Welding, vacuum tank, cylindrical |
| Pump Type | Water circulation pump |
| Pump Flux | 60 L/S |
| Rating Speed | 800~1200 r/min |
| Shaft Power | 7 kW |
| Suction Time | ≤3 min |
| Effective Suction Range | ≥9 m |
| Max Vacuum Degree | ≤18 KPa |
| Dump Angle | ≥45° |
| Painting | 100% customized painting and logos |
8 Units ISUZU FTR Sewer Suction Pumper Truck With Jetting Export To Kenya
ISUZU FTR Sewer Suction Pumper Truck With Jetting
● Powerful Engine – ISUZU original 4HK1-TCG61 diesel engine delivers 205HP with Euro 6 emission standard, providing super power output and lower fuel consumption for municipal sewage operations.
● Combined Tanker – 8m³ sewage tank plus 3m³ cleaning tank, manufactured with 5mm thick high-quality carbon steel for maximum durability and long service life.
● High-performance Vacuum Pump – Customized installed Italy brand MORO, BP vacuum pump, featuring low noise, low fuel consumption and high vacuum performance.
100% Customized Combined Tanker
● Sewage Tank – The 8m³ cylindrical vacuum tank with 5mm thickness carbon steel ensures durability and safety during sewage collection and transportation.
● Cleaning Tank – The 3m³ cleaning tank works together with the water jetting system for pipeline cleaning and maintenance.
● Tank Structure – Integral welding cylindrical vacuum tank structure with good pressure resistance and no leakage, supporting 45° hydraulic tank lifting and hydraulic rear door opening.
High Performance Sewage Suction System
● Fast Suction – Suction time ≤3 min and effective suction range ≥9m ensure rapid and efficient sewage collection.
● Strong Vacuum – Max vacuum degree ≤18 KPa provides powerful suction capability for thorough sewage and sludge suction.
● Hydraulic Operation – Cylinder vacuum tank can be lifted hydraulically to 40-45 degree, rear door can be opened and closed hydraulically for quick discharge.
Reliable Chassis & Power Performance
● Authentic ISUZU Chassis – Adopts authentic ISUZU FTR 4×2 professional chassis with stable and durable overall performance.
● Strong Axle Structure – Equipped with 7T front axle and 13T rear axle structure to bear heavy-load working conditions steadily.
● Air Brake System – Comes with air brake system to ensure safe and sensitive braking during operation and driving.
▪ Working Principle :
This schematic shows the PTO power transmission system of the ISUZU sewer suction pumper truck. Engine power passes through the gearbox and PTO assembly to drive the vacuum pump. It supplies stable power for vacuum sewage suction and high-pressure pipeline cleaning, ensuring reliable on-site sanitation operations.
CS TRUCKS professional Engineering Department 100% customized 8 units ISUZU FTR sewer suction pumper truck with jetting, mounted on ISUZU FTR LHD/RHD 4x2 truck chassis. Matched with ISUZU original 4HK1-TCG61 diesel engine 205HP, Euro 6 emission standard, ISUZU MLD 6-speed transmission. Combined tanker with 8m³ sewage tank and 3m³ cleaning tank, 5mm thickness high-quality carbon steel, cylindrical vacuum tank structure, equipped with water circulation pump with flux 60L/S, rating speed 800~1200r/min, shaft power 7kW, suction time ≤3min, effective suction range ≥9m, max vacuum degree ≤18 KPa, dump angle ≥45°. As for painting, 100% customized as per customer requirements. Below are official technical drawings for the ISUZU FTR sewer suction pumper truck with jetting and working principle.
Structure Diagram of ISUZU FTR Sewer Suction Pumper Truck
ISUZU FTR sewer suction pumper truck working principle diagram
▪ Product Features :
ISUZU FTR Sewer Suction Pumper Truck Vacuum Pump System
♦ Equipped with high-performance water circulation pump, featuring 60L/S large flux working capacity.
♦ Supports 800~1200r/min stable rated speed with 7kW stable shaft power output.
♦ Ultra-fast suction speed with full suction completed within 3 minutes to improve working efficiency greatly.
♦ Covers 9-meter ultra-long effective suction range to expand operation coverage.
♦ Max 18KPa high vacuum degree ensures thorough sewage and sludge suction.
♦ Features low speed, low fuel consumption and low noise for energy-saving and eco-friendly operation.
ISUZU FTR Sewer Suction Pumper Truck Combined Tanker
♦ Integrated dual-tank design with 8m³ sewage tank and 3m³ cleaning tank for dual-purpose work.
♦ Main tank adopts 5mm thick high-quality carbon steel material for wear resistance and long service life.
♦ Adopts integral welding cylindrical vacuum tank structure with good pressure resistance and no leakage.
♦ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree, rear door opened and closed hydraulically.
ISUZU FTR Sewer Suction Pumper Truck Chassis & Safety
♦ Adopts authentic ISUZU FTR 4×2 professional chassis with stable and durable overall performance.
♦ Equipped with original ISUZU 4HK1-TCG61 diesel engine, delivering 205 HP strong power output.
♦ Matches ISUZU MLD 6-speed transmission box for smooth gear shifting and efficient power transmission.
♦ Equipped with 7T front axle and 13T rear axle structure to bear heavy-load working conditions steadily.
♦ Comes with air brake system and single-row air-conditioned cab for comfortable driving experience.
Multifunction Vacuum Pump For Optional
| Specification | Unit | Value |
|---|---|---|
| Model | \ | SK 20 |
| Max. Speed | r/min | 730 |
| Max. Pressure | hPa(A) | 33 |
| Max. Power | kw | 37 |
| Maximum Air Intake | m³/min | 20 |
| Sound Pressure at 7m (23ft) 60% Vacuum | dB | 80 |
| Hose | in | 3/4 |
| Weight | kg | 985 |
▪ Application :
1. Sewer & Drainage Pipeline Dredging and Blockage Removal
This integrated vacuum jetting truck clears clogged municipal sewers, storm drains and building sewage pipelines. High-pressure water jetting breaks down hardened sludge, grease and debris, while the vacuum system instantly sucks up all waste into the sewage tank. It replaces separate jetting trucks and sewage suction trucks, cutting your fleet investment and on-site operation time.
2. Waste Sludge & Septic Tank Cleaning and Waste Transport
Ideal for septic tank emptying, sludge collection at residential areas, farms and industrial sites. With an 8m³ sewage tank, it quickly sucks up slurry, sewage and sediment within 3 minutes. The hydraulic tipping tank and hydraulically operated rear door enable fast, complete waste unloading at disposal sites.
3. Site Environmental Cleanup & Wastewater Recovery
Handles wastewater and sludge cleanup at construction sites, road maintenance projects and industrial zones. The 3m³ clean water tank supplies high-pressure washing water for cleaning manholes, road surfaces and contaminated working areas.
