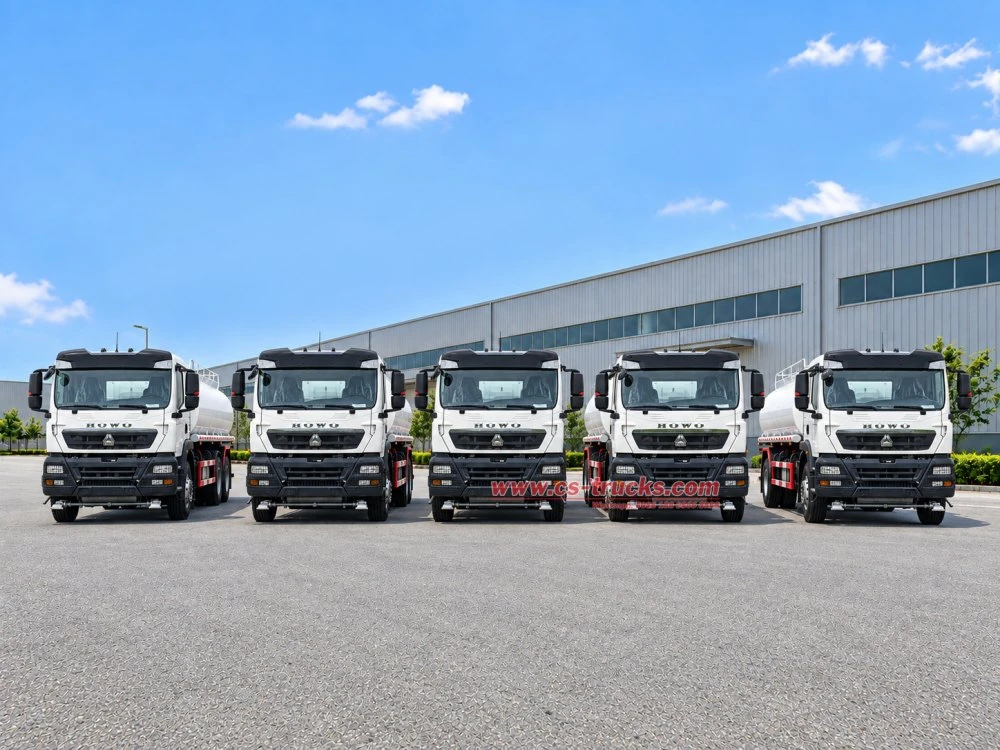

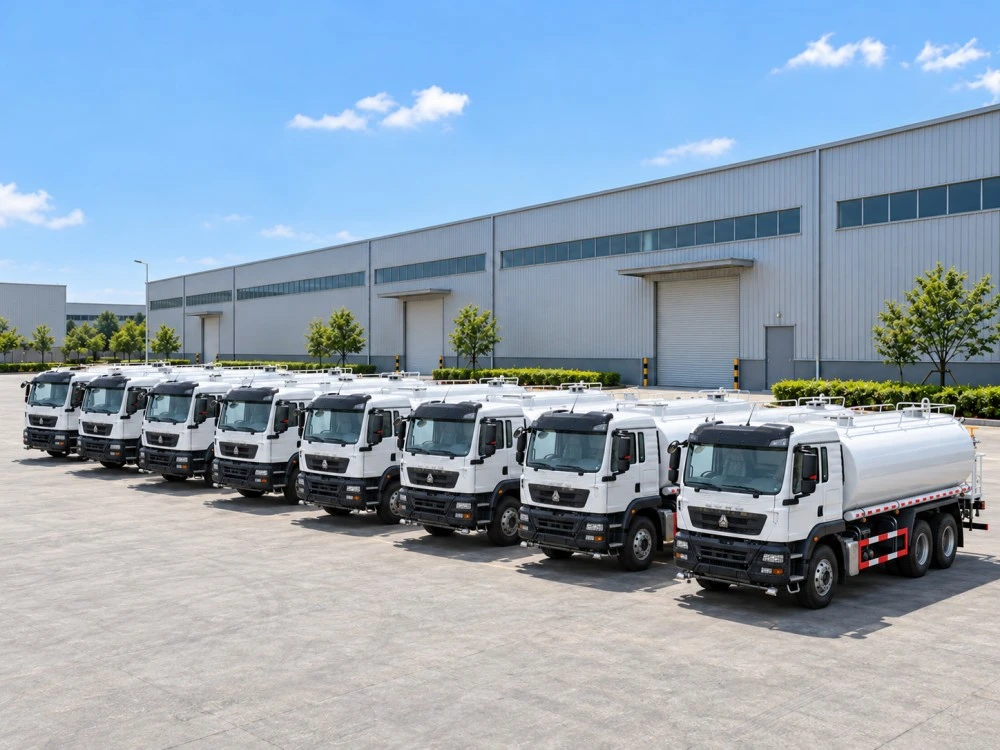

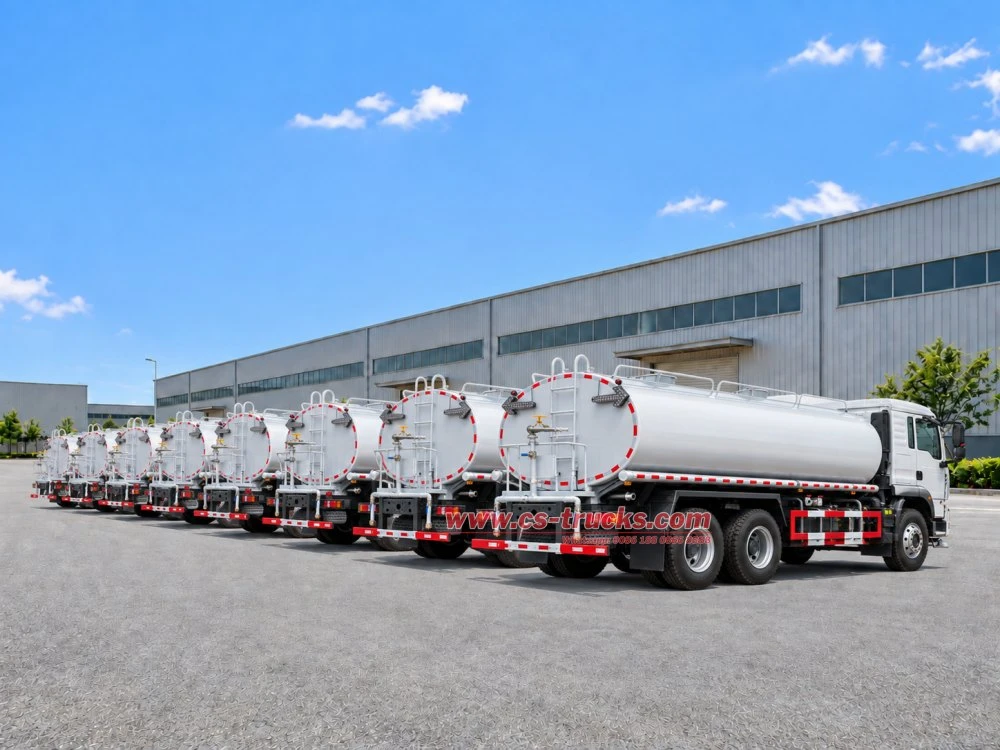

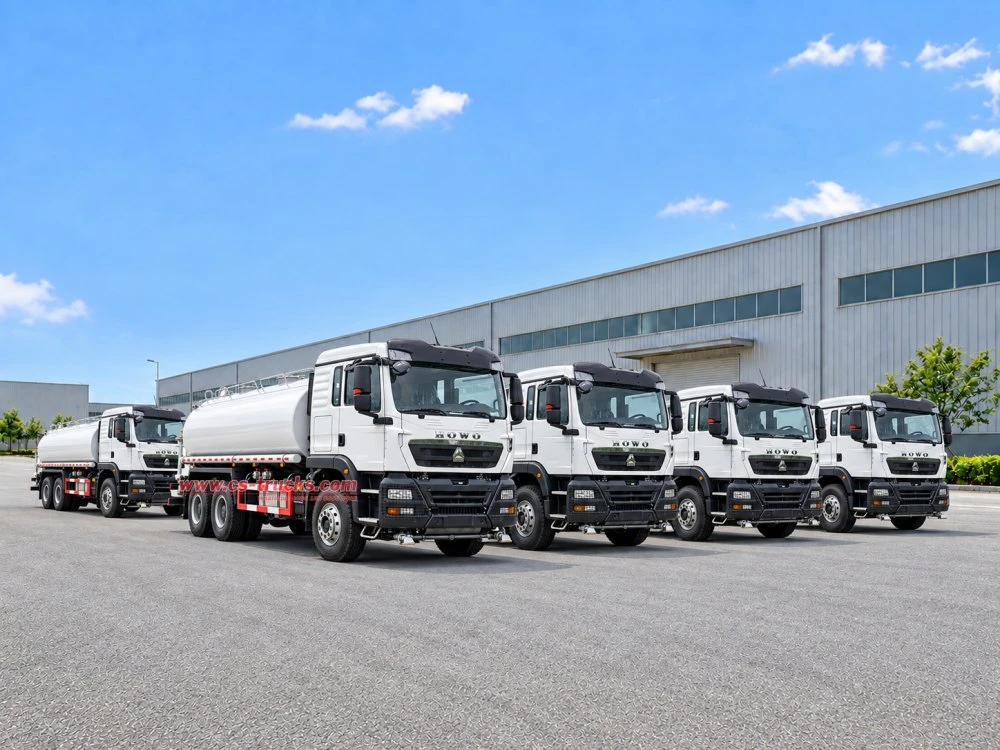

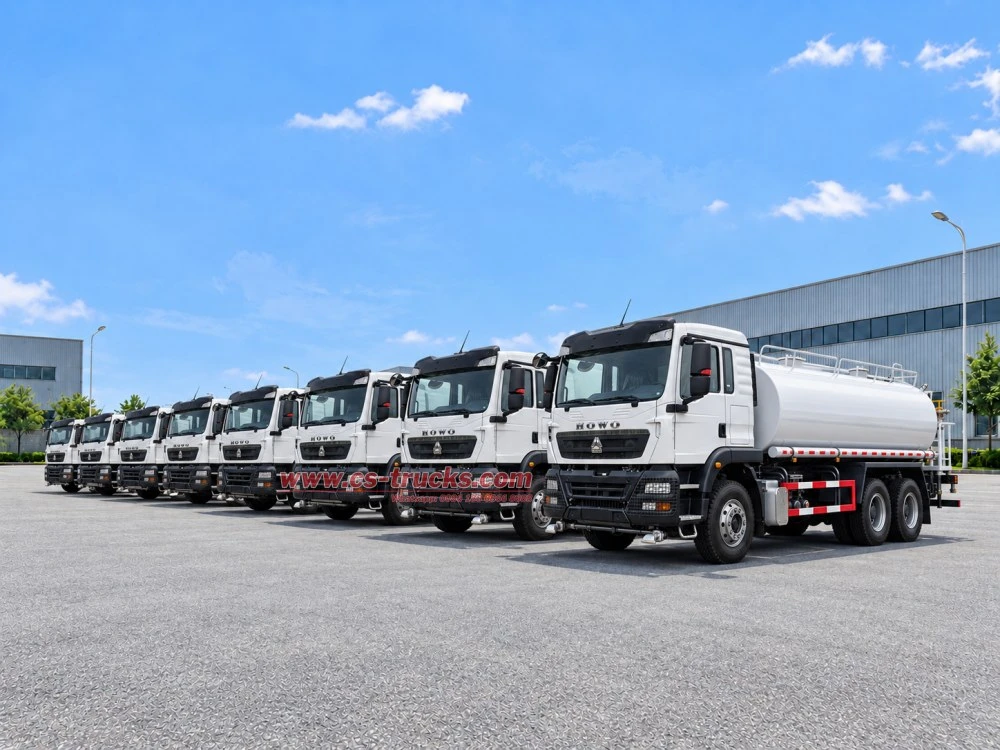

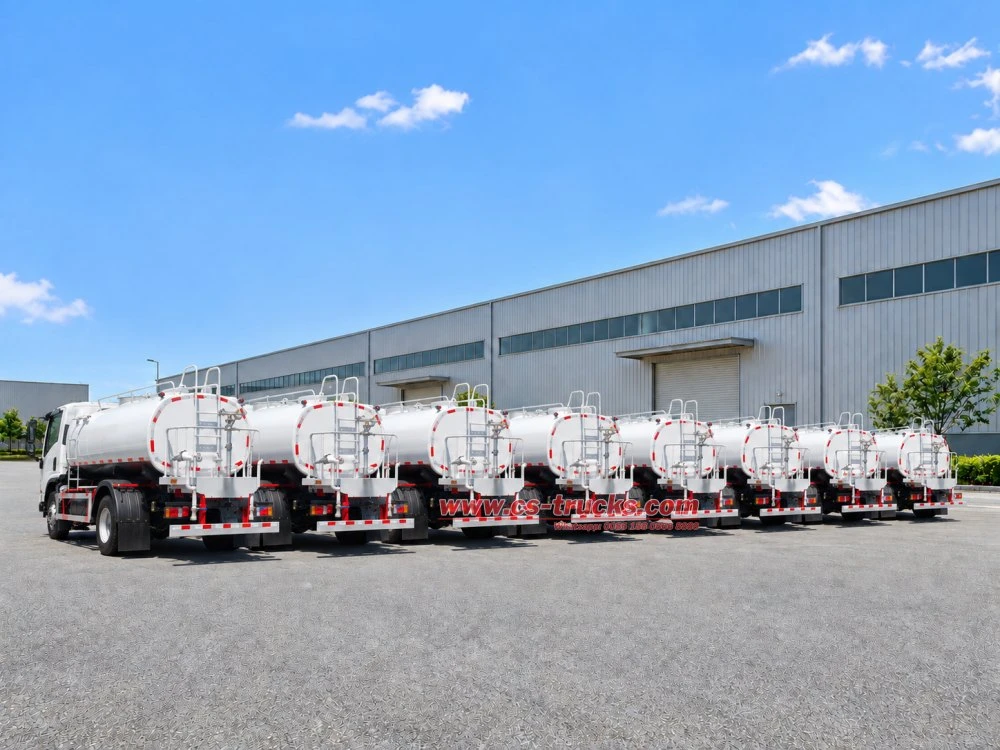

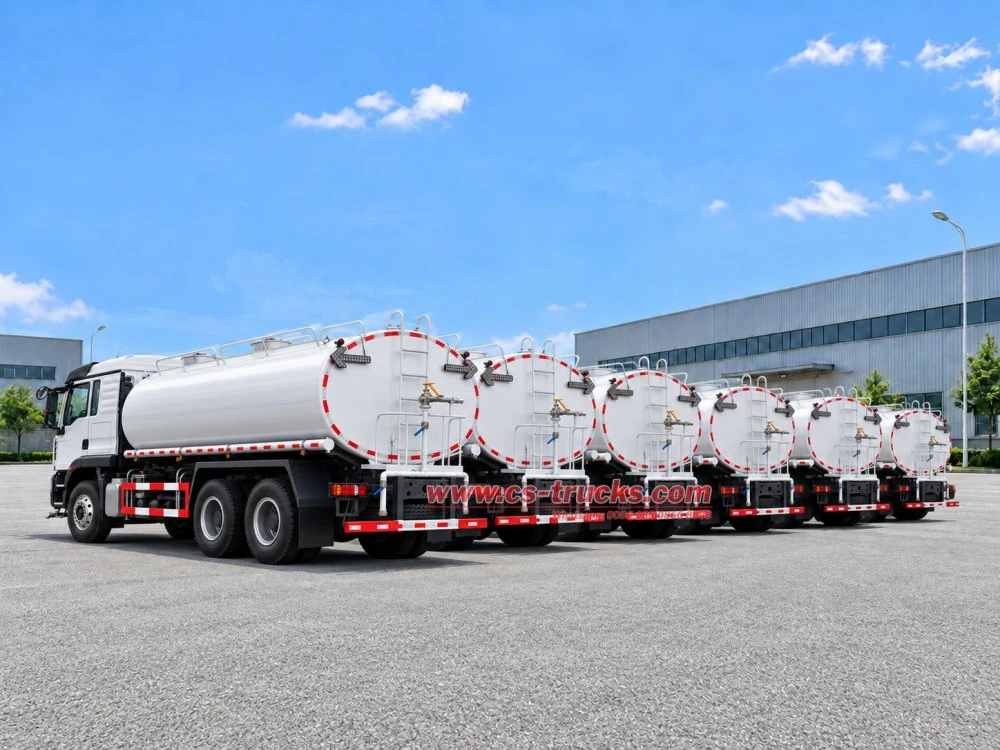

8 units brand new HOWO 20000L water sprinkling trucks are successfully finished in CS TRUCKS factory. All 8 units HOWO water sprinkling trucks have caught the latest shipment, loaded in China seaport and discharged in Manila seaport Philippines, then will be used in multiple cities in Philippines, including in Manila, Cebu, Davao, etc.
Compared with other water sprinkling trucks all over the world, CS TRUCKS produced water sprinkling trucks designed based on Top quality SINOTRUK HOWO truck chassis, equipped with NO. 1 Chinese brand WEICHAI diesel engine with 370HP (273KW) power output, super power output and lower fuel consumption. The water tank with capacity 20CBM (2 separated tanks), front spray bar with fan sprayer, spray range ≥20m, pump flow rate 1000L/min, head of delivery 60m, suction height 6.5m, making it an ideal municipal service vehicle for dust suppression, road cleaning, and greenery irrigation in Philippines.

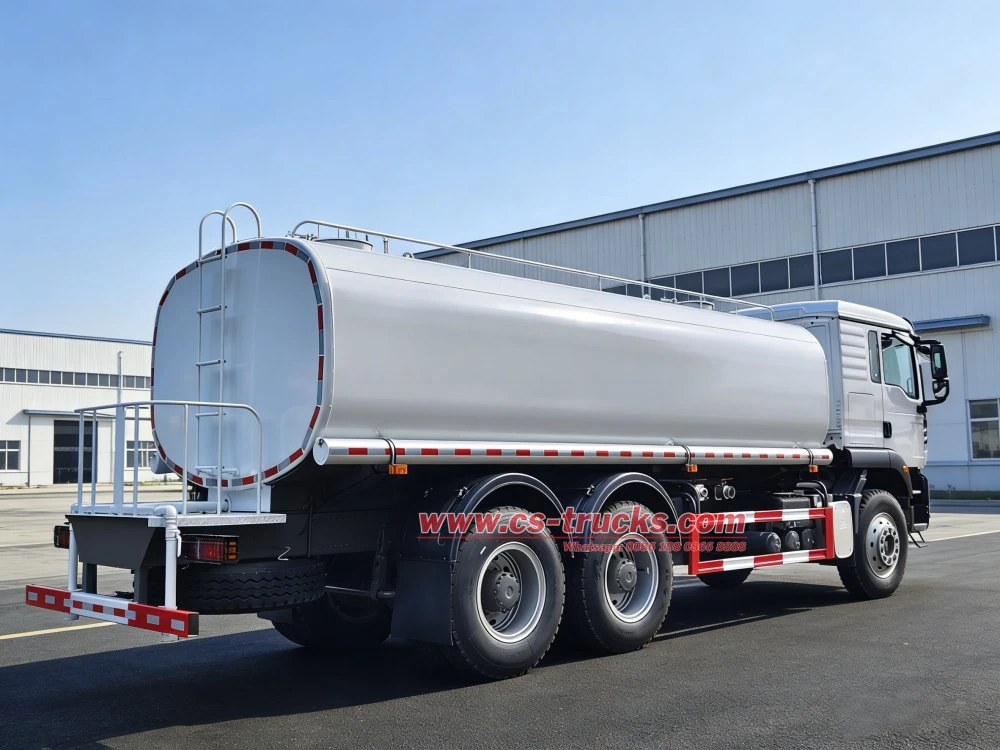

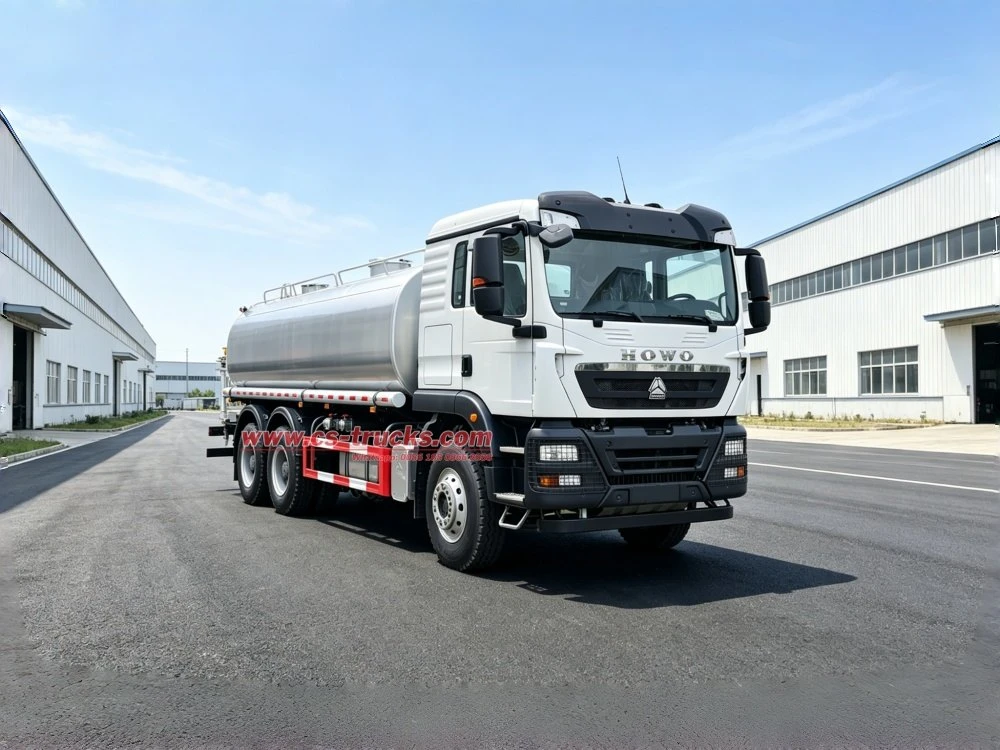

8 Units HOWO 20000L Water Sprinkling Truck Exported to Philippines
Client: Mr. Santos
Project: Manila City Municipal Environmental Project
Year: 2026, September
Project Background :
Customer Mr. Santos is engaged in municipal environmental services in Philippines, who recently obtained the city environmental project contract requiring water sprinkling trucks for dust suppression and road cleaning, and urgently needs to purchase a batch of high-performance and reliable water sprinkling trucks for operation. Mr. Santos visited CS TRUCKS factory, inspected the production line and vehicle manufacturing process in detail. He gave high recognition to CS TRUCKS professional manufacturing capability and quality control system, and finally confirmed purchase totally 8 units HOWO 20000L water sprinkling trucks for his project. What he need is high efficient, good quality, durable, low maintenance municipal truck.
1, SINOTRUK HOWO 6x4 truck chassis -- 2026 year brand new, No recondioned, No used
2, Water tank -- 20CBM capacity, 2 separated tanks, Q235 material, head 5mm, body 5mm
3, Spray system -- Front spray bar with fan sprayer, spray range ≥20m, pump flow rate 1000L/min, head of delivery 60m
4, Safety Device -- ABS, automatic brake clearance adjusting arm, engine protective board for safety and reliable operation
Key Points:
→ HOWO Water Sprinkling Truck
→ 20000L Water Bowser
| Name | HOWO 20000L Water Sprinkling Truck |
| Vehicle Model | CS5250GSS |
| Cabin | HOWO cabin, optional color and painting |
| Driving | LHD, 6x4 driving |
| Engine | WEICHAI WD615.47, 370HP (273KW), Euro II |
| Transmission | HW19710, 10 forward + 2 reverse |
| Wheelbase | 4575+1400 mm |
| Tire | 12.00R24, 10+1 units |
| Overall Dimension | 10650×2550×3650 mm |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 10800 kg |
| Front Axle | 9000 kg |
| Rear Axle | 2×16000 kg |
| Max Speed | 110 km/h |
| Water Tank Capacity | 20 CBM (2 separated tanks) |
| Tank Material | Q235 carbon steel, head 5mm, body 5mm |
| Tank Dimensions | 6400×2450×1650 mm |
| Manhole Diameter | ¢500mm |
| Front Spray Range | ≥20m |
| Pump Flow Rate | 1000 L/min |
| Head of Delivery | 60 m |
| Suction Height | 6.5 m |
| Shaft Power | 22.5 |
| Efficiency | 0.95 |
| Subsea Valve | 2 positions |
| Hoses | 2 units 6m 4" hoses |
| Electrics | 24V, 2×12V 165Ah batteries |
| Brake | Air brake |
| Painting | 100% customized painting and logos |
8 Units HOWO 20000L Water Sprinkling Truck Export To Philippines
HOWO 20000L Water Sprinkling Truck
● Powerful Engine – WEICHAI WD615.47 diesel engine delivers 370HP (273KW) with Euro II emission standard, providing super power output and lower fuel consumption for municipal operations.
● High-capacity Water Tank – 20CBM (20,000 Liters) water tank with 2 separated tanks, manufactured with Q235 carbon steel (head 5mm, body 5mm) for maximum durability and long service life.
● High-performance Pump – Pump with flow rate 1000L/min, head of delivery 60m, suction height 6.5m, shaft power 22.5, efficiency 0.95 ensures efficient water spraying operations.
Efficient Sprinkling System
● Front Spray Bar – Front spray bar with fan sprayer provides spray range ≥20m for wide coverage dust suppression and road cleaning.
● High Flow Rate – Pump with flow rate 1000L/min and head of delivery 60m provides wide coverage for dust suppression and road cleaning.
● Reliable Performance – Shaft power 22.5 with efficiency 0.95 ensures stable and reliable performance under continuous working conditions.
100% Customized Water Tank
● Water Tank – The 20CBM water tank with 2 separated tanks and Q235 carbon steel material (head 5mm, body 5mm) ensures durability and long service life.
● Manhole Access – Manhole access with diameter ¢500mm on top of tank for easy maintenance, with skid resistance man walk way for operator safety.
● Multi-purpose Application – The system is ideal for dust suppression, road cleaning, greenery irrigation, and fire emergency water supply in cities.
Working Principle :

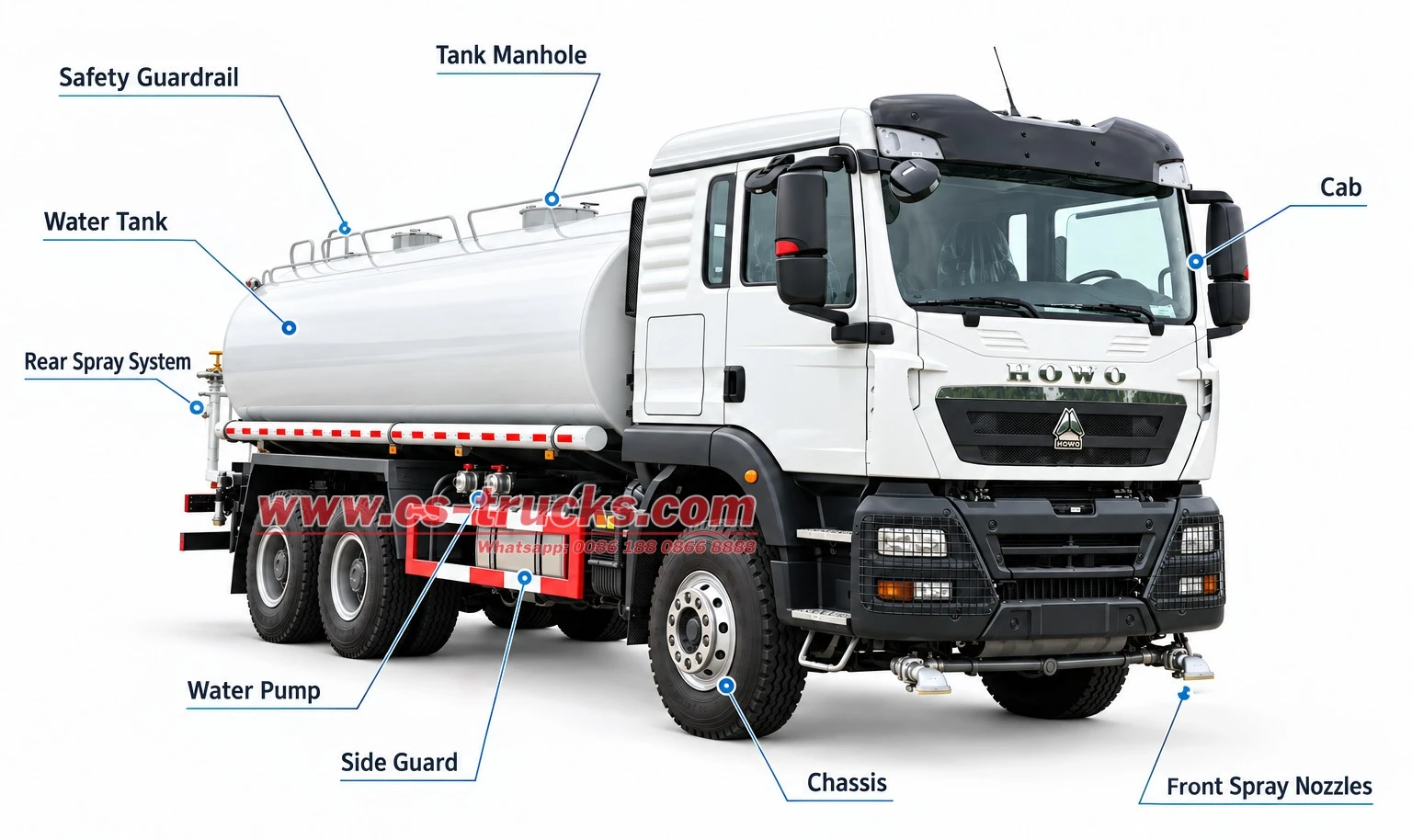

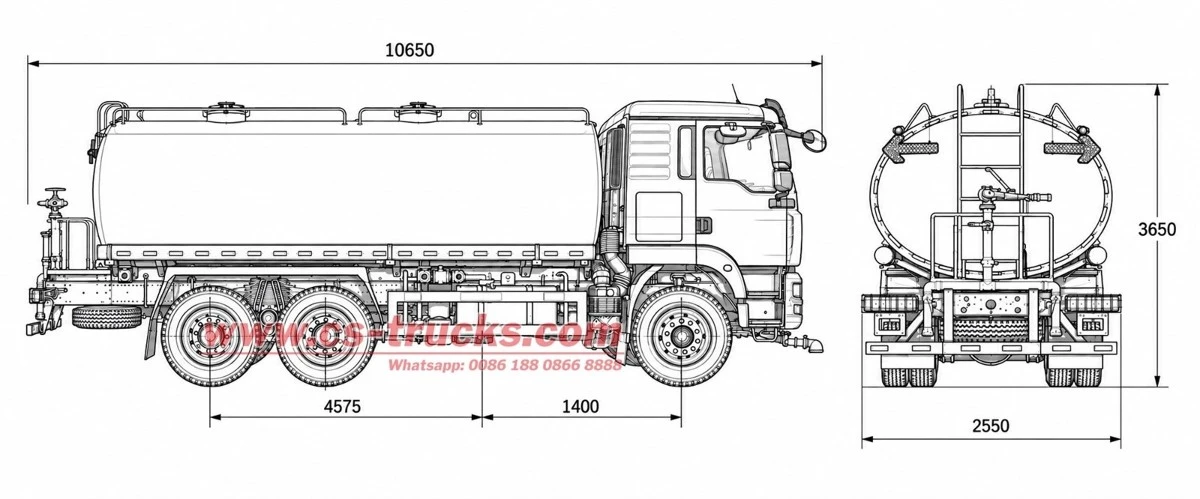

CS TRUCKS professional Engineering Department 100% customized 8 units HOWO 20000L water sprinkling truck, mounted on SINOTRUK HOWO LHD 6x4 truck chassis. Matched with WEICHAI WD615.47 diesel engine 370HP (273KW), Euro II emission standard, HW19710 10-speed transmission. Water tank with Q235 carbon steel, capacity 20CBM (2 separated tanks), head 5mm, body 5mm, manhole diameter ¢500mm with skid resistance man walk way, equipped with front spray bar with fan sprayer, spray range ≥20m, pump with flow rate 1000L/min, head of delivery 60m, suction height 6.5m, shaft power 22.5, efficiency 0.95. As for painting, 100% customized as per customer requirements. Below are official technical drawings for the HOWO 20000L water sprinkling truck and working principle.
Product Features :
HOWO Water Sprinkling Truck Sprinkler Pump System
♦ High-performance pump with flow rate 1000L/min for high-efficiency water spraying.
♦ Head of delivery 60m and suction height 6.5m provide powerful water delivery capability.
♦ Shaft power 22.5 with efficiency 0.95 ensures stable and reliable operation.
HOWO Water Sprinkling Truck Water Tank
♦ 20CBM water tank with 2 separated tanks and Q235 carbon steel material ensures durability and long service life.
♦ Head 5mm and body 5mm thickness provides maximum strength and safety during operation.
♦ Manhole diameter ¢500mm with skid resistance man walk way for easy maintenance and operator safety.
HOWO Water Sprinkling Truck Chassis & Safety
♦ WEICHAI WD615.47 diesel engine with 370HP (273KW) and Euro II emission standard provides super power output and lower fuel consumption.
♦ Air brake system with ABS and automatic brake clearance adjusting arm ensures safe and reliable braking performance.
♦ Vertical muffler, metal pipeline, and engine protective board for comprehensive safety protection.
Product Details

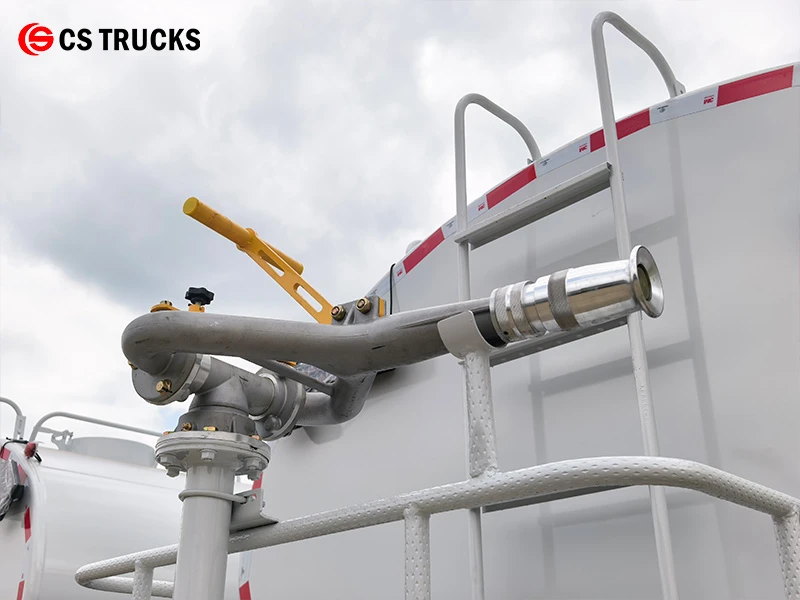

HOWO 6x4 Water Sprinkler Truck Top Adjustable Water Cannon

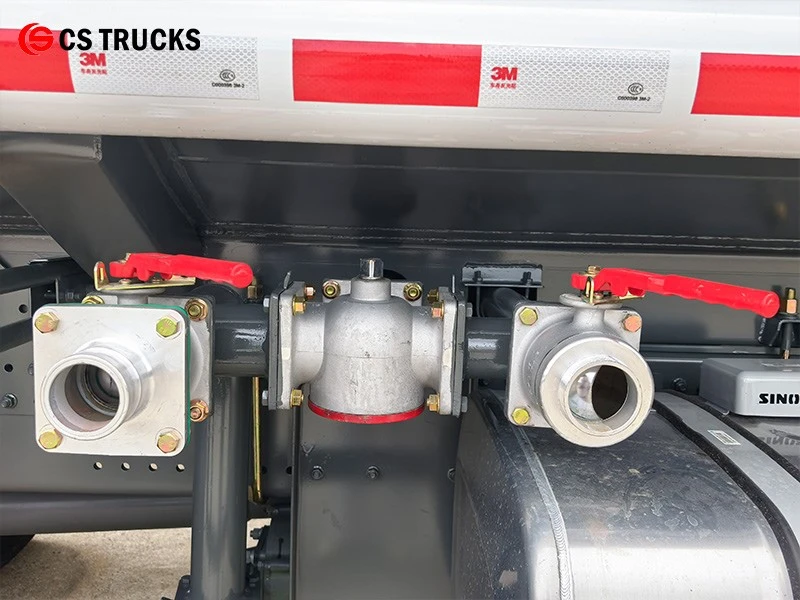

HOWO 6x4 Water Sprinkler Truck Bottom 3-Way Ball Valve Assembly

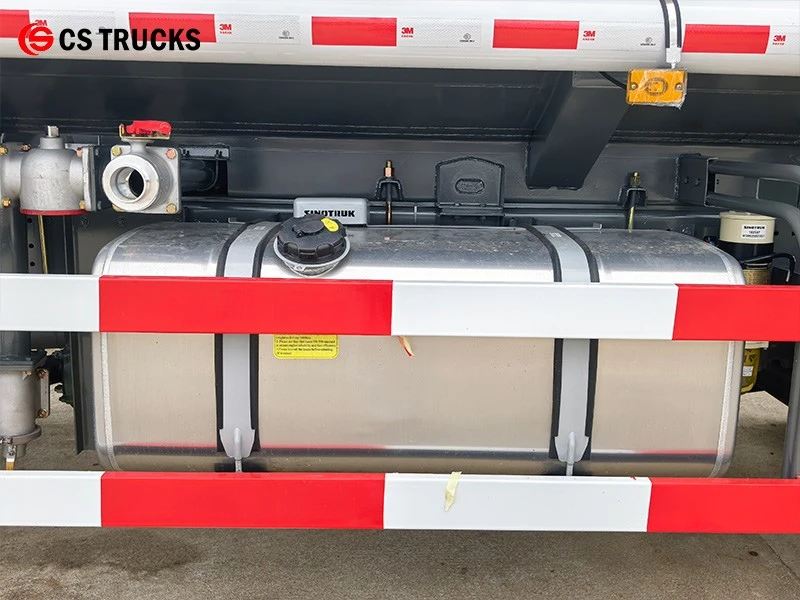

HOWO 6x4 Water Sprinkler Truck Aluminum Fuel Tank Assembly

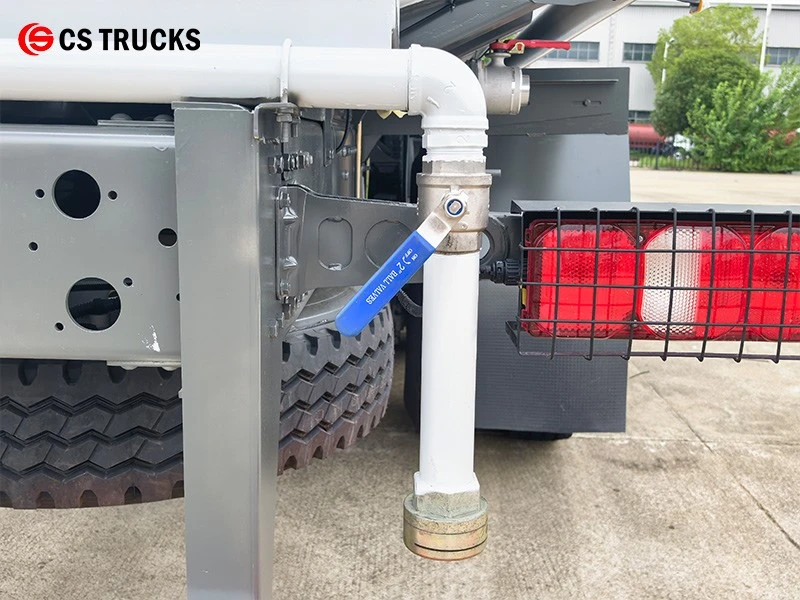

HOWO 6x4 Water Sprinkler Truck Rear Spraying Outlet Ball Valve

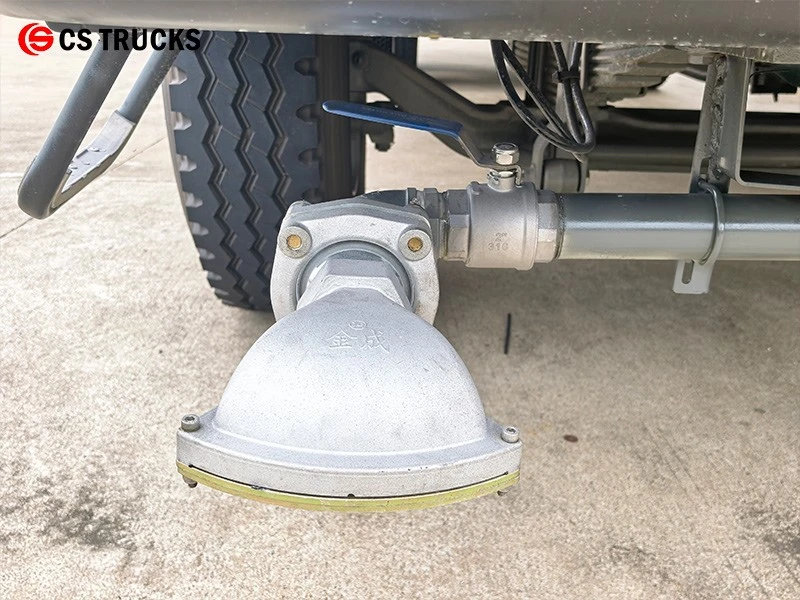

HOWO 6x4 Water Sprinkler Truck Duck Mouth Front Sprinkler Nozzle

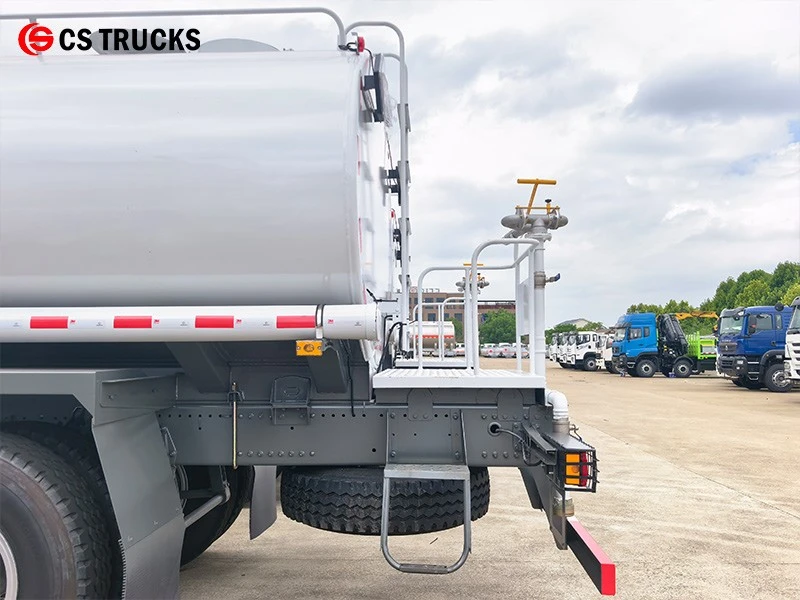

HOWO Water Sprinkler Truck Rear Operation Platform With Handrail & Ladder
