CS Trucks Factory Launch 50 Cbm Garbage Compactor Semitrailer in China

Sep 18, 2023

Compared with fixed compression stations, compression compactor semi trailer do not require civil construction or land construction, have low investment, are easy to relocate, and do not affect residents’ lives and travel. This garbage compactor semitrailers are especially suitable for long-distance transportation of garbage in garbage houses or garbage transfer stations. It can be operated wherever there is a sewage treatment system or pipeline, and the working site can be flexibly changed.

50 cbm garbage compactor semitrailer

CAN electronic control with one-button unloading has better dust-proof, shock-proof, circuit break-proof and waterproof functions. The whole series is equipped with a power take-off buzzer to prevent oil pump and gearbox failure caused by forgetting to turn off the power take-off. Wireless remote control can be installed to achieve remote operation. 28T single-action outriggers are used to support the car body when the tractor head and car body are separated.

50 cbm garbage compactor semitrailer supplier

Hydraulic oil radiator This series of products is mainly used on the circuit of the hydraulic system. During operation, the high-temperature oil in the hydraulic system flows through the hydraulic oil cooling device, and performs efficient heat exchange with the forced flow of cold air in the heat exchanger, reducing the oil temperature to the operating temperature to ensure that the main engine can continue to operate normally, so that the work can successfully launch Even when the vehicle has no air source or a sudden power outage, it can ensure that the rear lifting device will not suddenly fall, and no personnel or equipment accidents will be caused by human misoperation.

50 cbm garbage compactor semitrailer price

50 cbm garbage compactor semitrailer factory

The mechanism is safe, easy to use and reliable. Compared with compressed garbage trucks, with the same distance and the same amount of garbage, long-distance transportation is more advantageous under the standard load condition, and the profit is higher under the standard load condition. One truck has multiple trailers. It is mainly suitable for garbage transfer stations and one-stop service. , reduce working hours.

Item

                Parameter

  Wheelbase(mm)

6290+1310+1310



 Tyre size



12R22.5.12PR







Dimension(mm)



16800*2550*6030







Kerb weight





18200,17700,17000 kgs



根据车辆的实际重量出证

Max weight

40000 kgs



Payload weight

21800,22300,23000 kgs



Compactor size

47 m³



Operation method

Manual+Remode control

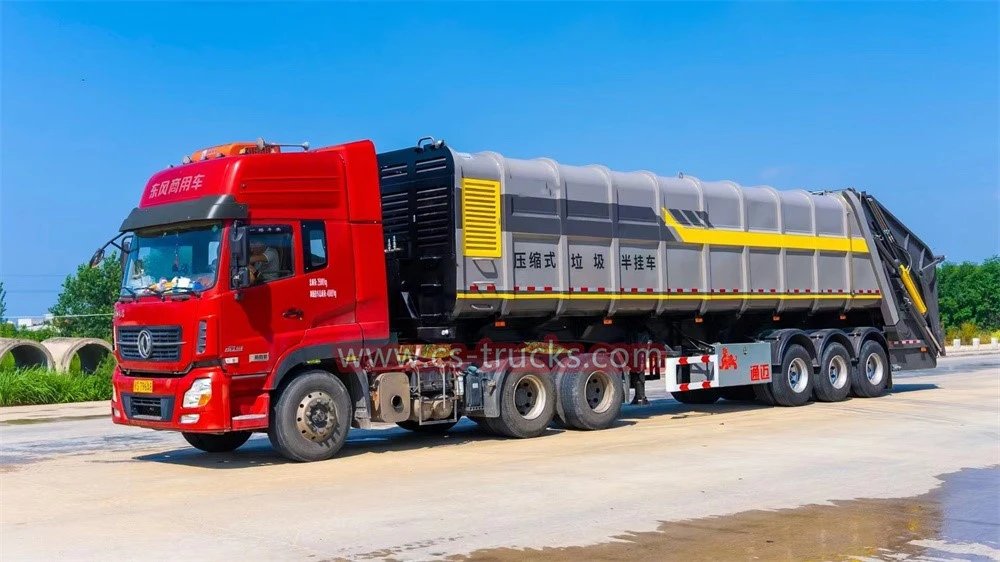

50 cbm garbage compactor semitrailer01

50 cbm garbage compactor semitrailer07

50 cbm garbage compactor semitrailer08
