10 units brand new ISUZU MEC6500 10000L septic tank pumper trucks are successfully finished in CS TRUCKS factory. All 10 units ISUZU vacuum tanker trucks have caught the latest shipment, loaded in China seaport and discharged in Aden seaport Yemen, then will be used in multiple cities in Yemen, including in Aden, Sana'a, Taiz, etc.
Compared with other septic tank pumper trucks all over the world, CS TRUCKS produced vacuum tanker trucks designed based on Top quality ISUZU truck chassis, equipped with ISUZU original 4HK1-TCG60 diesel engine with 205HP (151KW) power output, Euro 6 emission standard, super power output and lower fuel consumption. The vacuum tanker body with 10000 liters capacity, equipped with Italian Battioni Pagani MEC6500 vacuum pump with max capacity 7000L/min, ultimate pressure -0.94 bar, making it an ideal sewage management solution for municipal and industrial applications in Yemen.
10 Units ISUZU MEC6500 10000L Septic Tank Pumper Truck Exported to Yemen
Client: Mr. Hassani
Project: Aden City Sanitation Service Project
Year: 2026, August
▪ Project Background :
Customer Mr. Hassani is engaged in the urban sanitation service industry in Yemen, who recently obtained the municipal sewage management project contract from Aden city government, and urgently needs to purchase a batch of high-efficient and reliable septic tank pumper trucks for operation. Mr. Hassani visited CS TRUCKS factory, inspected the production line and vacuum tanker manufacturing process in detail. He gave high recognition to CS TRUCKS professional manufacturing capability and quality control system, and finally confirmed purchase totally 10 units ISUZU MEC6500 10000L septic tank pumper trucks for his sanitation project. What he need is high efficient, good quality, durable, low maintenance vacuum truck.
1, ISUZU 4x2 drive truck chassis -- 2026 year brand new, No recondioned, No used
2, Vacuum tank -- 10000L capacity, cylindrical shape, 6mm thick carbon steel
3, Vacuum pump -- Italian Battioni Pagani MEC6500, max capacity 7000L/min, ultimate pressure -0.94 bar
4, Safety Device -- Emergency stop equipped for convenient emergency stop all working, safety and reliable
Key Points:
→ Septic Tank Pumper Truck
→ ISUZU Vacuum Tanker Truck
| Name | ISUZU MEC6500 10000L Septic Tank Pumper Truck |
|---|---|
| Vehicle Model | CS5100XW |
| Cabin | ISUZU single cabin with sleeper, A/C |
| Driving | LHD, 4x2 driving |
| Engine | ISUZU 4HK1-TCG60, 205HP (151KW), Euro 6 |
| Transmission | ISUZU MLD 6-speed transmission |
| Wheelbase | 4175 mm |
| Tire | 235/75R17.5, 6+1 units |
| Overall Dimension | 5995×2105×800 mm |
| Tank Capacity | 10,000 Liters |
| Tank Shape | Cylindrical |
| Tank Material | 6mm thick carbon steel |
| Vacuum Pump Brand | Battioni Pagani |
| Vacuum Pump Model | MEC 6500 P LF DX D60 STD |
| Max Capacity | 7000 L/min |
| Ultimate Pressure | -0.94 bar |
| Max Relative Pressure | 1.50 bar |
| Rotation Speed | 1400 rpm |
| Max Power | 19.0 kW |
| Pump Weight | 129 kg |
| Suction Hose | 10 meters, DN100 |
| Discharge Valve | DN100 |
| Clutch | Reinforced diaphragm clutch |
| Painting | 100% customized painting and logos |

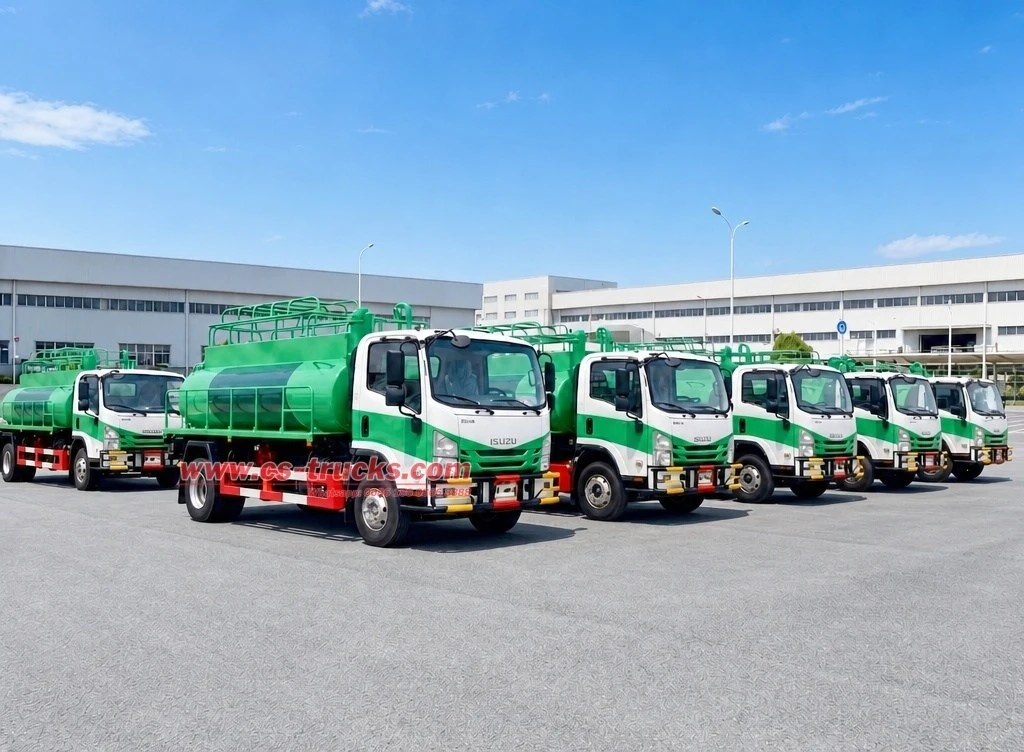

10 Units ISUZU MEC6500 10000L Septic Tank Pumper Truck Export To Yemen

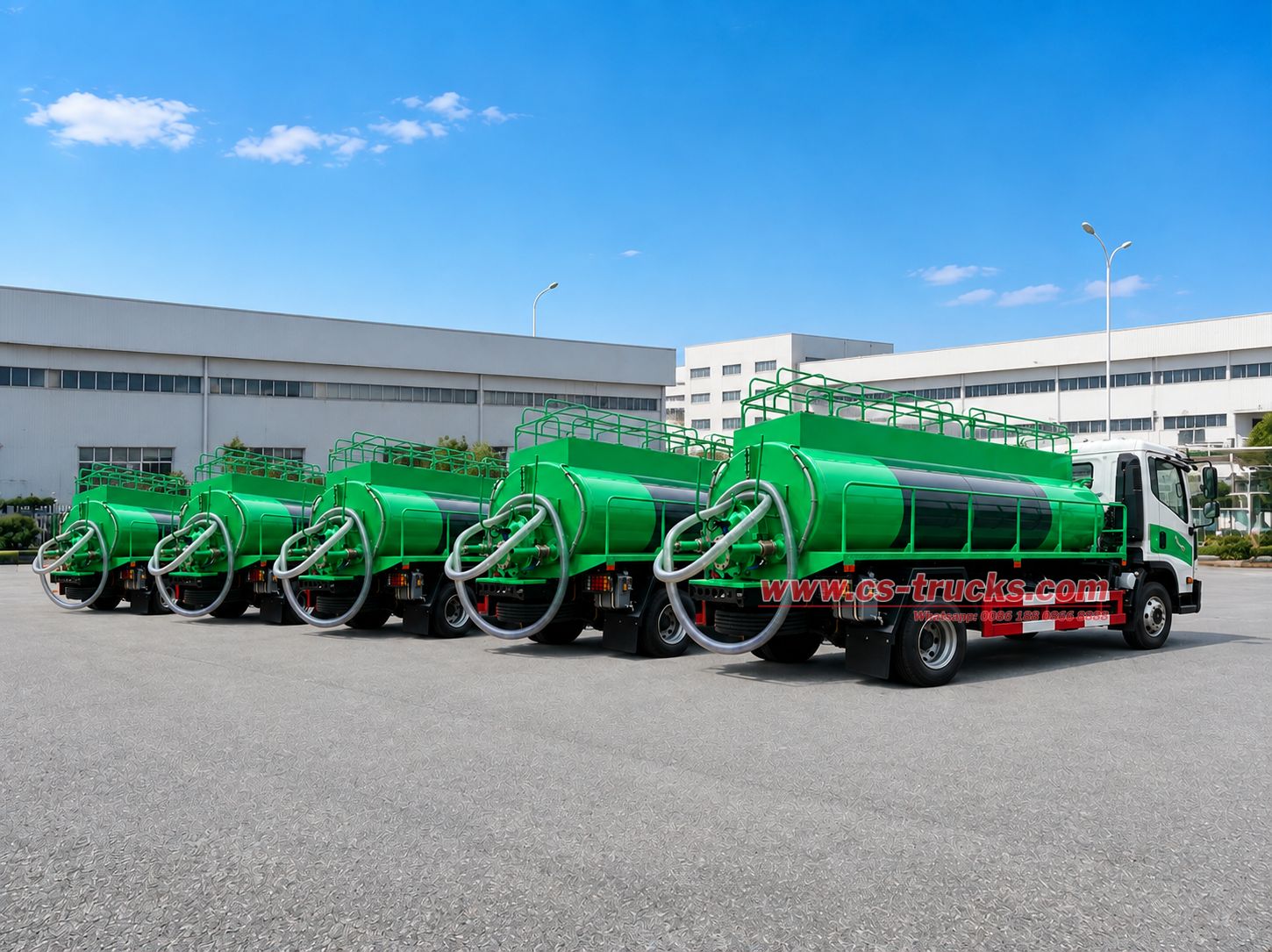

ISUZU MEC6500 10000L Septic Tank Pumper Truck
● Powerful Engine – ISUZU original 4HK1-TCG60 diesel engine delivers 205HP (151KW) with Euro 6 emission standard, providing super power output and lower fuel consumption for municipal sewage operations.
● High-capacity Vacuum Tank – 10000L (10 cubic meters) cylindrical tank manufactured with 6mm thick carbon steel for maximum durability and long service life.
● Italian Vacuum Pump – Battioni Pagani MEC6500 vacuum pump with max capacity 7000L/min, ultimate pressure -0.94 bar, ensuring high-efficiency suction and discharge performance.
100% Customized Vacuum Tanker Body
● Vacuum Tank – The 10000L cylindrical tank with 6mm thick carbon steel ensures durability and safety during sewage collection and transportation.
● Suction Hose – 10 meters suction hose with DN100 for efficient and flexible suction operation in various working conditions.

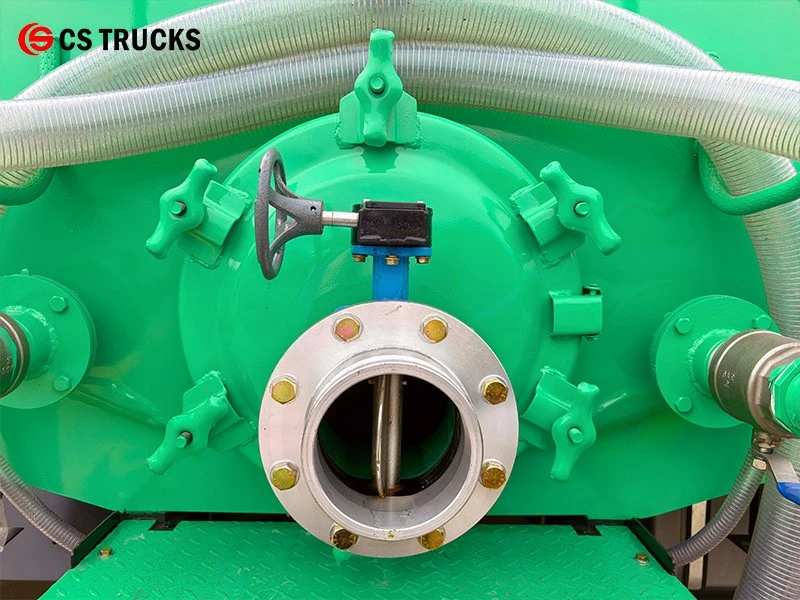

● Discharge Valve – DN100 discharge valve provides quick and complete unloading of collected sewage.

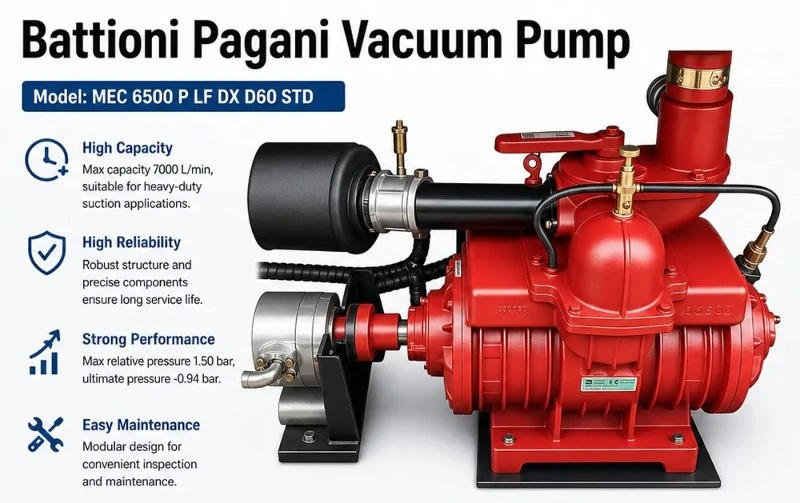

Italian Battioni Pagani Vacuum Pump System
● High Efficiency – MEC6500 vacuum pump with max capacity 7000L/min ensures rapid suction and discharge, significantly improving working efficiency.
● Strong Suction Power – Ultimate pressure -0.94 bar and max relative pressure 1.50 bar provide powerful suction capability for deep sewage collection.
● Reliable Performance – Rotation speed 1400 rpm, max power 19.0 kW ensures stable and reliable operation under continuous heavy-duty working conditions.
Dual Control System for Safe Operation
● Electric-Hydraulic Control – Provides precise and convenient operation with smooth control for all vacuum and pumping functions.
● Manual Hydraulic Control – Backup manual control ensures reliable operation in all conditions.
● Emergency Stop – Emergency stop button allows for instant emergency shutdown of all working operations, ensuring maximum safety during sewage collection and discharge.
100% Customized Painting and Logos
All 10 units feature 100% customized painting and logos as per customer requirements, fully reflecting the client's corporate identity and brand image. High-intensity lighting system further guarantees efficient and safe operation in various weather and road conditions.
▪ Working Principle :
CS TRUCKS professional Engineering Department 100% customized 10 units ISUZU MEC6500 10000L septic tank pumper truck, mounted on ISUZU LHD 4x2 truck chassis. Matched with ISUZU original 4HK1-TCG60 diesel engine 205HP (151KW), Euro 6 emission standard, ISUZU MLD 6-speed transmission. Vacuum tank with cylindrical shape, 10000L capacity, 6mm thick carbon steel, equipped with Italian Battioni Pagani MEC6500 vacuum pump with max capacity 7000L/min, ultimate pressure -0.94 bar, max relative pressure 1.50 bar, rotation speed 1400 rpm, max power 19.0 kW, suction hose 10 meters DN100, discharge valve DN100. As for painting, 100% customized as per customer requirements. Below are official technical drawings for the ISUZU MEC6500 10000L septic tank pumper truck and working principle.
Structure Diagram of ISUZU Septic Tank Pumper Truck
ISUZU septic tank pumper truck working principle diagram
▪ Product Features :
ISUZU Septic Tank Pumper Truck Vacuum Pump System
♦ Italian Battioni Pagani MEC6500 vacuum pump with max capacity 7000L/min for high-efficiency suction and discharge.
♦ Ultimate pressure -0.94 bar and max relative pressure 1.50 bar provide powerful suction capability.
♦ Rotation speed 1400 rpm with max power 19.0 kW ensures stable and reliable operation.
ISUZU Septic Tank Pumper Truck Control Console
♦ Integrated electric-hydraulic control and manual hydraulic control dual system provides precise and reliable operation.
♦ Control panel available in English or customer's language for easy operation.
♦ Interfaces with the vehicle's hydraulic system to ensure reliable operation in municipal environments.
ISUZU Septic Tank Pumper Truck Vacuum Tank
♦ High-strength carbon steel tank with 6mm thickness ensures durability and safety during sewage collection process.
♦ Cylindrical tank design with 10000L capacity for efficient storage and transportation.
♦ DN100 discharge valve and 10m suction hose provide flexible and convenient operation.
